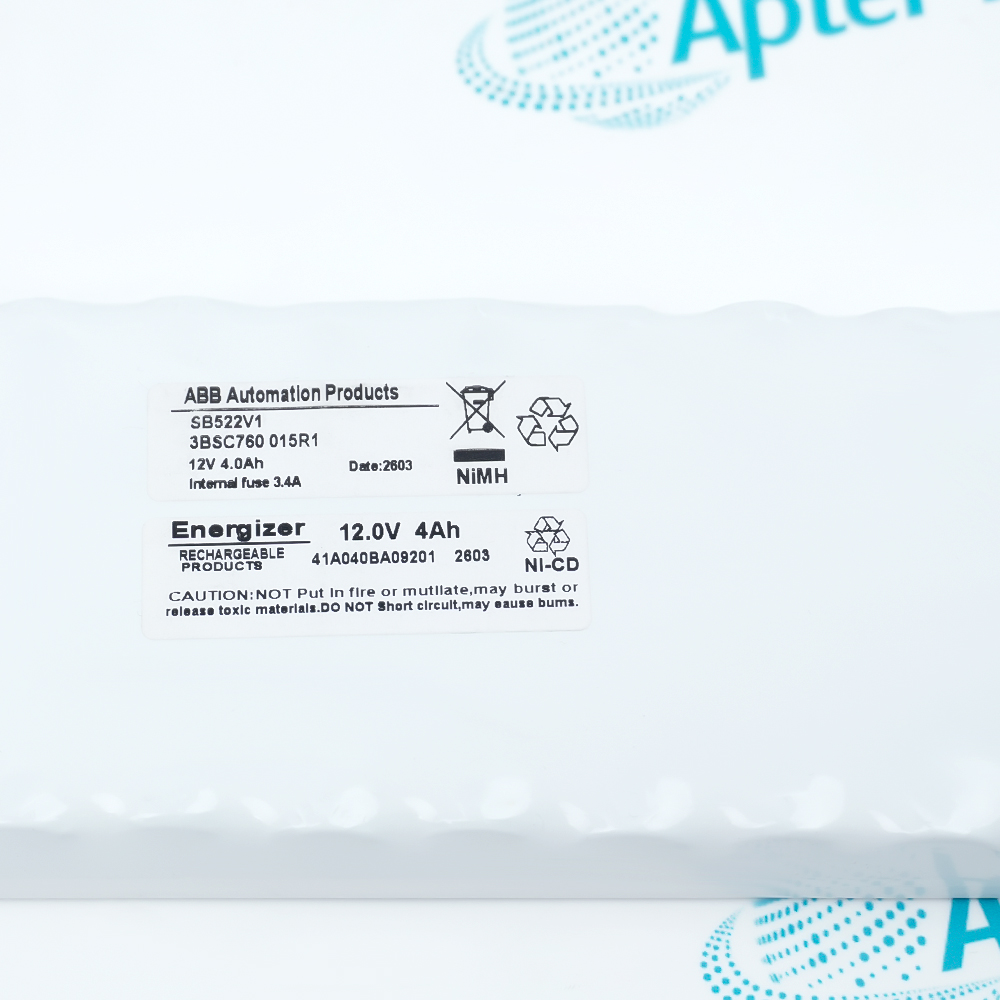

ABB SB522V1 3BSC760015R1 is a 12 V, 4 Ah NiMH battery unit for AC 400 control systems.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SB522V1 3BSC760015R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SB522V1 3BSC760015R1

  • Manufacturer:
    ABB
  • Part Number:
    SB522V1 3BSC760015R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    AC 400 System 12 V 4 Ah NiMH Battery Unit
  • Stock:
    1
  • Battery Chemistry:
    Nickel-metal hydride (NiMH)
  • Nominal Voltage:
    12 V
  • Capacity:
    4 Ah
  • Fuse Rating:
    3.4 A
  • Required Charger:
    SB518 3BSC610071R1
  • Stock Recharge Interval:
    Every six months
  • Package References:
    SB520K02, SB522K01, AC410B12, AC410B16
  • Dangerous Goods Note:
    Not restricted under Special Provision A199
  • Dimensions:
    34 × 7 × 1.8 cm
  • Weight:
    1.205 kg
  • Tariff Code:
    8507500000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Battery matching Charging and storage Installation checks Application
  • ABB SB522V1 nickel-metal-hydride battery unit for AC 400 systems
  • Exact ABB product ID 3BSC760015R1 with 12 V, 4 Ah capacity and 3.4 A fuse
  • Used with SB518 battery charger 3BSC610071R1 and recharged every six months in stock

SB522V1 3BSC760015R1 is an ABB battery unit used in documented AC 400 power and backup assemblies.

The official product details specify nickel-metal-hydride chemistry, 12 V nominal voltage, 4 Ah capacity, a 3.4 A fuse, and SB518 charger 3BSC610071R1.

Before replacement, confirm the complete product ID, charger, fuse, battery condition, mounting space, recharge history, and the applicable SB520K02, SB522K01, AC410B12, or AC410B16 package.

Availability, condition, price, and shipping time for SB522V1 3BSC760015R1 are confirmed during quotation.

ABB SB522V1 3BSC760015R1 AC 400 Battery Unit Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Match the complete SB522V1 3BSC760015R1 product identity
  • Confirm 12 V, 4 Ah and nickel-metal-hydride chemistry
  • Do not select a replacement battery from voltage alone
  • Use the documented SB518 battery charger 3BSC610071R1
  • Recharge batteries held in stock at six-month intervals
  • Check battery condition and recharge history before installation
  • Verify the 3.4 A fuse, polarity, connector and mounting envelope
  • Match the battery to the installed ABB power-package reference
  • Inspect the charger wiring and fuse holder before energizing
  • AC 400 control-system battery backup
  • SB520K02 and SB522K01 power-package service
  • AC410B12 and AC410B16 package replacement
Description
SB522V1 3BSC760015R1 is an ABB nickel-metal-hydride battery unit used in documented AC 400 control-system assemblies.

The unit is rated at 12 V and 4 Ah, incorporates a 3.4 A fuse, and is matched to the ABB SB518 battery charger 3BSC610071R1.

Before replacement, verify the complete product ID, battery chemistry, charger, fuse, polarity, connector arrangement, physical fit, recharge history, and installed AC 400 package.
Alternative Names
SB522V1 3BSC760015R1 SB522V1-3BSC760015R1 SB522V1 / 3BSC760015R1 3BSC760015R1 SB522V1 ABB SB522V1 3BSC760015R1 ABB SB522V1-3BSC760015R1 ABB 3BSC760015R1 SB522V1 SB522V1 3BSC 760015 R1
Technical notes
ABB SB522V1 3BSC760015R1 is a 12 V, 4 Ah NiMH battery unit; verify SB518 charger 3BSC610071R1, 3.4 A fuse, recharge history, polarity, and package compatibility.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a buyer confirm that ABB SB522V1 3BSC760015R1 matches the installed battery package?
Match the complete ABB product ID, 12 V rating, 4 Ah capacity, NiMH chemistry, connector arrangement, physical envelope, and the installed AC 400 package reference before ordering.
What charger compatibility must be checked before purchasing ABB SB522V1 3BSC760015R1?
The installed charging circuit must correspond to ABB SB518 charger 3BSC610071R1; confirm the charger label and wiring rather than selecting by voltage alone.
Can a same-voltage battery be used instead of ABB SB522V1 3BSC760015R1?
Do not select a replacement by voltage alone. The battery chemistry, capacity, connector arrangement, fuse protection, physical fit, and compatibility with the SB518 charging circuit must all match the original installation.
What protective component should be confirmed with ABB SB522V1 3BSC760015R1?
Verify the documented 3.4 A fuse and inspect the holder, polarity, and wiring condition before energizing the replacement battery.
What transport evidence should accompany ABB SB522V1 3BSC760015R1?
Retain the current carrier documentation and ABB battery identification. ABB cites Special Provision A199, but the shipper must still apply the carrier's current rules.
Which equipment references should be checked before allocating ABB SB522V1 3BSC760015R1?
Match the installed package against the official SB520K02, SB522K01, AC410B12, or AC410B16 references and confirm the actual charger arrangement.
What should be checked before fitting ABB SB522V1 3BSC760015R1?
Verify the full product ID, NiMH chemistry, charger, fuse, polarity, physical envelope, charge condition, and installation package.
