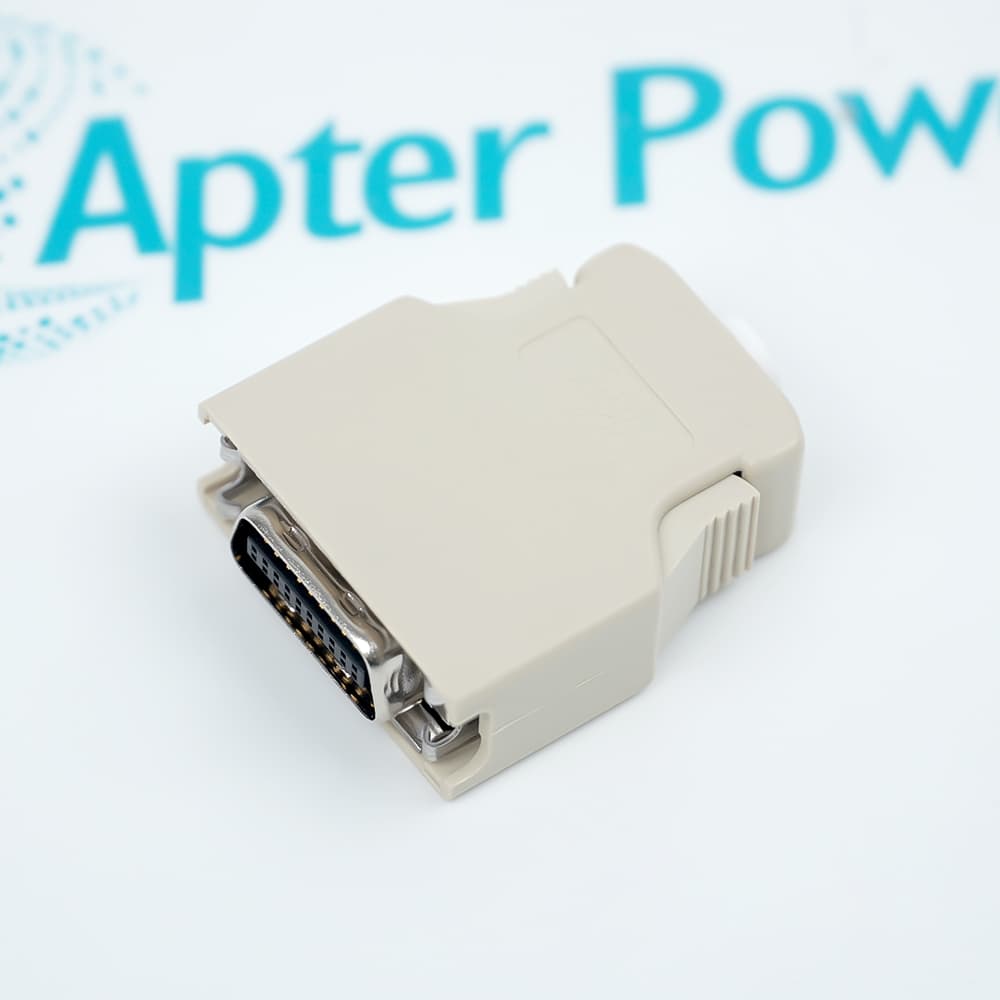

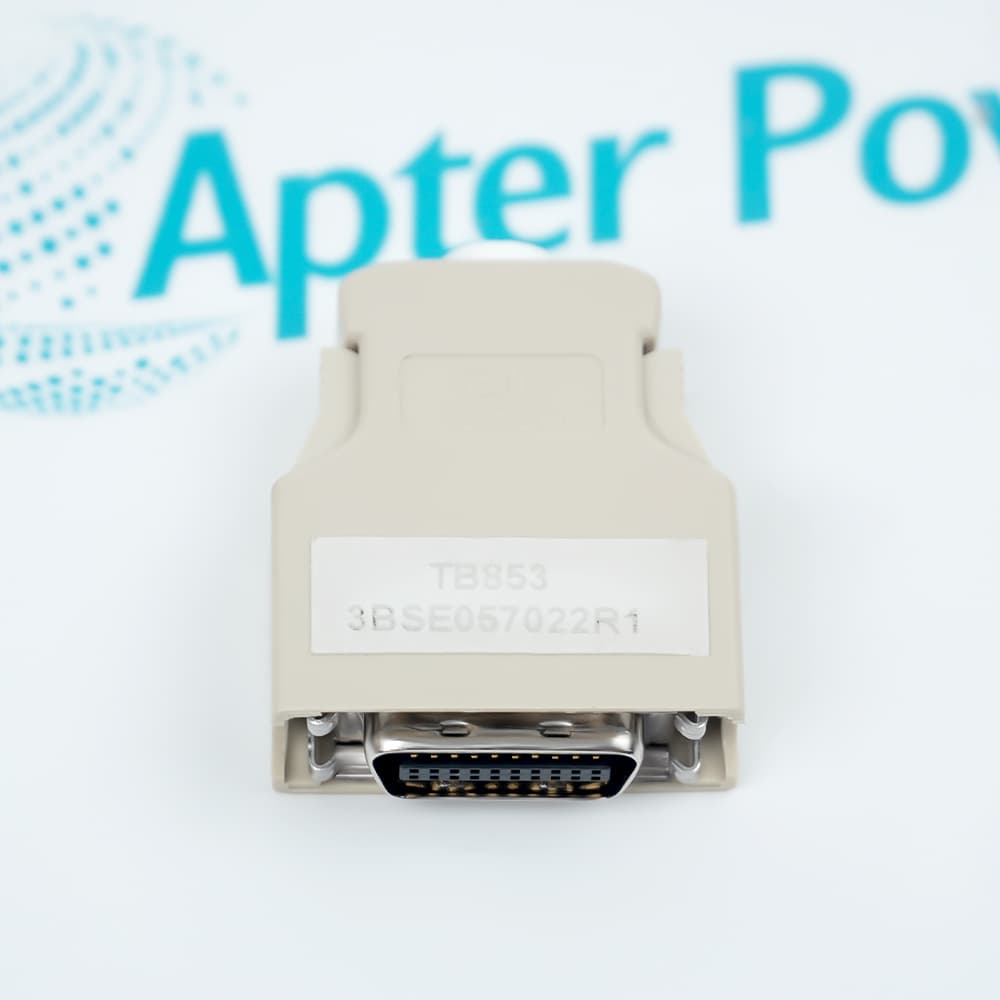

ABB TB853 3BSE057022R1 is an RCU Control Link terminator plug used when a PM891 processor operates in a single-controller configuration. It plugs into the RCU Control port at the top of the PM891.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for TB853 3BSE057022R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TB853 3BSE057022R1

  • Manufacturer:
    ABB
  • Part Number:
    TB853 3BSE057022R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    RCU Control Link terminator plug for a single PM891 controller configuration
  • Stock:
    1
  • Type designation:
    TB853
  • Article number:
    3BSE057022R1
  • Function:
    RCU Control Link terminator plug
  • Controller association:
    PM891
  • Configuration:
    Single-controller configuration
  • Installation point:
    RCU Control port at the top of PM891
  • Redundant PM891 arrangement:
    Uses TK855 RCU Data Link and TK856 RCU Control Link instead
  • Tariff Code:
    8536909000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals PM891 Setup Redundancy Service Checks Application
  • RCU Control Link terminator plug for AC 800M PM891
  • Required for the documented single-controller configuration
  • Identified by both TB853 and article number 3BSE057022R1

The ABB TB853 3BSE057022R1 terminates the RCU Control Link port on a single PM891 controller.

It plugs into the RCU Control port at the top of the processor and completes the documented single-controller hardware arrangement.

Confirm the PM891 configuration, port identity, connector condition, type designation, and full article number before replacement.

Availability, condition, price, and shipping time for ABB TB853 3BSE057022R1 RCU Control Link terminator are confirmed during quotation.

Verified resources and support links for ABB TB853 3BSE057022R1:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Install in the PM891 RCU Control port for single operation
  • Confirm the CPU is not configured as one half of a redundant pair
  • Keep the connector fully seated and mechanically undamaged
  • Do not use the terminator as a link between redundant processors
  • Use the documented TK855 RCU Data Link for a redundant PM891 pair
  • Use the documented TK856 RCU Control Link for a redundant PM891 pair
  • Verify TB853 and 3BSE057022R1 on the item and quotation
  • Inspect contacts, keying, shell, retention, and PM891 port condition
  • Review PM891 diagnostics after installation before returning to service
  • Single-controller PM891 configurations in AC 800M systems
  • Termination of the unused RCU Control Link on a non-redundant PM891 installation
  • PM891 installations where no redundant partner is connected through the RCU Control Link
Description
The ABB TB853 3BSE057022R1 is the RCU Control Link terminator plug documented for an AC 800M PM891 processor operating in a single-controller configuration.

The terminator is installed in the RCU Control port at the top of the PM891. It is not the interconnection hardware used between two redundant PM891 processors; the redundant arrangement uses the documented TK855 RCU Data Link and TK856 RCU Control Link cables.

Before replacement, confirm both the type designation and article number, inspect the PM891 port and the terminator shell, and verify whether the controller is configured as a single processor or a redundant pair.
Alternative Names
ABB TB853 3BSE057022R1 ABB 3BSE057022R1 ABB TB853 TB853 RCU Control Link Terminator 3BSE057022R1 RCU Terminator TB853 3BSE 057022 R1
Technical notes
ABB TB853 3BSE057022R1 terminates the PM891 RCU Control Link only in single-controller configuration; redundant PM891 pairs use the documented TK855 and TK856 links instead.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Where is ABB TB853 3BSE057022R1 installed on a PM891?
ABB TB853 3BSE057022R1 plugs into the RCU Control port at the top of a PM891 that is operating as a single controller. Confirm the port label before insertion.
Can ABB TB853 3BSE057022R1 be used to connect two redundant PM891 processors?
No. The documented redundant PM891 pair uses TK855 for the RCU Data Link and TK856 for the RCU Control Link. ABB TB853 3BSE057022R1 terminates the control-link port in a single configuration.
Is ABB TB853 3BSE057022R1 interchangeable with TB852?
Do not assume interchangeability. ABB assigns different type designations to different link functions and controller generations. Match the PM891 hardware guide, port, type code, and article number.
What should be checked if a PM891 reports a fault after ABB TB853 3BSE057022R1 is fitted?
Verify that the CPU is configured for single operation, reseat the terminator, inspect the port and pins, check controller diagnostics, and confirm that no redundant-link configuration remains enabled.
Is ABB TB853 3BSE057022R1 always included with a PM891?
Do not assume it is included with a CPU or spare package. Check the quotation, packing list, and existing cabinet hardware; list the terminator separately when its supply scope matters.
Can a single PM891 operate without ABB TB853 3BSE057022R1 installed?
ABB documents the terminator as required for a PM891 operating in a single configuration. Do not leave the RCU Control port unterminated or use an improvised substitute; install the specified TB853 device.
What information is needed to quote ABB TB853 3BSE057022R1 correctly?
Provide both TB853 and 3BSE057022R1, the PM891 article number, single or redundant configuration, port photos, existing terminator photos, required quantity, and whether related RCU cables are needed.
