    Apter Power specializes in sourcing obsolete ABB AC500 series automation hardware, supplying genuine TA524 wall mounting plates to secure your legacy PLC hardware configurations and prevent mechanical vibration damage without costly redesigns.

TA524 1SAP180600R0001

/ 4.9
1001 reviews | Need a Specific Revision?

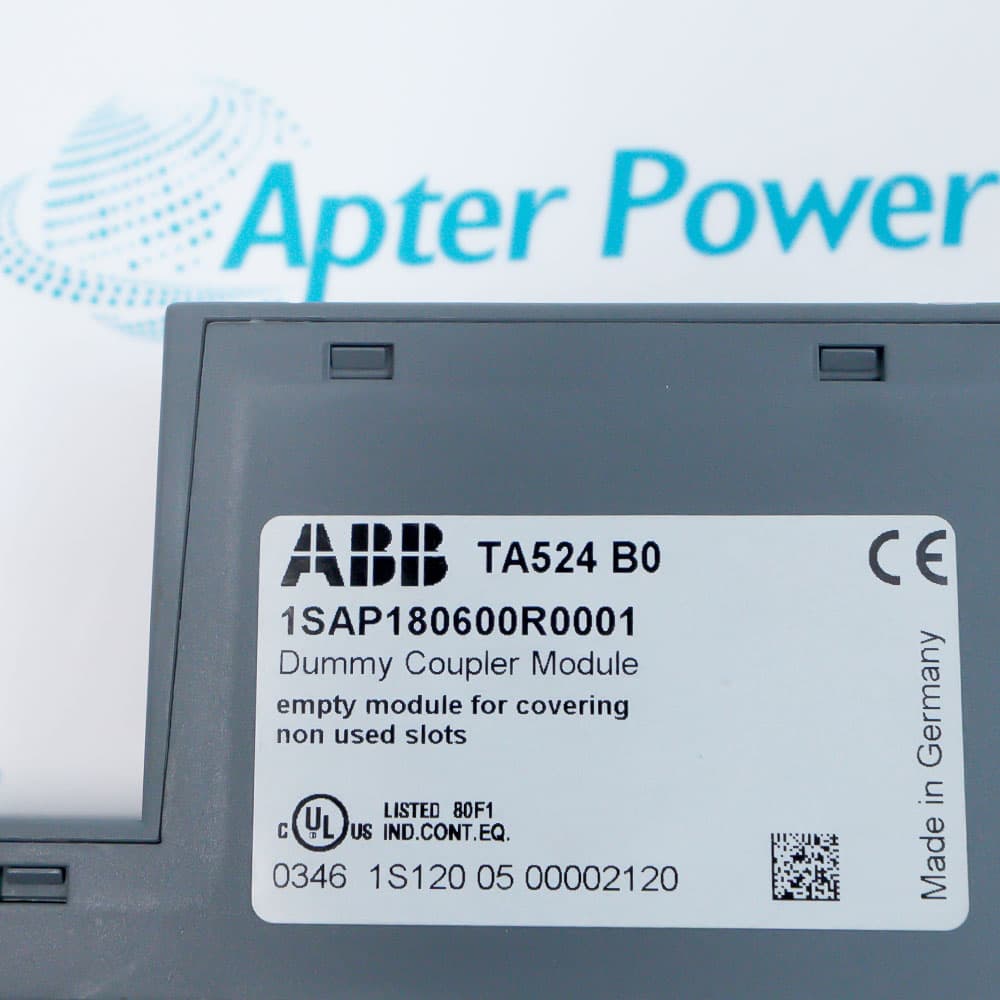

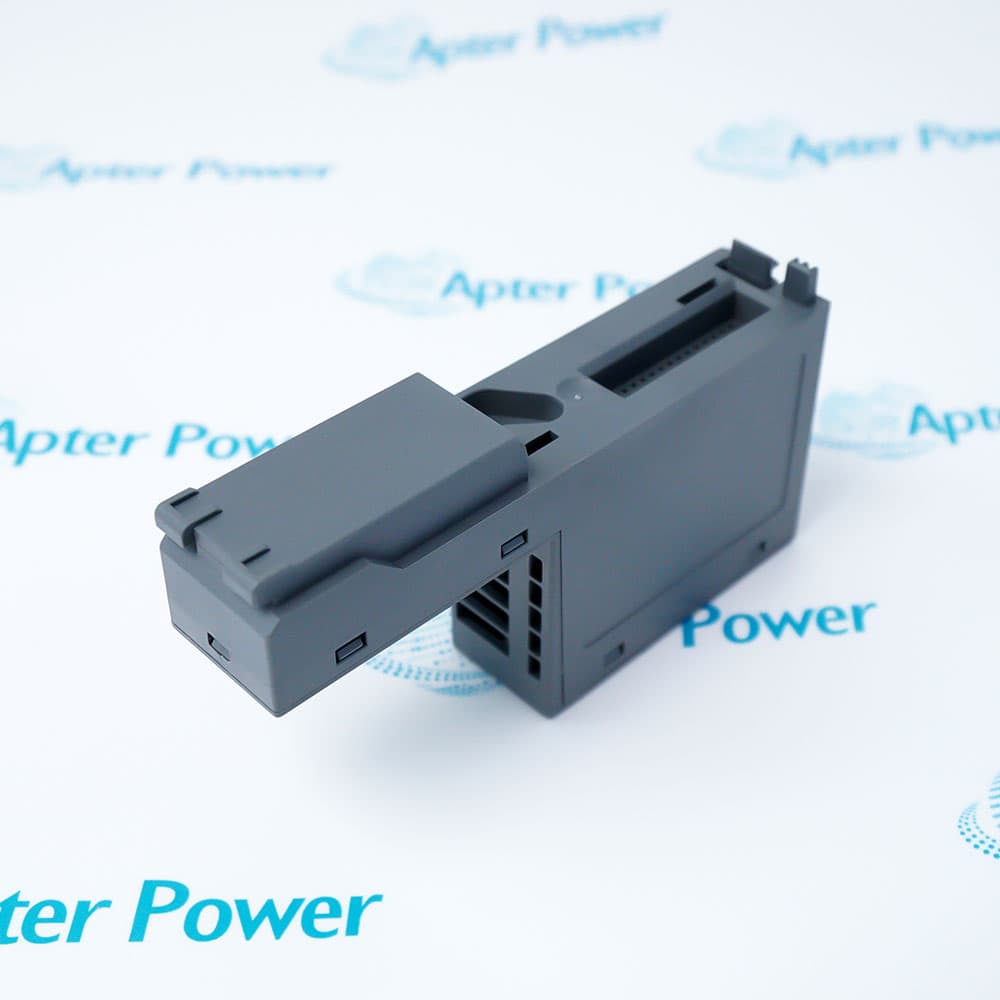

The ABB TA524 1SAP180600R0001 is a genuine industrial-grade dummy coupler module designed to protect empty communication slots on the AC500 PLC terminal bases.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for TA524 1SAP180600R0001
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TA524 1SAP180600R0001

  • Manufacturer:
    ABB
  • Part Number:
    TA524 1SAP180600R0001
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    PLC Dummy Coupler Module
  • Stock:
    1
  • Product Type:
    PLC-AC500 Accessory / Distributed Automation
  • Operating Ambient Temperature:
    0℃ to +60℃
  • Storage Ambient Temperature:
    -40℃ to ++70℃
  • Maximum Operating Altitude:
    Up to 2000 m
  • Programming Software Integration:
    Backplane mapped via PS501-PROG Control Builder Plus
  • Weight:
    0.06 kg
  • Estimated shipping dimensions:
    13.5x2.8x7.2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Operating Environment Safety & Compliance

Features:

  • Passive Protection Architecture
  • Tool-Free Mechanical Snapping
  • Phased System Future-Proofing
The ABB TA524 1SAP180600R0001 offers specialized physical isolation for unpopulated slots on the AC500 platform. Acting as a robust physical barrier, it effectively mitigates the risks of electrical short circuits caused by conductive dust or misplaced wiring tools during routine panel maintenance, keeping the rest of your active network online.

Engineered with identical mounting guides to active communication couplers, the ABB TA524 1SAP180600R0001 delivers effortless snap-on deployment. It securely locks onto the TB5xx series terminal bases without needing screws or specialized tools, providing an airtight aesthetic alignment and rigid mechanical stability inside high-vibration cabinets.

Utilizing the ABB TA524 1SAP180600R0001 allows system integrators to pre-wire terminal bases for multi-protocol networks (such as Profinet, Modbus, or EtherCAT) during initial build phases. Unused slots remain shielded by this module until active couplers are deployed, drastically lowering future field retrofitting costs.

The TA524 1SAP180600R0001 ABB AC500 PLC Dummy Coupler Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB TA524 1SAP180600R0001 AC500 PLC Dummy Coupler Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB TA524 1SAP180600R0001 AC500 PLC Dummy Coupler Module

General

  • Manufacturer ABB
  • Model TA524 1SAP180600R0001
  • Condition New Original ready stock
  • Product Family DC532 1SAP240100R0001,DX522-XC 1SAP445200R0001,DA501 1SAP250700R0001
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Phased Industrial Control Infrastructure: Ideal for large-scale wastewater treatment, power distribution, or automotive lines where terminal bases are pre-installed, but communication extensions (like Ethernet or fieldbus modules) are deferred to later project phases.
  • High-Vibration Heavy Equipment Panels: Widely deployed in marine vessel engines, oil & gas drilling rigs, and heavy mining machinery panels to mechanically anchor empty slots, ensuring terminal pins do not flex or deform under continuous physical vibration.
  • Cleanroom & Semi-Dusty Facilities: Utilized in food and beverage packaging plants and pharmaceutical manufacturing environments to prevent static dust accumulation inside open PLC backplanes, keeping the active control system uncontaminated.
  • Standard OEM Control Enclosures: Standardized by machinery OEMs who export pre-configured control cabinets globally, ensuring that any unpopulated communication slot remains protected and professional-looking during shipping.
  • Thermal Resiliency: Built to operate seamlessly in temperature-controlled or standard ventilated industrial panels from 0°C to +60°C, and can endure storage conditions down to -40°C or up to +70°C without polymer warping.
  • Altitude and Atmospheric Tolerance: Validated for safe operations at elevations up to 2000 m above sea level, ensuring stable physical properties across diverse geographic plant layouts.
  • Non-Electrical Interferences: Because it does not emit electromagnetic interference (EMI) or generate heat, it does not alter thermal calculations or noise levels inside tightly packed, high-density PLC enclosures.
  • Corrosion and Moisture Resistance: The composite shell material resists typical factory floor humidity patterns, providing consistent mechanical clip tension over decades of active service.
  • Touch-Safe Personnel Protection: Achieves an official IP20 degree of protection, meaning it blocks fingers or tools larger than 12.5 mm from touching bare internal bus traces, protecting operators during diagnostic checkups.
  • Rigid Maritime Approvals: Confirmed compliant with major international classification registries (such as GL, BV, ABS, RINA, and RMRS), making it authorized for marine propulsion, offshore cargo, and ballast control networks.
  • Hazardous Substance Mitigation: Fully adheres to strict RoHS environmental guidelines, ensuring that the chemical composition of the module housing remains free of restricted heavy metals or toxic flame retardants.
  • Electrical Code Harmonization: Certified under UL and cUL standards, allowing North American and European panel builders to smoothly pass factory safety audits (such as UL 508A) without component-level compliance delays.
Description
The ABB TA524 1SAP180600R0001 serves as a vital mechanical filler for unpopulated decentralized communication slots on terminal bases like the TB5xx series. It prevents industrial contaminants from degrading sensitive internal backplane connectors, significantly extending the lifespan of your core control components.

Featuring a ruggedized IP20 housing, the ABB TA524 1SAP180600R0001 acts as a durable shield against dust, airborne particulate matter, and accidental human contact with live circuitry. This ensures your control panel maintains compliant insulation and safety standards even during phased system expansions.

Specifically manufactured by ABB for the AC500 platform, the ABB TA524 1SAP180600R0001 mirrors the exact physical form factor of active communication couplers. It snaps effortlessly onto the terminal block without tools, allowing plant engineers to plan for future network upgrades without sacrificing current operational safety.

Built to meet strict marine and industrial standards, the ABB TA524 1SAP180600R0001 carries major certifications including CE, cULus, GL, and ABS. It represents a highly cost-effective insurance policy against unexpected system downtime caused by exposed backplane connectors in harsh operating environments.
Alternative Names
TA524 1SAP180600R0001 TA524 ISAPI80600R000I TA524 1SAP18O6OOROOO1 TA524 ISAPI806OOROOOI DC532 1SAP240100R0001 DX522-XC 1SAP445200R0001 DA501 1SAP250700R0001
Technical notes
The ABB TA524 1SAP180600R0001 is a purely mechanical slot-cover accessory that carries no electrical load, consumes zero backplane current, and requires no software or firmware configuration within the PS501 Control Builder environment. Plant operators must ensure that the ABB TA524 1SAP180600R0001 is securely latched into place before powering up the AC500 terminal base to maintain the system's IP20 touch-safe rating.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does the ABB TA524 1SAP180600R0001 require a hardcoded node address or parameter configuration within PS501 Control Builder Plus?
No, the ABB TA524 1SAP180600R0001 is a completely passive mechanical device. It does not occupy any network mapping, registers, or I/O parameters within the software, allowing the backplane to smoothly pass data without software configuration.
How does the presence of the ABB TA524 1SAP180600R0001 impact the internal bus communication speed or diagnostic health monitoring of adjacent couplers?
The ABB TA524 1SAP180600R0001 has zero electrical interaction with the backplane bus. It does not introduce signal attenuation, impede transmission continuity, or trigger slot-empty diagnostic faults on your AC500 master CPU.
Can the ABB TA524 1SAP180600R0001 be used on standard DIN rails as an independent separator, or is it exclusive to specific terminal blocks?
The ABB TA524 1SAP180600R0001 is structurally designed to fit into the dedicated communication slots of the AC500 terminal bases (such as the TB5xx, TB5xxx, or TF5xxx series). It cannot be mounted independently to a DIN rail without its native terminal base.
Does the passive circuit design of the ABB TA524 1SAP180600R0001 support hot-swapping while the PLC rack is fully energized?
While the ABB TA524 1SAP180600R0001 carries no active voltage, it is highly recommended to follow standard plant procedures. Inserting or removing the module on a live backplane should be done carefully to prevent tools from accidentally contacting exposed pins on the terminal base.
If a plant layout requires a high-temperature washdown or high-dust enclosure, how does the ABB TA524 1SAP180600R0001 maintain safety compliance?
The ABB TA524 1SAP180600R0001 provides an IP20 level of basic touch-proof protection. For harsh washdown or extreme dust environments, it must be installed inside an appropriately rated NEMA or IP65/66 industrial control cabinet.
