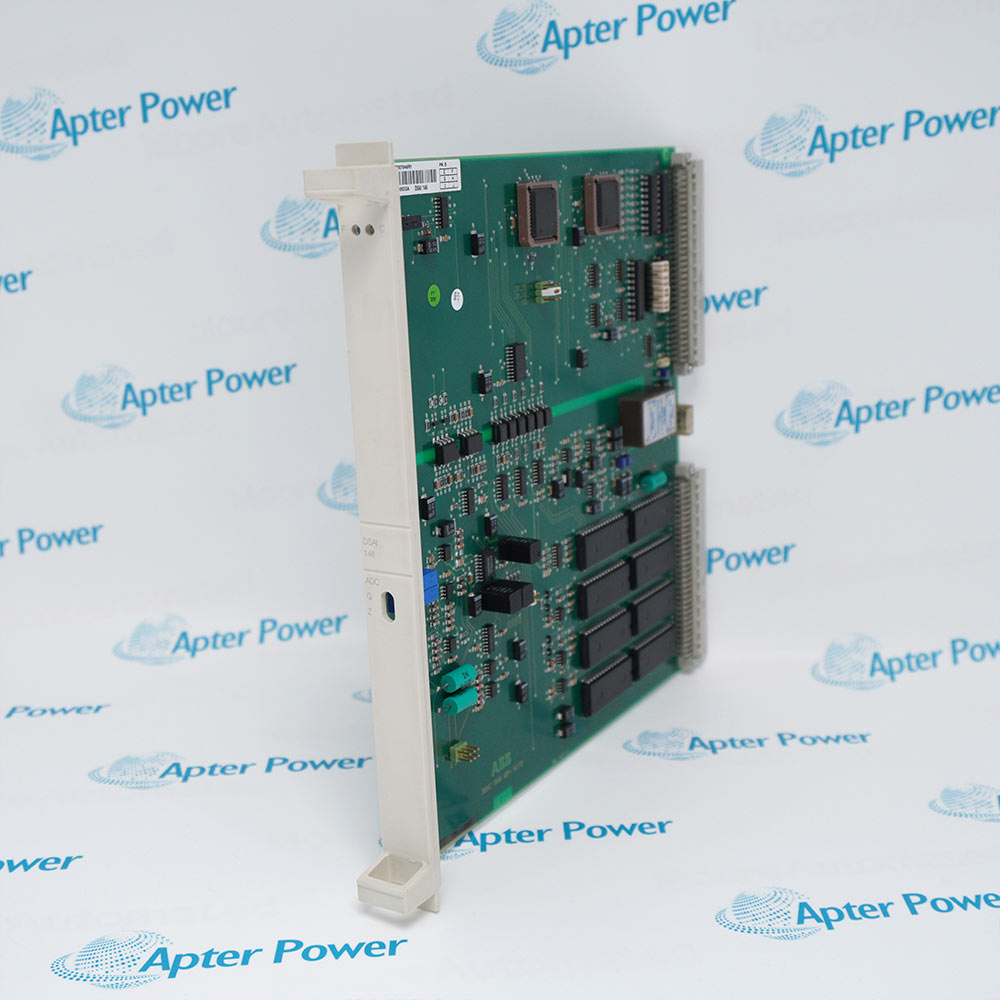

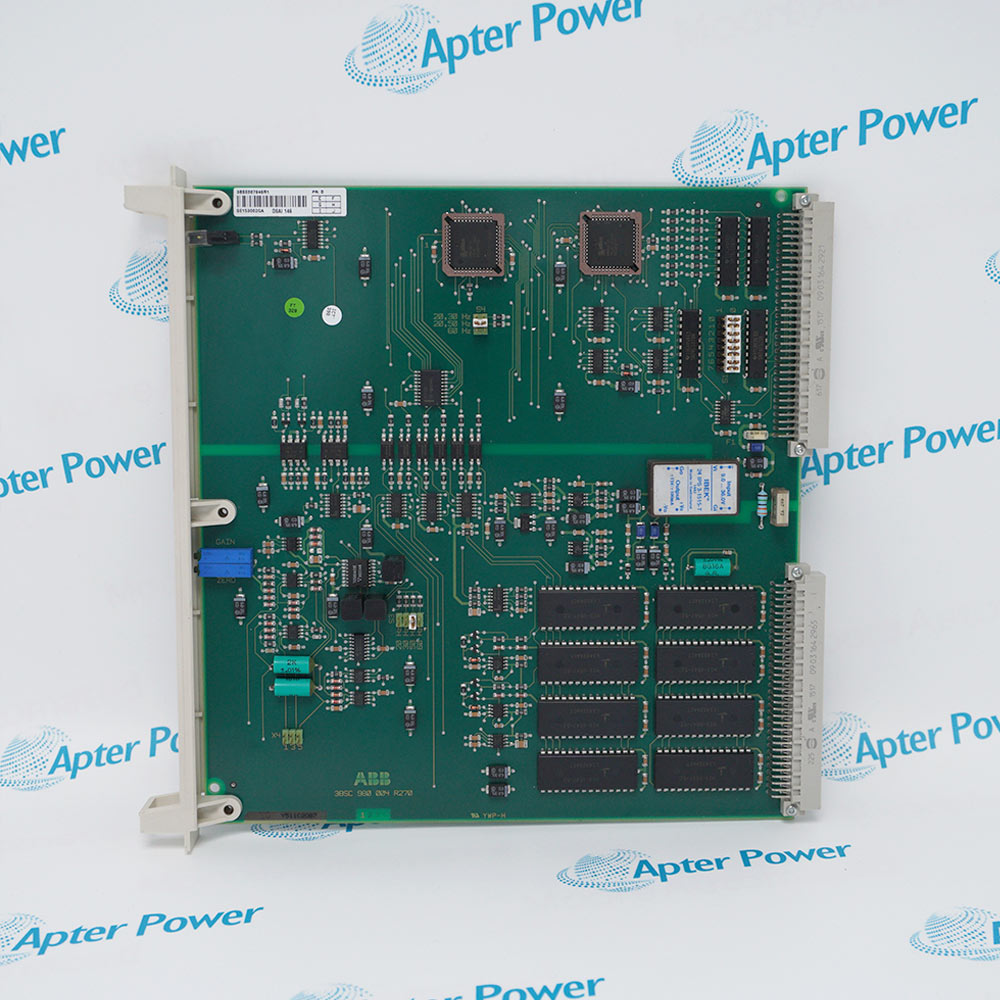

        DSAI146

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The DSAI146 is an ABB analog input unit with 31 channels for Pt100 RTD temperature sensors, designed for S100 I/O systems and Advant controllers. It belongs to ABB's S100 I/O family and is compatible with Advant Controller 450 (v2.3), AC460, MasterPiece 200/200/1, 800xA, and Compact Product Suite.
        Get a quick price for DSAI146
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for DSAI146

        • Manufacturer:
          ABB
        • Part Number:
          DSAI146
        • Product Family:
          ABB Advant OCS and Advant-800xA
        • ABB Type Designation:
          DSAI146
        • Catalog Description:
          Analog Input Unit, 31 ch. Pt100
        • Number of Channels:
          31 inputs + 1 reference channel
        • Sensor Type:
          Pt100 RTD (temperature)
        • Product Type:
          I/O Module / Analog Input Unit
        • WEEE Category:
          5 – Small Equipment (no external dimension >50 cm)
        • Compatible Systems:
          Advant Controller 450 (v2.3), AC460, MasterPiece 200/200/1, 800xA, Advant OCS, Compact Product Suite
        • Pain Point Solved:
          Solves the need for high‑density (31‑channel) Pt100 RTD temperature input for legacy ABB S100 I/O systems – eliminating the need for multiple low‑channel-count modules or external signal conditioners. Provides direct connection of Pt100 sensors in power plants, chemical facilities, and HVAC systems without a full system upgrade.
        • Weight:
          0.45 kg
        • Estimated shipping dimensions:
          2x24.8x24.3cm
        • Tariff Code:
          8517795000
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Operating Environment Monitoring and Control

        Features:

        • High‑density temperature measurement; 31 sensor inputs plus 1 reference channel; direct connection of Pt100 sensors without external converters.
        • Designed for ABB S100 I/O systems; works with Advant Controller 450, AC460, MasterPiece 200/200/1, 800xA, and Compact Product Suite.
        • Not RoHS compliant; exempt for Advant Master Process Control Systems spare parts; legal for legacy system maintenance.
        The DSAI146 provides an industry‑leading 31 channels for Pt100 RTD temperature sensors, plus one reference channel. Pt100 sensors are the most common resistance temperature detectors in industrial applications, offering accurate and stable temperature measurement from -200°C to +850°C. With 31 channels on a single module, the DSAI146 eliminates the need for multiple 4‑ or 8‑channel input modules, saving significant rack space in legacy ABB S100 I/O systems. This high density is particularly valuable in power plants (monitoring bearing temperatures, winding temperatures, exhaust gases), chemical facilities (reactor temperatures, pipe temperatures), and HVAC systems (multiple zone monitoring).

        The DSAI146 is specifically designed for ABB's S100 I/O platform, a legacy system used with Advant Controller 450 (Version 2.3), AC460, MasterPiece 200 and 200/1, 800xA, Advant OCS, and Compact Product Suite. These controllers remain in operation in thousands of industrial facilities worldwide, particularly in power generation, pulp and paper, oil and gas, and marine applications. The DSAI146 allows these legacy systems to continue monitoring Pt100 temperature inputs without migrating to newer I/O platforms – a process that could cost millions and require extensive downtime.

        The DSAI146 is explicitly not RoHS compliant and is exempt from EU Directive 2011/65/EU under Article 2(4)(c),(e),(f),(j). This exemption applies to spare parts for ABB Advant Master Process Control Systems that were placed on the market before RoHS restrictions took effect. As a result, the DSAI146 may contain restricted substances such as lead (Pb), mercury (Hg), cadmium (Cd), or hexavalent chromium (Cr6+). However, this exemption is critical for operators of legacy ABB systems – it allows the continued sale, installation, and use of this module as a spare part to keep existing plants running. The declaration of conformity reference is 3BSE088609.

        The DSAI146 ABB Analog Input Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL)by the manufacturer (OEM).

        ABB DSAI146 Analog Input Unit Manuals, Datasheets,Drivers,Link Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
        ABB DSAI146 Analog Input Unit Specs

        General

        • Manufacturer ABB
        • Model DSAI146
        • Condition New Original ready stock
        • Product Family DSAI130,DSAI133,DSAI145,DSAI155
        Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
        • Heavy Industry and Process Control: Monitoring numerous temperature points in chemical plants, power plants, or refineries, such as reactor wall temperatures or heat distribution in large boilers.
        • Energy Management: Collecting temperature data from generator windings or transformers in power monitoring systems.
        • Marine Engineering: Suitable for ship automation systems and monitoring panels, often installed in marine PLC control cabinets.
        • Operating Temperature: Supports typical industrial ranges (typically 0 to +55 °C), exhibiting excellent thermal adaptability and operating in standard environments without additional cooling equipment.
        • Installation: Utilizes S100 I/O rack mounting. Modules are typically paired with specific connection units (such as DSTA 131) and communicate with the controller via the backplane.
        • Protection Rating: The modules themselves are typically installed in racks with an IP20 or higher protection rating, resisting dust and electromagnetic interference in industrial environments.
        • High-Precision Acquisition: Features 12-bit + sign resolution and supports 3-wire Pt100 connections, effectively compensating for impedance errors caused by long-distance cables.
        • Comprehensive Self-Diagnosis: The module panel is equipped with LED indicators, providing real-time feedback on the operating status of each channel and the module as a whole.
        • Fault Tracking: Detects open-circuit or short-circuit faults in sensor lines and reports error codes to the central controller (e.g., AC 450).
        Description
        The DSAI146 is a 31‑channel analog input unit specifically designed for Pt100 RTD temperature sensors. It belongs to ABB's S100 I/O family and is compatible with Advant Controller 450 (v2.3), AC460, MasterPiece 200/200/1, 800xA, and Compact Product Suite. The product ID is 3BSE007949R1 with ABB type designation DSAI 146.

        When using the DSAI146, engineers can connect up to 31 Pt100 temperature sensors directly to the module, plus one reference channel. This high channel density makes it ideal for applications requiring multiple temperature measurements, such as power plants, chemical processing, and HVAC systems. The module is part of kits DSAI 146K01 and DSAI 146K02.

        The DSAI146 is not RoHS compliant and is exempt from EU Directive 2011/65/EU under Article 2(4)(c),(e),(f),(j) for ABB Advant Master Process Control Systems spare parts. The declaration of conformity reference is 3BSE088609. For legacy ABB systems requiring Pt100 temperature input, the DSAI146 provides a direct replacement solution.
        Alternative Names
        DSAI130 DSAI133 DSAI145 DSAI155
        Technical notes
        The DSAI146 provides 31 Pt100 input channels plus one reference channel. This is an exceptionally high channel density for a legacy analog input module, making it ideal for large temperature monitoring applications.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How many Pt100 sensors can the DSAI146 monitor?
        The DSAI146 provides 31 input channels for Pt100 RTD temperature sensors, plus one reference channel. This high density allows monitoring of up to 31 temperature points in a single module, saving rack space in legacy ABB S100 I/O systems.
        Is the DSAI146 RoHS compliant?
        No. The DSAI146 is exempt from EU Directive 2011/65/EU (RoHS) under Article 2(4)(c),(e),(f),(j) for ABB Advant Master Process Control Systems spare parts. It may contain restricted substances but is legal to sell for maintaining legacy installations.
        Which ABB controllers work with the DSAI146?
        The DSAI146 is compatible with Advant Controller 450 (v2.3), AC460, MasterPiece 200/200/1, 800xA, Advant OCS, and Compact Product Suite. It is listed under S100 I/O – Analog Inputs. Verify your specific controller version before ordering.
