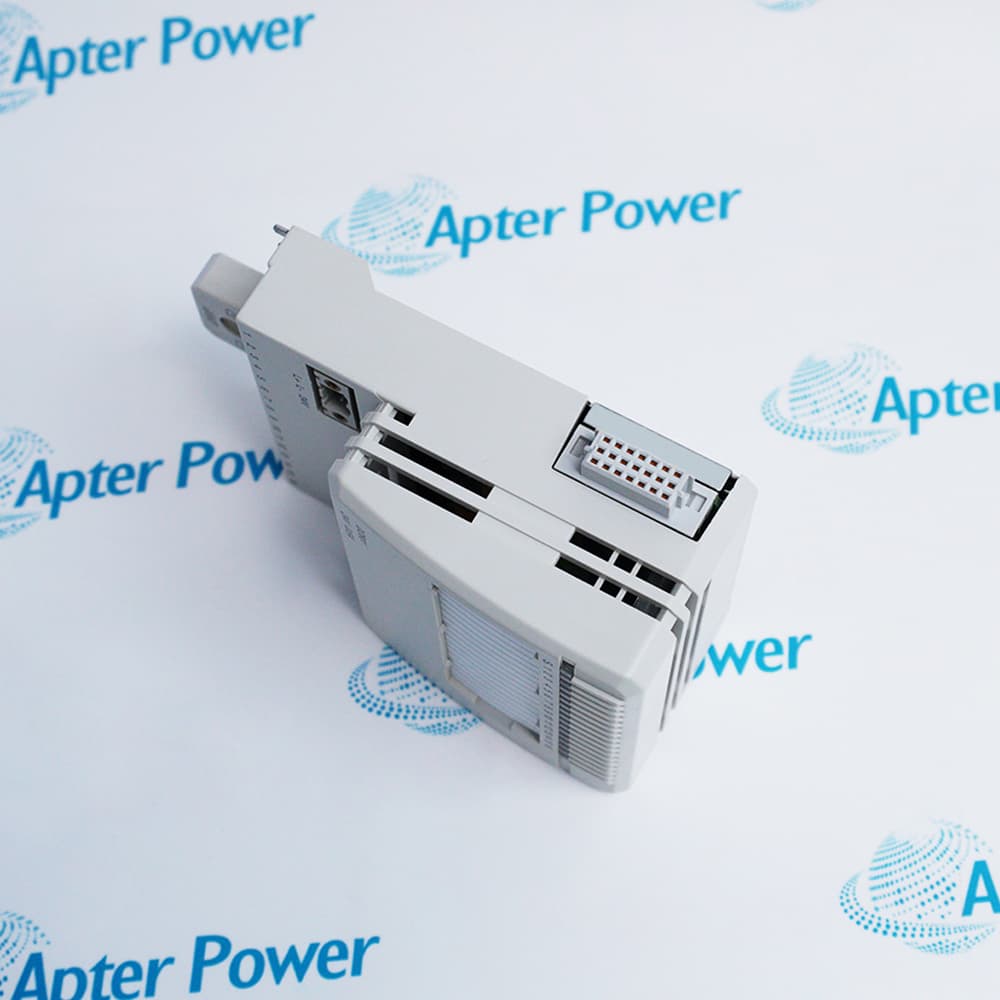

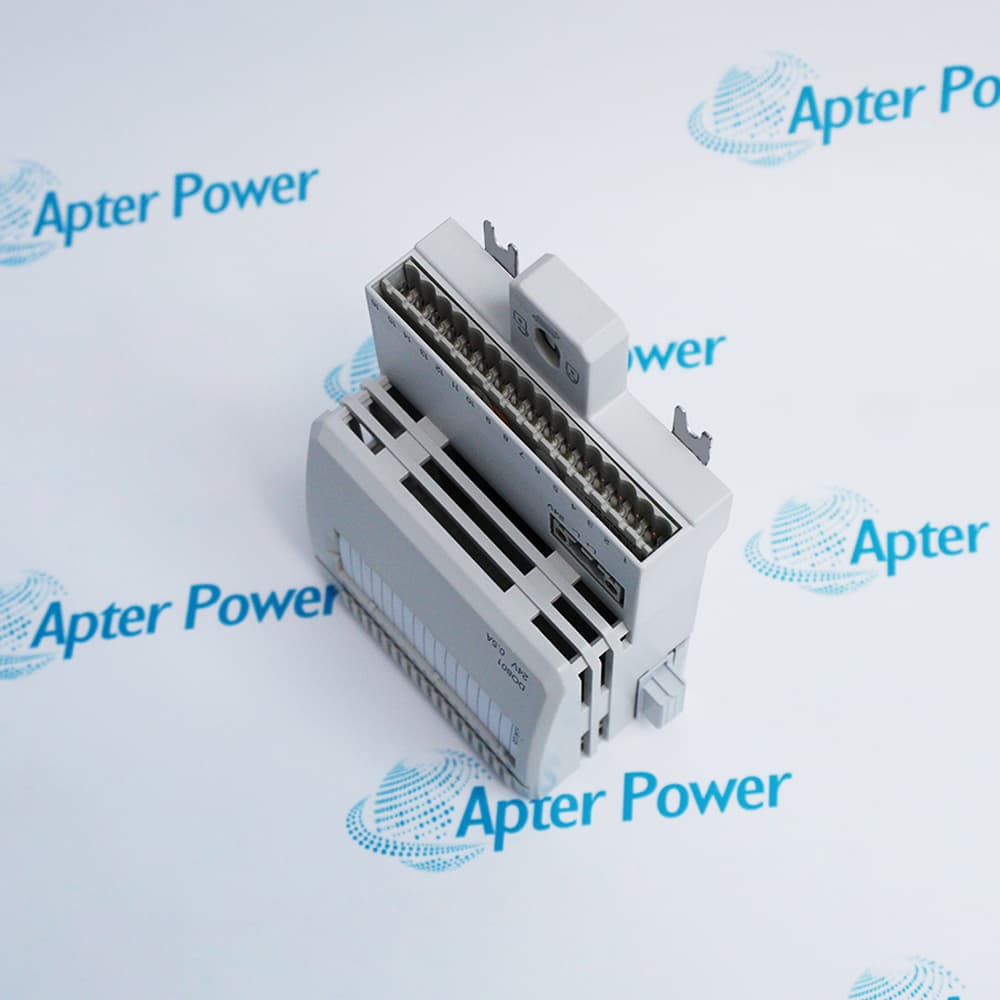

DO801 3BSE020510R1

/ 4.9
1001 reviews | Need a Specific Revision?
The DO801 3BSE020510R1 digital output module is designed for industrial automation applications that require robust digital output control in manufacturing environments, process industries, and machine automation systems.
Get a quick price for DO801 3BSE020510R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DO801 3BSE020510R1

  • Manufacturer:
    ABB
  • Part Number:
    DO801 3BSE020510R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Signal specification:
    24 V d.c. (12 - 32 V d.c.), 0.5 A
  • Number of channels:
    16
  • Signal type:
    Current sourcing, current limiting
  • Output load:
    < 0.4 Ω
  • Current limiting:
    Short circuit proof current limited output
  • Maximum field cable length:
    600 meters (656 yards)
  • Rated insulation voltage:
    50 V
  • Dielectric test voltage:
    500 V a.c.
  • Power dissipation:
    Typ. 2.1 W
  • Current consumption +5 V Modulebus:
    80 mA
  • Weight:
    0.24 kg
  • Estimated shipping dimensions:
    1.x0.86x0.58 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Installation & Integration Compatibility & Interoperability

Features:

  • 16-Channel Digital Output Interface for S800 I/O System
  • Combines 24V DC Current Sourcing Capability with Comprehensive Protection Functions
  • Operates in Conjunction with S800 I/O Modules and AC 800M Controllers
The DO801 3BSE020510R1 operates as the 16-channel 24 V digital output module in an S800 I/O station, providing reliable digital output control for industrial automation applications. It continuously drives 24 V DC loads (10-30 V range, 0.5 A max per channel) and distributes these output signals through the module terminals to support steady state operation of connected field devices such as solenoids, relays, and indicator lights. Seamless output state control is standard with the DO801 3BSE020510R1, however using the OSP (Output Set to Predetermined state) feature will allow automatic configuration of outputs to safe states in the event of a communication error. The DO801 3BSE020510R1 has made improvements in several areas over previous output module designs in addition to incorporating comprehensive protection capabilities within the S800 I/O system.

The DO801 3BSE020510R1 provides essential output functions common to the entire control loop, and is a critical component of the automation path, directly affecting the proper, normal operation of the overall control system. One DO801 3BSE020510R1 module occupies one slot in the S800 I/O cluster depending on the required channel count. The DO801 3BSE020510R1 occupies a standard module position in the cluster and is connected via the ModuleBus interface for communication with the controller.

For high-density output applications, the S800 I/O system requires additional DO801 3BSE020510R1 digital output modules installed in available cluster slots. In addition to standard single module operation, the modular configuration also performs flexible expansion. The S800 I/O system executes configuration using the internal parameters specified in the controller programming. Using this method, the modular output system continually monitors the health of all channels through the output status indicators. If the system detects that a specific output channel is experiencing a fault condition (short circuit or over-temperature), it will automatically protect that channel and place diagnostic information in the controller for maintenance identification.

The DO801 3BSE020510R1 ABB  Digital Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB DO801 3BSE020510R1 Digital output module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB DO801 3BSE020510R1 Digital output module Specs

General

  • Manufacturer ABB
  • Model DO801 3BSE020510R1
  • Condition New Original ready stock
  • Product Family TU810V1,TU812V1,TU814V1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Actuator Control: Managing valves, motors, and other actuators.
  • Signaling & Alarms: Powering indicator lights, buzzers, and alarm systems.
  • Sector-Specific Applications: Widely deployed in oil & gas, chemical plants, water treatment, and marine automation.
  • Safe Shutdown: Utilizes Output Set to Predetermined (OSP) states to ensure safety if communication is lost.
  • Mounting: The module is DIN rail mountable and integrates into control panels via the S800L mechanics.
  • Wiring: Supports solid wire (0.05–2.5 mm²) and stranded wire (0.05–1.5 mm²). Features detachable connectors for easier process and power connections.
  • Configuration: Integrated into the System 800xA environment, allowing for online hardware settings and real-time changes.
  • Cabling: Supports a maximum field cable length of 600 meters (approx. 656 yards).
  • S800 I/O System: Fully compatible with the S800 I/O family, communicating with parent controllers over industry-standard fieldbus technology.
  • Controllers: Interoperates with ABB's AC 800M and other process controllers.
  • Communication Interfaces: Can be used with various PROFIBUS masters and communication modules like the CI801 or CI840.
  • Isolation: Features groupwise isolation from ground and optical isolation from the ModuleBus to prevent interference.
Description
The DO801 3BSE020510R1 is a 16-channel 24 V digital output module specifically engineered for the S800 I/O system. This module, designated DO801 3BSE020510R1, delivers an output voltage range spanning 10 to 30 volts, with each channel capable of sustaining a maximum continuous output current of 0.5 A. The DO801 3BSE020510R1 incorporates comprehensive protection mechanisms across all outputs, including safeguards against short circuits, over-voltage conditions, and over-temperature scenarios. All 16 output channels of the DO801 3BSE020510R1 are organized within a single isolated group, ensuring reliable signal integrity. Each individual channel within the DO801 3BSE020510R1 comprises a high-side driver with integrated short circuit and over-temperature protection, EMC protection components for electromagnetic compatibility assurance, inductive load suppression circuitry, an output state indication LED for visual monitoring, and an optical isolation barrier for enhanced electrical separation.

This DO801 3BSE020510R1 is specifically designed for industrial automation applications requiring robust digital output control in manufacturing environments, process industries, and machine automation systems. The DO801 3BSE020510R1 addresses the critical challenge of reliable load driving in harsh industrial conditions where electrical noise, voltage fluctuations, and potential wiring faults are prevalent. By integrating multiple protection layers, the DO801 3BSE020510R1 eliminates the need for external protection circuitry, reducing system complexity and installation costs while ensuring continuous operation even under fault conditions. The DO801 3BSE020510R1 solves the problem of output state uncertainty during communication failures through its OSP (Output Set to Predetermined state) functionality, which automatically configures outputs to predefined safe states when network communication errors occur, thereby preventing dangerous machine states or process disruptions.

The DO801 3BSE020510R1 features 16 channels configured for 24 V DC current sourcing outputs, organized as one isolated group containing all 16 channels. The module includes output status indicators for immediate visual feedback on channel states. The OSP capability of the DO801 3BSE020510R1 ensures outputs transition to predetermined states upon detection of communication errors, enhancing system safety. Short-circuit protection is provided for both ground faults and 30 V conditions, while over-voltage and over-temperature protection circuits safeguard the module and connected field devices. All process and power connections for the DO801 3BSE020510R1 are facilitated through detachable connectors, simplifying installation, maintenance, and module replacement procedures.
Alternative Names
DO801 3BSE020510R1 TU810V1 TU812V1 TU814V1
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the DO801 3BSE020510R1?
The ABB DO801 3BSE020510R1 is a 16-channel 24 V digital output module designed for the S800 I/O system, used in industrial automation for reliable output control.
What is the purpose of channel isolation?
All 16 channels are grouped in one isolated group to ensure stable signal transmission and protect the system from electrical interference.
What is the OSP (Output Set to Predetermined State) function?
OSP automatically sets outputs to predefined safe states if communication is lost or fails, preventing unsafe machine behavior or process interruptions.
Does this module require external protection components?
No. The DO801 integrates multiple protection mechanisms, eliminating the need for external protection devices and reducing system complexity.
