          Apter Power guarantees fully tested, obsolete ABB block I/O components, offering a highly reliable source for compact automation replacement parts.

        XI16E1 1SBP260100R1001

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

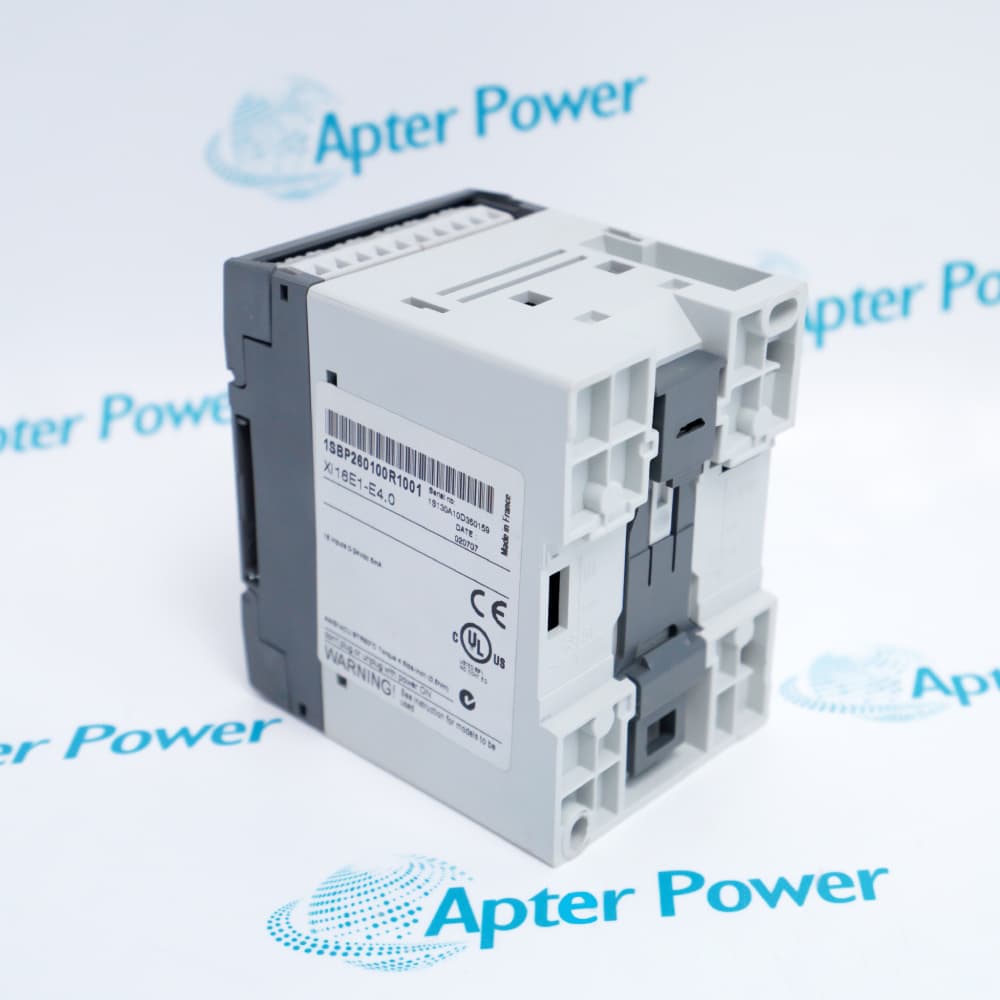

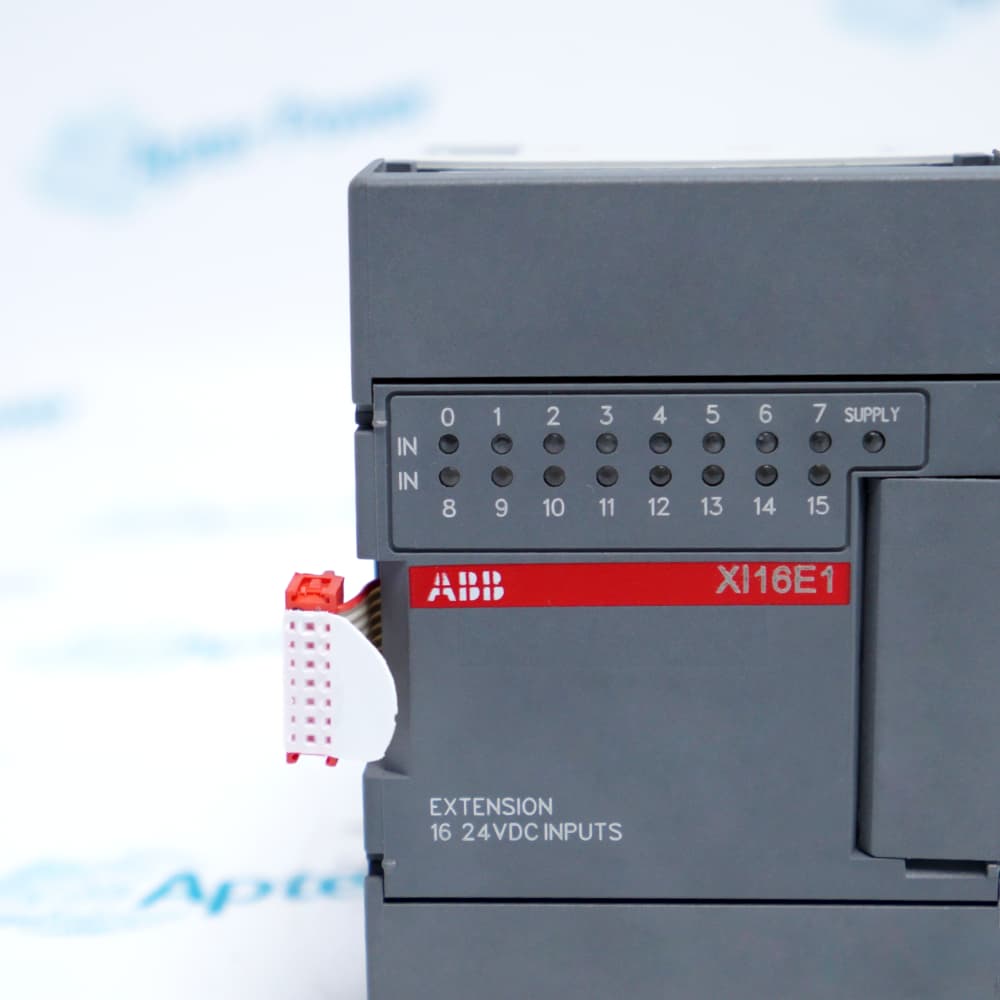

        The ABB XI16E1 1SBP260100R1001 is a 16-channel PNP digital input extension module designed to seamlessly expand the localized I/O capacity of legacy Advant Controller 31 (AC31) Series 40 and 50 PLC systems.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for XI16E1 1SBP260100R1001
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for XI16E1 1SBP260100R1001

        • Manufacturer:
          ABB
        • Part Number:
          XI16E1 1SBP260100R1001
        • Product Family:
          ABB Advant OCS and Advant-800xA
        • Product Type:
          Digital Input Extension Module
        • Stock:
          1
        • System Compatibility:
          Advant Controller 31 (AC31) Series 40 & 50
        • Number of Digital Inputs:
          16 Channels
        • Input Logic Type:
          PNP (Source)
        • Nominal Input Voltage:
          24 V DC
        • Signal:
          0 V to +5 V
        • Signal:
          +15 V to +30 V
        • Input Current (at 24 V DC):
          4 mA per channel
        • Input Delay / Filter Time:
          5 ms
        • Galvanic Isolation:
          1500 V AC (Inputs to internal logic)
        • Internal Power Supply:
          5 V DC via basic unit lateral ribbon cable
        • External Power Supply:
          24 V DC for field sensors
        • Weight:
          0.2 kg
        • Estimated shipping dimensions:
          5.1x17.8x30.5cm
        • Tariff Code:
          8537101190
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Applications Manuals Specifications Applications Performance & Efficiency Safety & Compliance

        Features:

        • High-Density 16-Channel Centralized Extension
        • Superior 1500V AC Transient Isolation Protection
        • Industrial-Grade Built-In Hardware Signal Filtering
        The ABB XI16E1 1SBP260100R1001 packs 16 discrete PNP inputs into a highly compact modular footprint, scaling local system capacity without adding remote I/O nodes.

        Equipped with robust optocouplers, the ABB XI16E1 1SBP260100R1001 prevents high-voltage field spikes or ground loops from compromising the sensitive logic of the master PLC.

        Featuring a reliable 5 ms input delay, the ABB XI16E1 1SBP260100R1001 filters out unwanted transient signal noise and switch contact chattering for clean logic execution.

        The XI16E1 1SBP260100R1001 ABB Digital Input Extension Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        ABB XI16E1 1SBP260100R1001 Digital Input Extension Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        ABB XI16E1 1SBP260100R1001 Digital Input Extension Module

        General

        • Manufacturer ABB
        • Model XI16E1 1SBP260100R1001
        • Condition New Original ready stock
        • Product Family YXI115B YT204001-AL,YXU173E YT204001-JK,YXE152A YT204001-AF
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Legacy Power Plant Controls: Acts as a vital drop-in maintenance spare for existing auxiliary control systems and boiler input monitoring panels built on the AC31 framework.
        • Water & Wastewater Treatment: Handles remote status signals from discrete field devices like level switches, valve position limit indicators, and pump run/stop contacts.
        • Automated Packaging Machinery: Integrates perfectly into specialized high-speed assembly and conveyor logic loops where localized, low-latency digital signal expansion is required.
        • Material Handling Systems: Processes input telemetry from proximity sensors, safety interlocks, and photo-eyes along distributed factory tracking corridors.
        • Zero-Latency Backplane Throughput: Eliminates protocol overhead and network serialization delays by utilizing a direct parallel-bus ribbon connection to the CPU.
        • Long-Distance Field Wiring Support: Supports extended unshielded field runs up to 300 meters (or 500 meters shielded), minimizing the need for intermediate signal repeaters.
        • Consistent 5ms Debounce Filtering: Enhances scanning efficiency by suppressing electrical contact chattering, ensuring the PLC logic only acts on true state changes.
        • Low Power Dissipation Footprint: Engineered with efficient CMOS logic, drawing minimal current from the 5V host backplane to keep cabinet thermal loads low.
        • 1.5 kV Galvanic Isolation Barrier: Protects human operators and master automation processors from dangerous high-voltage transients originating in the field.
        • CE and EMC Harmonization: Built and tested to strict European standards regarding electromagnetic immunity, preventing signal corruption in highly noisy factory environments.
        • Fail-Safe Startup Behavior: Initializes its internal registers to a known "0" signal state during system boot-up sequence until valid field voltage is verified.
        • Secure Industrial Mechanical Mounting: Fully compliant with standard DIN rail mounting specifications, offering high resistance to continuous industrial mechanical vibration.
        Description
        As a dedicated central expansion unit, the ABB XI16E1 1SBP260100R1001 connects directly via the basic controller's local flat cable interface without occupying a CS31 system bus connection. This direct backplane integration allows engineering teams to maximize physical I/O density at the local rack level while maintaining fast internal processing cycles and eliminating complex bus configuration.

        Built to withstand severe factory-floor electrical noise, the ABB XI16E1 1SBP260100R1001 provides an impressive 1500 V AC galvanic isolation between the field-side input circuits and the internal CPU logic. Its 16 discrete PNP channels accept a standard 24 V DC field voltage, implementing a fixed 5 ms hardware input delay filter to effectively suppress contact bounce and electromagnetic interference (EMI).

        As a crucial spare part for aging yet critical infrastructure, the ABB XI16E1 1SBP260100R1001 enables manufacturing plants to sustain their legacy control platforms without undergoing risky and expensive complete system retrofits. Its compact form factor, DIN rail mounting adaptability, and standardized cage-clamp terminal options ensure rapid, toolless physical replacement during scheduled maintenance windows.
        Alternative Names
        XI16E1 1SBP260100R1001 XII6EI ISBP260I00RI00I XI16E1 1SBP26O1OOR1OO1 X116E1 1SBP260100R1001 YXI115B YT204001-AL YXU173E YT204001-JK YXE152A YT204001-AF
        Technical notes
        When installing or servicing the ABB XI16E1 1SBP260100R1001, it is critical to ensure that all master CPU power is completely disconnected, as this central extension module does not support hot-swapping. Additionally, the external 24 V DC sensor supply loop must be properly fused to safeguard the ABB XI16E1 1SBP260100R1001 field-side PNP circuitry from overcurrent damage.
