IMMFP12

/ 4.9
1001 reviews | Need a Specific Revision?

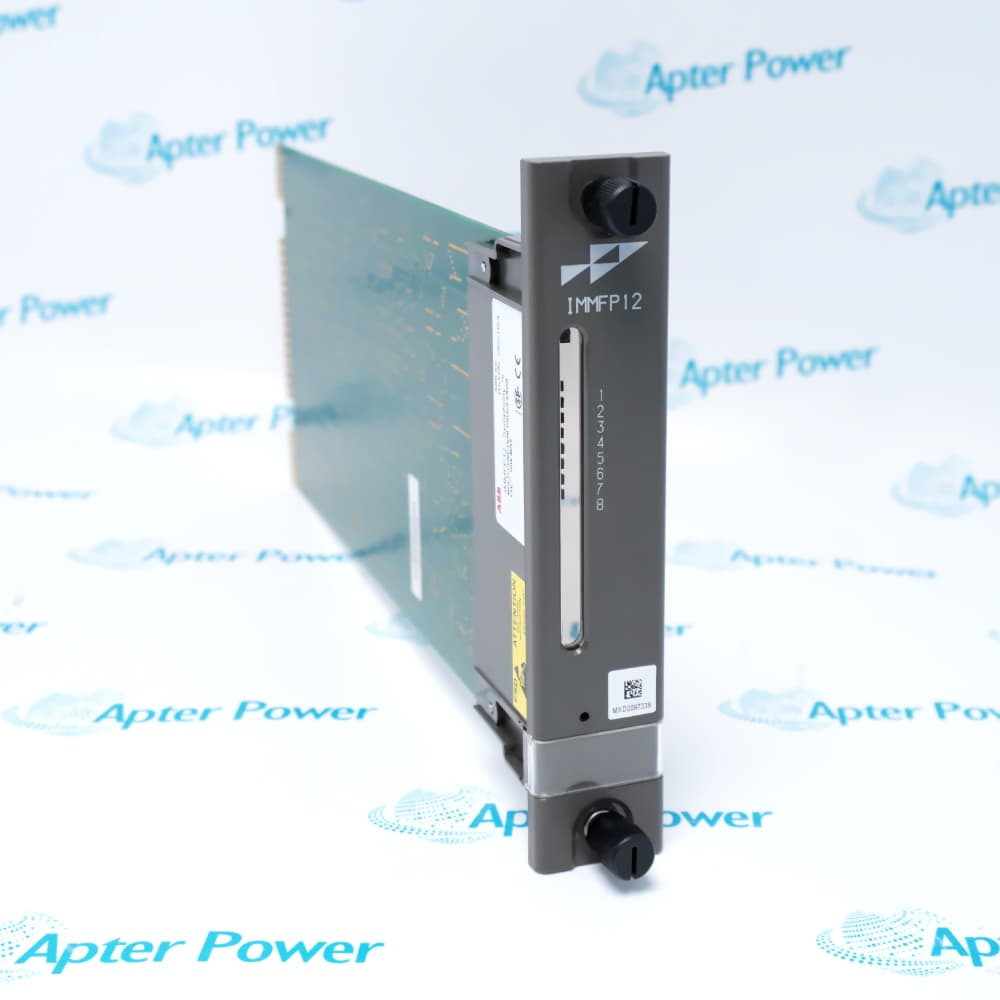

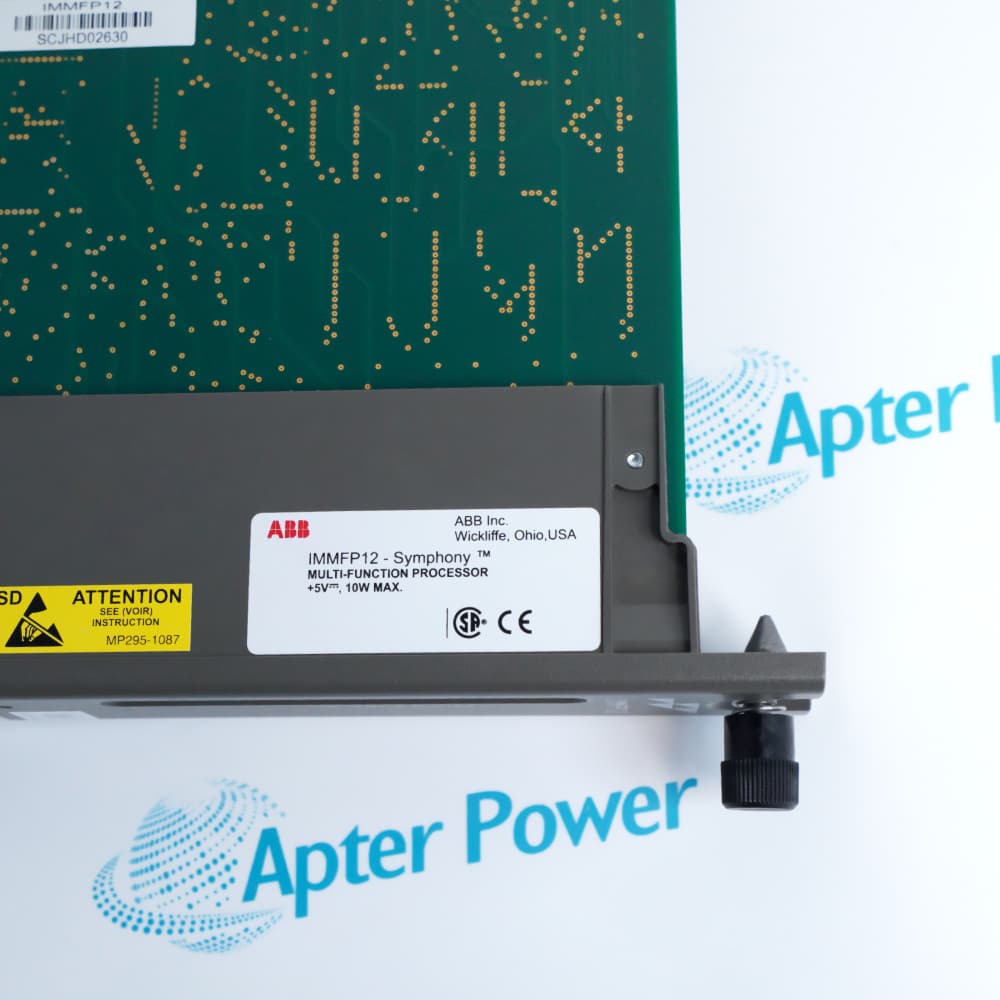

ABB IMMFP12 is a Harmony Rack multifunction processor for analog, sequential and batch control, with Expander Bus I/O and Controlway communication.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IMMFP12
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IMMFP12

  • Manufacturer:
    ABB
  • Part Number:
    IMMFP12
  • Product Family:
    ABB Bailey
  • Product Type:
    Multifunction Processor
  • Stock:
    1
  • Processor architecture:
    32-bit processor with 16-bit external bus
  • Processor speed:
    16 MHz
  • Program memory:
    512 kB ROM
  • Working memory:
    512 kB RAM
  • Nonvolatile memory:
    256 kB NVRAM
  • DC supply requirement:
    +5 V DC at 2 A maximum
  • Maximum power dissipation:
    10 W
  • Primary I/O network:
    Expander Bus
  • Rack peer network:
    Controlway
  • Serial interface option 1:
    Two RS-232-C ports
  • Serial interface option 2:
    One RS-485 and one RS-232-C port
  • Maximum serial data rate:
    19.2 kbaud
  • High-speed station support:
    64 stations at 40 kbaud
  • Low-speed station support:
    8 stations at 5 kbaud
  • Redundant communication link:
    1 Mbaud serial link
  • Supported control languages:
    Function codes, C, Basic, Batch 90 and Ladder
  • Ambient temperature:
    0–70 °C
  • Relative humidity to 55 °C:
    5–95%, noncondensing
  • Relative humidity above 55 °C:
    5–45%, noncondensing
  • Rack space:
    One standard INFI 90 OPEN module slot
  • Module width:
    35.56 mm
  • Module height:
    177.80 mm
  • Module length:
    298.45 mm
  • System compatibility:
    INFI 90 OPEN functionality, communications and packaging
  • Weight:
    0.5732 lbs (0.26 kg)
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication Programming Integration

Features:

  • Executes analog, sequential, batch and advanced control strategies in one rack processor.
  • Provides 512 kB RAM and 256 kB nonvolatile memory for the controller database.
  • Communicates with process I/O through the Expander Bus and peer controllers through Controlway.
The selected processor is the higher-memory member of the ABB multifunction-processor pair and occupies one standard INFI 90 OPEN rack slot. Its memory resources support larger control applications than the IMMFP11 variant.

The processor collects field information from connected rack I/O, executes the loaded control strategy and exchanges data with other Harmony controllers. Serial ports and the redundancy link extend its role to external devices and paired-controller arrangements.

A replacement must retain the validated configuration, node addressing and redundancy state of the installed controller. Confirm the rack power budget and each communication connection before downloading the application.

Availability is evaluated for the exact Harmony Rack processor and required system context.
Verified resources for ABB IMMFP12:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Runs continuous analog control loops for process units using Harmony rack I/O.
  • Coordinates sequential and batch logic where local controller execution is required.
  • Supports advanced control and user functions in established INFI 90 OPEN installations.
  • The Expander Bus links the processor to local analog and digital I/O modules.
  • Controlway provides communication with other Harmony rack controllers and bridge controllers.
  • Two serial channels can be arranged as RS-232-C ports or as one RS-485 plus one RS-232-C port.
  • Control strategies may use function codes, C, Basic, Batch 90, Ladder and user-defined functions.
  • The controller database should be backed up and validated before a processor is exchanged.
  • Redundant pairs require synchronized application data and verified mate-link status before process control resumes.
  • The module occupies one slot in a standard INFI 90 OPEN mounting unit.
  • Rack power must supply +5 V DC at up to 2 A while dissipating as much as 10 W.
  • Serial termination and network node assignments must match the installed control-system design.
Description
ABB IMMFP12 is a Harmony Rack multifunction processor designed to execute multiple-loop analog, sequential, batch and advanced control strategies. Its processing architecture combines a 32-bit microprocessor with program, working and nonvolatile memory sized for demanding INFI 90 OPEN applications.

The controller exchanges process data with Harmony analog and digital I/O modules through the Expander Bus and communicates with peer rack controllers over Controlway. Serial interfaces support external devices, while the redundant communication link allows a paired processor arrangement where the system design requires it.

Engineering work should confirm the rack mounting unit, communication topology, loaded control database and termination devices before a module exchange. Because memory contents and application configuration are essential to operation, preserve the validated controller program and verify redundancy synchronization before returning the process to service.
Alternative Names
ABB IMMFP12 IMMFP12 Multifunction Processor ABB IMMFP 12 IMMFP12 Harmony Rack Controller Harmony Rack IMMFP12 ABB INFI 90 OPEN IMMFP12 ControlIT IMMFP12 IMMFP12 512 kB RAM
Technical notes
ABB IMMFP12 replacement work must preserve the validated control database and nonvolatile-memory content before power removal. Confirm Expander Bus, Controlway and redundancy-link assignments so a replacement processor does not enter service with an incorrect node configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What distinguishes ABB IMMFP12 from IMMFP11 in the Harmony Rack family?
ABB documents that IMMFP12 provides twice the memory capacity of IMMFP11, with 512 kB RAM and 256 kB NVRAM for control applications.
How does ABB IMMFP12 reach process I/O in an INFI 90 OPEN rack?
It communicates with the rack analog and digital I/O modules through the Expander Bus, while Controlway carries peer-controller communication.
Which control workloads are appropriate for ABB IMMFP12?
It is designed for multiple-loop analog, sequential, batch and advanced control, including strategies implemented with function codes, C, Basic, Batch 90 or Ladder.
What data must be secured before exchanging ABB IMMFP12?
Back up the validated controller configuration and any required nonvolatile data, then document node, serial-port and redundancy assignments before removing power.
Which ABB document covers ABB IMMFP12 hardware limits?
The Manuals tab includes the official ControlIT Multifunction Processors data sheet WBPEEUD230002A1 with memory, power, communications and environmental data.
How can a buyer request a checked ABB IMMFP12 quotation?
Provide quantity, destination, rack/controller context, required condition and whether a redundant mate is installed so sourcing and compatibility checks can be included.
