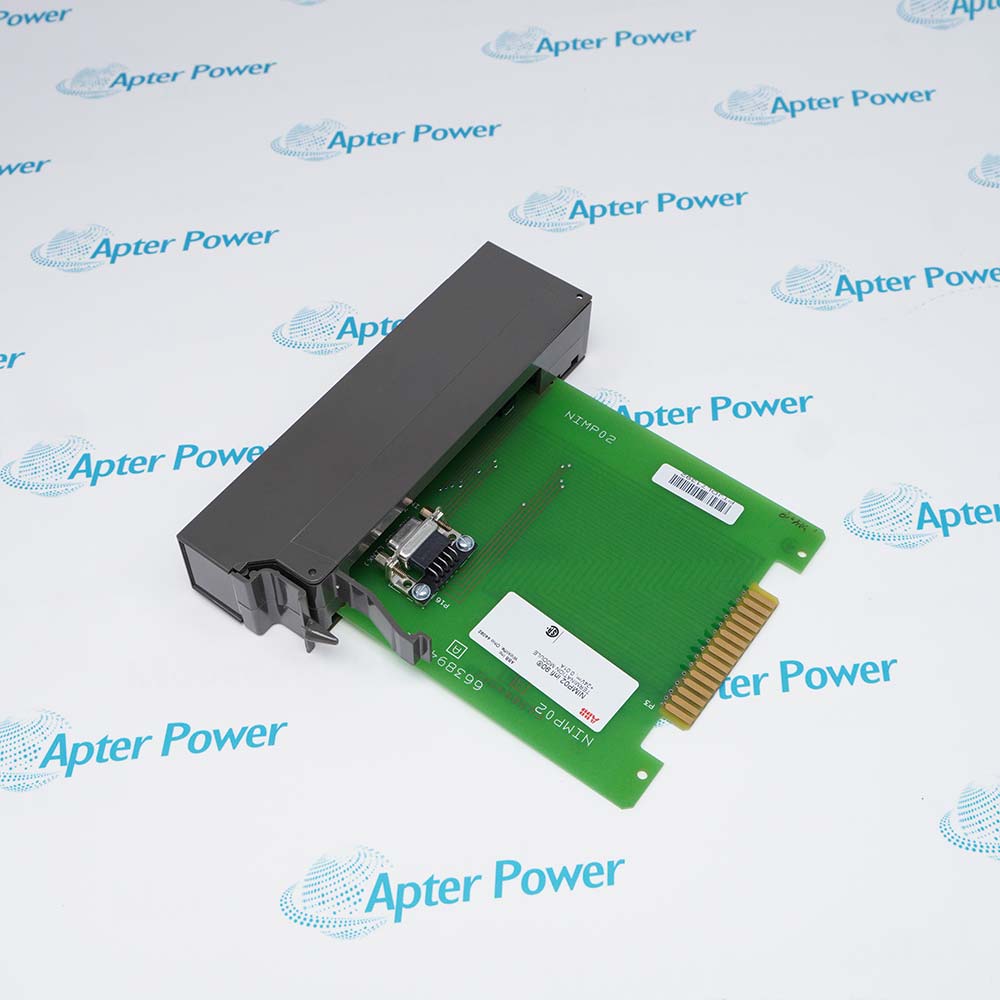

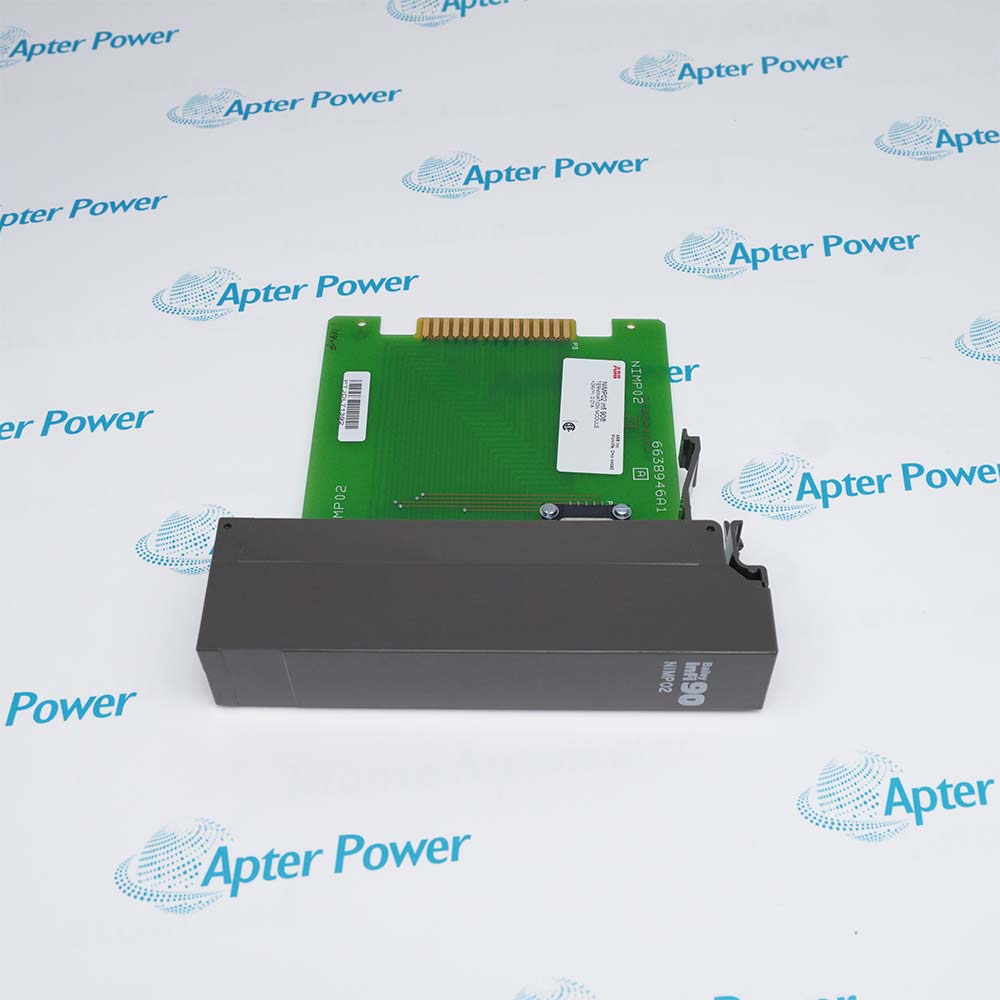

ABB NIMP02 is an INFI 90 multi-function processor termination module supporting two RS-232-C links or one RS-232-C plus one RS-485 link. It also terminates a control-station serial connection.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for NIMP02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for NIMP02

  • Manufacturer:
    ABB
  • Part Number:
    NIMP02
  • Product Family:
    ABB Bailey
  • Product Type:
    Multi-Function Processor Termination Module
  • Stock:
    1
  • Supply:
    +24 V DC
  • Current consumption:
    210 mA maximum
  • Communication options:
    Two RS-232-C links, or one RS-232-C and one RS-485 link
  • Station link:
    One control-station serial link
  • Connectors:
    Two 16-pin connector sockets and one DB-9 connector for the RS-485 link
  • Mounting:
    Screw-mounted on a field termination panel
  • Ambient temperature:
    0 to 70 deg C
  • Relative humidity:
    5 to 90%, noncondensing
  • Altitude:
    Up to 3 km
  • Local indication:
    Front status indication
  • Reference instruction:
    ABB Bailey I-E96-401A
  • Weight:
    0.18 kg
  • Estimated shipping dimensions:
    3.4x17.4x17.7cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication & Connectivity Installation Environmental Ratings

Features:

  • Terminates serial communications for the compatible multi-function processor installation.
  • Allows either dual RS-232-C links or a mixed RS-232-C and RS-485 arrangement.
  • Includes the documented control-station serial connection and field terminals.
NIMP02 is the panel-mounted field termination for the compatible INFI 90 multi-function processor.

Its configurable serial arrangement brings processor and control-station communications to accessible connectors.

Confirm port standard, cable pinout, grounding and the 210 mA supply allowance before replacement.

Exact processor and serial-interface matching is required for legacy supply.
Verified resources for ABB NIMP02:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Terminate processor communications to serial printers, terminals or engineering equipment.
  • Provide an RS-485 path where the documented processor configuration uses that interface.
  • Connect the control-station serial channel on a field termination panel.
  • The hardware can provide two RS-232-C links.
  • An alternate arrangement combines one RS-232-C link with one RS-485 link.
  • The control-station serial path is terminated separately from the external-device ports.
  • Two 16-pin sockets carry the documented processor and station connections.
  • The DB-9 connector is assigned to the RS-485 interface.
  • Shielding, ground reference, and cable pinout must follow instruction I-E96-401A.
  • The termination panel is rated for service from 0 to 70 °C.
  • Relative humidity is limited to 5 to 90% without condensation.
  • The documented installation altitude extends to 3 km.
Description
NIMP02 provides the external serial and control-station termination for the compatible INFI 90 multi-function processor. It concentrates the field-facing connectors and terminals on a panel-mounted assembly instead of placing permanent external wiring directly on the processor module.

The documented hardware supports either two RS-232-C communication links or one RS-232-C link together with one RS-485 link. The DB-9 connector is assigned to the RS-485 path, while the two 16-pin sockets and terminal blocks complete the processor and station connections shown in I-E96-401A.

Serial data passes between the external device and the processor through the termination wiring; the NIMP02 supplies the physical interface and indication rather than executing the communications protocol. A front indication provides local status information for maintenance checks.
Alternative Names
NIMP02 NIMP 02 ABB NIMP02 Bailey NIMP02 INFI 90 NIMP02 ABB Multi-Function Processor Termination Bailey Serial Termination NIMP02
Technical notes
NIMP02 RS-232-C and RS-485 ports are not interchangeable; verify the DB-9 assignment and both 16-pin connectors before reconnecting any serial device.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can the two communication channels on ABB NIMP02 be configured?
The official hardware supports either two RS-232-C links or one RS-232-C link combined with one RS-485 link.
Which ABB NIMP02 connector carries the RS-485 path?
ABB Bailey assigns the DB-9 connector to the documented RS-485 connection.
What function is served by the control-station link on ABB NIMP02?
It provides the physical serial termination between the compatible processor installation and its control station.
Where is ABB NIMP02 mounted compared with a standard termination-unit card?
The module is screw-mounted on a field termination panel rather than occupying the same format as a plug-in controller module.
What compatibility points rule out a blind ABB NIMP02 substitution?
Processor type, RS-232/RS-485 selection, connector pinout, station link, +24 V capacity and panel mounting must agree.
What should be supplied for an ABB NIMP02 serial-interface enquiry?
Include the processor label, port mode, connected-device list, cable drawings, panel arrangement, quantity and destination.
