DSCA160A

/ 4.9
1001 reviews | Need a Specific Revision?

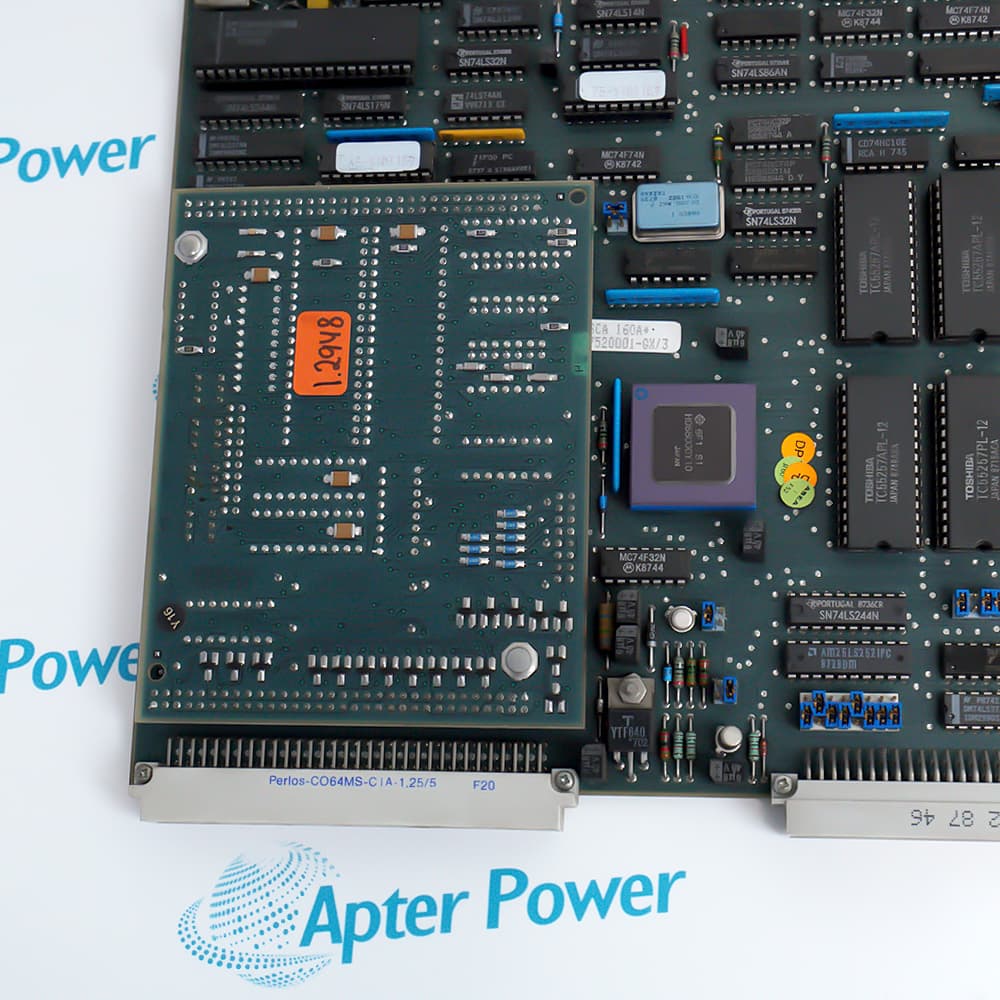

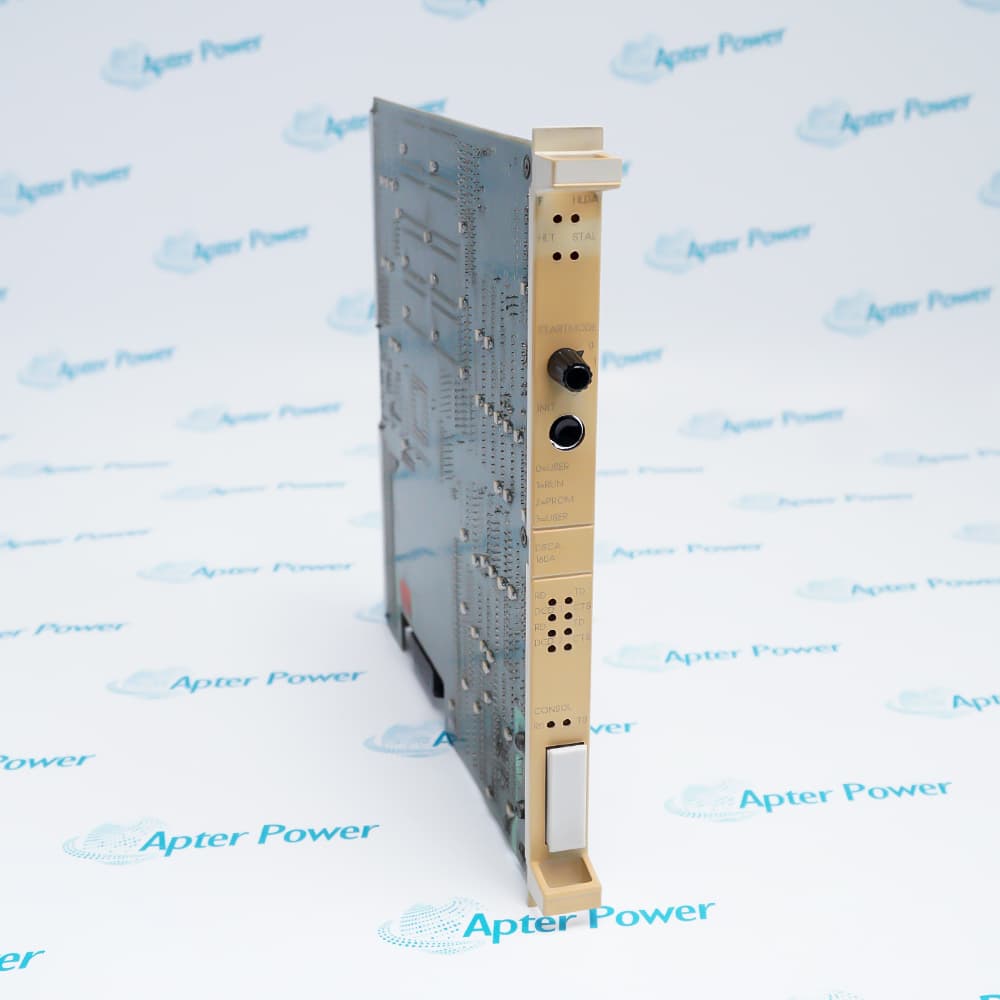

ABB DSCA160A is an RS-232 communication processor associated with MasterPiece 200/1 controller installations.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for DSCA160A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSCA160A

  • Manufacturer:
    ABB
  • Part Number:
    DSCA160A
  • Product Family:
    ABB Master
  • Product Type:
    RS-232 communication processor
  • Stock:
    1
  • Order Reference:
    57520001-GX
  • Function:
    Communication processor
  • Serial Interface:
    RS-232
  • Documented Controller Context:
    MasterPiece 200/1
  • AC 450 Inclusion:
    Not included in the documented AC 450 product set
  • Connected Equipment Classes:
    DTE computer or DCE modem, subject to installed cable and protocol
  • Dimensions:
    2.1 × 25 × 24.4 cm
  • Weight:
    0.58 kg
  • Tariff Code:
    8517623990
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Legacy Context AC 450 Boundary Kit Configuration Application
  • RS-232 communication processor
  • Associated with MasterPiece 200/1 installations
  • Order reference 57520001-GX requires nameplate confirmation

DSCA160A is an ABB serial communication processor associated with MasterPiece 200/1 systems.

Available ABB documentation distinguishes it from the AC 450 product set.

Confirm product ID, controller, DTE or DCE role, cable, protocol, firmware, and database before replacement.

Availability, condition, price, and shipping time for DSCA160A are confirmed during quotation.

ABB DSCA160A Communication Board Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • ABB identifies DSCA160A as a communication board
  • The board is named in ABB documentation that compares Advant Controller 450 with MasterPiece 200/1
  • The documented comparison establishes a legacy MasterPiece 200/1 context for DSCA160A
  • ABB explicitly states that DSCA160A is not included in Advant Controller 450
  • The associated PC elements were removed from the Advant Controller 450 design
  • DSCA160A must not be classified as an Advant Controller 450 communication module
  • ABB lists kit identifier 5730030-KE for DSCA 160AK01.
  • The official kit description is Programmable Communication Kit.
  • ABB's where-used table links the DSTC 120 connection unit, product ID 57520001-A, to the DSCA 160AK01 kit.
  • RS-232 communication processing in MasterPiece 200/1 controller installations
  • Serial data exchange between the MasterPiece controller and configured external communication equipment
  • Maintenance or replacement of an installed DSCA160A communication link while retaining the verified cable, protocol, and controller configuration
Description
DSCA160A is identified in available ABB system documentation as an RS-232 communication processor associated with MasterPiece 200/1 installations.

Order reference 57520001-GX is consistently linked to the DSCA160A identity, while ABB AC 450 documentation distinguishes it from the AC 450 product set.

Confirm the nameplate, order reference, MasterPiece controller, DTE or DCE connection, cable, protocol, firmware, and database before replacement.
Alternative Names
DSCA160A DSCA 160A DSCA-160A 57520001-GX DSCA160A 57520001-GX ABB DSCA160A 57520001-GX
Technical notes
ABB DSCA160A 57520001-GX is an RS-232 processor for MasterPiece 200/1. Verify the cable, DTE/DCE role, protocol, firmware, and database before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What evidence should be provided to confirm ABB DSCA160A is the required communication processor?
Provide nameplate photographs showing DSCA160A and 57520001-GX, the MasterPiece controller model, rack position, existing cable, and system documentation.
How can a buyer verify that ABB DSCA160A belongs to the installed controller family?
Confirm that the installation is the documented MasterPiece 200/1 context and do not treat DSCA160A as an AC 450 module solely because both belong to older ABB control families.
What communication details must be recorded before replacing ABB DSCA160A?
Record the RS-232 cable pinout, connected equipment, DTE or DCE role, handshaking, baud and framing settings, protocol, firmware, and controller database.
What testing should be requested for ABB DSCA160A?
Request identity and visual inspection, serial-port communication testing appropriate to the offered condition, connector checks, and a clearly documented warranty or acceptance scope.
Can ABB DSCA160A connect to a modem?
An RS-232 processor may interface with DCE equipment, but pinout, handshaking, protocol, and site configuration must match.
Can ABB DSCA160A be replaced by another DSCA module?
No automatic substitution is supported; verify the exact product ID, controller family, cable, protocol, firmware, and database.
What should be supplied when requesting ABB DSCA160A?
Provide clear nameplate photos, order reference, controller model, cable and port details, protocol, quantity, condition, and destination.
