SPASO11

/ 4.9
1001 reviews | Need a Specific Revision?

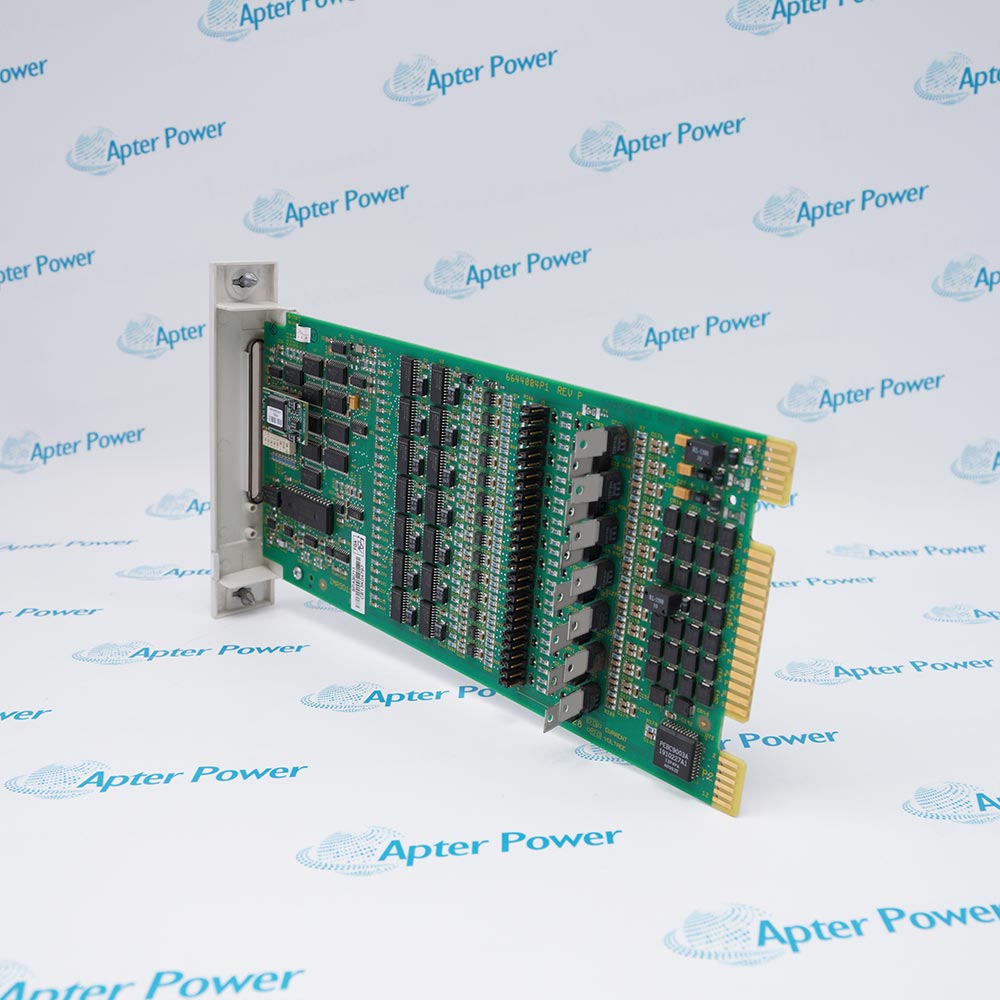

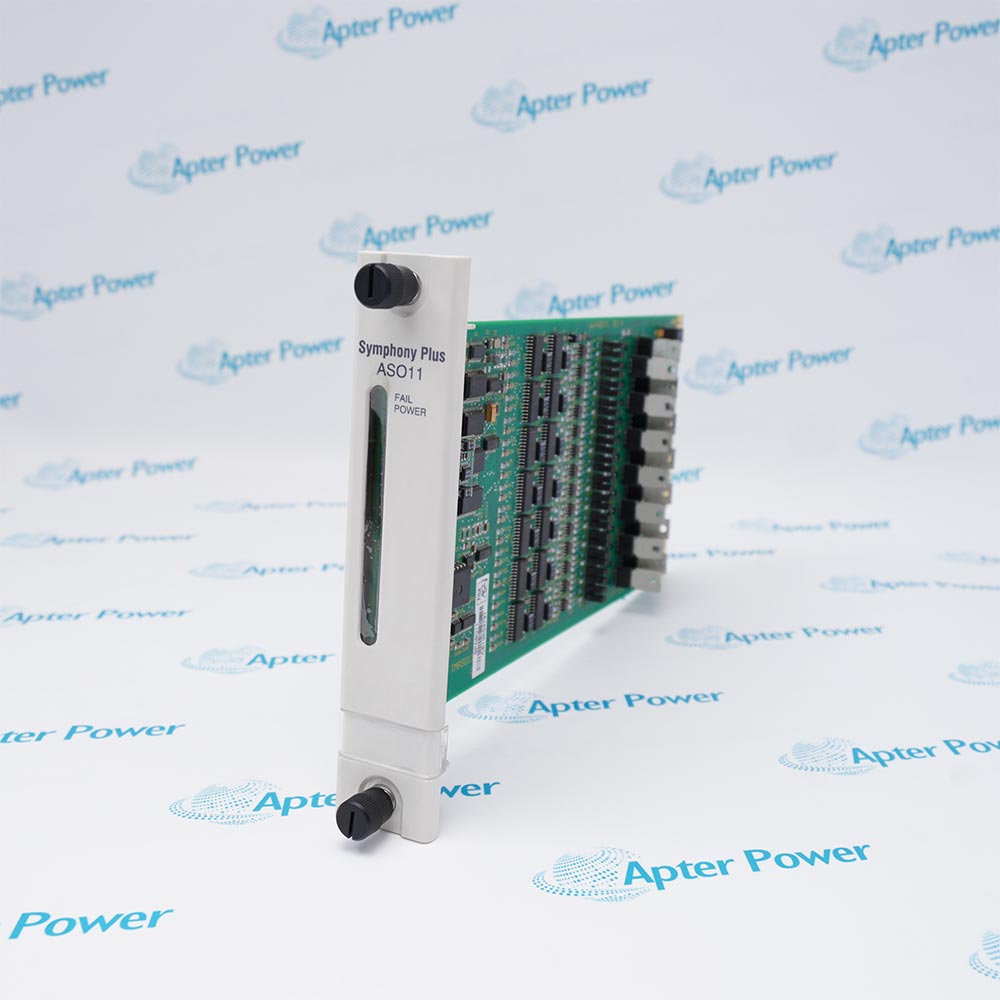

ABB SPASO11 is a Symphony Plus HR Series analog output module providing fourteen independently programmable 10-bit outputs with 4 to 20 mA or 1 to 5 V signal operation and output readback.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for SPASO11
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SPASO11

  • Manufacturer:
    ABB
  • Part Number:
    SPASO11
  • Product Family:
    ABB Bailey
  • Product Type:
    14-Channel Analog Output Module
  • Stock:
    1
  • System Family:
    ABB Ability Symphony Plus
  • Module Series:
    HR Series I/O
  • Module Type:
    Analog output module
  • Analog Output Channels:
    14
  • Channel Resolution:
    10 bit
  • Programming:
    Individually programmable channels
  • Current Output Range:
    4 to 20 mA
  • Voltage Output Range:
    1 to 5 VDC
  • Current-Output Load:
    750 ohms maximum
  • Voltage-Output Load:
    22 ohms minimum
  • Output Verification:
    Per-channel readback
  • Ambient Temperature:
    0 to 70 °C
  • Dimensions:
    Leave blank
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Output Channels Signal Modes Electrical Limits Application
  • Fourteen independently programmable analog outputs
  • 10-bit channel resolution with output readback
  • Supports 4 to 20 mA and 1 to 5 VDC signals

SPASO11 is an ABB Symphony Plus HR Series analog output module with fourteen separate process-control output signals.

Each channel is independently programmable with 10-bit resolution, and every output is read back to the signal to verify operation and reduce output-calibration requirements.

The official catalog defines 4 to 20 mA current operation, 1 to 5 VDC voltage operation, load limits, power requirements, and a 0 to 70 °C ambient range.

Availability, condition, price, and shipping time for SPASO11 are confirmed during quotation.

ABB SPASO11 Symphony Plus HR Series Analog Output Module Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Fourteen separate analog output channels are provided
  • Each channel is independently programmable
  • Each output has 10-bit resolution
  • Current mode is 4 to 20 mA
  • Voltage mode is 1 to 5 VDC
  • Output readback verifies signal operation
  • Current-output load is 750 ohms maximum
  • Voltage-output load is 22 ohms minimum
  • The published ambient range is 0 to 70 °C
  • 4 to 20 mA process-control output signaling
  • 1 to 5 VDC process-control output signaling
  • Readback-verified analog output service where channel operation must be monitored
Description
SPASO11 is intended for Symphony Plus HR installations that require fourteen configurable analog command signals from one module.

Each channel must be matched to its intended 4 to 20 mA or 1 to 5 VDC field circuit, including the permitted load and corresponding signal scaling.

During commissioning, use the output-readback function to confirm channel response, then verify wiring polarity, configured range, load conditions and cabinet temperature.
Alternative Names
SPASO11 SPASO 11 ABB SPASO11 ABB SPASO 11
Technical notes
SPASO11 replacement requires matching all fourteen channel assignments, current or voltage modes, field loads, rack position, power rails, output readback configuration, and documented controller database.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can I confirm ABB SPASO11 fits my Symphony Plus installation?
Match module, rack, slot, termination, controller configuration, signal modes, loads, and power.
What configuration should be preserved before replacing ABB SPASO11?
Save assignments, ranges, scaling, fail states, database, wiring, loads, calibration, and slot information.
Can ABB SPASO11 be substituted with YSPASO11 based only on the similar designation?
Do not assume it; verify labels, assembly ID, rack, termination, firmware, configuration, and documentation.
What should be recorded before removing ABB SPASO11?
Photograph module and terminations, label channels, record mode and load, note position, and back up configuration.
What commissioning checks follow installation of ABB SPASO11?
Test channels safely, verify scaling and polarity, compare command and readback, confirm devices, and review alarms.
What should be checked if ABB SPASO11 gives an incorrect or unstable output?
Check programming, polarity, load, rails, terminations, commands, readback, grounding, shielding, and calibration.
What information is needed to quote ABB SPASO11?
Provide labels, rack and termination details, controller family, configuration, condition, quantity, and destination.
