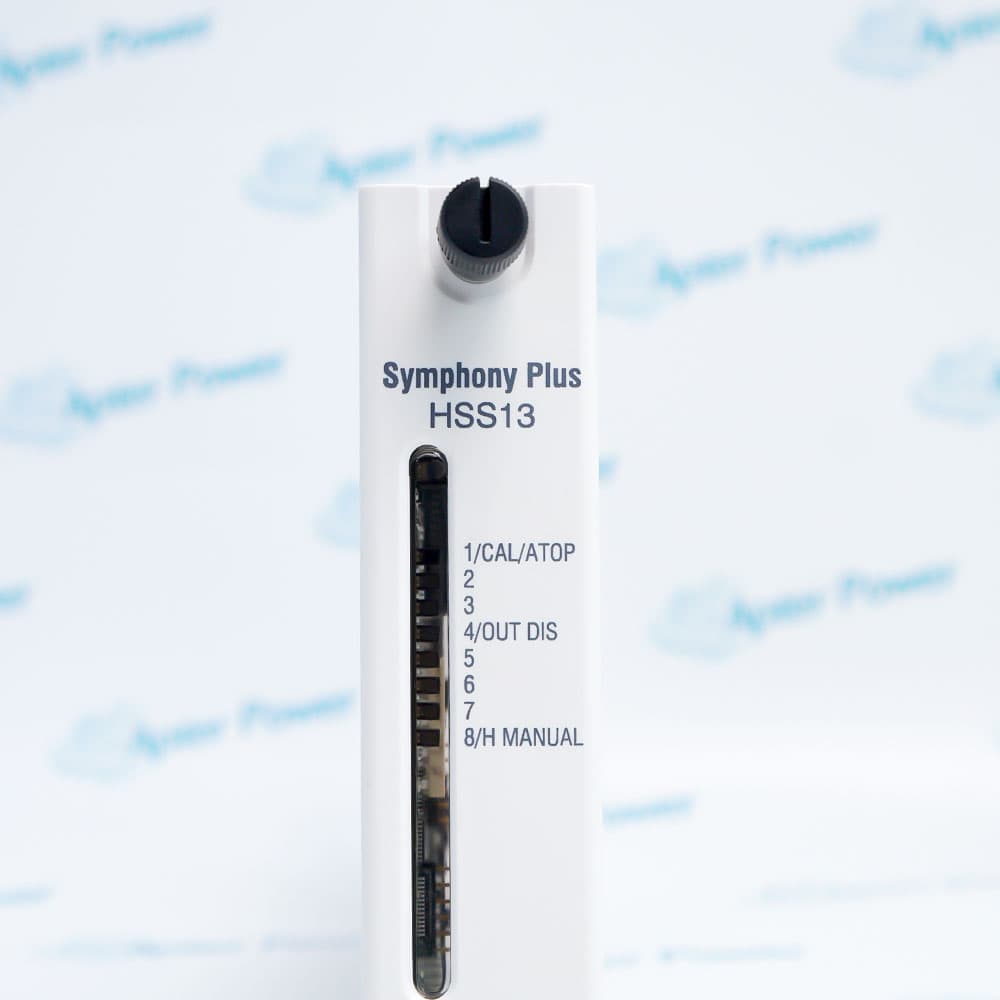

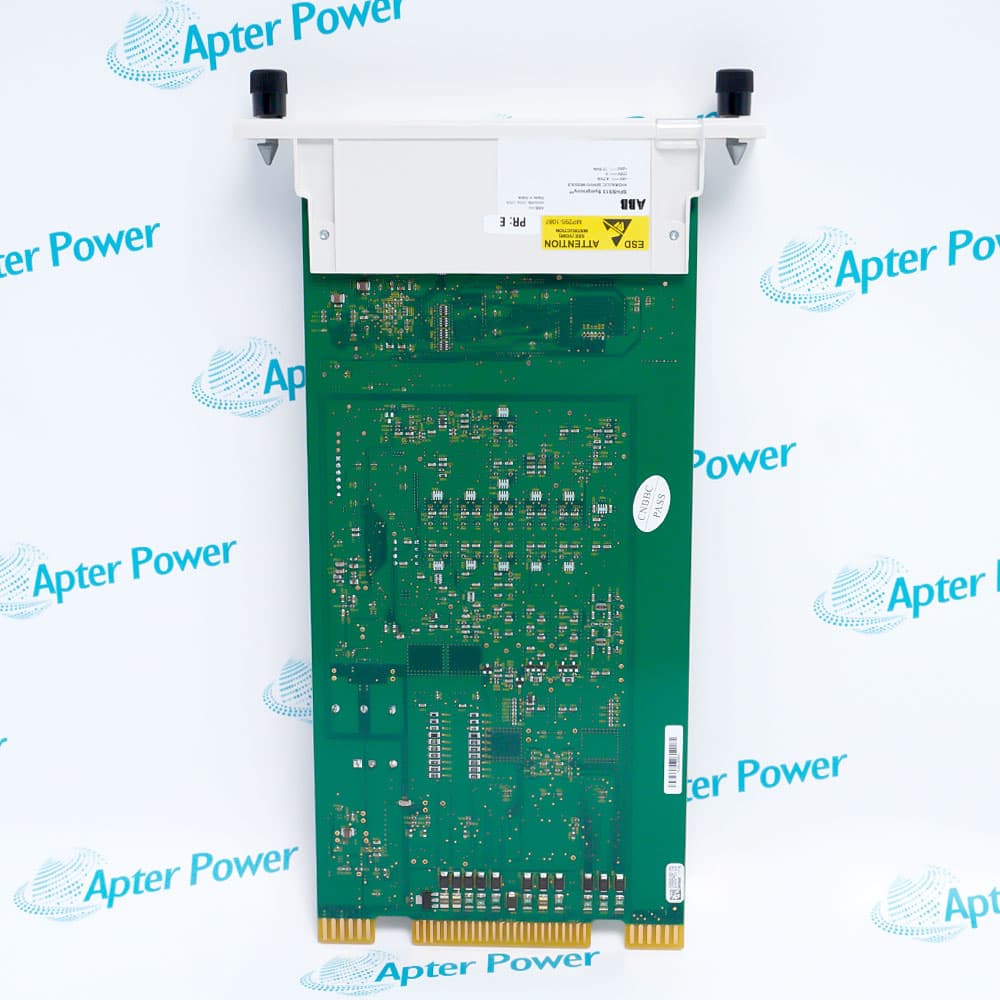

ABB SPHSS13 is a Symphony Plus hydraulic servo module for turbine-valve and actuator positioning. It closes the servo loop with LVDT feedback and drives the configured servo valve or I/H converter.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for SPHSS13
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SPHSS13

  • Manufacturer:
    ABB
  • Part Number:
    SPHSS13
  • Product Family:
    ABB Bailey
  • Product Type:
    hydraulic servo module
  • Stock:
    1
  • Control mode:
    Proportional-only hydraulic servo control
  • Feedback types:
    AC or DC LVDT
  • Actuator outputs:
    Servo valve or I/H converter
  • Response:
    Less than 2 ms input-to-output
  • Analog inputs:
    4 total, including 2 LVDT secondaries
  • LVDT excitation outputs:
    2
  • Excitation frequency:
    400 Hz to 15 kHz
  • Servo output range:
    Up to ±300 mA
  • I/H output ranges:
    4-20 mA or 20-160 mA
  • Isolated contact inputs:
    3 raise/lower/trip inputs, 250 VDC isolation
  • Hard-manual input:
    Independent optically isolated open-collector input
  • Positive logic current:
    576 mA at +5 VDC ±5%
  • Positive analog current:
    15 mA at +15 VDC
  • Negative analog current:
    12 mA at -15 VDC
  • Field supply current:
    335 mA at +24 VDC ±10%
  • Ambient temperature:
    0-70 °C
  • Board dimensions:
    35.56 x 177.8 x 298.45 mm
  • Configuration function:
    Function Code 55
  • Protection:
    Active current limiting and self-resettable I/O fuses
  • Calibration:
    Automatic feedback and demodulator-gain calibration
  • Weight:
    0.6173 lbs (0.28 kg)
  • Estimated shipping dimensions:
    3.5 x 31.5 x 17.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Monitoring & Control Compatibility Diagnostics

Features:

  • Supports AC or DC LVDT position feedback.
  • Operates in proportional-only control mode.
  • Provides less than 2 ms input-to-output response.
The current ordering configuration is SPHSS13, which is the ABB HR Series hydraulic servo module for proportional turbine-valve positioning with AC or DC LVDT feedback and servo-valve or I/H converter drive.

Within the installed Symphony Plus HR Series Turbine Control architecture, this configuration drives a servo valve or I/H converter for hydraulic actuators used on turbine throttle, control, fuel and guide-vane mechanisms.

Confirm FC55 configuration, NTHS03 termination, NKHS03 cable, LVDT type and servo-coil current before installation.
Availability is subject to Apter Power inventory and sourcing confirmation.

Verified resources for ABB SPHSS13:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerABB
  • ModelSPHSS13
  • ConditionNew / Surplus / Refurbished
  • Product FamilySymphony Plus HR Series Turbine Control
  • The module regulates drive current to the configured servo valve or I/H converter.
  • LVDT feedback closes the hydraulic-actuator position loop for the controller strategy.
  • Turbine throttle, control, fuel and guide-vane mechanisms are supported when engineered for the module.
  • The termination unit and interface cable must match the selected hydraulic-servo assembly.
  • Function Code 55 defines the controller-side configuration used with the servo module.
  • Legacy replacement claims still require confirmation of feedback, drive and wiring compatibility.
  • Test points and monitoring outputs support local loop checks and actuator tuning.
  • Automatic feedback and demodulator-gain calibration assist validated commissioning.
  • Active current limiting and resettable interface protection help contain servo-loop faults.
Description
SPHSS13 is the ABB HR Series hydraulic servo module for proportional turbine-valve positioning with supported LVDT feedback and actuator-drive arrangements.

It closes the position loop for throttle, control, fuel, guide-vane and related hydraulic mechanisms while providing commissioning and protection functions.

Engineering must confirm the function code, termination, cable, feedback type, excitation, coil-current range, polarity and safe valve state before commissioning.
Alternative Names
SPHSS13 ABB SPHSS13 SPHSS13 hydraulic servo module Symphony Plus HR Series Turbine Control SPHSS13 ABB Symphony Plus HR Series Turbine Control SPHSS13 ABB Symphony Plus HR Series Turbine Control hydraulic servo module
Technical notes
Before energizing SPHSS13, verify field wiring, power isolation and the validated Symphony Plus HR Series Turbine Control configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which servo-loop details must be validated before commissioning SPHSS13?
Validate the LVDT feedback type, drive interface, excitation, polarity, protection behavior and safe actuator response for SPHSS13.
Which termination, cable and function code must be paired with SPHSS13?
Use the documented termination unit, the documented interface cable and Function Code 55 configuration.
Which turbine mechanisms can be positioned by SPHSS13?
It drives a servo valve or I/H converter for hydraulic throttle, control, fuel or guide-vane actuator applications.
What actuator information is needed to confirm SPHSS13 availability?
Send the servo-coil current, LVDT type, termination, cable, quantity and required date to Apter Power.
Which legacy hydraulic-servo modules are officially replaced by SPHSS13?
ABB identifies SPHSS13 as the direct replacement for the specified legacy hydraulic-servo module variants; installation details still require verification.
What should be included with an SPHSS13 manual and quote request?
Use the Manuals PDF and provide the installed legacy model, FC55 settings, the documented termination unit, the documented interface cable, LVDT, coil current, quantity and destination.
