    Apter Power supplies original ABB CM15/000S0E0/STD universal indicators to ensure reliable signal conversion, alarm logging, and precise visual monitoring for your plant instrumentation.

CM15/000S0E0/STD

/ 4.9
1001 reviews | Need a Specific Revision?

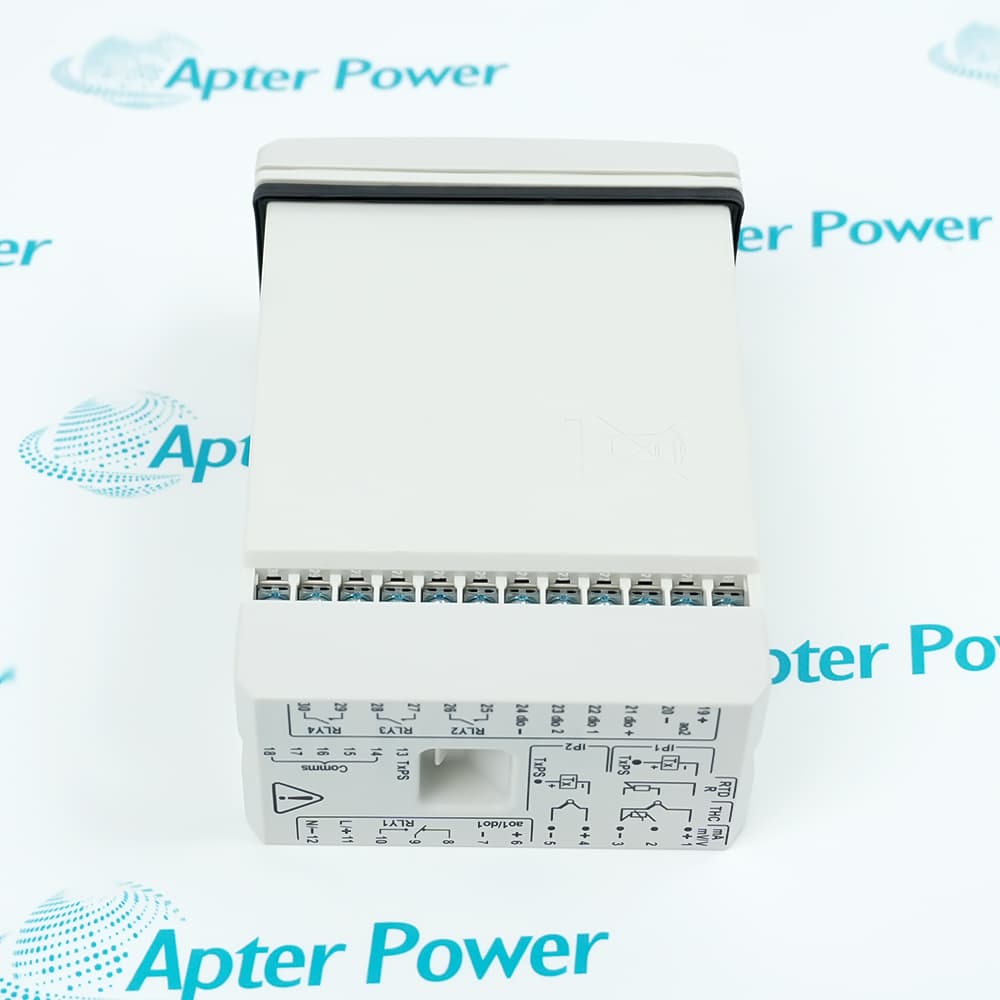

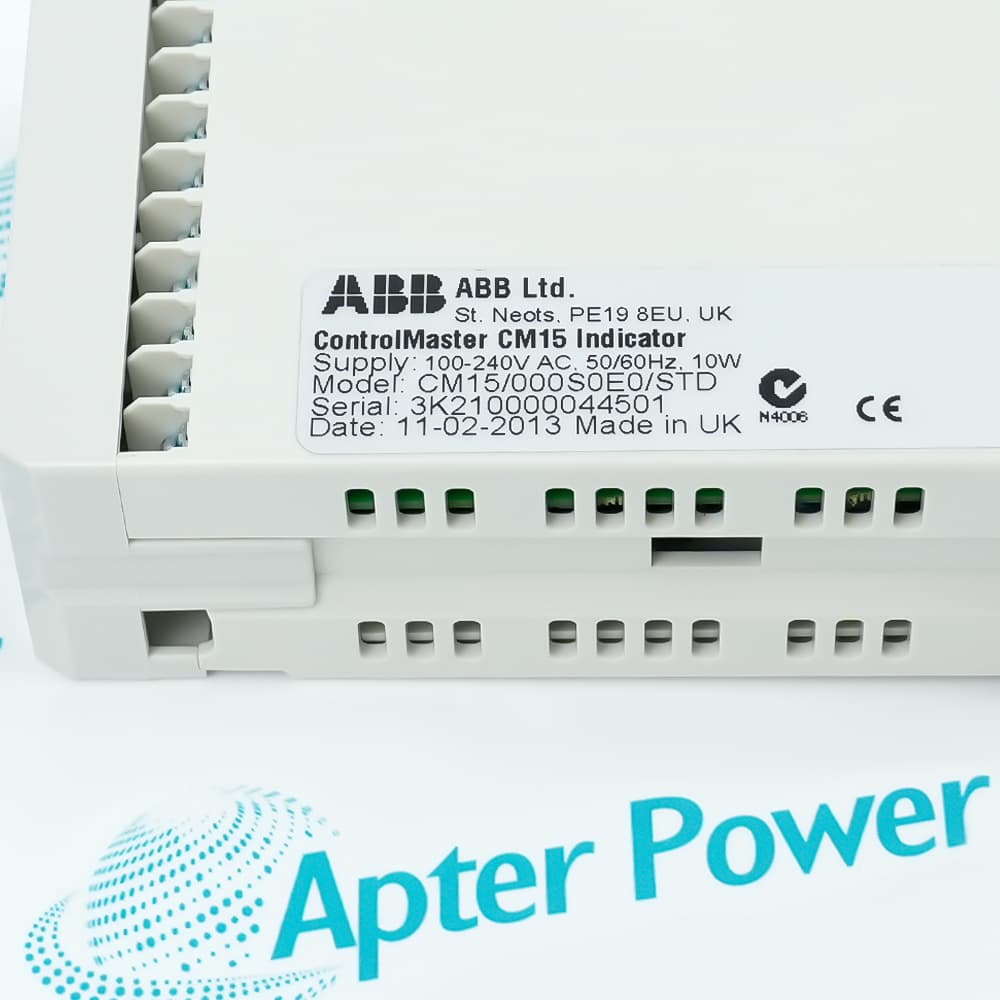

The ABB CM15/000S0E0/STD is a fully functional 1/8 DIN universal process indicator designed to handle demanding visualization tasks across a wide range of process industries.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for CM15/000S0E0/STD
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CM15/000S0E0/STD

  • Manufacturer:
    ABB
  • Part Number:
    CM15/000S0E0/STD
  • Product Family:
    ABB Commander
  • Product Type:
    1/8 DIN universal process indicator
  • Stock:
    1
  • Display:
    Color, 1/4 VGA TFT, liquid crystal display (LCD) with built-in backlight
  • Operator Keypad:
    4 tactile membrane keys
  • Base templates:
    Single PV indication (with totalizer/level) or Counter
  • Dual templates:
    Dual PV indication (with totalizer/level) or Dual counter
  • Process Alarms:
    8 fully configurable types (High/Low process or latch) with level/time hysteresis
  • Alarm Source:
    Fully configurable (e.g., PV, Analog input, or inbuilt Math block)
  • Weight:
    0.38 kg
  • Estimated shipping dimensions:
    5x9.7x14.1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Environmental & Operating Installation & Integration

Features:

  • Bridge Between Process Field Signals and Operator Visualization Interface
  • Integrates Universal Input Processing with Totalization and Counter Functions
  • Functions Alongside Electromagnetic Flowmeters and Supervisory Control Systems
The ABB CM15/000S0E0/STD 1/8 DIN universal process indicator serves as the central process status monitoring hub, providing crystal-clear full-color TFT display and reliable signal conditioning for all connected measurement devices within an industrial automation environment. It continuously receives incoming universal input signals through its 2 universal inputs, 1 analog output, and 1 relay fitted as standard, converting raw process data into actionable visual information and distributing this intelligence through user-customizable display screens to support steady-state operation of pumps, valves, and process modules. Seamless operator interaction is standard with the CM15/000S0E0/STD, and using an optional plug-and-play function key and I/O module configuration will allow flexible expansion to match specific application requirements in the event of changing process demands. The CM15/000S0E0/STD has made improvements in several areas over previous indicator designs in addition to incorporating comprehensive math, logic, and totalization capability within the compact 1/8 DIN enclosure.

The CM15/000S0E0/STD provides essential visualization functions common to the entire process loop, and is a critical component of the monitoring path, directly affecting the proper, normal operation of the overall control system. One or more CM15/000S0E0/STD indicators are required per panel depending on the desired monitoring density. The CM15/000S0E0/STD occupies only a single 1/8 DIN panel cutout and is always positioned for optimal operator accessibility and visibility.

For advanced process control applications, the CM15/000S0E0/STD supports optional enhanced configurations through additional hardware and software modules. In addition to standard indication-only operation, the enhanced configuration also performs automatic calculations. The CM15/000S0E0/STD executes totalization, math, and logic functions using the flexible software architecture specified in the indicator options. Using this method, the system continually monitors the health of process variables. If the system detects that flow totals or calculated values exceed configured thresholds (outside configured tolerance levels), it will automatically update the display, trigger relay outputs, and communicate alarm events via MODBUS or Ethernet to supervisory control systems.

The CM15/000S0E0/STD ABB 1/8 DIN universal process indicator may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB CM15/000S0E0/STD 1/8 DIN universal process indicator Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB CM15/000S0E0/STD 1/8 DIN universal process indicator Specs

General

  • Manufacturer ABB
  • Model CM15/000S0E0/STD
  • Condition New Original ready stock
  • Product Family CM15,CM10,CM30
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Process Monitoring: Tracking variables such as temperature, flow, frequency, and level.
  • Flow Measurement: High-accuracy connection to electromagnetic flowmeters for totalization and pulse counting.
  • Batch Control: Can be configured as a simple batch controller for dosing specific volumes.
  • Industrial Automation: Used in manufacturing facilities, electrical engineering, and research labs for alarm management and diagnostic reporting.
  • Pump Control: Advanced functionality includes duty/assist pump control for up to six pumps.
  • Operating Temperature: 0 to 55°C (32 to 131°F).
  • Storage Temperature: -20 to 70°C (-4 to 158°F).
  • Operating Humidity: 5 to 95% RH (non-condensing).
  • Protection Rating: Front Face: IP66 and NEMA 4X (dust-tight and resistant to hose-directed water). Rear Case: IP20.
  • Mechanical Installation: Form Factor: 1/8 DIN (96 x 48 mm). Mounting: Panel-mounted with included secure-fit clamps.
  • Configuration: Direct Access: Front-panel navigation with intuitive full-text menus. PC Tools: Offline configuration via ABB ConfigPilot software and infrared (IrDA) data transfer.
  • Standard I/O: 2 Universal Inputs, 1 Analog Output, and 1 Relay output.
  • Digital Communication: Supports Modbus RTU (RS485), Ethernet (Modbus TCP), and PROFIBUS DP.
  • Web Server: Built-in web server for remote monitoring, diagnostics, and email notifications via standard browsers.
Description
The ABB CM15/000S0E0/STD is a feature-packed, 1/8 DIN universal process indicator specifically designed for comprehensive process status monitoring and control in industrial automation environments. This versatile instrument is engineered to handle demanding visualization tasks across a wide range of process industries, providing operators with real-time, critical data to maintain optimal system performance and operational continuity.

The CM15/000S0E0/STD features a crystal-clear, full-color TFT display that presents exactly the information operators need through user-customizable screens. With an intuitive user interface and clear text prompts that make installation, commissioning, and operation quick and simple, this indicator is purpose-built to reduce setup complexity and minimize training requirements. It effectively solves the common operational challenge of lengthy configuration processes, enabling rapid deployment in time-sensitive industrial settings.

Equipped with comprehensive I/O capabilities, the CM15/000S0E0/STD includes 2 universal inputs, 1 analog output, and 1 relay fitted as standard. Its dedicated frequency input enables direct, high-accuracy connection to electromagnetic flowmeters, making it ideal for precise flow monitoring and measurement applications. Furthermore, with flexible connectivity options including Ethernet and MODBUS communications, the CM15/000S0E0/STD is designed to ensure easy integration and seamless connectivity to supervisory or control systems, addressing modern connectivity challenges in distributed process architectures.

Scalable to match diverse application requirements through comprehensive hardware and software options, the CM15/000S0E0/STD offers totalization and counter functions for the calculation and display of flow total values along with pulse counting capability. Its flexible functionality, including math, logic, and totalization, provides the processing power needed to solve complex application requirements. This makes the CM15/000S0E0/STD particularly well-suited for demanding scenarios requiring advanced signal processing, automated calculations, and intelligent alarm management.

Built to survive in harsh industrial environments, the CM15/000S0E0/STD delivers robust IP 66 and NEMA 4X environmental protection. This rugged construction is specifically designed to withstand exposure to dust, moisture, and corrosive elements, ensuring reliable continuous operation in challenging field conditions where standard instrumentation would be vulnerable to failure.
Alternative Names
CM15 000S0E0 STD CM15-000S0E0-STD CM15 CM10/000S0E0/STD CM15/300S0E0/STD
Technical notes
Equipped with comprehensive I/O, the ABB CM15/000S0E0/STD includes 2 universal inputs, 1 analog output, and 1 relay fitted as standard. This specific ABB CM15/000S0E0/STD configuration is designed to handle high-accuracy data collection through its frequency input, which allows for a direct connection to electromagnetic flowmeters.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What are the key display and usability features of the CM15/000S0E0/STD?
It features a full-color TFT display with user-configurable screens, allowing operators to view critical process data clearly. The intuitive interface and clear text prompts simplify installation, commissioning, and operation, significantly reducing setup time and training requirements.
What advanced functions are available in the CM15/000S0E0/STD?
The indicator supports totalization and counter functions for flow calculation and pulse counting. It also includes math, logic, and totalization capabilities, providing the flexibility required for complex signal processing, automated calculations, and intelligent alarm handling.
Is the CM15/000S0E0/STD suitable for harsh industrial environments?
Yes, it is built with robust IP66 and NEMA 4X protection, making it highly resistant to dust, moisture, and corrosive conditions. This ensures reliable long-term operation even in demanding industrial environments.
