- ABB defines AINT as the main circuit board in ACS800-07 hardware
- ABB component code 64802909 is paired with AINT-02C in the cited ACS800-07 structure
- The standard drive board set includes an RMIO board with a fibre-optic link to AINT

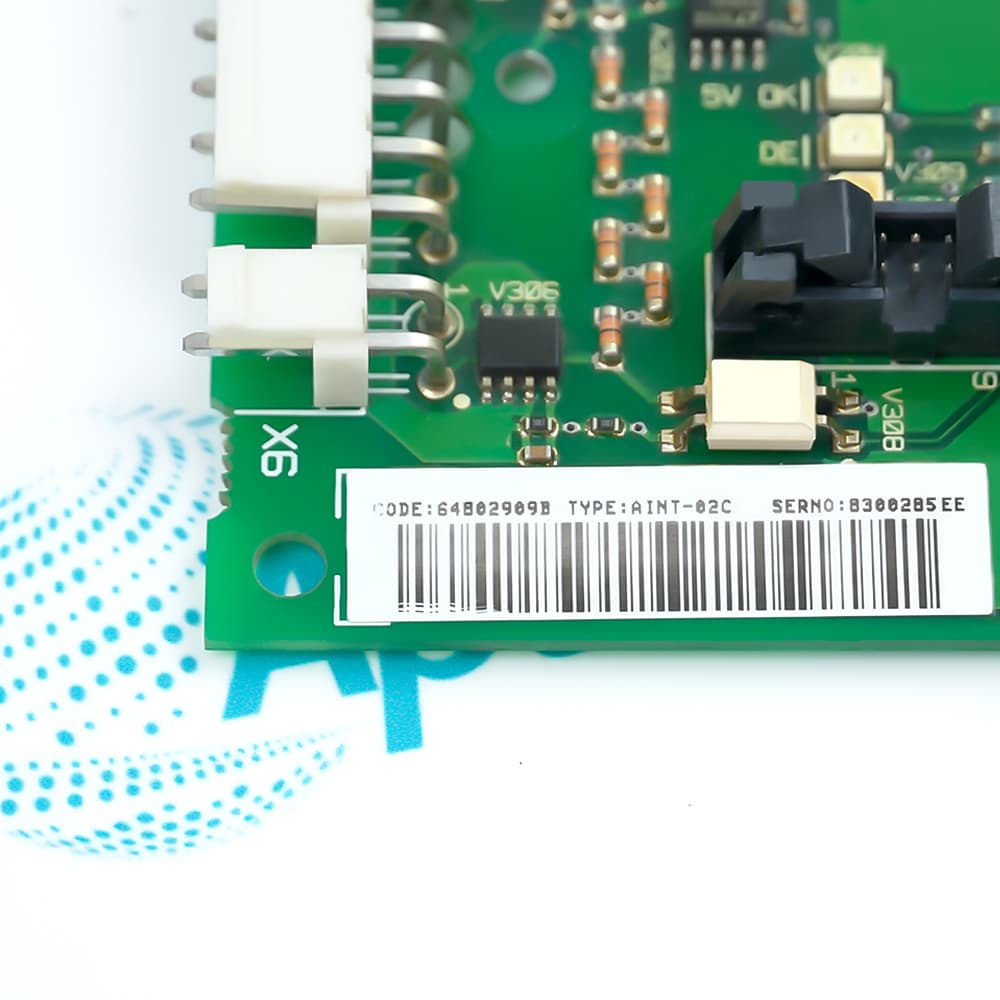

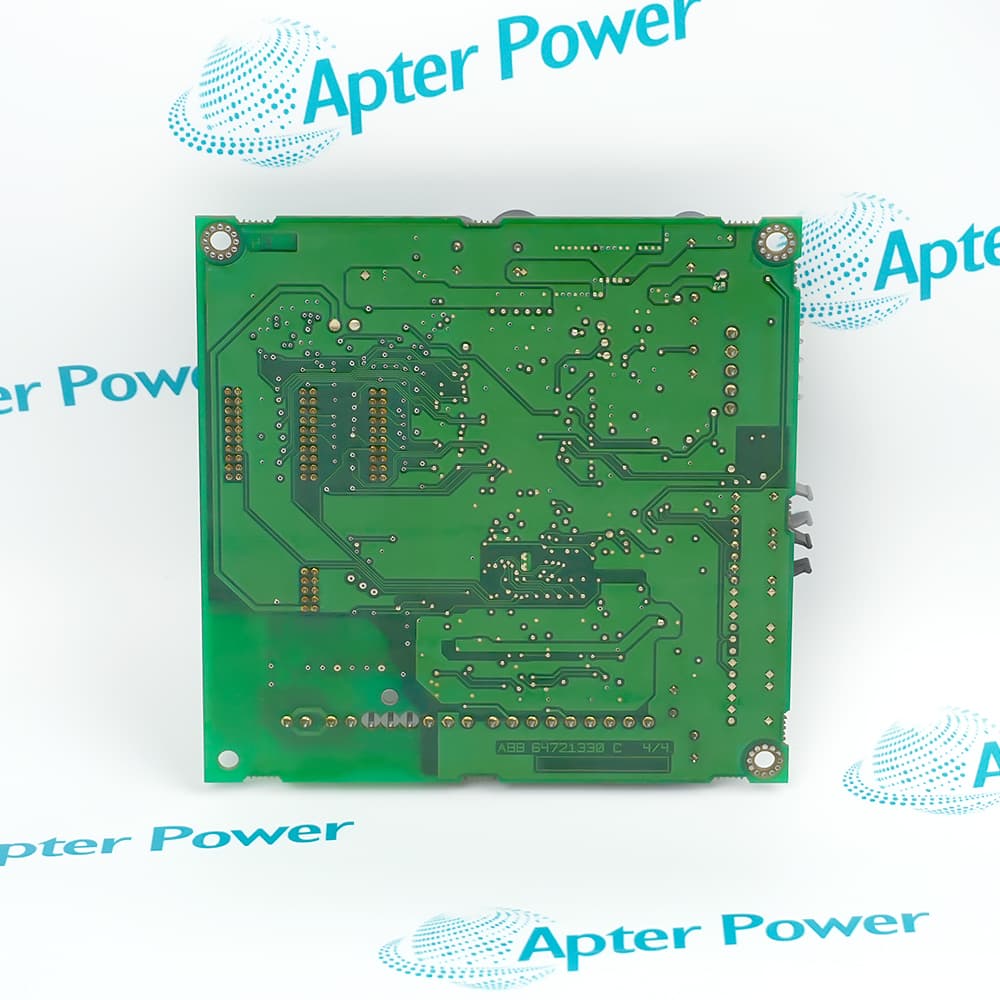

AINT-02C 68257867 is an ABB AINT main circuit board listing for documented ACS800 drive hardware.
ABB hardware documentation defines AINT as the main circuit board and identifies an optical-fibre connection between the RMIO control board and AINT.
Before installation or replacement, verify the complete board label, drive type and frame, official component structure, connector positions, companion boards, and service instructions.
Availability, condition, price, and shipping time for AINT-02C 68257867 are confirmed during quotation.
ABB AINT-02C 68257867 Main Circuit Board Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- ABB identifies the board designation as AINT-02C
- The documented configuration data assigns AINT ID 1 to AINT-02(C)
- The documented configuration data assigns AINT ASIC ID 231 to AINT-02(C)
- The AINT TYPE parameter reads AINT and AGDR configuration data from the selected inverter module
- In parallel-module systems, inconsistent AINT configuration data at power-up generates a fault
- Documented AINT faults include incorrect EPLD or board revision, du/dt limitation hardware failure, and current- or voltage-measurement scaling errors
- The RMIO motor-control and I/O board uses a fibre-optic link to the AINT board
- AINT is listed among the standard printed circuit boards in ACS800-07 hardware
- The documented board set also includes AINP, AIBP, APOW, AGDR, and ADPI functions
- Main-circuit board function in documented ACS800-07 cabinet-built drives
- Optical-fibre interface with the RMIO control board in the ACS800-07 architecture
- ACS800-07-0400-7 component structures that specify AINT-02C
