D2E146-AP47-C3

/ 4.9
1001 reviews | Need a Specific Revision?

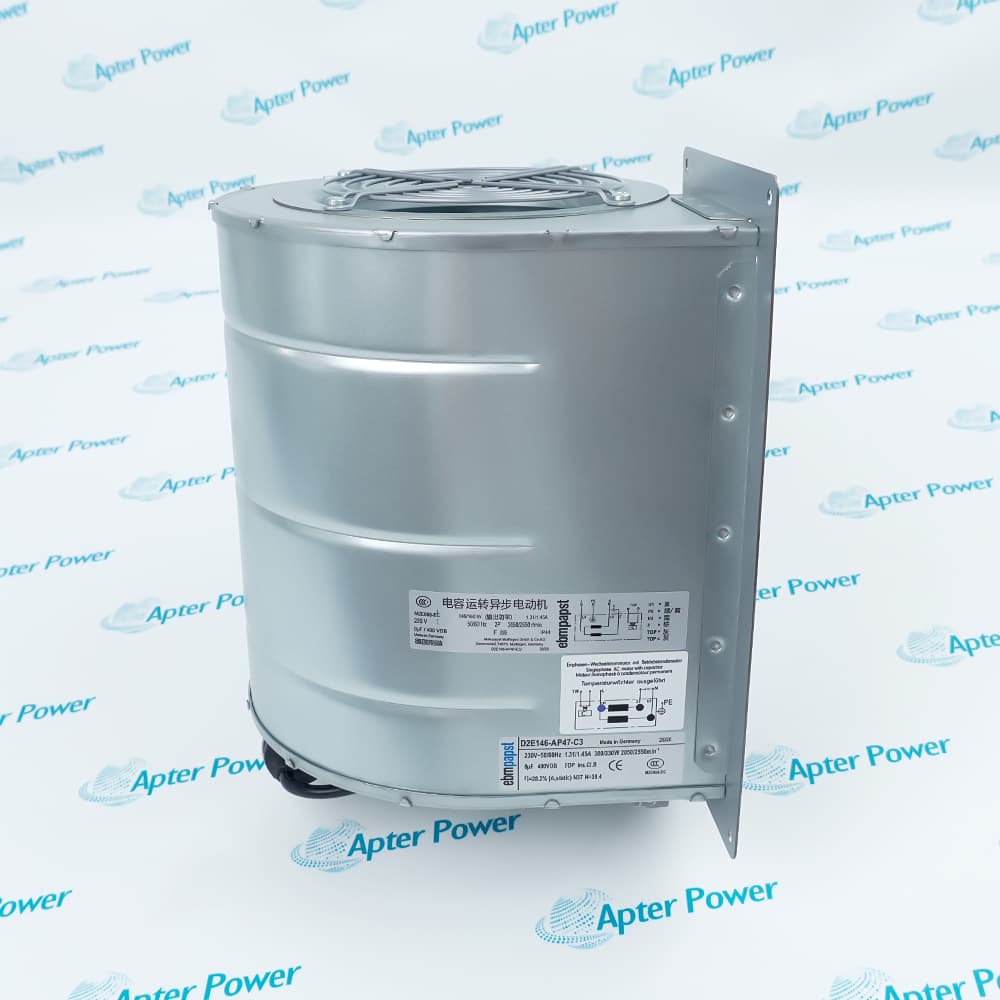

ABB D2E146-AP47-C3 is a drive cooling fan in the D2E146-AP47-xx family documented for ISU/INU cooling.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for D2E146-AP47-C3
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for D2E146-AP47-C3

  • Manufacturer:
    ABB
  • Part Number:
    D2E146-AP47-C3
  • Product Family:
    ABB Drives
  • Product Type:
    Drive Cooling Fan
  • Stock:
    1
  • Official Family Designation:
    D2E146-AP47-xx
  • Documented Equipment Role:
    ISU/INU Cooling Fan
  • Family Supply:
    230 V AC ±10%, 50/60 Hz
  • Family Current:
    1.31/1.45 A
  • Current Draw (60Hz):
    1.45 A
  • ABB Family Order Code:
    68901103
  • Tariff Code:
    8414593000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Matching Airflow Service Application
  • Drive cooling fan within the ABB D2E146-AP47-xx family
  • Documented for cooling duties in applicable ISU and INU hardware
  • Complete C3 suffix must be verified on the installed fan label
ABB D2E146-AP47-C3 belongs to a cooling-fan family identified in ABB converter hardware manuals.

The verified family data supports the fan role and general electrical identification but does not prove interchangeability among different suffixes.

Confirm the host converter, complete label, connector, mounting, airflow direction, and clearance before selecting a replacement.

Availability, condition, price, and shipping time for D2E146-AP47-C3 are confirmed during quotation.

ABB D2E146-AP47-C3 Drive Cooling Fan Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

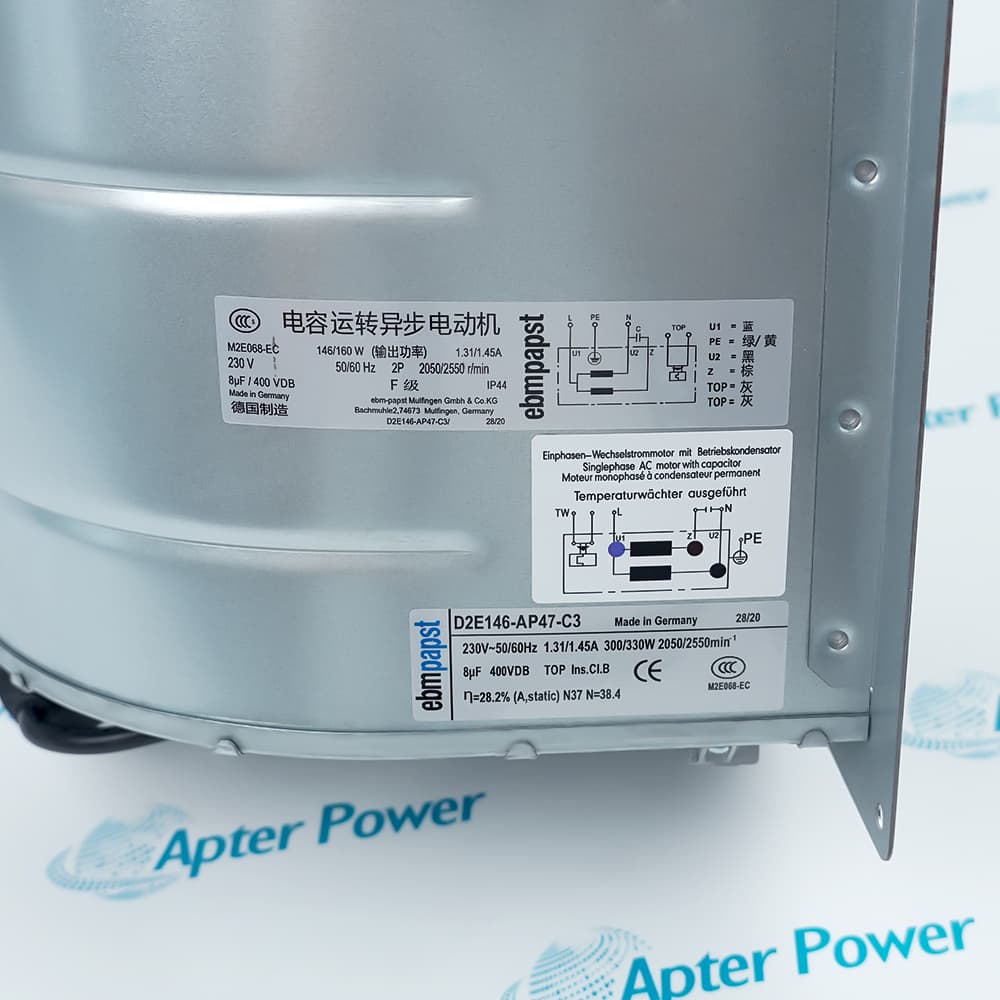

  • Read the complete D2E146-AP47-C3 suffix from the installed label
  • Confirm the converter type code and the documented ISU or INU fan position
  • Do not treat another D2E146-AP47 suffix as an automatic substitute
  • Match the original fan orientation and airflow direction during replacement
  • Keep the documented inlet, outlet, and service clearances unobstructed
  • Check surrounding ducts and converter cooling passages before startup
  • Isolate the converter and follow the ABB hardware-manual safety procedure
  • Verify the fan connector and cable routing before energizing the unit
  • Confirm fan operation and converter cooling status after replacement
  • Cooling service in ABB converter hardware that lists the D2E146-AP47-xx family
  • ISU or INU fan replacement after complete suffix and module verification
  • Preventive maintenance requiring matched connector, mounting, and airflow configuration
Description
ABB D2E146-AP47-C3 is a drive cooling fan within the D2E146-AP47-xx family identified in ABB converter hardware documentation.

ABB documents the family for ISU/INU cooling and publishes family-level supply, frequency, current, and order-code information; the verified material does not separately define the C3 suffix.

Before replacement, match the complete fan label and confirm the converter module, supply, connector, mounting points, airflow direction, clearance, and applicable ABB hardware manual.
Alternative Names
D2E146-AP47-C3 D2E146AP47C3 D2E146 AP47 C3 ABB D2E146-AP47-C3 ABB Drives D2E146-AP47-C3 D2E146-AP47-C3 Cooling Fan ABB D2E146 AP47 C3 D2E146-AP47-C3 Drive Cooling Fan
Technical notes
D2E146-AP47-C3 must be matched by its complete suffix. Verify the installed ABB converter, fan label, supply, connector, mounting, airflow direction, and clearance before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why must the C3 suffix be checked when ordering ABB D2E146-AP47-C3?
The verified ABB manuals identify the wider D2E146-AP47-xx family, not every suffix as interchangeable. Match the complete C3 label and the host converter documentation before selection.
Which drive location is documented for the ABB D2E146-AP47 family?
ABB hardware documentation identifies D2E146-AP47-xx as an ISU/INU cooling fan in applicable converter modules.
Can the family supply data alone prove that another D2E146-AP47 fan replaces D2E146-AP47-C3?
No. Supply compatibility does not confirm connector, mounting, airflow, or suffix equivalence. The complete installed label and module-specific parts information are required.
What should be checked physically before replacing ABB D2E146-AP47-C3?
Compare the connector, mounting points, fan housing, airflow direction, cable routing, clearance, and the complete suffix on the old and proposed replacement fans.
Which ABB manual should be used for ABB D2E146-AP47-C3 installation?
Use the hardware manual for the exact installed ACS800 converter module that lists the D2E146-AP47-xx cooling fan family and its replacement procedure.
Should ABB order code 68901103 be treated as an alternative name for D2E146-AP47-C3?
No. The code appears at family level in the verified ABB material and does not by itself prove exact equivalence to the C3 suffix.
What information is needed to quote ABB D2E146-AP47-C3 accurately?
Provide clear photos of the full fan label, converter type code, module position, connector and mounting arrangement, required quantity, condition, and destination.
