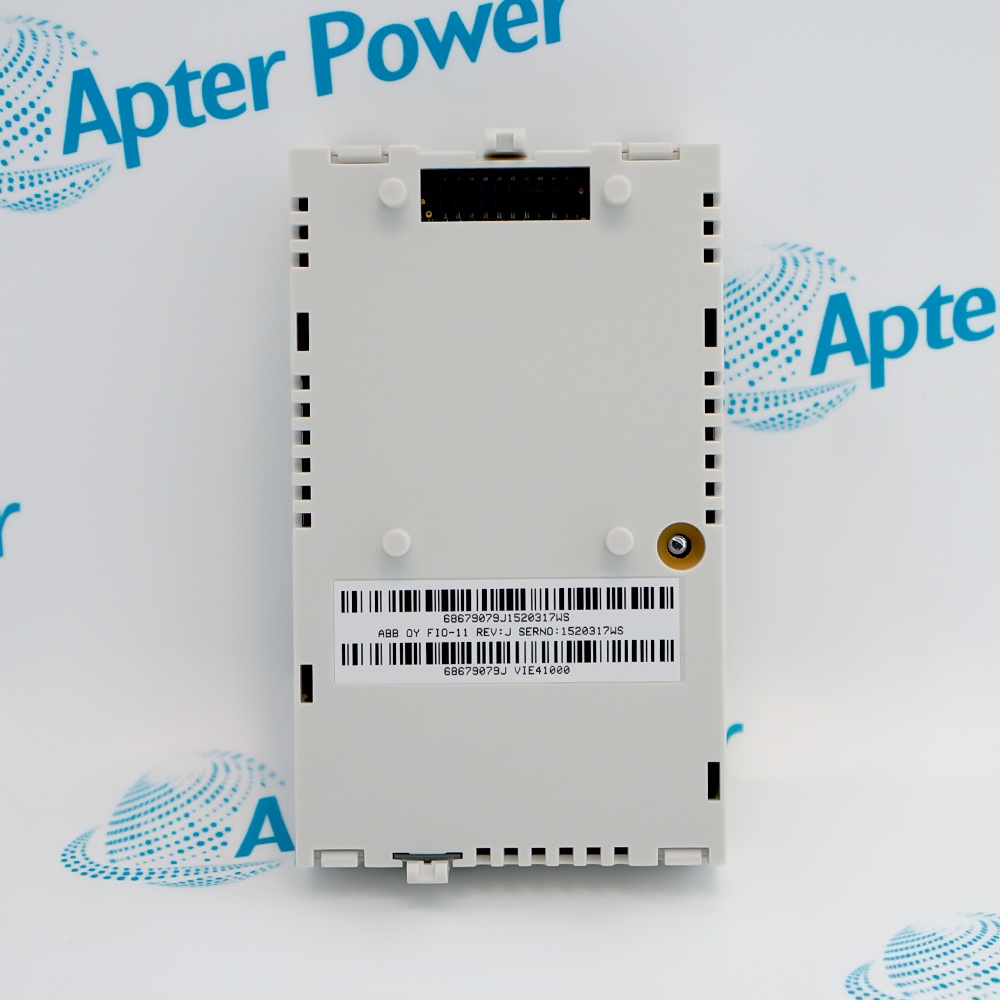

ABB FIO-11 is an I/O extension module with three analog inputs, one analog output, and two programmable digital I/O channels for supported ABB drives.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for FIO-11
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FIO-11

  • Manufacturer:
    ABB
  • Part Number:
    FIO-11
  • Product Family:
    ABB Drives
  • Product Type:
    Analog and Digital I/O Extension Module
  • Stock:
    1
  • Analog Inputs:
    3
  • Analog Output:
    1
  • Programmable Digital I/O:
    2
  • Analog Voltage Range:
    +/-10 V
  • Analog Current Range:
    +/-20 mA
  • Analog Input Resolution:
    16-bit
  • Analog Output Resolution:
    12-bit
  • Power Supply:
    24 VDC from the drive
  • Maximum Supply Current:
    300 mA
  • Degree of Protection:
    IP20
  • Module Connector:
    20-pin
  • Terminal Plugs:
    Six 2-pole plugs
  • Isolation Group:
    All module connections in one group
  • Weight:
    0.1 kg
  • Estimated shipping dimensions:
    6.3 x 10.6 x 3.2 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Signal Configuration Installation Review Fault Tracing

Features:

  • Analog channels: Three analog inputs and one analog output.
  • Digital channels: Two programmable digital I/O points.
  • Signal selection: Analog channels support voltage or current operation.

FIO-11 expands the analog and digital I/O available to supported ABB drives.

Channel signal selection, scaling and drive parameters should be recorded before startup.

The drive type, option slot and terminal-plug scope must be confirmed when ordering.

Availability is subject to Apter Power's current inventory and sourcing confirmation.

Verified resources for ABB FIO-11:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerABB
  • ModelFIO-11
  • ConditionNew Original ready stock
  • Product FamilyABB Drives I/O Extension Modules

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

FIO-11 signal configuration review

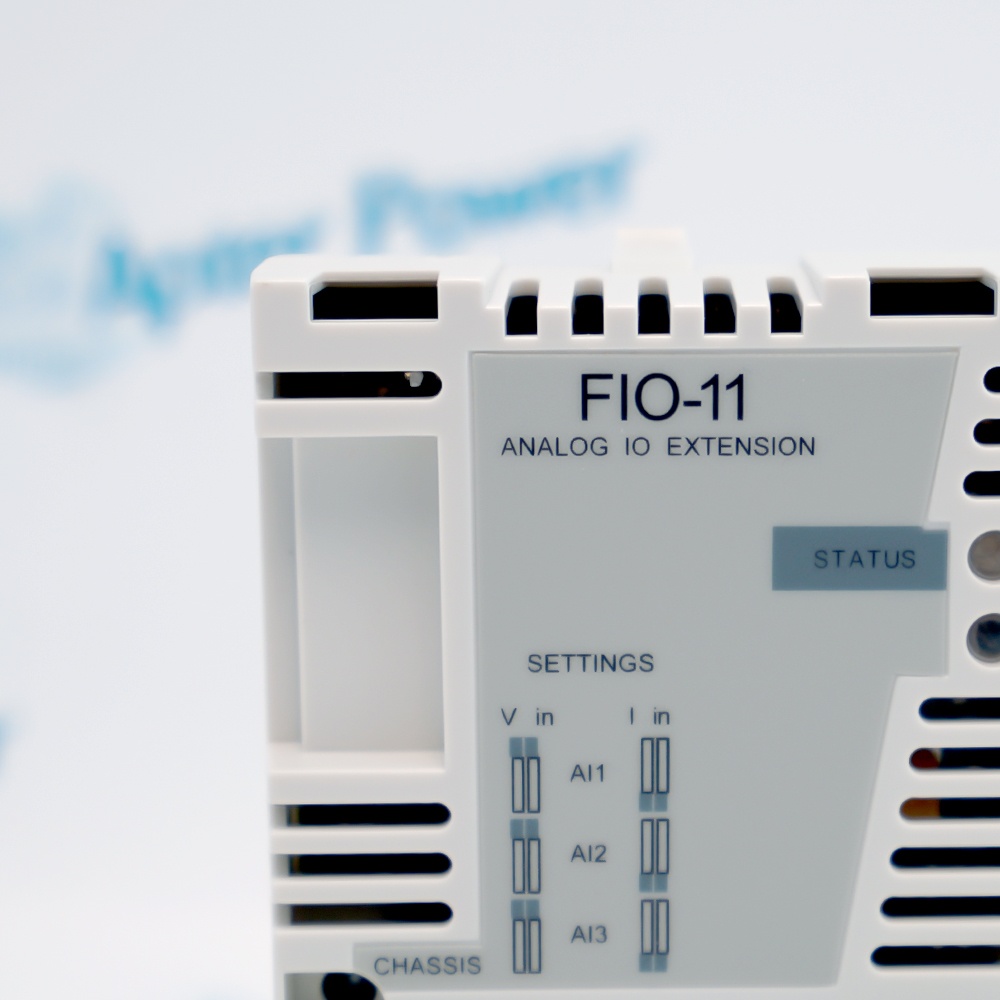

  • Input mode: Select current or voltage operation with the slide switches before commissioning FIO-11.
  • Module activation: Enable communication between FIO-11 and the drive through the applicable drive parameter.
  • Digital channel role: Configure each FIO-11 digital channel as an input or an approved output type.
  • Project records: Preserve FIO-11 signal assignments, scaling and drive parameters before replacement.

FIO-11 installation review

  • Power isolation: Switch off the drive supply, wait five minutes and isolate external control-circuit voltages before installing FIO-11.
  • Option slot: Insert FIO-11 into a supported drive option slot and confirm that the retaining clips lock.
  • Grounding screw: Tighten the FIO-11 fixing screw to 0.5 N·m because it supports grounding, EMC performance and module operation.
  • Signal wiring: Use conductors up to 2.5 mm², follow the drive shielding instructions and keep signal cables separate from power cables.

FIO-11 fault tracing

  • Green status: A green STATUS LED indicates normal FIO-11 operation.
  • Orange status: An orange indication identifies an uninitialized FIO-11 or a communication fault with the control unit.
  • Red status: A red indication can identify a power fault, initialization problem or control-unit communication fault.
  • Diagnostic order: Check drive parameters, module seating, grounding, connector engagement and field wiring before replacing FIO-11.
Description
The FIO-11 is an ABB analog and digital I/O extension module providing three analog inputs, one analog output, and two programmable digital I/O channels.

Official documentation for FIO-11 specifies selectable voltage or current operation for the analog channels, with the module connections forming one common isolation group.

Before ordering FIO-11, verify drive support, slot allocation, terminal plugs, and parameter settings against the installed ABB drive documentation.
Alternative Names
ABB FIO-11 ABB FIO 11 FIO 11 FIO11 ABB FIO-11 I/O extension module ABB drives analog and digital I/O extension
Technical notes
FIO-11 provides selectable analog voltage or current channels together with programmable digital I/O for supported ABB drives. Before installation, confirm drive support, option-slot allocation, terminal plugs, common isolation arrangement, signal type, and parameter settings; incorrect channel selection or wiring can cause invalid feedback even when the extension module is mechanically seated.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Before starting FIO-11, how should its three analog inputs be configured?
Set each approved channel for voltage or current operation, then match the plus or minus 10 V or plus or minus 20 mA signal to drive scaling and field wiring.
The two programmable digital channels on FIO-11 can act as inputs or outputs; where is each role assigned?
Configure each channel for its approved input or output role in the supported ABB drive parameters; terminal wiring alone does not define the digital function.
What causes incorrect analog feedback from FIO-11?
A mismatched voltage/current selection, polarity error, scaling mistake, loose 20-pin connector, grounding issue, or misuse of the common isolation group can distort the signal.
Can FIO-11 be fitted to any ABB drive option slot?
Verify the ABB drive type, supported option slot, control-unit documentation, 24 VDC option supply, applicable firmware records, and the required parameter group.
What does the IP20 rating require for the FIO-11 installation environment?
Install the module inside the approved drive or enclosure arrangement and maintain the specified cabinet protection; IP20 does not make the option suitable for unprotected field exposure.
An FIO-11 communication fault appears after service; which checks separate it from a wiring fault?
Check module seating, STATUS indication, 20-pin connector, drive parameters, control-unit communication, grounding, and analog/digital field wiring before replacing the option.
Which connector parts must be confirmed with an FIO-11 replacement?
Confirm the 20-pin module connector, six two-pole terminal plugs, grounding screw, channel labels, and the recorded analog and digital assignments for the installed drive.
