MEM86-3*192K R3R1R3

/ 4.9
1001 reviews | Need a Specific Revision?

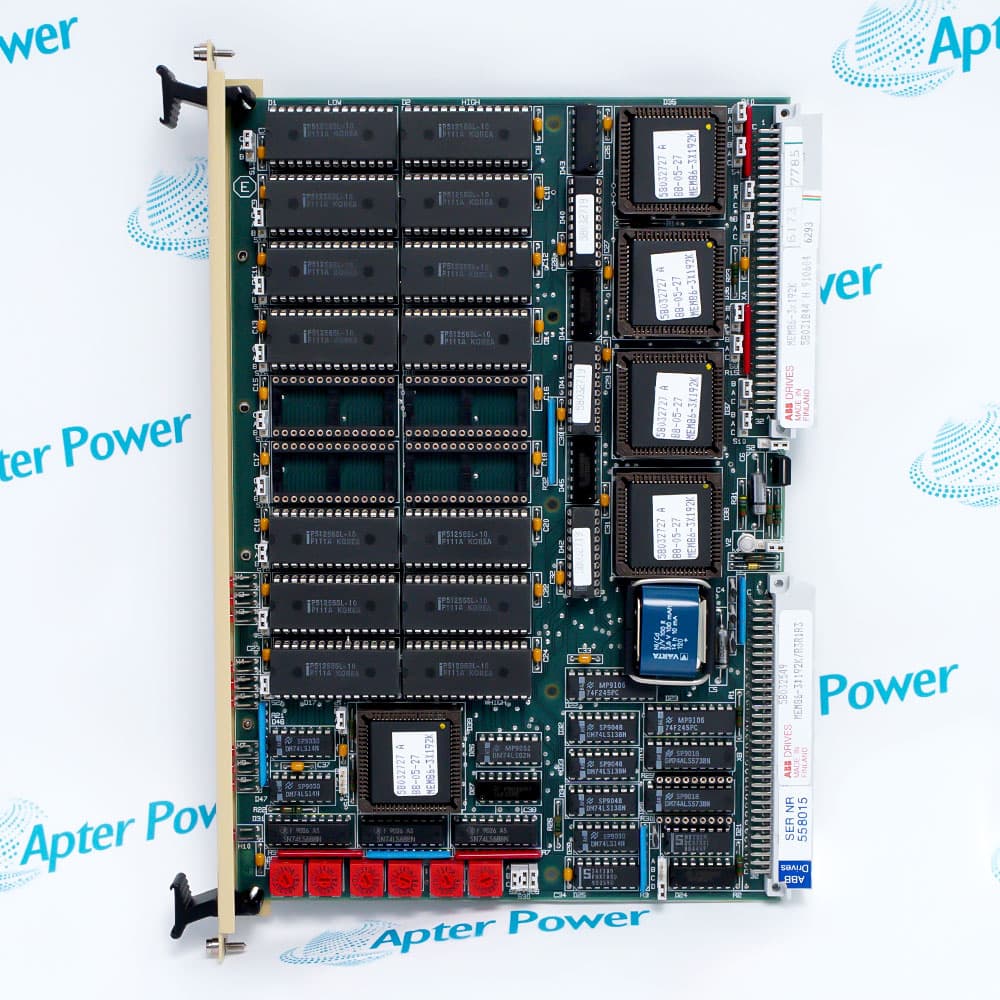

ABB MEM86-3*192K R3R1R3 memory board is a general-purpose memory board that mounts in the Digital Reference Controller (DRC) rack and replaces up to three independent MEM86-192K memory boards.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for MEM86-3*192K R3R1R3
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MEM86-3*192K R3R1R3

  • Manufacturer:
    ABB
  • Part Number:
    MEM86-3*192K R3R1R3
  • Product Family:
    ABB Drives
  • Product Type:
    Memory Board
  • Stock:
    2
  • Voltage:
    5V DC
  • Current:
    0.85A - 1.4A
  • Capacity:
    512 KB SRAM (divided into 3 x 192K blocks)
  • Operating temperature:
    0°C to +55°C
  • Storage temperature:
    -40°C to +70°C
  • Ambient humidity:
    5% to 95% RH (non-condensing)
  • Weight:
    0.5 kg
  • Estimated shipping dimensions:
    1.8x18.4x26cm
  • Tariff Code:
    2942000000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Compatibility Application Scenarios Environment

Features:

  • Consolidates the functions of up to three independent MEM86-192K memory boards into one DRC rack module.
  • Supports eighteen software-configurable 32 KB memory groups for flexible address mapping.
  • Protects stored program data through battery-backed SRAM and Power Fail memory inhibition.
ABB MEM86-3*192K R3R1R3 provides a reliable memory platform for Digital Reference Controller applications where firmware, application storage, and backup capability are required. By replacing three separate memory boards with a single module, it simplifies cabinet layout and reduces the number of installed components. This configuration helps improve maintenance efficiency while supporting dependable controller performance.

The board offers flexible memory organization to accommodate different control system requirements. Firmware can be stored in EPROM, application programs in SRAM, and backup information in EEPROM. Software-controlled mapping enables individual memory groups to be assigned as needed, making the board adaptable to various DRC configurations without hardware modifications.

ABB MEM86-3*192K R3R1R3 is well suited for industrial environments that require stable program retention and reliable operation. The onboard rechargeable Ni-Cd battery maintains SRAM contents during power interruptions, while the /PWF protection mechanism prevents memory access during abnormal power conditions. Operating from 5 VDC with an operating temperature range of 0°C to +55°C and storage temperatures down to -40°C, the board supports dependable long-term use in industrial automation systems.

The MEM86-3*192K R3R1R3 ABB Memory Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB MEM86-3*192K R3R1R3 Memory Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB MEM86-3*192K R3R1R3 Memory Board Specs

General

  • Manufacturer ABB
  • Model MEM86-3*192K R3R1R3
  • Condition New Original ready stock
  • Product Family MEM86-3X192K/CMBME2,MEM86-3X192K/S2R3R3,MEM86-3X192K/CMBMR3
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • System platform: ABB SAMI MegaStar / Stromberg control system.
  • Rack slot: Standard 19-inch control rack bus slot.
  • Power supply compatibility: 5V DC industrial backplane power supply.
  • Firmware version: Compatible with R3R1R3 and earlier revisions.
  • High-power drives: Marine propulsion and large motor control in heavy industry.
  • Inverter maintenance: Data storage of core control parameters and application logic.
  • System expansion: Upgrading the storage space of automation control units.
  • Spare parts replacement: Emergency on-site repair of outdated automated systems that have ceased production.
  • Operating temperature: 0°C to +55°C.
  • Storage temperature: -40°C to +70°C.
  • Relative humidity: 5% to 95% (non-condensing).
  • Protection rating: IP00 (board-level open).
Description
ABB MEM86-3*192K R3R1R3 memory board is a general-purpose memory board developed for installation in the Digital Reference Controller (DRC) rack. It replaces as many as three independent MEM86-192K memory boards, reducing hardware requirements while providing a centralized memory solution. The module supports firmware, application storage, and backup memory within one compact assembly.

The memory architecture consists of 512 KB SRAM divided into three 192K memory blocks. Internally, the board contains eighteen individually mapped 32 KB memory groups whose address areas are assigned by software. Eighteen map registers located in the I/O address space allow flexible memory allocation, while three independent microswitch-controlled I/O address areas enable the board to function as a replacement for three separate memory boards.

Each mapped memory area uses two memory circuits to provide a 16-bit word length. Every circuit pair manages 64 KB of memory, equivalent to two memory groups, with adjacent memory areas separated by the most significant address bit (A14). Memory map addresses that are placed in succession must use different A14 states to prevent two memory maps from selecting the same circuit.

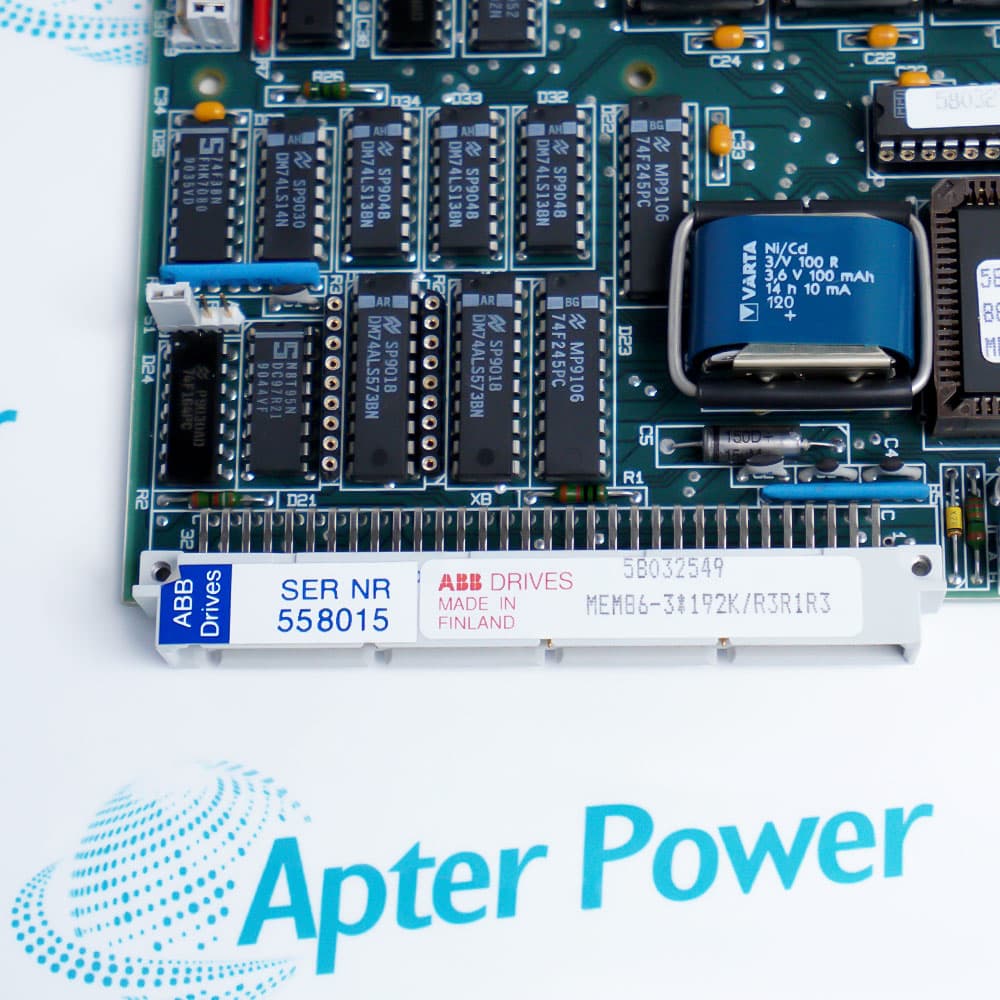

ABB MEM86-3*192K R3R1R3 includes battery-backed low-power CMOS SRAM for dependable program retention. Memory operation is automatically inhibited whenever the bus Power Fail (/PWF) signal is not in the active state, preventing unwanted memory access during power disturbances. An onboard Ni-Cd battery charges whenever power is applied and maintains SRAM contents during power interruptions. The available retention time depends mainly on battery age and ambient temperature, with lower temperatures helping reduce battery self-discharge.
Alternative Names
MEM863*192 R3R1R3 MEM86-3*I92 R3RIR3 MEM86-3X192K/S2R3R3 MEM86-3X192K/E3E100 MEM86-3X192K/CMBMR3 MEM86-3X192K/CMBME2 SDCS-FEX-2A 3ADT311500R1 PM802F 3BDH000002R1
Technical notes
As an obsolete legacy component, the ABB MEM86-3*192K R3R1R3 memory board serves as a critical lifecycle extension part for heavy-duty industrial drives. Fully compatible with PCB code 5761639-3F, this direct-replacement module allows plant managers to avoid expensive full-system overhauls by restoring vintage control racks. Each certified unit is fully tested to ensure seamless physical and operational drop-in compatibility.
