NGDR-03C

/ 4.9
1001 reviews | Need a Specific Revision?

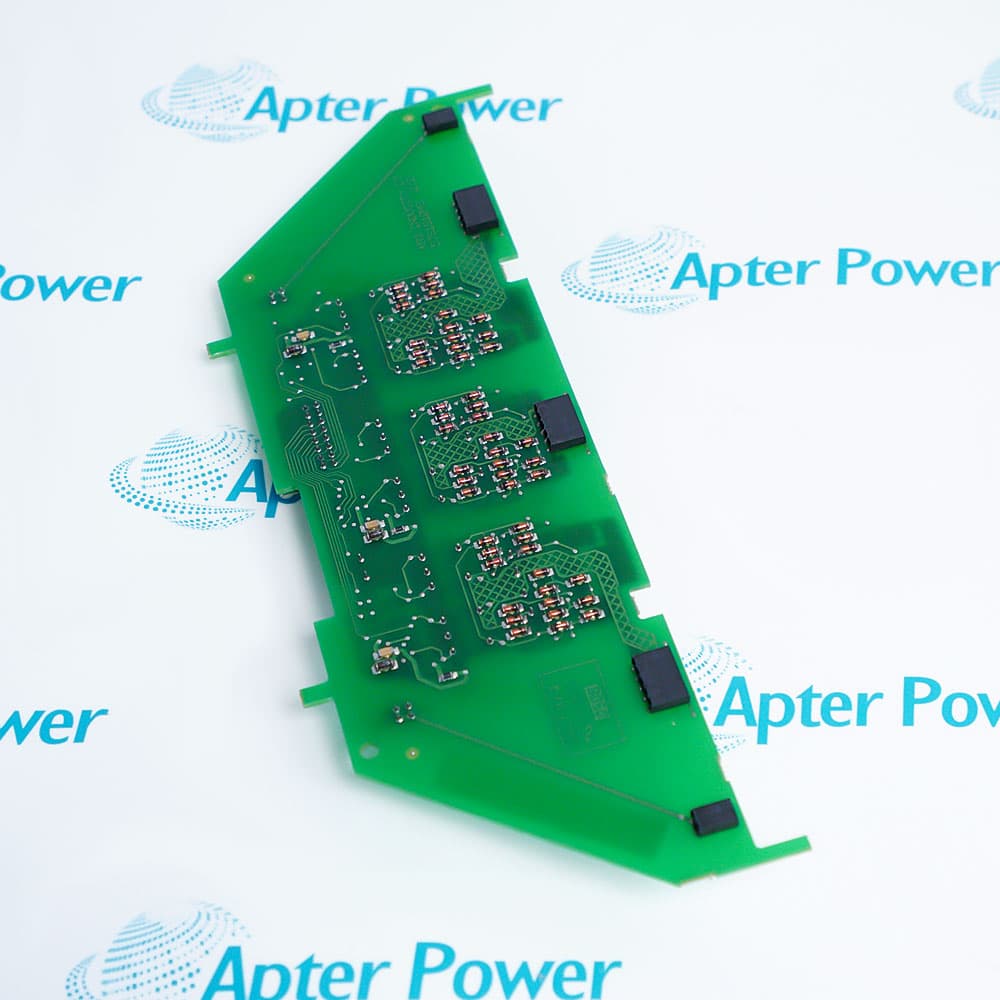

ABB NGDR-03C is an NGDR gate driver board identified by code 61353364D for documented ACS/ACC 6x7 inverter power-stage service.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for NGDR-03C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for NGDR-03C

  • Manufacturer:
    ABB
  • Part Number:
    NGDR-03C
  • Product Family:
    ABB Drives
  • Product Type:
    Gate Driver Board
  • Stock:
    1
  • Weight:
    0.05 kg
  • Estimated shipping dimensions:
    9.3x8x2.5cm
  • Tariff Code:
    8466939000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Identification Drive Matching Service Checks Product Applications

Features:

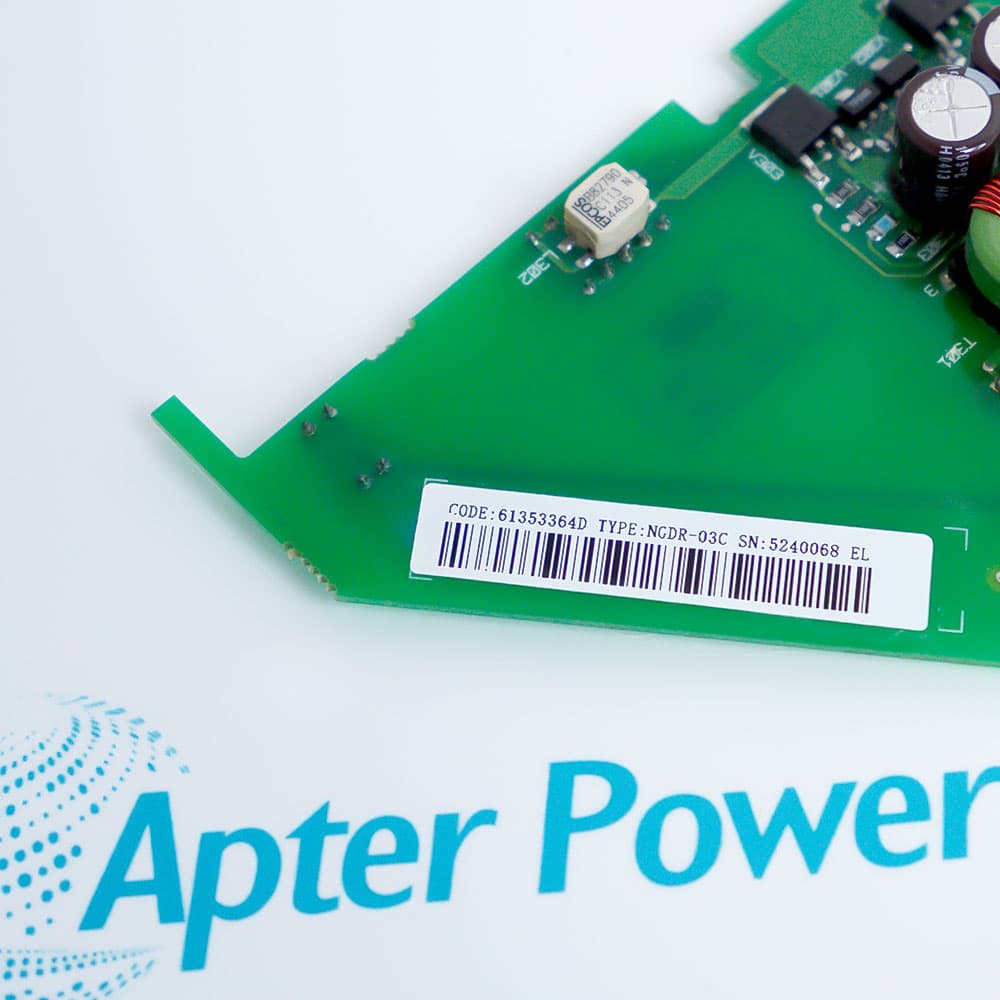

  • Exact-board identity: the 03C suffix and label code 61353364D distinguish this installed hardware.
  • Power-stage role: NGDR hardware amplifies control pulses for the inverter IGBT modules.
  • Compatibility boundary: host drive, power module, connector layout, and physical keying must agree.
The installed label supplies the suffix-level evidence needed to separate this board from visually similar NGDR variants.

Family documentation explains the gate-driver role, while exact compatibility remains a hardware-and-host-drive decision.

Service review should therefore join the board code with the original power-stage record before removal, quotation, or installation.

Apter Power provides exact-model document review, quotation, and procurement support for the ABB NGDR-03C Gate Driver Board.
ABB NGDR-03C Gate Driver Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Board type: NGDR-03C.
  • Label code: 61353364D.
  • Manufacturer family: ABB NGDR gate-driver hardware.
  • Evidence limit: family documentation does not validate other NGDR suffixes as alternatives.
  • Drive type: verify the exact ACS/ACC 6x7 host designation.
  • Power stage: match the installed IGBT power module.
  • Physical fit: compare connector positions, mounting points, and board keying.
  • Revision control: preserve the complete 03C suffix and label code.
  • Electrical safety: isolate supplies and prove DC-link discharge.
  • ESD control: handle the exposed board at an approved static-safe station.
  • Connection record: label and photograph every cable before removal.
  • Acceptance: follow the drive-specific ABB commissioning and fault-check sequence.
  • ACS/ACC 6x7 inverter stages: gate-drive service where the exact 03C board is documented.
  • IGBT power-module maintenance: replacement after host-drive and power-stage matching.
  • Exact-board sourcing: requests supported by NGDR-03C and 61353364D label evidence.
Description
NGDR-03C is an ABB gate driver board whose installed label carries code 61353364D. ABB ACS/ACC 6x7 documentation describes NGDR boards as the stage that amplifies control pulses for the IGBT power modules.

Selection of NGDR-03C depends on the exact drive type, inverter power module, connector positions, and board suffix. Family-level ABB documentation does not establish interchangeability with NGDR-02C, NGDR-07C, or hardware used in a different drive generation.

Before handling NGDR-03C, isolate the drive and prove DC-link discharge under the applicable ABB and site procedures. Use ESD controls, label all connectors, and compare the original board code and physical keying before installation or powered testing.
Alternative Names
61353364D
Technical notes
An NGDR family marking does not establish interchangeability for NGDR-03C. The 03C suffix, code 61353364D, connector positions, hardware keying, host drive, and inverter power module must describe the same exact installed position. DC-link discharge is a prerequisite to inspection; any identity mismatch stops installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
When several ABB gate-driver boards look alike, how should NGDR-03C be identified before removal?
Match the 03C suffix and label code 61353364D with the board shape, connector positions, installed drive model, and inverter power-module record. A visual family resemblance alone is not an identity check.
Can NGDR-03C be replaced by NGDR-02C or NGDR-07C because the boards share an NGDR family name?
No interchangeability is established by the family name. The exact suffix, connector layout, hardware keying, host drive, and power-stage documentation must support any proposed substitution.
What safety condition must be proven before a technician handles NGDR-03C at the inverter power stage?
Isolate all applicable supplies, observe the drive-specific waiting procedure, and prove DC-link discharge with an approved instrument before applying ESD controls and touching the board.
Why is the installed inverter power-module record required when sourcing NGDR-03C?
The board amplifies control pulses at the IGBT power stage, so the host drive and power-module identity are needed to determine whether the exact 03C hardware belongs in that position.
If NGDR-03C does not seat correctly, which comparison should stop forced installation?
Compare the suffix, 61353364D label, edge shape, mounting points, connector keys, and original power-stage documentation. Any mismatch is a stop condition rather than a reason to force the board.
Which evidence should accompany an NGDR-03C request after a gate-driver fault?
Send clear label and connector photos, the ABB drive type, inverter power-module identity, installed position, fault history, and original board code so exact-board identity and service context can be reviewed together.
