SDCS-PIN-4

/ 4.9
1001 reviews | Need a Specific Revision?

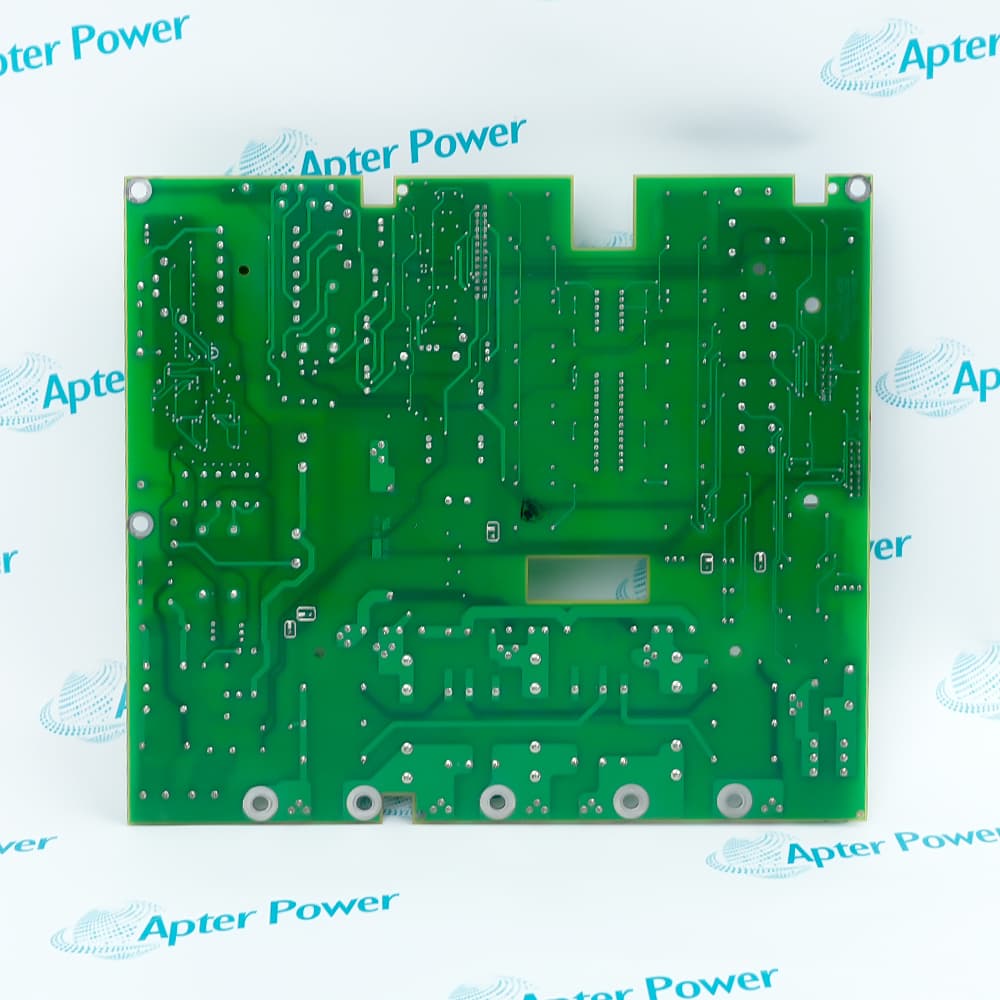

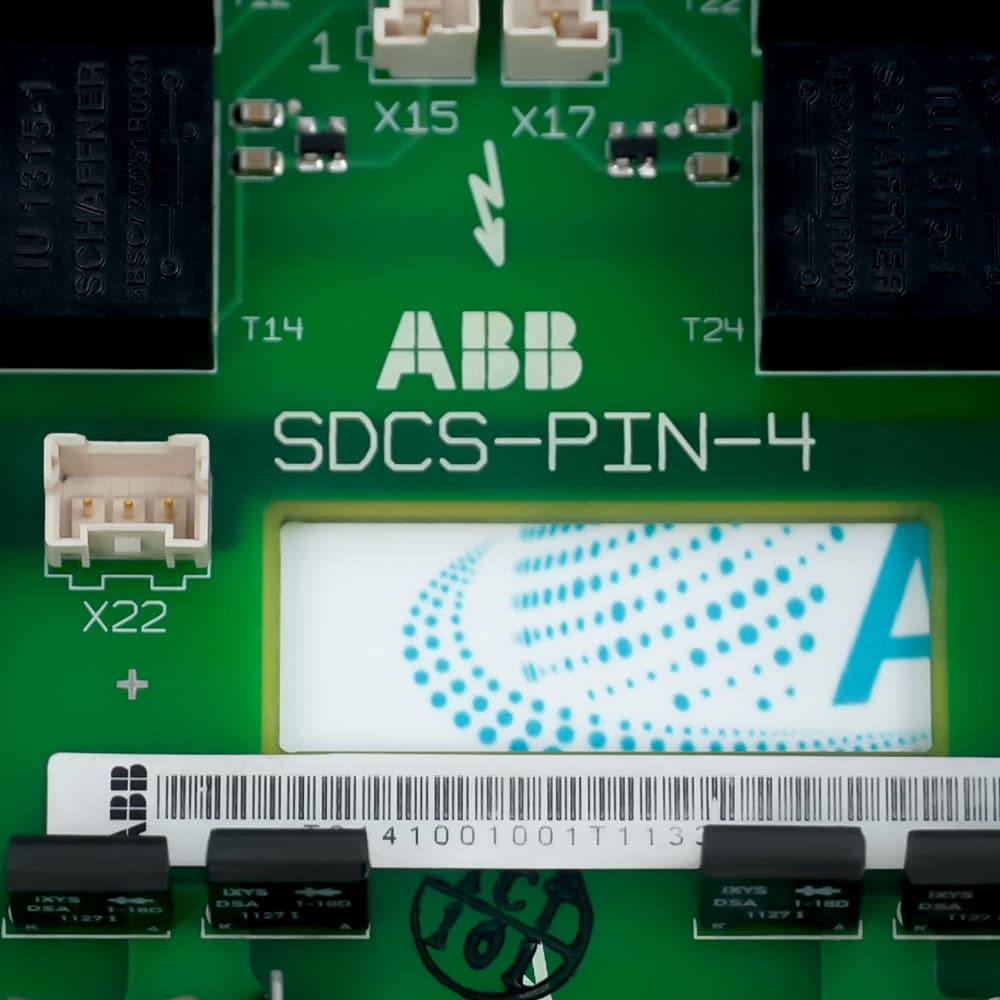

The ABB SDCS-PIN-4 is a multi-functional interface board for DCS800 converters (D1–D4+), combining power supply, control, and measurement capabilities for industrial drive systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for SDCS-PIN-4
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SDCS-PIN-4

  • Manufacturer:
    ABB
  • Part Number:
    SDCS-PIN-4
  • Product Family:
    ABB Drives
  • Product Type:
    Interface board
  • Stock:
    1
  • Auxiliary voltage:
    115 VAC
  • Tolerance:
    -15% / +10%
  • Frequency:
    45 Hz - 65 Hz
  • Power consumption:
    120 VA
  • Power loss:
    < 60 W
  • Inrush current:
    20 A / 20 ms
  • Mains buffering:
    min. 30 ms
  • Powerfail:
    < 185 VAC
  • Weight:
    0.35 kg
  • Estimated shipping dimensions:
    33.7x11.7x8.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Performance & Efficiency Environmental Ratings

Features:

  • Power Distribution Hub for DCS800 Converter Low-Voltage Circuits
  • Integrates Armature Bridge Control with Built-In Excitation Management
  • Adapts to 115 VAC or 230 VAC Auxiliary Input with Jumper-Selectable Relay Logic
The SDCS-PIN-4 serves as the dedicated power interface board within ABB DCS800 DC converter modules rated D1 through D4+ (20 A to 1190 A). It accepts auxiliary voltage inputs of 115 VAC or 230 VAC and automatically adapts to the incoming supply, distributing all low-voltage power required by the drive and its connected expansion options. The SDCS-PIN-4 also incorporates high-impedance measurement circuits for both DC and AC voltages within the armature bridge, and it provides current-transformer interfaces for armature-current sensing. For D1 to D4 frame sizes, the SDCS-PIN-4 additionally manages the on-board exciter and controls excitation current, with drive firmware automatically configuring current and voltage measurements, load-resistance settings, and 2-Q/4-Q operating modes.

The SDCS-PIN-4 is a critical element in the DCS800 power path, directly influencing proper operation of the overall drive system. It mounts inside the module and bonds to chassis ground through its grounding terminal. The board supports main supply voltages ranging from 230 V up to 525 V, as well as 600 V configurations, and its compact design maintains a minimal footprint within the converter assembly.

For applications where the auxiliary supply is a stable 230 VAC or 115 VAC source, the SDCS-PIN-4 can be configured via jumper S1 in the 1-2 position to enable relay K301. In environments with fluctuating 230 VAC auxiliary power—such as diesel-generator networks—jumper S1 must be set to 2-3 to lock the SDCS-PIN-4 into fixed 230 VAC mode and ensure stable operation. This selectable logic allows the SDCS-PIN-4 to accommodate varying site conditions without hardware replacement. A related variant, the SDCS-PIN-4b, also supports 115/230 VAC auto-recognition but does not implement the S1 jumper relay-switching function, making the two boards complementary choices for different installation requirements.

The SDCS-PIN-4 ABB Interface board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SDCS-PIN-4 Interface board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB SDCS-PIN-4 Interface board Specs

General

  • Manufacturer ABB
  • Model SDCS-PIN-4
  • Condition New Original ready stock
  • Product Family SDCS-PIN-41,SDCS-PIN-4B,SDCS-PIN-48
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Material Handling: Used in cranes, winches, and large-scale conveyor systems.
  • Metals and Mining: Powering rolling mills, extruders, kilns, and mine hoists.
  • Pulp and Paper: Controlling winders, unwinders, and sectional drive systems.
  • Oil and Gas: Managing large pumps, fans, and centrifuge operations.
  • Voltage Support: Designed to handle standard line voltages typically ranging from 230V to 1000V AC, depending on the specific drive frame size.
  • Switching Precision: Provides high-frequency gate pulse control for thyristors, ensuring smooth torque and rapid response times.
  • Integrated Measurement: Features high-precision voltage sensing and current feedback loops to maintain optimal motor efficiency.
  • Modular Design: Enables easy integration and fast troubleshooting in DCS800 power modules.
  • Operating Temperature: Rated for operation between 0°C and +55°C (at the converter inlet).
  • Protection Class: Standard modules are generally rated IP20 (finger-protected), intended for installation inside a control cabinet.
  • Chemical Protection: Available in a "COATED" version (SDCS-PIN-4-COAT), utilizing a conformal coating to protect the PCB from dust, moisture, and corrosive industrial gases.
  • Compliance: Meets international standards including IEC, UL, and CE, ensuring safety and electromagnetic compatibility (EMC) in global markets.
Description
The ABB SDCS-PIN-4 Interface Board is a critical component tailored for ABB DCS800 converter modules (sizes D1 to D4+, 20 A–1190 A), serving as a central hub for power distribution and drive control.  It operates on 115 VAC auxiliary voltage with a tolerance of -15%/+10% and supports a frequency range of 45 Hz to 65 Hz, ensuring compatibility with diverse industrial power grids.  With 120 VA power consumption and power loss below 60 W, it balances efficiency and reliability for continuous operation.

Equipped with 20 A/20 ms inrush current, 30 ms minimum mains buffering, and a powerfail trigger at <185 VAC, the board maintains stability during voltage fluctuations and disruptions.  Its core functions include powering all low-voltage components of the drive and connected options, controlling the armature bridge (with high-ohmic DC/AC voltage measurement and current transformer integration for armature current), and managing the OnBoard field exciter plus field current measurement (for D1–D4 modules).

Designed for mains supply voltages from 230 V up to 525 V/600 V, the SDCS-PIN-4 features internal ground connections and leverages DCS800 firmware parameters for automatic adjustment of current/voltage measurement, burden resistor settings, and 2-Q/4-Q operation—seamlessly integrating into drive systems to enable precise control and monitoring.
Alternative Names
SDCS PIN 4 SDCSPIN4 SDCS-P1N-4 SDCS-PIN-A SDCS-PIN-4B SDCS-PIN-41 SDCS-PIN-48
Technical notes
The ABB SDCS-PIN-4 power interface board is designed for ABB DCS800 and DCS500 series industrial DC drives. It features a universal input range of 120V to 240V AC and can handle high-frequency switching up to 4 kHz, making it suitable for harsh, heavy-duty automation environments.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the auxiliary voltage of the SDCS-PIN-4?
The board operates at 115 VAC with a tolerance of -15% to +10%.
What is the operating frequency range of the ABB SDCS-PIN-4?
It supports 45–65 Hz AC input frequency.
What is the typical power consumption of the ABB SDCS-PIN-4?
The board consumes 120 VA with a power loss of less than 60 W.
What is the AC power supply voltage range supported by the ABB SDCS-PIN-4?
It supports mains supply voltages from 230 V up to 525 V and 600 V.
Which DCS800 converter module sizes are compatible?
The SDCS-PIN-4 is designed for D1 to D4+ modules, handling 20 A to 1190 A.
