SAFT-166-APC SAFT166APC

/ 4.9
1001 reviews | Need a Specific Revision?
The ABB SAFT-166-APC SAFT166APC is a power connection and auxiliary interface board engineered to manage intermediate DC energy buffering and isolated gate signal routing in heavy-duty industrial frequency inverters.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SAFT-166-APC SAFT166APC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SAFT-166-APC SAFT166APC

  • Manufacturer:
    ABB
  • Part Number:
    SAFT-166-APC SAFT166APC
  • Product Family:
    ABB Drives
  • Product Type:
    Power Connection Board
  • Stock:
    2
  • Core On-Board Energy Buffering:
    High-Capacitance Industrial RIFA Electrolytic Capacitor
  • Mechanical Retention:
    Reinforced Heavy-Duty Vibration Tie Wrap
  • Signal Isolation Technology:
    High-Isolation Multi-Channel Optocouplers
  • Compatible Power Modules:
    High-Power IGBT / GTO Thyristor Inverter Stages
  • Target Systems:
    Legacy ABB Sami / High-Power Industrial Frequency Inverters
  • Duty Cycle:
    Continuous 24/7 Heavy Industrial Operation
  • Operational Ambient Temperature:
    0°C to +55°C (32°F to 131°F) without derating
  • Storage / Transportation Temperature:
    -40°C to +70°C (-40°F to 158°F)
  • Relative Humidity Range:
    5% to 95%, non-condensing
  • Max. Operational Altitude:
    Up to 1,000 meters above sea level without thermal derating
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    10.2x17.8x5.1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Monitoring & Control Performance & Efficiency

Features:

  • Premium RIFA Energy Buffering Architecture
  • Optocoupler-Based Galvanic Isolation
  • Vibration-Resistant Heavy Industrial Layout
The ABB SAFT-166-APC SAFT166APC incorporates an authentic, high-grade RIFA capacitor that functions as a localized dV/dt snubber and energy reservoir to absorb high-frequency voltage fluctuations.

To safeguard critical drive control units, the ABB SAFT-166-APC SAFT166APC provides robust galvanic separation between low-voltage processing circuitry and high-voltage power components using premium optoelectronic couplers.

Built specifically for harsh industrial applications, the ABB SAFT-166-APC SAFT166APC features a rigid multi-layer PCB design with reinforced component anchoring to completely eliminate fatigue-induced soldering breaks and track delamination.

The SAFT-166-APC SAFT166APC ABB Drive Control & Power Connection Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SAFT-166-APC-SAFT166APC Drive Control & Power Connection Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB SAFT-166-APC SAFT166APC Drive Control & Power Connection Board

General

  • Manufacturer ABB
  • Model SAFT-166-APC SAFT166APC
  • Condition New Original ready stock
  • Product Family SAFT185TBC SAFT 185 TBC 58119687,SAFT132CBS SAFT 132 CBS 57411619,SAFT121PAC SAFT 121 PAC
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Heavy-Duty Metal Rolling Mills: Delivers the localized power rail stability and rapid dynamic reaction required to handle immense torque swings when raw steel enters the rollers.
  • Maritime Propulsion & Thrusters: Provides certified vibration resistance and secure component anchoring needed to withstand continuous structural vibrations onboard deep-sea vessels and offshore rigs.
  • Large-Scale Paper & Pulp Machinery: Handles severe cyclic load profiles and high ambient operational environments, maintaining consistent multi-axis drive synchronization across continuous processing lines.
  • Mining Conveyors & Draglines: Prevents nuisance trips caused by line-side voltage drops and heavy electrical dust, keeping critical bulk material handling lines moving without interruption.
  • Hardware-Level Error Detection: Features built-in hardware check nodes that track terminal voltage limits and instantly report auxiliary abnormalities back to the host system processor.
  • PWM Gating Signal Optimization: Ensures clean, distortion-free routing of high-frequency pulse-width modulation commands from the CPU straight to the gate-driver stages.
  • Cross-Talk Elimination Traces: Employs optimized, low-impedance multi-layer copper grounding paths that actively suppress electromagnetic cross-talk between overlapping control and power traces.
  • Thermal Stress Abatement: Built on a high-thermal-efficiency substrate layout that disperses heat generated around power resistors, protecting sensitive adjacent microelectronics from thermal degradation.
  • Transient Voltage Suppression: The embedded RIFA capacitance architecture actively dampens voltage spikes (dV/dt), preserving the integrity of the inverter bridge during extreme load shifts.
  • Minimized Control Loop Latency: Hardwired signal paths minimize propagation delays, enabling real-time, microsecond-level gate pulse transfers for precise motor speed regulation.
  • Enhanced System Mean Time Between Failures (MTBF): By using industrial-spec components and specialized vibration ties, the board maintains an exceptional operational lifespan in continuous 24/7 industrial configurations.
  • Reduced Internal Component Wear: Clean power distribution reduces secondary harmonic heating within internal auxiliary power lines, extending the operational lifespan of the wider drive enclosure.
Description
The ABB SAFT-166-APC SAFT166APC targets a critical engineering pain point: localized electrical noise and control instability inside multi-axis heavy industrial drive frameworks. By integrating low-impedance copper bus traces with high-isolation optocouplers, it successfully decouples high-voltage IGBT switching elements from low-voltage microcontrollers, eliminating unexpected drive trips caused by electromagnetic interference (EMI).

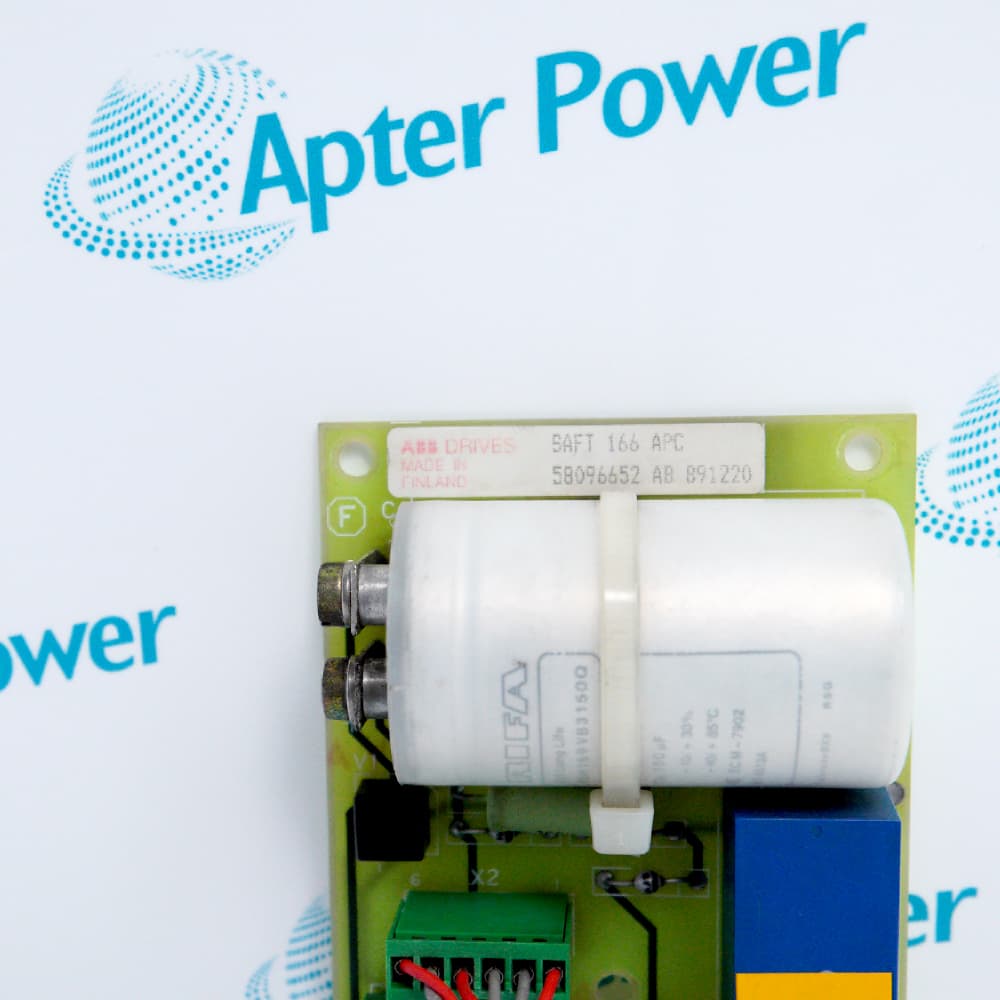

A standout hardware feature of the ABB SAFT-166-APC SAFT166APC is its localized, high-capacitance RIFA industrial electrolytic capacitor, which is mechanically anchored by a heavy-duty, reinforced vibration tie to resist mechanical failure. This premium component acts as a high-efficiency energy reservoir and a localized dV/dt snubber, filtering out high-frequency voltage ripples generated during high-speed IGBT switching phase variations. By smoothing the internal DC power supply rails, it maintains rock-solid voltage stability, directly optimizing motor torque precision and protecting downstream inverter bridges from transient sags.

In demanding industrial operations like mining, paper milling, or maritime propulsion, unexpected factory downtime can cost thousands of dollars per minute due to component degradation from constant structural vibration and heat. The ABB SAFT-166-APC SAFT166APC mitigates this commercial risk through its robust, multi-layer physical layout, engineered to prevent component lead shearing under harsh, continuous G-force environments.

Beyond raw power routing, the ABB SAFT-166-APC SAFT166APC excels at maintaining pulse-width modulation (PWM) command integrity between the central processing unit and the power stage. It features dedicated physical monitoring nodes that allow rapid, hardware-level error propagation back to the host processing controller if local auxiliary voltage drops or thermal anomalies occur. This immediate, deterministic hardware feedback prevents localized electrical anomalies from cascading into catastrophic system-wide failures, significantly shrinking the Mean Time to Repair (MTTR) for plant maintenance teams.
Alternative Names
SAFT 166 APC SAFT166APC SAFT 166 APC SAFT166APC SAFT-I66-APC-SAFTI66APC SAFT185TBC SAFT 185 TBC 58119687 SAFT132CBS SAFT 132 CBS 57411619 SAFT121PAC SAFT 121 PAC
Technical notes
The ABB SAFT-166-APC SAFT166APC serves as a critical localized auxiliary power and gating signal interface board within legacy ABB drive topologies. Because this board houses a high-capacity RIFA storage capacitor alongside the drive's main intermediate DC banks, field technicians must strictly verify that all systems are completely discharged and unpowered before handling, testing, or executing a board replacement to avoid severe electrical arcing or static damage to nearby CMOS logic gates.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary role of the onboard RIFA capacitor on the ABB SAFT-166-APC SAFT166APC?
The high-capacitance RIFA electrolytic capacitor on the ABB SAFT-166-APC SAFT166APC acts as a localized energy reservoir and dV/dt snubber. It is designed to absorb high-frequency voltage ripples and buffer transient sags right at the interface boundary, ensuring that the control circuit receives stable, low-ripple auxiliary DC power during rapid IGBT commutation phases.
Does the ABB SAFT-166-APC SAFT166APC support direct software parameters or firmware flashing?
No, the ABB SAFT-166-APC SAFT166APC is a hardwired power connection and signal routing interface board; it does not house programmable microcontrollers, internal firmware, or adjustable software parameters. Any parameter tuning, loop adjustments, or system firmware updates must be completed on the main host drive controller processing board (e.g., APC or main CPU board) connected to this unit.
How does the ABB SAFT-166-APC SAFT166APC handle diagnostic depth and error propagation?
The ABB SAFT-166-APC SAFT166APC provides rapid hardware-level diagnostic depth via integrated physical hardware monitoring nodes. Instead of running complex software diagnostic algorithms, the board tracks critical terminal voltage bounds and over-temperature limits, instantly propagating fault signals through hardwired interface pins back to the drive's CPU architecture to trigger safe system shutdowns if anomalies occur.
Can the ABB SAFT-166-APC SAFT166APC route industrial protocols like Modbus, Profibus, or EtherCAT directly?
No, the ABB SAFT-166-APC SAFT166APC does not feature digital fieldbus communication chips or protocol processors. It is strictly dedicated to high-frequency PWM gating commands, auxiliary DC power rails, and basic hardware status interlocks; fieldbus communication protocols are managed exclusively by dedicated optional communication adapter modules attached to the main drive rack.
In which specific industrial application environments does the ABB SAFT-166-APC SAFT166APC perform best?
The ABB SAFT-166-APC SAFT166APC is explicitly engineered for severe, high-vibration, and continuous-duty heavy industries. It is widely used in metal rolling mills, paper processing lines, mining conveyor frameworks, and maritime propulsion drives where cyclic load swings and high structural vibration call for heavy-duty, reinforced components.
