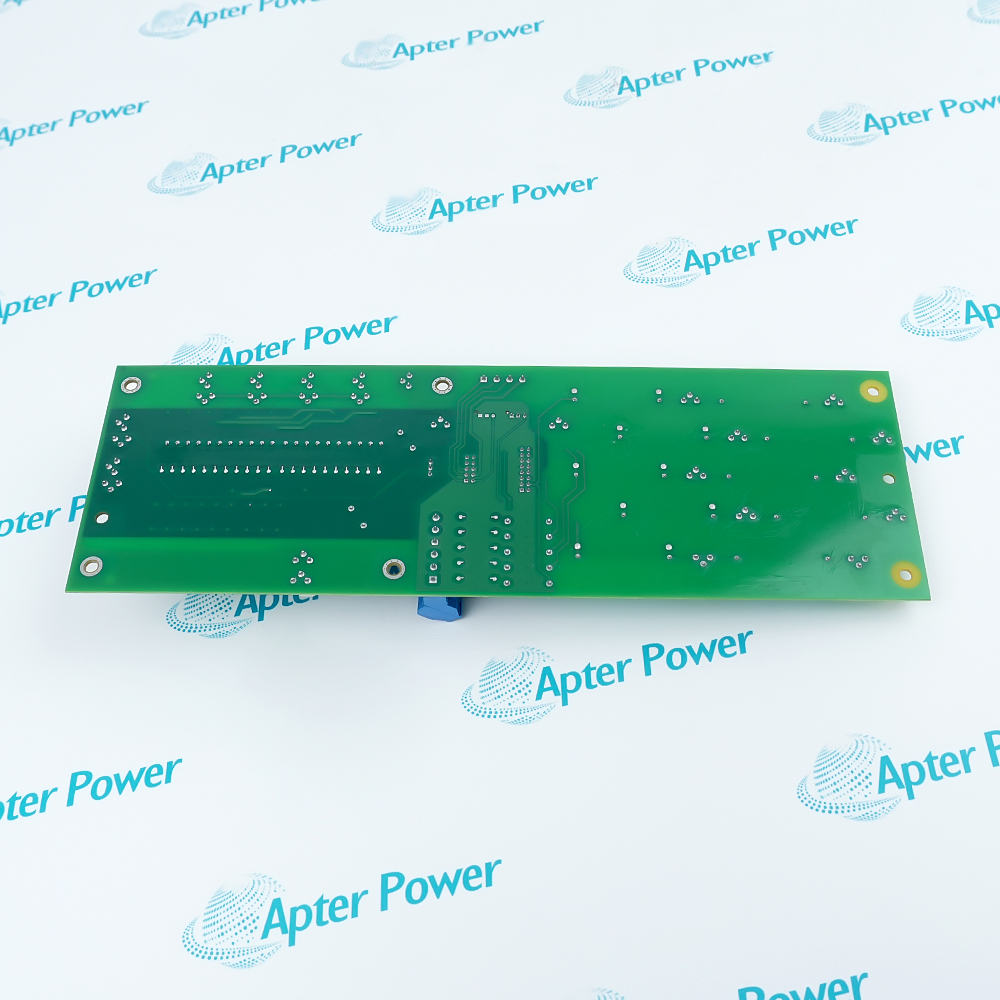

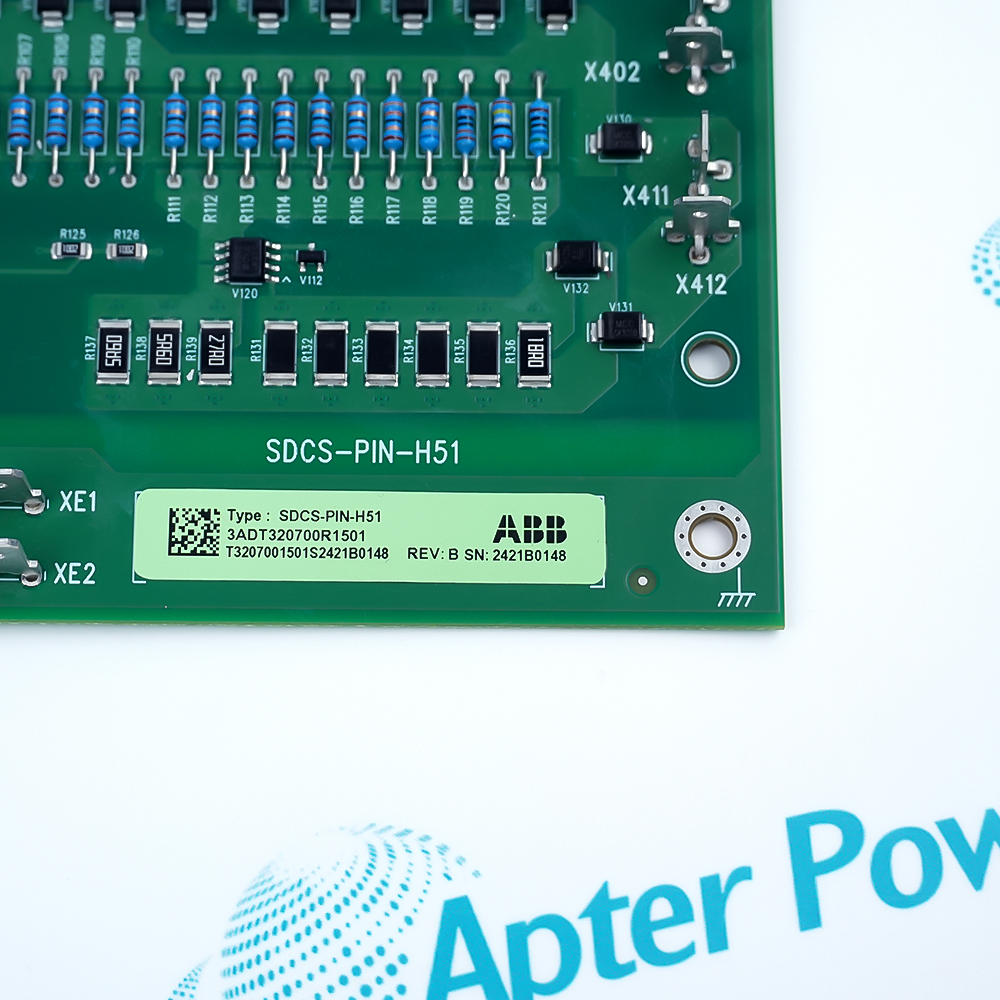

SDCS-PIN-H51 3ADT320700R1501

/ 4.9
1001 reviews | Need a Specific Revision?
ABB SDCS-PIN-H51 3ADT320700R1501 is presented as a drive measurement board, pending ABB confirmation of the complete order-number mapping.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SDCS-PIN-H51 3ADT320700R1501
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SDCS-PIN-H51 3ADT320700R1501

  • Manufacturer:
    ABB
  • Part Number:
    SDCS-PIN-H51 3ADT320700R1501
  • Product Family:
    ABB Drives
  • Product Type:
    Measurement Board
  • Stock:
    1
  • Heat-sink temperature interface:
    PTC-resistor measurement interface
  • Voltage measurement:
    AC and DC voltage measurement through high-ohmic resistors
  • Current measurement:
    Armature-current measurement
  • Current scaling:
    Burden-resistor scaling to 1.5 V at rated power-stage current
  • Default switch setting:
    J1 in separated position
  • Documented Platforms:
    DCS880 and DCT880 DC Drives
  • Rebuild-kit Requirement:
    Always required with the applicable rebuild kit
  • Quantity per Rebuild Kit:
    1 × SDCS-PIN-H51
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Measurement Scaling Compatibility Application
  • ABB identifies SDCS-PIN-H51 as a measurement board
  • Measures temperature, AC/DC voltage, and armature current
  • Complete order-number mapping requires manufacturer confirmation

SDCS-PIN-H51 3ADT320700R1501 is presented as an ABB drive measurement board for DCS880/DCT880 power-stage applications.

ABB documents the SDCS-PIN-H51 type as the interface for heat-sink temperature, scaled AC/DC voltage, and armature-current measurement.

Before installation or replacement, confirm ABB's mapping of 3ADT320700R1501, the power-stage size, converter arrangement, voltage class, current ratio, and resistor configuration.

Availability, condition, price, and shipping time for SDCS-PIN-H51 3ADT320700R1501 are confirmed during quotation.

ABB SDCS-PIN-H51 3ADT320700R1501 Measurement Board Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Interfaces with a PTC resistor for heat-sink temperature measurement
  • Measures and scales AC and DC voltage through high-ohmic resistors
  • Measures armature current through fitted burden resistors
  • Scales armature current to 1.5 V at rated power-stage current
  • Requires the correct current-transformer ratio
  • Requires burden-resistor coding matched to the power stage
  • Appears in ABB DCS880 and DCT880 hardware documentation
  • One SDCS-PIN-H51 board is required per applicable rebuild kit
  • Converter arrangement and power-stage size govern suitability
  • Heat-sink temperature measurement in ABB DC-drive power stages
  • AC and DC voltage measurement in DCS880/DCT880 power units
  • Armature-current measurement and scaling for rated power-stage current
Description
Alternative Names
SDCS-PIN-H51 3ADT320700R1501 SDCS PIN H51 3ADT320700R1501 SDCSPINH51 3ADT320700R1501 ABB SDCS-PIN-H51 3ADT320700R1501 ABB 3ADT320700R1501 DCS880 SDCS-PIN-H51 3ADT320700R1501
Technical notes
ABB SDCS-PIN-H51 3ADT320700R1501 is presented as a measurement board. Confirm ABB order mapping, power-stage voltage, current ratio, and burden-resistor configuration before use.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why might ABB SDCS-PIN-H51 3ADT320700R1501 show incorrect current or voltage feedback after replacement?
Compare the current-transformer ratio, burden-resistor coding, high-ohmic voltage-measurement network, J1 switch position, connector seating, and host power-stage parameters with the original installation. Any mismatch can distort the board's scaled feedback and cause control or protection errors.
Should ABB SDCS-PIN-H51 3ADT320700R1501 be described as a power-supply board?
No. ABB identifies SDCS-PIN-H51 as a measurement board. Third-party “power supply board” descriptions are not used as technical evidence.
What measurement roles are documented for ABB SDCS-PIN-H51 3ADT320700R1501 at board-type level?
The SDCS-PIN-H51 type measures heat-sink temperature, scales AC/DC voltage, and measures armature current through burden resistors.
Can ABB SDCS-PIN-H51 3ADT320700R1501 be selected solely because the drive is a DCS880?
No. Confirm the power-stage size, converter arrangement, line voltage, current-transformer ratio, fitted resistor coding, board label, and ABB-approved bill of material.
Why does burden-resistor configuration matter for ABB SDCS-PIN-H51 3ADT320700R1501?
ABB documents current scaling to 1.5 V at rated power-stage current. A mismatched burden-resistor configuration can therefore invalidate measurement scaling.
What evidence should be supplied before ordering ABB SDCS-PIN-H51 3ADT320700R1501?
Provide clear photographs of the complete board label and barcode, the host drive and power-stage identifiers, the original ABB bill of material or order record, current-transformer ratio, and burden-resistor coding. The SDCS-PIN-H51 board type alone does not verify the 3ADT320700R1501 mapping.
What should be checked when ABB SDCS-PIN-H51 3ADT320700R1501 reports a heat-sink temperature fault?
Verify the temperature sensor and wiring, connector seating, actual heat-sink temperature, fan and airflow condition, board supply, and drive diagnostic status. Do not bypass protection; confirm that the sensor circuit and cooling conditions are correct before returning the drive to service.
