    Maintain your high-power drive performance with this original ABB GTO interface board, sourced by Apter Power to ensure critical legacy motor controls stay operational.

SNAT607MCI

/ 4.9
1001 reviews | Need a Specific Revision?

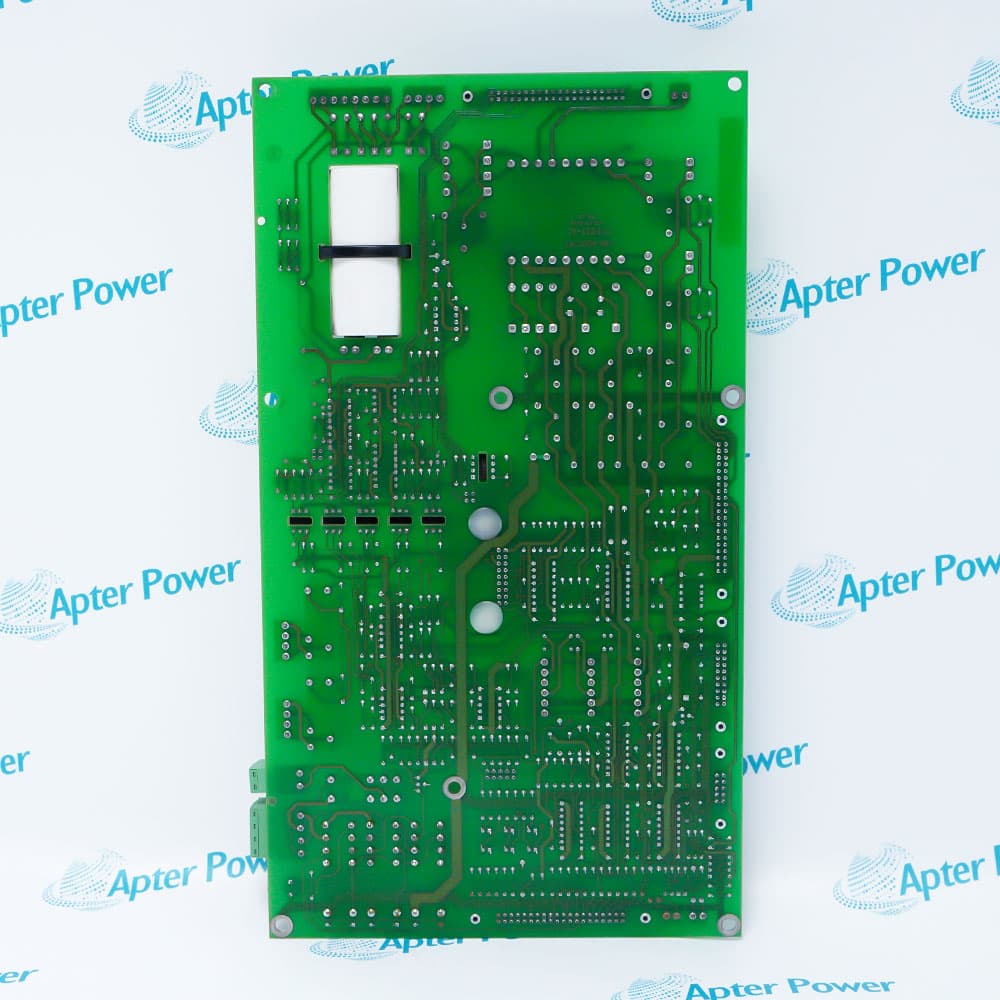

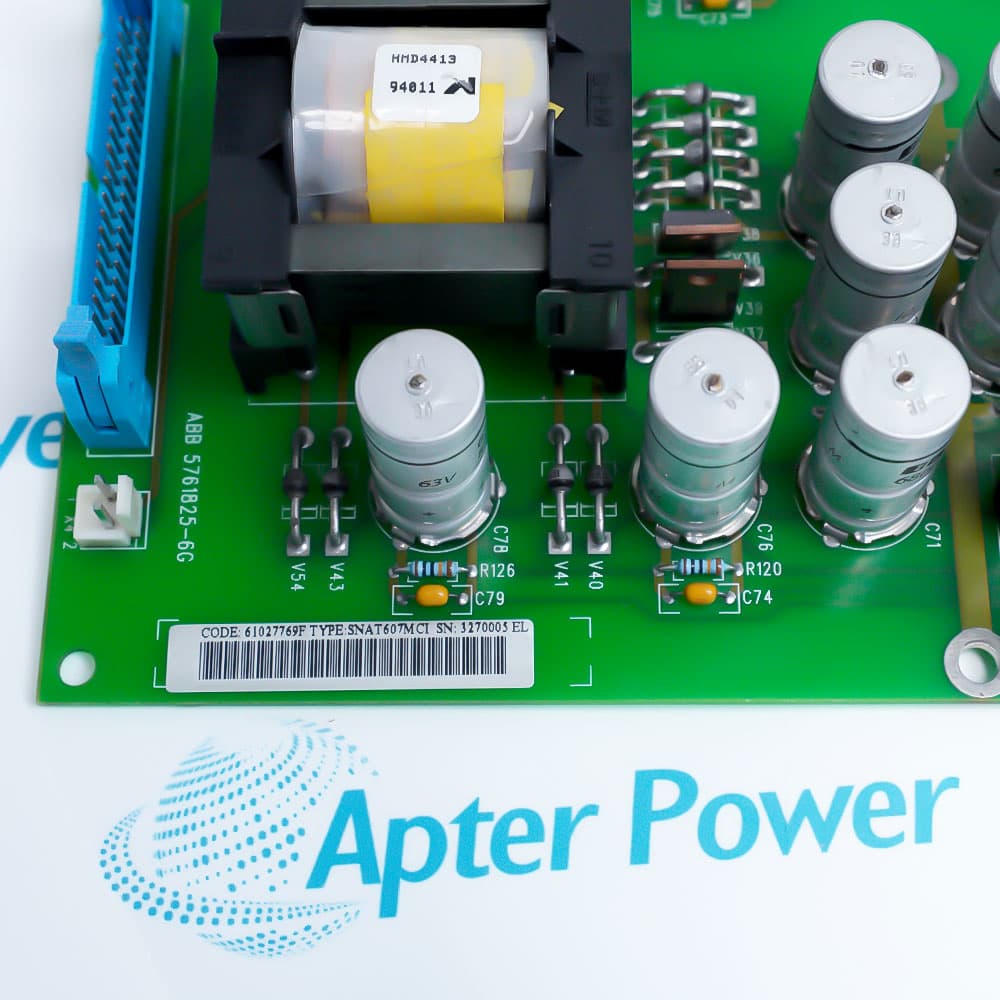

ABB SNAT607MCI is a main circuit interface (GTO) board that provides pulse amplifier power, motor control connections, measurement functions, fault detection, and coordination for GTO power stage inverters.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SNAT607MCI
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SNAT607MCI

  • Manufacturer:
    ABB
  • Part Number:
    SNAT607MCI
  • Product Family:
    ABB Drives
  • Product Type:
    Main Circuit Interface (GTO) Board
  • Stock:
    4
  • Output Voltage:
    42 V AC
  • Output Frequency:
    80 Hz
  • Motor Control Connection:
    SNAT 603 CNT via 40-pin, 20-pin, and 10-pin ribbon cables
  • Chopper Connection:
    SAFT 125 CHC / SNAT 617 CHC via 40-pin ribbon cable
  • Power Supply Connection:
    SAFT 11_ POW via 40-pin ribbon cable
  • Pulse Amplifier Connection:
    SNAT 63_ PAC via 40-pin ribbon cable
  • Compatible Interface:
    SNAT 7261 INT
  • Operating temperature:
    0°C to +70°C
  • Storage temperature:
    -40°C to +70°C
  • Operating humidity:
    5% to 95% RH (non-condensing)
  • Weight:
    0.8 kg
  • Estimated shipping dimensions:
    33x19x4.5cm
  • Tariff Code:
    9032899099
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Standards Configuration

Features:

  • Integrates pulse amplifier power output, motor control, monitoring, and protection functions on one board.
  • Supports multiple ribbon cable interfaces for motor control, chopper, power supply, and pulse amplifier boards.
  • Matches two parallel connected GTO power stage inverters for coordinated industrial drive operation.
ABB SNAT607MCI plays an important role in industrial inverter systems by acting as the central interface between major control and power-stage components. The board simplifies system integration through multiple dedicated ribbon cable connections while supporting reliable communication among different functional modules. Its integrated measurement and protection capabilities contribute to stable equipment operation in demanding applications.

Beyond interface management, ABB SNAT607MCI delivers a 42 V AC output at 80 Hz for pulse amplifiers and incorporates fan control, current and voltage measurement, temperature monitoring, and fault detection. These functions enable continuous supervision of inverter operating conditions while helping prevent unexpected start-up. Such integrated capabilities reduce the need for additional interface hardware within the control system.

ABB SNAT607MCI is well suited for high-power GTO inverter installations where coordinated operation between multiple boards is essential. Compatibility with SNAT 603 CNT, SAFT 125 CHC, SNAT 617 CHC, SAFT 11_ POW, SNAT 63_ PAC, and SNAT 7261 INT allows flexible system configuration. The ability to match two parallel connected GTO power stage inverters further supports reliable performance in industrial drive applications requiring balanced operation.

The SNAT607MCI ABB Main Circuit Interface (GTO) Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SNAT607MCI Main Circuit Interface (GTO) Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB SNAT607MCI Main Circuit Interface (GTO) Board Specs

General

  • Manufacturer ABB
  • Model SNAT607MCI
  • Condition New Original ready stock
  • Product Family SNAT7261INT,SNAT609TAI,SNAT617CHC
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Rail Transit: Traction converter drive for traditional electric locomotives.
  • Heavy-Duty Transmission: High-power medium-voltage frequency converter control in steel rolling mills.
  • Flexible Power Transmission: Static Var Compensator (SVC) Gate trigger.
  • Marine Propulsion: Maintenance of the medium-pressure propulsion system for large ocean-going vessels.
  • Manufacturing Standards: Complies with IEC 60747 semiconductor device standards.
  • Insulation Standards: Meets high-level electrical safety isolation requirements.
  • Quality Control: Undergoes rigorous high-voltage load factory testing.
  • Environmental Standards: Meets industrial-grade RoHS material environmental requirements.
  • Core Chip: Equipped with a high-density pulse logic distribution array.
  • Signal Channels: Multiple independent fiber optic input and output interfaces.
  • Status Feedback: Integrated LED hardware diagnostics and status indicators.
  • Physical Architecture: Open multilayer printed circuit board (PCB) structure.
Description
ABB SNAT607MCI serves as the main circuit interface for GTO power stage inverters, integrating essential control, monitoring, and interface functions into a single board. It supplies a 42 V AC output at 80 Hz for pulse amplifiers while supporting fan control, current and voltage measurement, temperature measurement, and fault detection to help maintain reliable inverter operation. The board also includes prevention of unexpected start-up as part of its protection functions.

The communication structure of ABB SNAT607MCI is designed to connect multiple system boards through ribbon cable interfaces. The board connects to the Motor Control Board SNAT 603 CNT using 40-pin, 20-pin, and 10-pin ribbon cables, allowing coordinated motor control and signal matching. Additional 40-pin ribbon cable connections are provided for the Chopper Board SAFT 125 CHC or SNAT 617 CHC, the Auxiliary Voltage Source SAFT 11_ POW, and the Pulse Amplifier Board SNAT 63_ PAC, enabling efficient integration of the inverter control system.

ABB SNAT607MCI is compatible with the SNAT 7261 INT interface and can be connected and mounted on the Main Circuit Interface SNAT 7261 INT. The board also supports communication with the Main Circuit Interface Board through a 40-pin ribbon cable, providing stable signal transmission between system modules. Operating within a temperature range of 0°C to +70°C and a humidity range of 5% to 95% RH (non-condensing), ABB SNAT607MCI is suitable for demanding industrial environments while maintaining dependable performance during long-term operation.

Another important application of ABB SNAT607MCI is matching two parallel connected GTO power stage inverters. By coordinating electrical characteristics between parallel inverter sections, the board helps improve system consistency and supports balanced inverter operation in high-power industrial drive applications.
Alternative Names
SNAT 607 MCI SNAT-607-MCI SNAT6O7MCI SNAT607MC1 SNAT620PCB SNAT603CNT SNAT609TAI SNAT7261INT
Technical notes
As a critical legacy component for heavy-duty drive systems, the ABB SNAT607MCI main circuit interface board functions reliably under a standard 24V DC supply. Its specialized plug-in architecture provides a vital replacement solution for maintaining legacy Megastar and PSR frequency converters.
