    Safeguard your industrial drive performance with this authentic ABB interface module from Apter Power, sourced to provide a reliable solution for aging equipment maintenance and repairs.

SNAT609TAI

/ 4.9
1001 reviews | Need a Specific Revision?

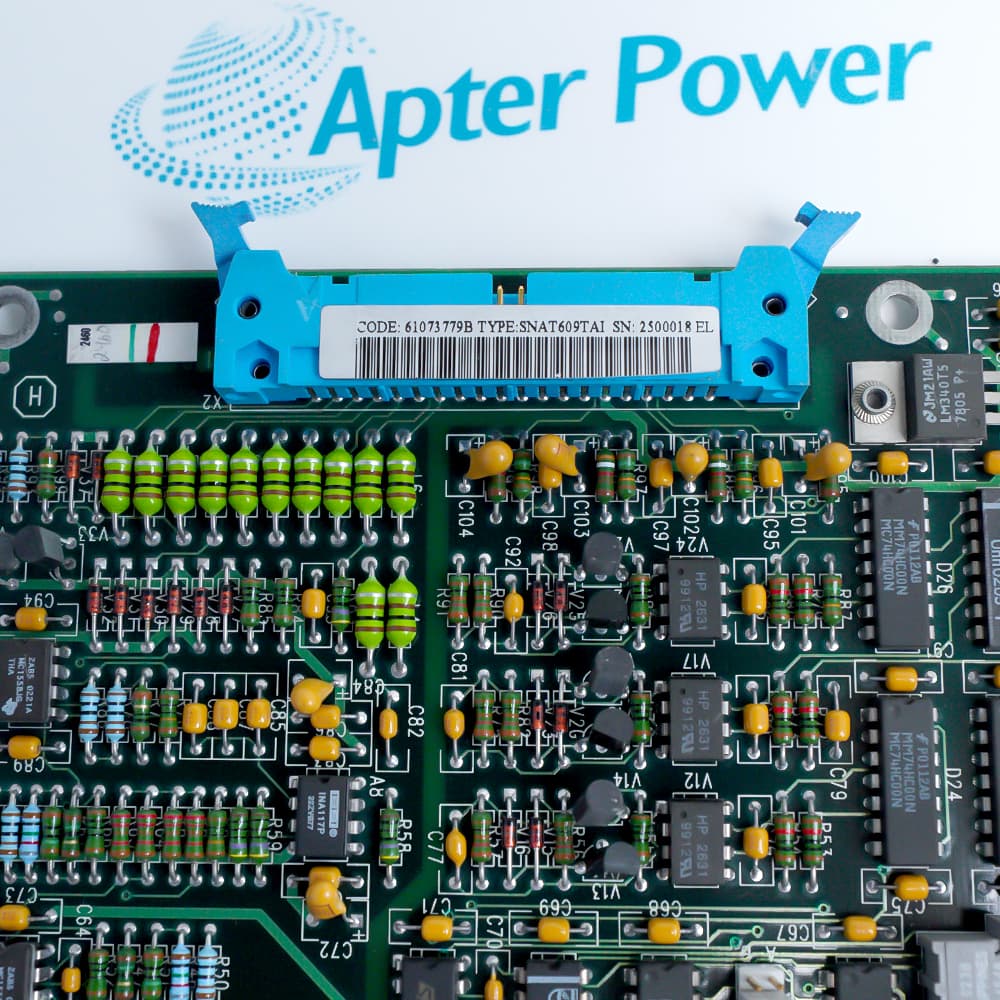

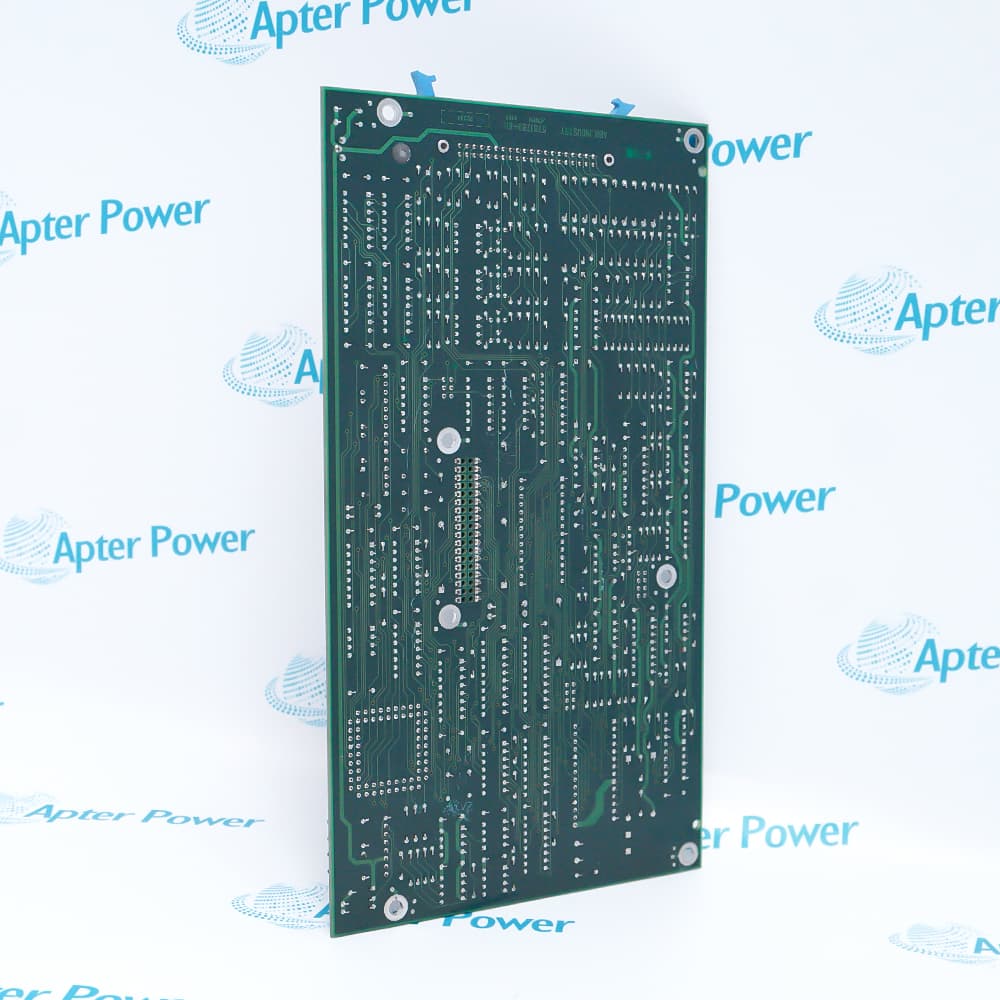

ABB SNAT609TAI is a tacho & I/O interface board that transfers field I/O and tachometer signals to the SNAT 603 CNT through flat cable connections.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SNAT609TAI
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SNAT609TAI

  • Manufacturer:
    ABB
  • Part Number:
    SNAT609TAI
  • Product Family:
    ABB Drives
  • Product Type:
    Tacho & I/O Interface Board
  • Stock:
    1
  • Input operating voltage:
    24V DC or 48V DC
  • Rated output voltage:
    24V DC
  • Maximum output current:
    10A
  • Digital inputs (DI):
    9 channels
  • Digital outputs (DO):
    3 channels
  • Analog inputs (AI):
    1 channel
  • Tachometer interface (Tacho):
    1 channel
  • Operating temperature:
    -40℃ to +85℃
  • Weight:
    0.26 kg
  • Estimated shipping dimensions:
    26.1x13.8x1.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Compatibility Configuration Application Scenarios

Features:

  • Combines field I/O circuits and tachometer signal processing for communication with the SNAT 603 CNT.
  • Supports DDCTool connectivity through plastic optical fibers and works with optical distributors for multi-drive installations.
  • Operates with 24 V DC or 48 V DC input, provides up to 10 A output current, and withstands temperatures from -40°C to +85°C.
ABB SNAT609TAI provides an effective interface between field devices and the drive control system by collecting digital, analog, and tachometer signals before forwarding them to the controller. The board simplifies wiring through dedicated flat cable connections and supports stable communication within DDC drive systems. Its combination of I/O handling and tachometer processing makes it suitable for industrial automation environments where accurate signal transfer is essential.

The board is intended for use with SNAT 602 TAC, SNAT 603 CNT, and DDCTool communication hardware. Field wiring is terminated on the SNAT 602 TAC terminal block board, while optical communication with a personal computer is achieved through the SNAT 606 CMT or SNAT 608 CMT interface board. Different optical fiber options allow installation distances to be matched to application requirements.

ABB SNAT609TAI is also well suited for applications requiring centralized drive management. Multiple drives can be connected to a single PC by using compatible optical distributors, while longer communication distances can be accommodated through glass fiber installations with a YPC 115 A interface. With support for 9 digital inputs, 3 digital outputs, 1 analog input, 1 tachometer interface, and an operating temperature range from -40°C to +85°C, the board provides dependable performance for industrial drive control systems.

The SNAT609TAI ABB Tacho & I/O Interface Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SNAT609TAI Tacho & I/O Interface Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB SNAT609TAI Tacho & I/O Interface Board Specs

General

  • Manufacturer ABB
  • Model SNAT609TAI
  • Condition New Original ready stock
  • Product Family SNAT603CNT,SNAT7261INT,SNAT607MCI
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • System Architecture: Specifically designed for ABB's classic drive systems (such as ACV 700 and some high-power DC speed controllers).
  • Hardware Interconnectivity: Perfectly compatible with APC (Application Control Board) and various mainstream distributed control system (DCS) racks.
  • Signal Compatibility: Supports industrial-grade standard tachogenerator feedback, negative logic input (24V DC), and optocoupler-isolated signals.
  • Software Protocol: Compatible with early ABB drive control software, supporting real-time speed closed-loop algorithms and system error diagnosis.
  • Core Board: SNAT 609 TAI tachometer and universal input/output interface board.
  • Interface Channels: Configured with 9 digital inputs (DI), 3 digital outputs (DO), and 1 analog input (AI).
  • Connection Accessories: Equipped with a 40-pin standard flat cable socket for connecting to field I/O terminal blocks.
  • Electrical Protection: Built-in overcurrent and overvoltage protection circuits, supporting false-start prevention safety hardware interlocks.
  • Metallurgical Rolling Mill: Used for closed-loop feedback and safety interlock control of motor speed in the main drive of large rolling mills.
  • Papermaking Machinery: Used for precision speed regulation and linear speed matching in multi-unit synchronous drive systems.
  • Mine Hoisting: Used for motor status monitoring and emergency trip protection in mine hoists and high-power conveyor belts.
  • Port Lifting: Used for the lifting and traveling transmission control of large lifting equipment such as container quay cranes and gantry cranes.
Description
ABB SNAT609TAI serves as the tacho and I/O interface board for the drive control system, bringing together field I/O signals and tachometer signals before forwarding them to the SNAT 603 CNT. The board includes the required I/O circuits for SNAT 603 CNT and connects through a 36-pole flat cable, creating a reliable interface between the controller and field devices.

Field I/O signals together with tachometer signals are first connected to the SNAT 602 TAC terminal block board and then transferred to ABB SNAT609TAI through a 40-pole flat cable. The same SNAT 602 TAC terminal block board can be used for connecting I/O signals either to APC or to ABB SNAT609TAI on the DDC drive, although the signal names and terminal connections differ when used with the interface board.

ABB SNAT609TAI also supports optical communication for DDCTool by working with the SNAT 606 CMT or SNAT 608 CMT board installed in a personal computer. A pair of optical fibers connects the PC interface board to the interface board. Plastic fibers can be used for distances up to 15 m with standard attenuation cable, while extra low attenuation cable extends the distance to 25 m. For longer connections, glass fibers are required.

When several drives need to be controlled by one PC, the optical distributor YPC 111 A is used with plastic fibers, while YPC 115 A supports glass fibers. Because ABB SNAT609TAI includes receiver/transceiver circuits V10/V11 for plastic fibers only, glass fiber installations require a YPC 115 A near the interface board. Operating with a 24 V DC or 48 V DC input, the board provides a rated 24 V DC output, supports up to 10 A output current, and offers 9 digital inputs, 3 digital outputs, 1 analog input, and 1 tachometer interface across an operating temperature range of -40°C to +85°C.
Alternative Names
SNAT6O9TAI SNAT609TA1 SNAT603CNT SNAT7261INT SNAT607MCI SNAT617CHC SNAT620PCB SNAT 609 TAI
Technical notes
Designed as a vital spare parts solution for industrial DCS and PLC drive architectures, the ABB SNAT609TAI Tacho & I/O board ensures seamless closed-loop control via its 40-pin ribbon cable connection. It provides critical hardware-level false-start prevention and real-time fault diagnostics to minimize factory downtime.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does ABB SNAT609TAI work with SNAT 602 TAC?
SNAT 602 TAC serves as the terminal block board where field I/O and tachometer signals are connected before they are transmitted to ABB SNAT609TAI through a 40-pole flat cable.
How does ABB SNAT609TAI communicate with a PC?
Communication is established through a SNAT 606 CMT or SNAT 608 CMT board installed in a personal computer. A pair of optical fibers links the PC interface board to ABB SNAT609TAI.
Can ABB SNAT609TAI support multiple drives from one PC?
Yes. When one PC controls several drives, ABB SNAT609TAI works with the YPC 111 A optical distributor for plastic fibers or the YPC 115 A for glass fiber networks.
Does ABB SNAT609TAI support glass fiber connections directly?
No. ABB SNAT609TAI includes receiver/transceiver circuits for plastic fibers only. When glass fibers are required because of longer transmission distances, a YPC 115 A must be installed near the board.
