SPGU 240 A1

/ 4.9
1001 reviews | Need a Specific Revision?

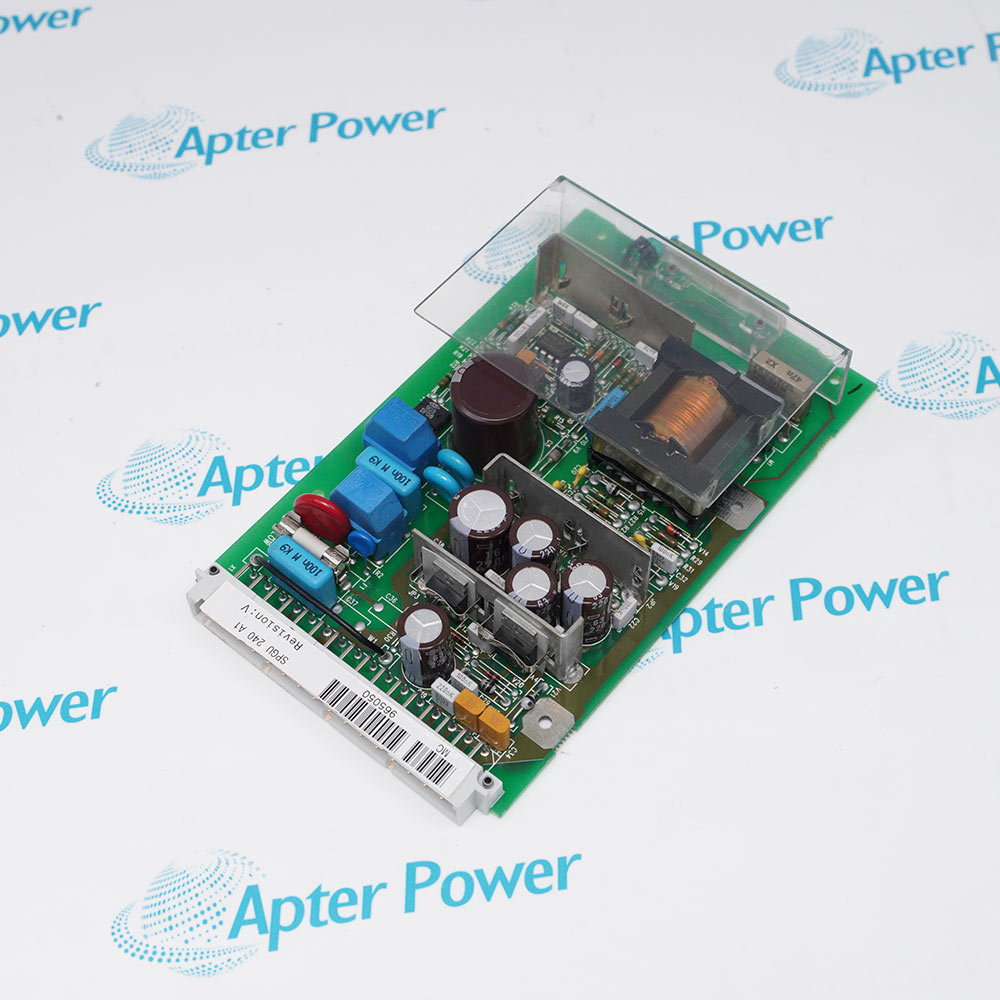

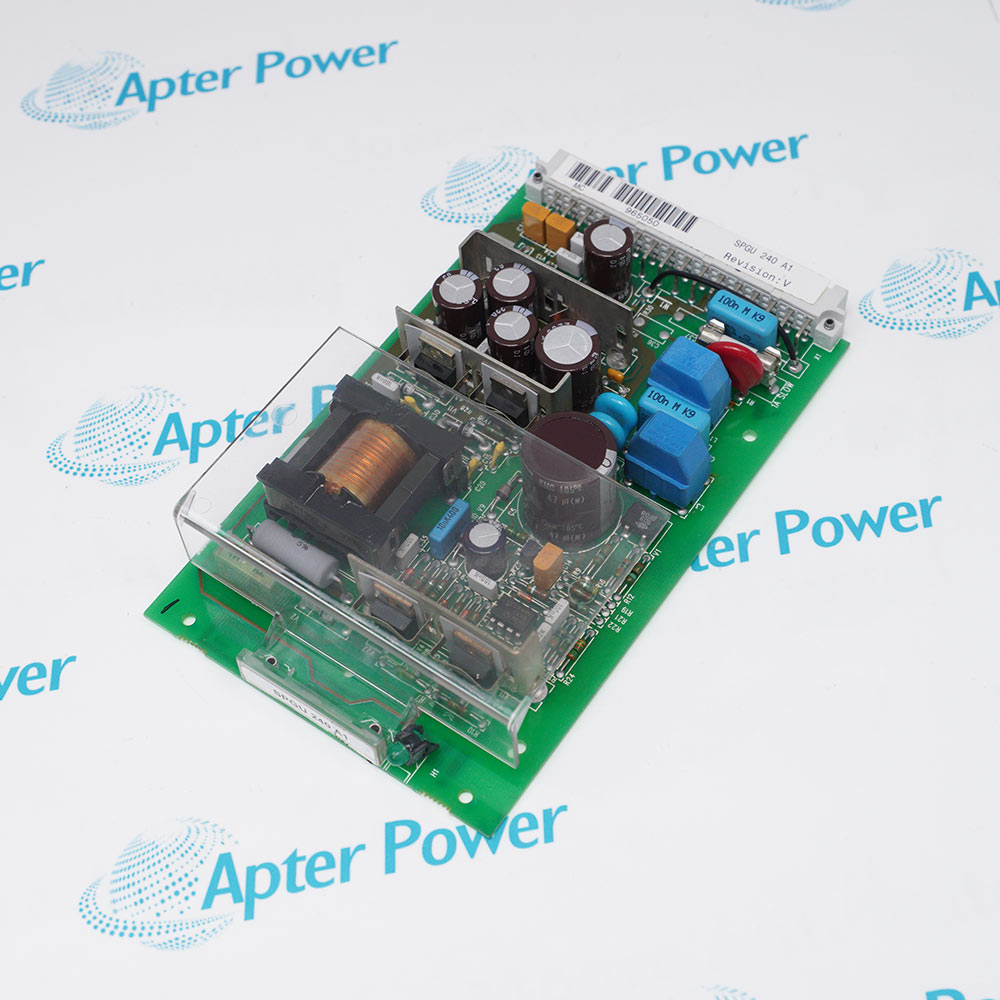

ABB SPGU 240 A1 is a plug-in relay power supply module accepting 80 to 265 V AC or DC and producing internal +24 V, ±12 V, and +8 V supply rails.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for SPGU 240 A1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SPGU 240 A1

  • Manufacturer:
    ABB
  • Part Number:
    SPGU 240 A1
  • Product Family:
    ABB Electrical
  • Product Type:
    Plug-In Relay Power Supply Module
  • Stock:
    1
  • Input Voltage:
    80 to 265 V AC or DC
  • Converter Principle:
    Transformer-connected flyback DC/DC
  • Galvanic Isolation:
    Yes
  • Input Fuse:
    1 A slow
  • Secondary Rails:
    +24 V, +12 V, -12 V, and +8 V
  • Auxiliary-Supply Indicator:
    Green Uaux LED
  • Self-Supervision Threshold:
    Secondary deviation greater than approximately 25 percent
  • Insulation Test:
    2 kV, 50 Hz, 1 minute
  • Rated Power:
    Less than 15 W
  • Typical Burden:
    Approximately 10 W
  • Dimensions:
    Leave blank
  • Tariff Code:
    8504409999
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Input Outputs Supervision Application
  • Official type designation SPGU 240 A1
  • 80 to 265 V AC or DC input range
  • Isolated internal rails with voltage-deviation supervision

SPGU 240 A1 is ABB's plug-in relay power supply module.

The module accepts 80 to 265 V AC or DC and uses a transformer-connected, galvanically isolated flyback DC/DC converter to generate +24 V, ±12 V, and +8 V internal rails.

ABB documents the module in SPAG 330 C, SPAD 346 C, and SPAS 348 C protection-relay assemblies, with self-supervision for excessive secondary-voltage deviation.

Availability, condition, price, and shipping time for SPGU 240 A1 are confirmed during quotation.

ABB SPGU 240 A1 Plug-In Relay Power Supply Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Accepts 80 to 265 V AC or DC
  • Protected by a 1 A slow fuse
  • The input is galvanically isolated from secondary circuits
  • Provides an unstabilized +24 V relay-coil rail
  • Provides ±12 V operational-amplifier rails
  • Provides a stabilized +8 V logic rail
  • A green Uaux LED indicates auxiliary-supply operation
  • Secondary-voltage deviation greater than about 25 percent activates supervision
  • The insulation test level is 2 kV at 50 Hz for one minute
  • Auxiliary power supply in the ABB SPAG 330 C generator protection relay
  • Auxiliary power supply in the ABB SPAD 346 C differential protection relay
  • Auxiliary power supply in the ABB SPAS 348 C protection relay
Description
SPGU 240 A1 supplies the regulated auxiliary voltages required by compatible ABB protection-relay electronics.

Its wide-range AC/DC input and galvanically isolated conversion stage allow the relay assembly to operate from different station auxiliary-power systems.

When servicing the module, verify the complete type designation, input supply, relay compatibility and supervision indication before replacement.
Alternative Names
SPGU240A1 SPGU 240 A1 ABB SPGU240A1 ABB SPGU 240 A1 SPGU-240-A1 ABB SPGU240 A1
Technical notes
SPGU 240 A1 replacement requires matching the 80 to 265 V input range, slow fuse, relay assembly, connector position, supervision behavior, and internal rails.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can I confirm ABB SPGU 240 A1 SPGU 240 A1 suits my protection relay?
Verify relay model, type, supply, connector, fuse, internal rails, fit, and service manual.
Can ABB SPGU 240 A1 replace another SPGU module based only on input voltage?
No. Type, relay, pinout, fuse, rails, supervision, and mechanical installation must all match.
What should be checked before installing ABB SPGU 240 A1?
Confirm supply, voltage, polarity, fuse, connector, relay compatibility, grounding, clearances, and physical condition.
What checks follow installation of ABB SPGU 240 A1?
Verify the green indication, self-supervision, stable supplies, temperature, relay startup, and protection functions.
What should be inspected if ABB SPGU 240 A1 triggers supervision?
Check incoming supply, fuse, connector, relay load, voltage deviation, wiring, contamination, heat, and relay electronics.
Are cables, connectors, or the complete relay included with ABB SPGU 240 A1?
Treat it as the module only unless the quotation explicitly lists assemblies, accessories, or documents.
What information is needed to quote ABB SPGU 240 A1?
Provide relay model, label, connector photos, supply, fault, condition, quantity, and destination.
