        • Lifecycle status

          Obsolete
          Discontinued date: January 2024

        TA25DU-M

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

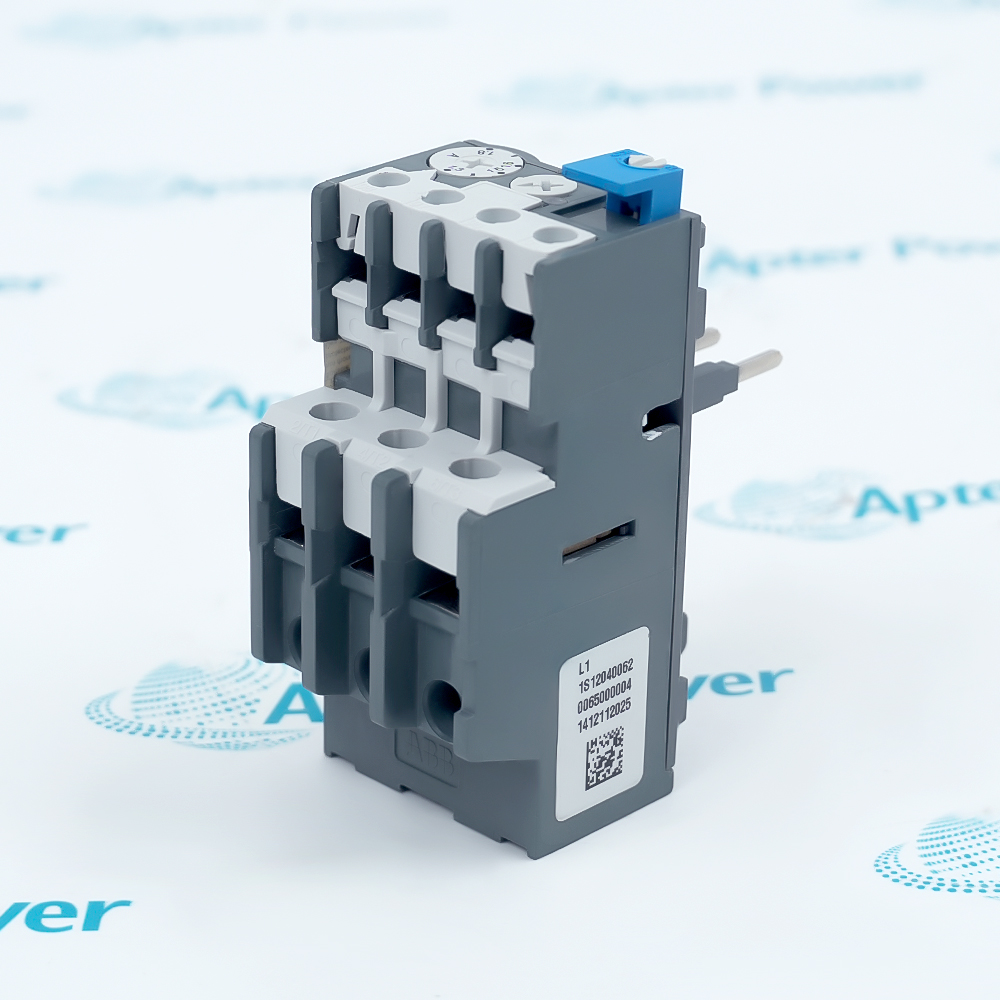

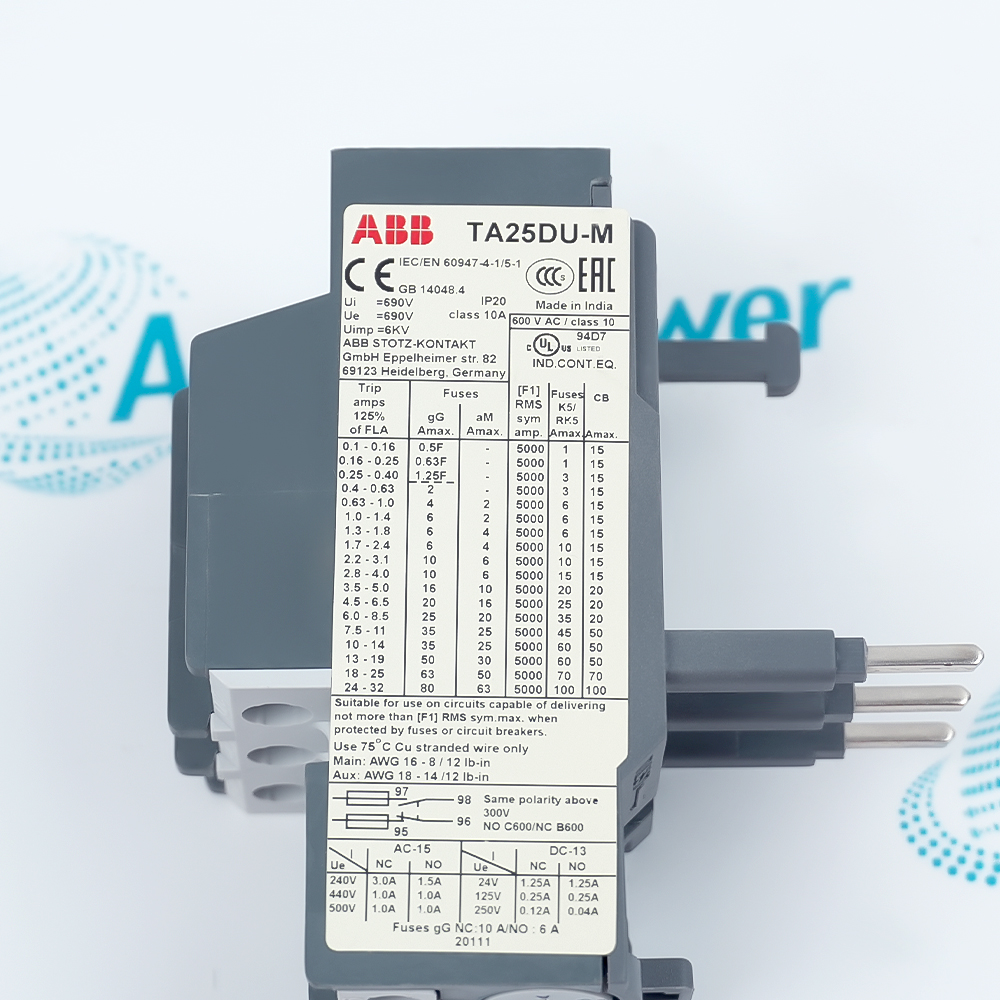

        ABB TA25DU-M is a three-pole Class 10A thermal overload relay family for motor overload and phase-loss protection, with selectable manual or automatic reset.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for TA25DU-M
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for TA25DU-M

        • Manufacturer:
          ABB
        • Part Number:
          TA25DU-M
        • Product Family:
          ABB Electrical
        • Product Type:
          Class 10A Thermal Overload Relay Family
        • Stock:
          1
        • Setting Range Family:
          0.10–32.0 A across catalog variants
        • Trip Class:
          10A
        • Poles:
          3
        • Main Circuit Rated Operational Voltage:
          690 V AC
        • Main Circuit Rated Insulation Voltage:
          690 V AC
        • Rated Impulse Withstand Voltage:
          6 kV
        • Frequency:
          DC, 50/60 Hz; operating range 0–400 Hz
        • Auxiliary Contacts:
          1 N.O. + 1 N.C., electrically isolated
        • Auxiliary Circuit Rated Operational Voltage:
          500 V AC; 440 V DC
        • Reset:
          Manual or automatic selectable
        • Phase-Loss Sensitivity:
          Yes
        • Operating Temperature:
          -25 to +55 °C
        • Storage Temperature:
          -40 to +70 °C
        • Mounting:
          Direct on compatible contactor or separate 35 mm DIN rail kit
        • Housing Protection:
          IP20
        • Tariff Code:
          8536490090
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Current Selection Mounting Reset and Test Application
        • Protects motor circuits against sustained overload and phase failure
        • Offers selectable manual or automatic reset and front trip indication
        • Uses isolated normally closed and normally open control contacts

        TA25DU-M is ABB's screw-terminal Class 10A thermal-overload family covering multiple current-setting variants.

        The relay uses three bimetal tripping elements and changes the 95–96 and 97–98 auxiliary-contact states when an overload or phase-loss condition causes a trip.

        The exact current suffix, contactor frame, mounting method, reset strategy, conductors, and terminal torque must be established before selection.

        Availability, condition, price, and shipping time for TA25DU-M are confirmed during quotation.

        ABB TA25DU-M Thermal Overload Relay Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • Read motor full-load current from the approved nameplate and design data
        • Select the complete TA25DU suffix whose adjustment range covers that current
        • Check short-circuit coordination and protective-device requirements for the selected variant
        • Confirm direct-mount compatibility with the selected ABB contactor frame
        • Use the correct DB25 separate-mounting kit when DIN-rail installation is required
        • Apply the documented conductor preparation and terminal tightening torque
        • Select manual or automatic reset from the machine safety and control strategy
        • Use the front TEST and STOP functions only under the documented procedure
        • Investigate overload and phase-loss causes before returning the motor to service
        • Three-phase motor overload and phase-loss protection
        • Single-phase motor protection using the documented wiring arrangement
        • Contactor-based motor starters requiring Class 10A thermal protection
        Description
        TA25DU-M is an ABB three-pole thermal overload relay family with screw terminals and Class 10A tripping.

        It protects motors against sustained overload and phase failure and provides isolated normally closed and normally open auxiliary contacts for the control circuit.

        Before selection, choose the complete current-setting suffix, match the contactor or separate-mounting kit, verify conductor size and torque, and confirm the required reset mode.
        Alternative Names
        TA25DU-M TA25DU M ABB TA25DU-M ABB TA25DU M TA25DU-M Thermal Overload Relay ABB TA25DU-M Thermal Overload Relay
        Technical notes
        TA25DU-M selection requires the complete current suffix, motor full-load current, compatible contactor or DB25 kit, reset strategy, conductor size, and torque; the family name alone is insufficient.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How should the correct current version of ABB TA25DU-M be selected?
        Use the motor nameplate current and coordination study to select the complete TA25DU current-setting suffix; TA25DU-M alone describes a family, not one setting range.
        Can ABB TA25DU-M mount directly on any ABB contactor?
        No. Confirm the contactor frame and approved overload-relay combination; separate mounting requires the correct ABB DB25 kit for the selected current variant.
        Should ABB TA25DU-M be set to manual or automatic reset?
        Select the reset mode from the machine risk assessment and control design. Automatic reset must not create an unexpected restart hazard.
        What should be checked after ABB TA25DU-M trips?
        Investigate motor load, phase condition, supply imbalance, conductor and terminal condition, relay setting, ambient temperature, and mechanical binding before resetting.
        Can ABB TA25DU-M serve as the only protection device in a motor starter?
        No. It provides overload protection, while the starter design must also include the correctly coordinated short-circuit protective device, contactor, isolation, and control-circuit safeguards required by the application.
        How should ABB TA25DU-M be integrated into an existing starter control circuit?
        Follow the approved starter schematic for the trip and indication contacts, then confirm contactor-coil control, interlocks, reset behavior, and protection coordination before returning the motor to service.
        What is the main ordering risk with ABB TA25DU-M?
        Ordering only the family name omits the current suffix; the wrong setting range, contactor frame, or mounting accessory can make the relay unusable.
