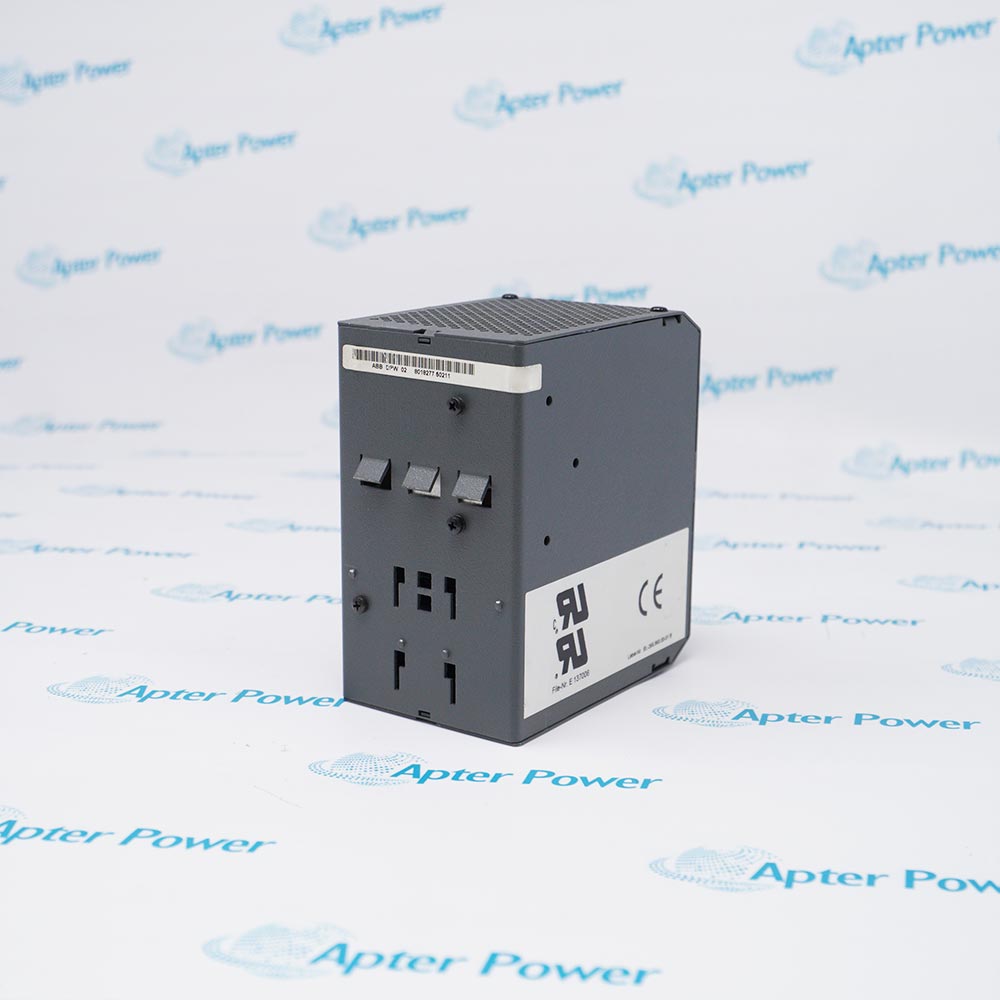

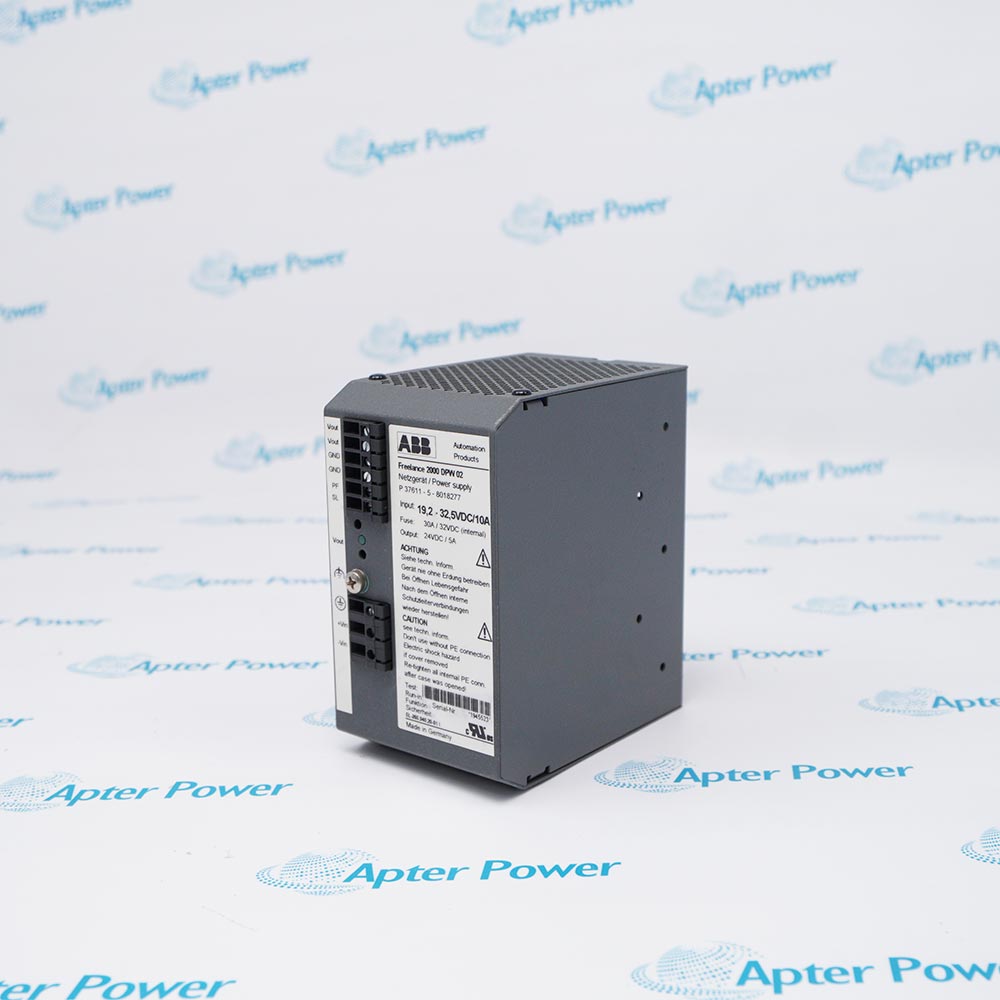

ABB DPW02 is an isolated 24 V DC-to-24 V DC, 5 A rack power supply for Freelance mounting-rack systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for DPW02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DPW02

  • Manufacturer:
    ABB
  • Part Number:
    DPW02
  • Product Family:
    ABB H&B Freelance 2000
  • Product Type:
    24 V DC isolated rack power supply
  • Stock:
    1
  • Input Voltage:
    19.2 to 32.5 V DC
  • Nominal Output Voltage:
    24 V DC
  • Rated Output Current:
    5 A
  • Input and Output Isolation:
    Electrically isolated
  • Input Requirement:
    SELV or PELV supply
  • Buffer Time:
    20 ms
  • Power-Fail Signal:
    Provided
  • Input Noise Suppression:
    Provided
  • Recommended External Fuse:
    25 A time-delay
  • Output Cable:
    DSU10
  • Integrated Mains Switch:
    None
  • Protective Earth:
    Required
  • Dimensions:
    7.4 × 3.0 × 12.0 cm
  • Weight:
    0.7 kg
  • Tariff Code:
    8504401400
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Output Quality Current Control Power Continuity Application
  • Isolated 24 V DC input-to-output conversion
  • Rated 5 A output for the mounting-rack system
  • Power-fail signal, noise suppression, and 20 ms buffering

DPW02 is an ABB power supply for the Freelance mounting-rack system.

It produces an isolated 24 V DC, 5 A output from the documented 24 V DC input range.

Verify external isolation, fusing, protective earth, DSU10 cable, rack fit, and load before replacement.

Availability, condition, price, and shipping time for DPW02 are confirmed during quotation.

ABB DPW02 Rack Power Supply Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Typical output regulation is 24 V DC within plus or minus 5 percent
  • Output spikes are specified at no more than 150 mV peak to peak
  • Output ripple is specified at no more than 100 mV peak to peak
  • The documented operating output range is 0 to 5 A
  • Current limiting begins above approximately 6 A
  • The output restarts automatically after an overload or short circuit clears
  • DPW02 suppresses input noise and buffers its 24 V DC output for up to 20 ms after an input-power interruption.
  • The PF terminal provides a power-fail signal when the regulated output can no longer be maintained.
  • Interruptions beyond the documented buffer interval require a separate backup-power design.
  • Supplying isolated 24 V DC to Freelance rack equipment
  • Replacing DPW02 order number 8018277M
  • Supporting redundant or distributed rack power arrangements documented by ABB
Description
DPW02 is an ABB rack power supply that converts a 24 V DC input into an isolated 24 V DC output rated at 5 A.

ABB documentation places the unit in the Freelance mounting-rack system and specifies power-fail signaling, input-noise suppression, and short interruption buffering.

Confirm the input supply, protective earth, fuse, DSU10 output cable, rack arrangement, and downstream load before replacement.
Alternative Names
DPW02 DPW 02 8018277M DPW02 8018277M ABB DPW02 ABB DPW 02 8018277M
Technical notes
DPW02 has no integrated mains switch. Use an appropriate external isolator and the documented 25 A time-delay protection, connect protective earth, and verify that the input source is SELV or PELV. Confirm DSU10 polarity and downstream load before energization.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What information is needed to confirm ABB DPW02 will replace the installed rack power supply?
Provide the DPW02 or 8018277M nameplate, rack model, input source, connected load, DSU10 cable details, and photographs of the installed wiring.
How should a buyer check whether ABB DPW02 has enough capacity for the existing rack?
Confirm the total downstream 24 V DC load, startup demand, redundancy arrangement, and available margin against the documented 5 A rating.
What installation details are important when replacing ABB DPW02?
Verify the SELV or PELV source, protective earth, polarity, external isolation, fuse coordination, ventilation, and the condition of the DSU10 connection.
Is the DSU10 output cable normally included with ABB DPW02?
Do not assume that the cable is included. State whether the existing cable will be reused or request the required cable and connector scope in the quotation.
Does ABB DPW02 include the external switch and protective fuse?
The unit has no integrated mains switch, so the buyer should confirm which external isolator, fuse, and cabinet wiring are included in the supply scope.
What protection should be checked for ABB DPW02?
Verify the upstream SELV or PELV source, the recommended 25 A time-delay fuse, protective earth, wiring, and load.
What information is needed to quote ABB DPW02?
Provide the DPW02 or 8018277M identity, quantity, destination, required condition, rack details, and cable requirement.
