Features:
- Two independent RS-485 channels supporting Modbus RTU/DeviceNet at up to 1 Mbps
- ≥500V DC isolation protects the controller from electrical noise and ground loops
- 24V DC operation at <1.5W, -20°C to +60°C for harsh environments

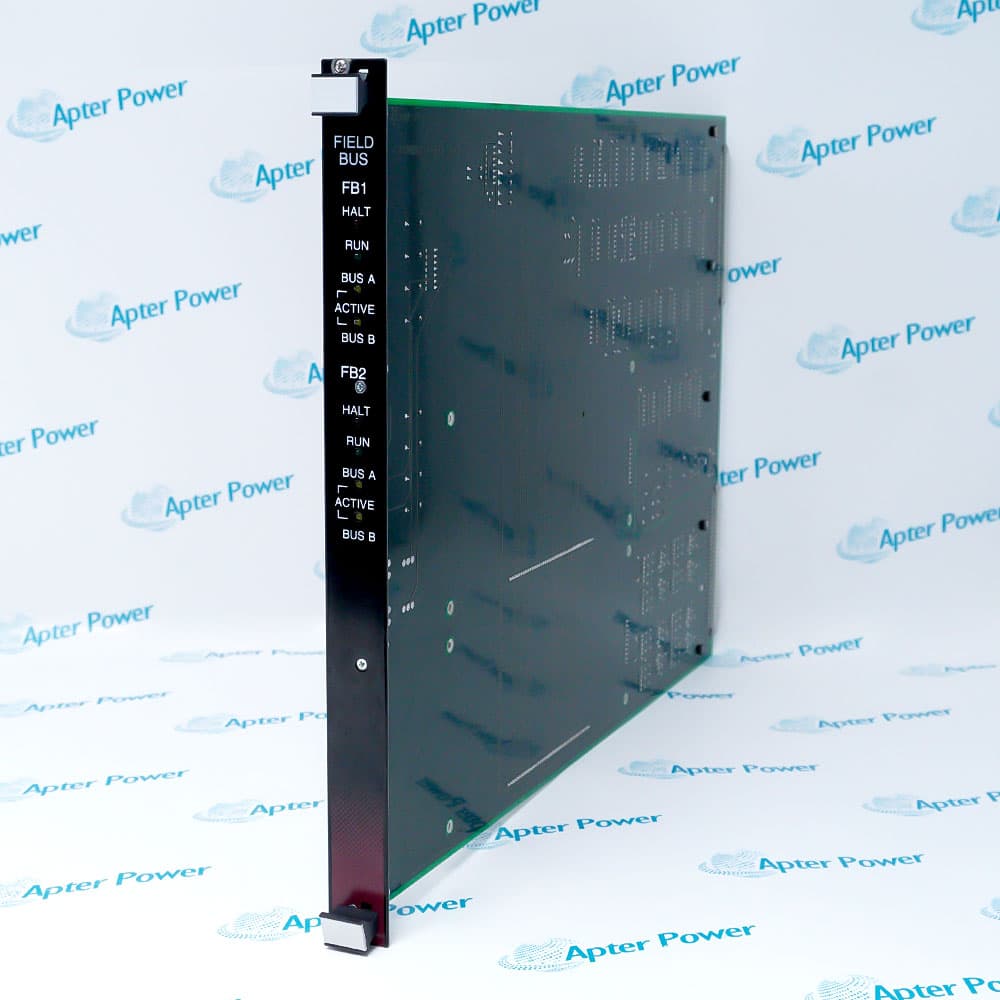

The 6227BZ10200 6227BZ10200F is equipped with two independent RS-485 communication channels, enabling simultaneous data exchange with multiple field devices . This dual-channel design supports both independent and redundant configurations, allowing system architects to connect different bus segments or implement communication redundancy for critical applications . The 6227BZ10200 6227BZ10200F supports Modbus RTU, DeviceNet, and Profibus protocols, providing flexibility for integrating diverse devices from multiple manufacturers . With communication speeds up to 1 Mbps, the 6227BZ10200 6227BZ10200F ensures rapid data transfer for real-time monitoring and control in industries such as power generation and chemical processing . This versatility makes the 6227BZ10200 6227BZ10200F an essential component for connecting ABB SC controllers to modern industrial automation networks.
The 6227BZ10200 6227BZ10200F provides ≥500V DC galvanic isolation between the communication channels and the controller backplane, as well as between individual channels . This electrical isolation is critical for protecting the sensitive SC controller from ground loops, voltage surges, and electromagnetic interference that are common in industrial environments . By isolating the fieldbus signals from the controller logic, the 6227BZ10200 6227BZ10200F ensures reliable system operation even in electrically noisy surroundings with variable frequency drives and heavy motor loads . The 6227BZ10200 6227BZ10200F also features per-channel Tx/Rx activity and error status LEDs, enabling rapid diagnostics and troubleshooting without additional tools . This robust isolation and diagnostic capability significantly enhance system reliability and reduce maintenance downtime.
The 6227BZ10200 6227BZ10200F is engineered for energy-efficient operation, consuming less than 1.5W of power via the 24V DC backplane supply . This low power design minimizes heat generation within the control cabinet, reducing cooling requirements and improving overall system reliability. The 6227BZ10200 6227BZ10200F operates across a wide temperature range of -20°C to +60°C and can withstand storage temperatures from -40°C to +85°C, making it suitable for demanding industrial environments . The 6227BZ10200 6227BZ10200F carries CE, UL, and CSA certifications, ensuring compliance with international safety and quality standards . As a discontinued legacy part, the 6227BZ10200 6227BZ10200F remains valuable for maintaining older ABB SC controller and Symphony DCS installations .
The 6227BZ10200 6227BZ10200F ABB Dual-Channel Fieldbus Module may still be available for purchase and support from Apter Power beyond
End-Of-Life (EOL) by the manufacturer (OEM).
ABB 6227BZ10200 6227BZ10200F Dual-Channel Fieldbus Module Manuals,
Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
ABB 6227BZ10200 6227BZ10200F Dual-Channel Fieldbus Module Specs
General
- Manufacturer ABB
- Model 6227BZ10200 6227BZ10200F
- Condition New Original ready stock
- Product Family DO620 3BHT300009R1,6215BZ10000 6215BZ10000A,6214BZ10120 6214BZ10120G
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Petrochemical Plants & Oil Refineries: Routing high-speed telemetry packets, sensor calibration profiles, and system interlocks across massive distillation and blending infrastructures.
- Chemical Synthesis Facilities: Managing deterministic data flow for fast-acting batch reactors where network jitter could disrupt highly time-sensitive exothermic processes.
- Continuous Process Utilities: Deployed on water treatment plants and steam distribution loops where decentralized field networks span long distances and demand dual-channel network security.
- Pulp, Paper, & Primary Metals Processing: Transmitting real-time high-speed actuator positioning data over fieldbus lines to maintain synchronous machinery spacing.
- Temperature Spectrum: Calibrated strictly for clean room control cabinet operations ranging from 0°C to 55°C (32°F to 131°F). Storage limitations span from -40°C to +85°C.
- Humidity Threshold: Must operate within a 5% to 95% non-condensing relative humidity window. Moisture accumulation on the high-speed data traces can cause catastrophic impedance changes, causing data corruption.
- Atmospheric Cleanliness: These modules are susceptible to airborne conductive elements. Racks should be placed in climate-controlled, air-filtered enclosures to prevent corrosive gases (like hydrogen sulfide) or metallic dust particles from bridging the fieldbus pins.
- Dual-Channel Redundancy Management: The module splits communication load across Channel A and Channel B simultaneously. If the onboard controller detects a physical cable break or a frame-check error on one channel, it instantly reroutes 100% of the data flow to the healthy lane with zero data loss or process interruption.
- Cyclic Redundancy Check (CRC) Validation: Integrated network processors automatically screen every inbound data packet using strict hardware-level CRC algorithms. Any corrupted frames generated by electromagnetic interference (EMI) are immediately dropped and flagged for retransmission.
- DCS System Alarming: Module diagnostics are piped directly to the host software architecture (e.g., Symphony Plus Fieldbus Integration or ABB System 800xA Systems). A communication fault automatically throws a high-priority system alarm, informing operators of the exact slot and channel requiring physical inspection.
