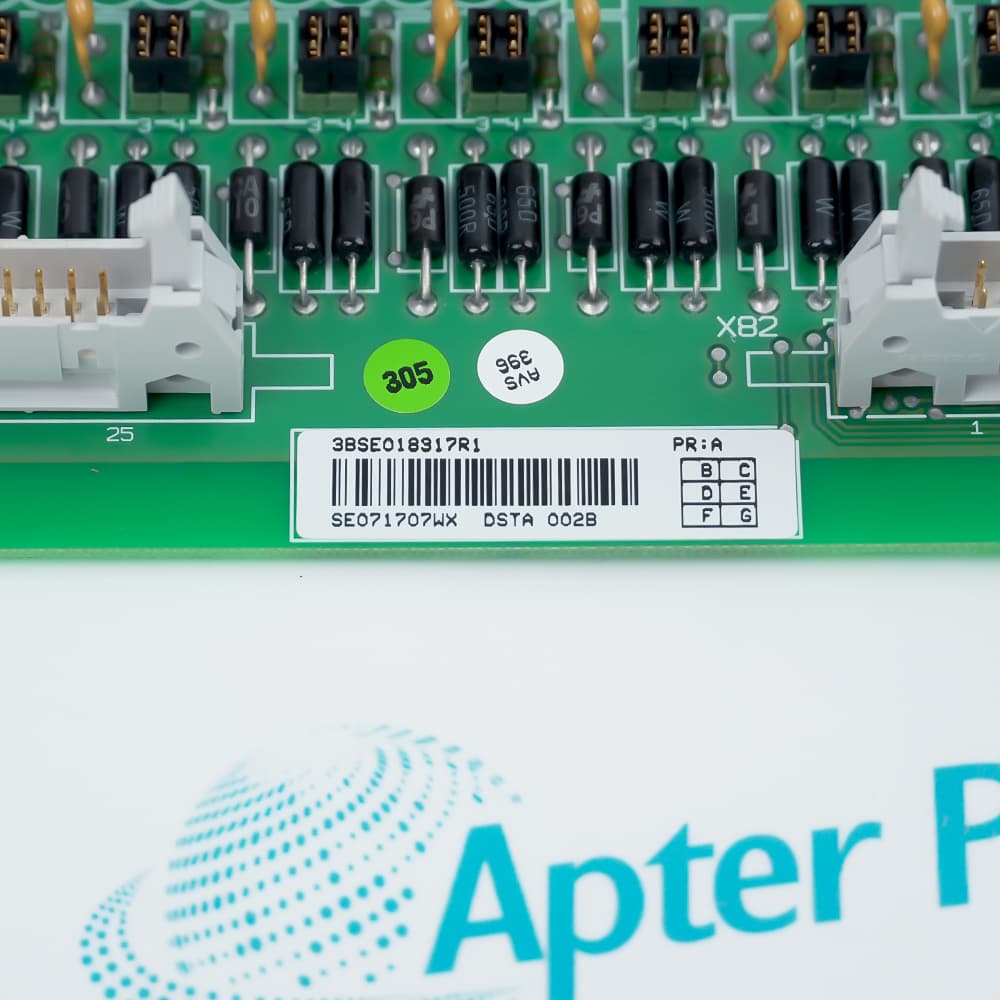

ABB DSTA002B 3BSE018317R1 is a field-connection unit used with the ABB DSAI 133A analog input board in Master process-control installations.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for DSTA002B 3BSE018317R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSTA002B 3BSE018317R1

  • Manufacturer:
    ABB
  • Part Number:
    DSTA002B 3BSE018317R1
  • Product Family:
    ABB Master
  • Product Type:
    Connection Unit for Analog Input Board DSAI 133A
  • Stock:
    1
  • Compatible input board:
    DSAI 133A
  • Documented kit:
    DSAI 133K07 Analog Input 32 ch 12 Bit
  • Documented kit:
    DSAI 133K08 Analog Input 32 ch 12 Bit
  • Documented kit:
    DSAI 133AK01 Analog Input Kit
  • Documented kit:
    DSAI 133K02 Red AI Kit, 32 ch, 12 bit
  • WEEE category:
    4 - Large Equipment (>50 cm)
  • Dimensions:
    18.0 × 6.0 × 62.0 cm
  • Exchange number:
    7650 055-785
  • Weight:
    0.262 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Compatibility Integration Compliance Application
  • Connects installed analog field wiring to the ABB DSAI 133A input board
  • Appears in documented DSAI 133A 32-channel, 12-bit analog-input kit configurations
  • Requires the exact product ID, board type and wiring arrangement to be verified before replacement

ABB DSTA002B 3BSE018317R1 is an ABB connection unit for the DSAI 133A analog input board.

Selection should be based on the complete product ID and the installed DSAI 133A board or analog-input kit, not on connector appearance alone.

Before installation, label every field conductor, compare the connector and terminal arrangement, and preserve the controller configuration and channel mapping.

Availability, condition, price, and shipping time for ABB DSTA002B 3BSE018317R1 are confirmed during quotation.

ABB DSTA002B 3BSE018317R1 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • ABB identifies DSAI 133A as the compatible analog input board
  • ABB lists the unit in DSAI 133K07 and DSAI 133K08 32-channel, 12-bit analog-input assemblies
  • ABB also lists it in DSAI 133AK01 and DSAI 133K02 analog-input kits
  • Use product ID 3BSE018317R1 and type designation DSTA 002B when matching the installed unit
  • Preserve the original field-conductor identification and DSAI 133A channel mapping
  • Confirm connector condition, terminal arrangement and board seating before energizing the system
  • ABB records RoHS information under EU Directive 2011/65/EU
  • ABB assigns WEEE Category 4 for large equipment over 50 cm
  • ABB records zero batteries for this product entry
  • Field-connection interface for ABB DSAI 133A analog input boards
  • DSAI 133K07 and DSAI 133K08 32-channel, 12-bit analog-input assemblies
  • DSAI 133AK01 and DSAI 133K02 analog-input kit installations
Description
ABB DSTA002B 3BSE018317R1 provides the field-connection interface used with the ABB DSAI 133A analog input board.

The connection unit routes installed analog field wiring to the compatible input board and is documented in ABB DSAI 133A analog-input kit configurations.

It is intended for ABB Master process-control installations where the exact product ID, board type, connector arrangement and field wiring must be preserved during replacement.
Alternative Names
DSTA002B DSTA 002B 3BSE018317R1 ABB DSTA002B ABB DSTA 002B DSTA002B 3BSE018317R1 ABB DSTA002B 3BSE018317R1 ABB Master DSTA002B 3BSE018317R1
Technical notes
ABB DSTA002B 3BSE018317R1 is documented for the DSAI 133A analog input board. Match the exact product ID, board, connector and field-terminal arrangement before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can ABB DSTA002B 3BSE018317R1 be used with any ABB analog input board?
No. ABB identifies it for the DSAI 133A analog input board and for specific DSAI 133A kit configurations; confirm the installed board and kit before ordering.
What must be matched before replacing ABB DSTA002B 3BSE018317R1?
Match product ID 3BSE018317R1, type designation DSTA 002B, the installed DSAI 133A board, connector arrangement, terminal map and field-cable identification.
Can ABB DSTA002B 3BSE018317R1 operate as a standalone analog input module?
No. It is the connection unit for a compatible DSAI 133A analog input board; signal acquisition and conversion are performed by the associated board and control system.
Can the existing field wiring be reused with ABB DSTA002B 3BSE018317R1?
Only after the conductor labels, terminal assignments, shield and common arrangement, connector condition and DSAI 133A channel mapping have been verified against the installed system.
Why can channels remain unavailable after installing ABB DSTA002B 3BSE018317R1?
Check connection-unit seating, cable and connector continuity, terminal mapping, the DSAI 133A board status, controller hardware configuration and any channel faults before replacing another component.
What should be documented before removing ABB DSTA002B 3BSE018317R1?
Record the product label, board and kit numbers, every conductor and shield termination, connector orientation, channel assignment and the saved controller configuration.
How should ABB DSTA002B 3BSE018317R1 be checked after installation?
Inspect the terminal and connector arrangement, verify the DSAI 133A board is recognized, then prove each analog channel with controlled reference signals and confirm scaling, polarity, alarms and grounding.
