DSTK150 26390603-A

/ 4.9
1001 reviews | Need a Specific Revision?

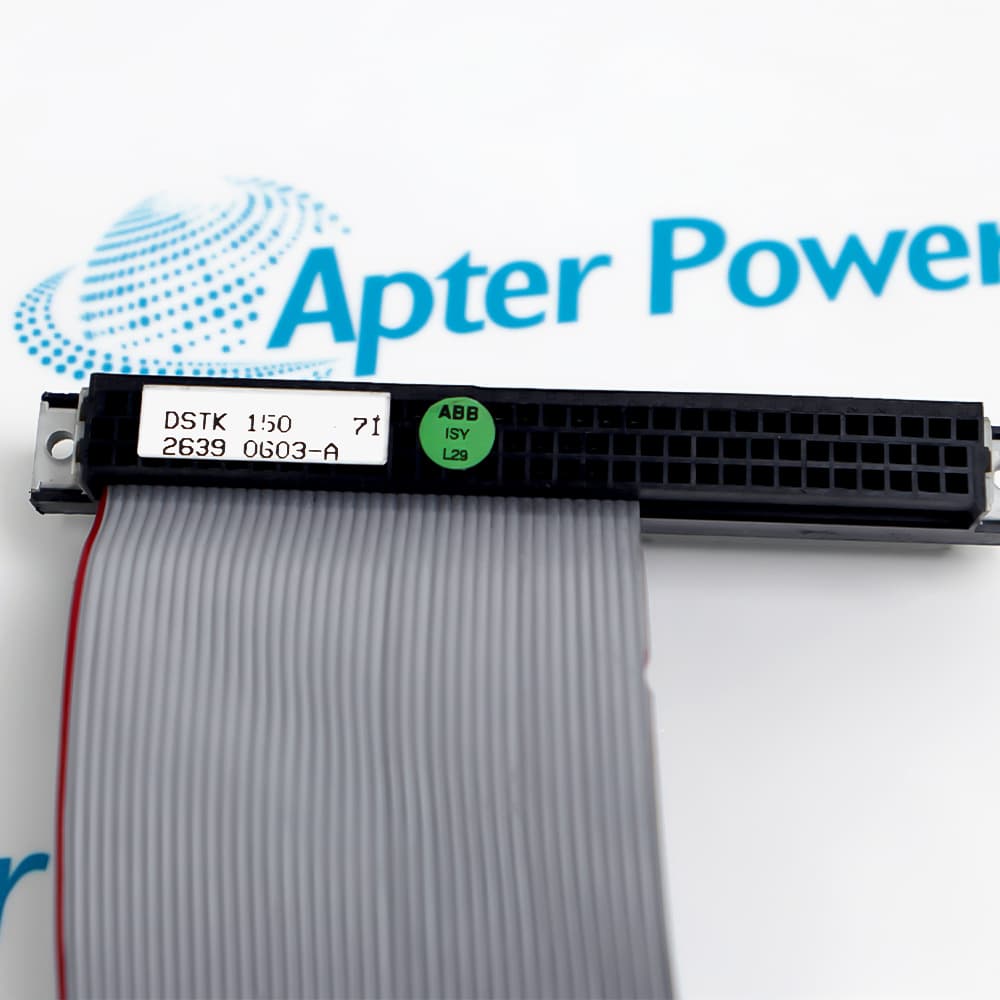

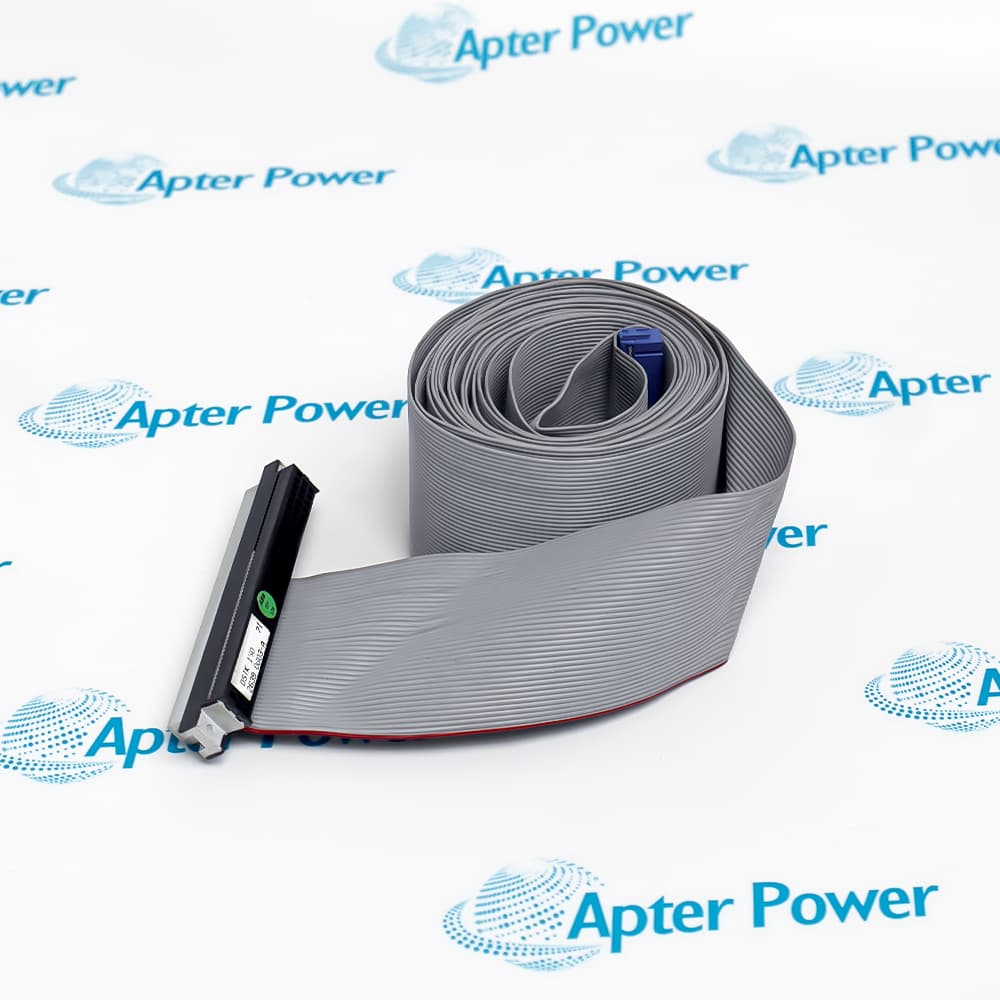

ABB DSTK150 26390603-A is a 3.0 m Advant Master flat cable with EUROCONC96-to-40-pin termination for a defined 64-pin to 40-pin connection.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for DSTK150 26390603-A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSTK150 26390603-A

  • Manufacturer:
    ABB
  • Part Number:
    DSTK150 26390603-A
  • Product Family:
    ABB Master
  • Product Type:
    Flat Cable Assembly
  • Stock:
    1
  • Primary connector designation:
    EUROCONC96
  • Secondary connector:
    40-pin
  • Technical connection:
    64-pin to 40-pin
  • Nominal cable length:
    3.0 m
  • Cable diameter:
    1 mm
  • System reference:
    ABB Advant Master
  • ABB technical reference:
    3BSE088609
  • RoHS status:
    Scope exemption under Article 2(4)(c), (e), (f) and (j)
  • Weight:
    0.5291 lbs (0.24 kg)
  • Tariff Code:
    854442
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Installation Compatibility Compliance

Features:

  • Carries a factory-defined 64-pin to 40-pin signal connection over a 3.0 m flat cable.
  • EUROCONC96 and 40-pin endpoints match the documented Advant Master interconnection.
  • Passive cable construction preserves the required point-to-point wiring without active electronics.
The current order configuration is product ID 26390603-A with type designation DSTK 150. ABB identifies it as a EUROCONC96-to-40-pin flat cable assembly with a nominal three-metre length.

Within an Advant Master installation, the assembly links compatible hardware while keeping the specified connector count and cable routing. Its role is signal interconnection rather than processing or power conversion.

Installation should begin with a visual check of contacts, strain relief and cable insulation. Verify connector orientation and route the flat cable without twists, sharp bends or tension at either endpoint.

Availability is checked against ABB product ID 26390603-A and its exact connector configuration.
Verified resources for ABB DSTK150 26390603-A:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Connects matching Advant Master equipment through the specified EUROCONC96 and 40-pin endpoints.
  • Replaces a damaged interconnection where the installed route requires the nominal 3.0 m assembly.
  • Supports cabinet retrofit work that retains the original ABB signal-pin arrangement.
  • The 64-pin and 40-pin connectors must be aligned with the keyed mating hardware before insertion.
  • Cable routing should maintain bend radius and strain relief without loading either connector shell.
  • Connected equipment must be de-energized before the assembly is inserted, removed or continuity-tested.
  • Compatibility depends on product ID 26390603-A, not only on the DSTK 150 type name.
  • The mating devices must use the documented EUROCONC96 and 40-pin signal interfaces.
  • Pin mapping and connector orientation must be confirmed before any third-party cable is considered.
  • ABB lists the product under the RoHS scope exemptions stated in Article 2(4)(c), (e), (f) and (j).
  • Cable insulation and connector housings should be inspected for damage before installation.
  • Service work must follow the isolation procedure of the connected Advant Master equipment.
Description
ABB DSTK150 26390603-A is a flat cable assembly identified by ABB product ID 26390603-A and type designation DSTK 150. The ordering configuration combines a EUROCONC96 interface with a 40-pin connection on a nominal 3.0 m cable for Advant Master system wiring.

The assembly provides a dedicated 64-pin to 40-pin signal path between compatible equipment rather than acting as an active control module. Its factory-defined connector arrangement and cable length reduce the need for field-built wiring where the documented DSTK 150 interconnection is required.

Replacement selection must use the complete product ID because connector count, orientation and length are essential to system fit. Inspect the cable and contacts for mechanical damage before installation, route it without sharp bends and verify the destination hardware against the Advant Master documentation.
Alternative Names
ABB DSTK150 26390603-A DSTK 150 26390603-A 26390603-A DSTK 150 26390603A DSTK150 cable assembly ABB EUROCONC96 40P cable ABB Advant Master DSTK150 DSTK150 64P-40P 3 m cable
Technical notes
ABB DSTK150 26390603-A is a fixed 64-pin-to-40-pin cable assembly; do not substitute a visually similar flat cable without confirming connector orientation and the nominal 3.0 m length. De-energize the connected equipment before insertion or removal.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What connector arrangement identifies ABB DSTK150 26390603-A?
ABB describes the assembly as a EUROCONC96-to-40-pin flat cable with a 64-pin to 40-pin technical connection.
How long is the ABB DSTK150 26390603-A cable configuration?
The catalog and technical descriptions specify a nominal length of 3.0 metres for product ID 26390603-A.
Where is ABB DSTK150 26390603-A used?
It is used as an Advant Master system interconnection where the documented EUROCONC96 and 40-pin endpoints match the installed equipment.
Can a generic flat cable replace ABB DSTK150 26390603-A?
Not without an engineering check. Connector orientation, pin mapping, length and mechanical retention must match the ABB assembly before substitution.
Which official record supports ABB DSTK150 26390603-A identification?
The Manuals tab contains a model-specific file built from ABB product page 26390603-A and preserves the official type, connection, length and compliance fields.
What details should be included when requesting ABB DSTK150 26390603-A?
Provide quantity, destination, connected Advant Master equipment and any connector-orientation evidence so the exact cable assembly can be verified before quotation.
