    Apter Power can assist with pricing requests for CP6407 1SAP540710R0001 and provide access to applicable official ABB product documentation.

CP6407 1SAP540710R0001

/ 4.9
1001 reviews | Need a Specific Revision?

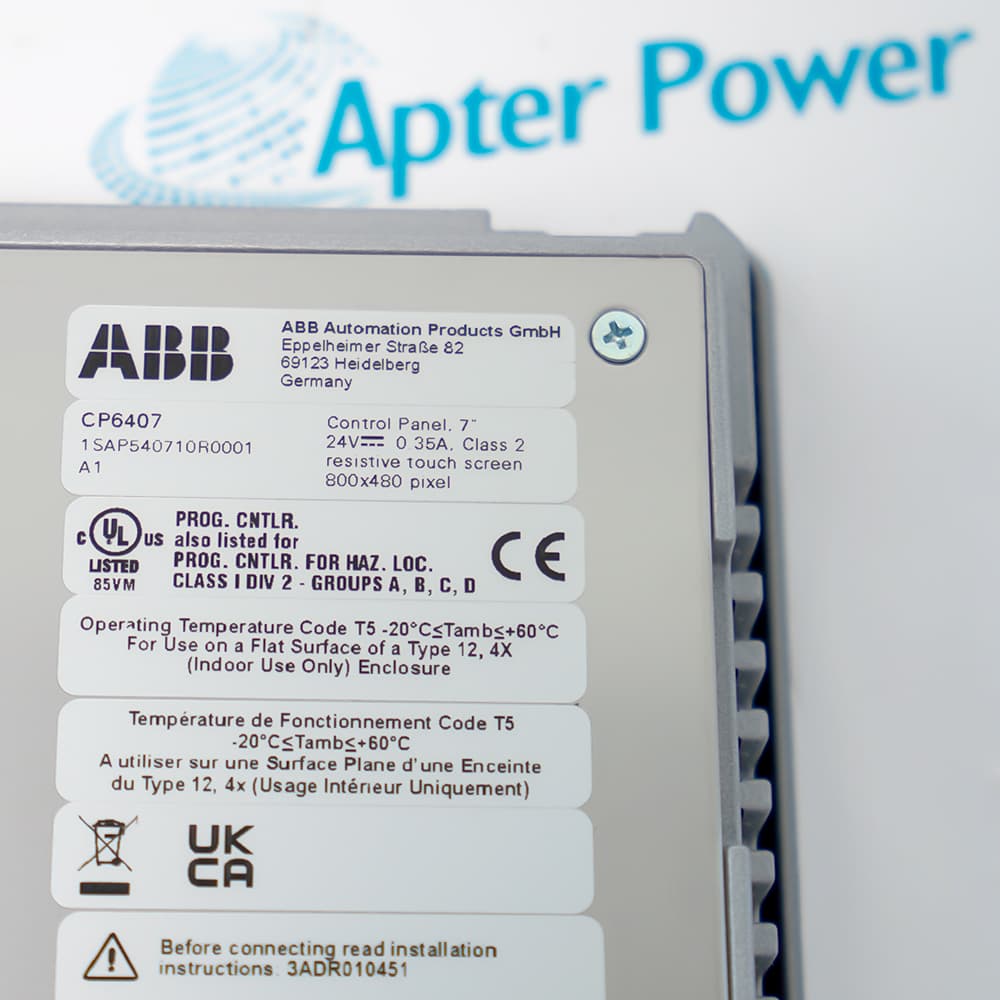

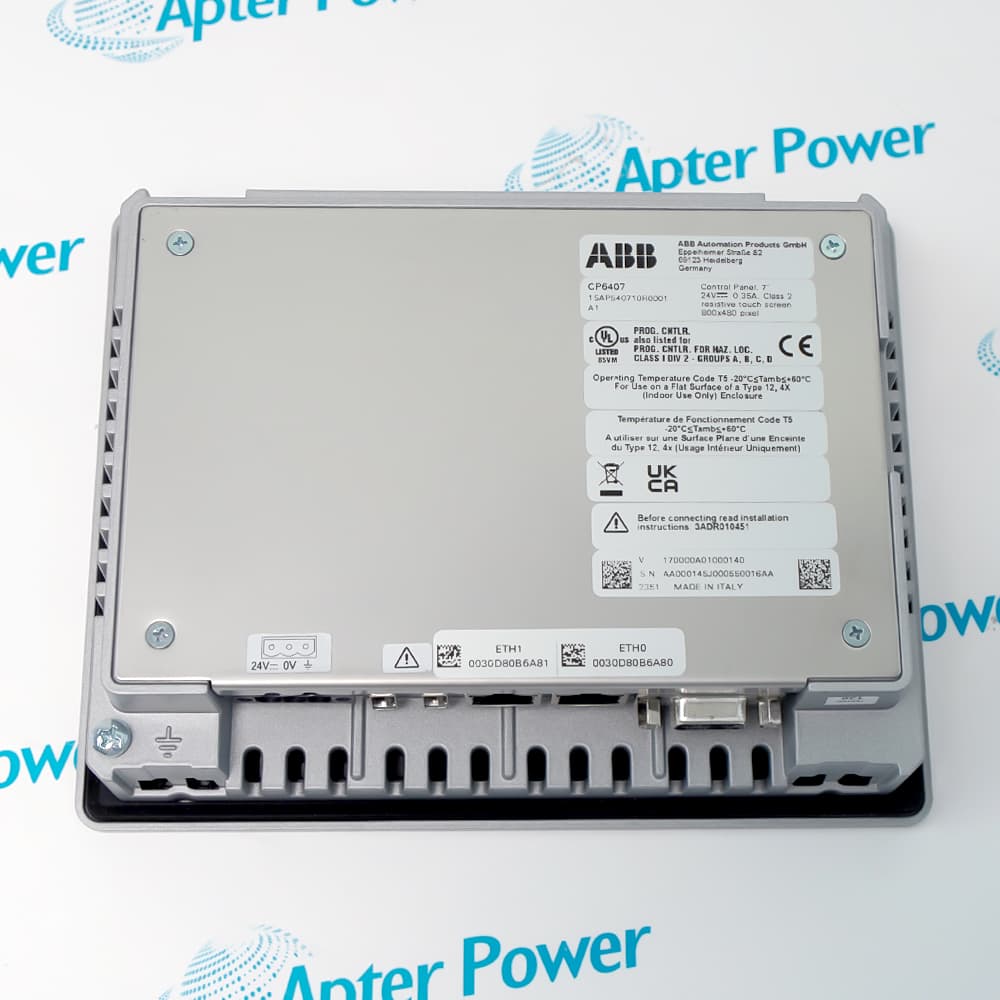

ABB CP6407 1SAP540710R0001 is a CP600 control panel with a 7-inch resistive touch display and embedded industrial Ethernet connectivity.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for CP6407 1SAP540710R0001
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CP6407 1SAP540710R0001

  • Manufacturer:
    ABB
  • Part Number:
    CP6407 1SAP540710R0001
  • Product Family:
    ABB Operator Panel
  • Product Type:
    CP600 Control Panel
  • Stock:
    1
  • Display:
    7-inch color TFT
  • Resolution:
    800 x 480 pixels
  • Touch Input:
    Resistive touchscreen
  • Application Platform:
    PB610
  • Ethernet:
    2 x 10/100 Mb
  • USB:
    2 x USB host
  • Supply Voltage:
    18 to 32 V DC
  • Ambient Temperature:
    -20 to +60 °C
  • Weight:
    2.03 lbs (0.92 kg)
  • Estimated shipping dimensions:
    28 x 12 x 21 cm
  • Tariff Code:
    8537109090
  • Country of origin:
    Italy
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Connectivity Display & Touch Installation Applications

Features:

  • Chromium-based PB610 operator interface for local machine interaction.
  • Compact die-cast aluminum construction with removable field terminals.
  • Front-panel sealing for protected cabinet installation.
The wide-format screen of CP6407 1SAP540710R0001 organizes alarms, values, trends, and commands for nearby equipment operation.

Local storage and the embedded runtime allow CP6407 1SAP540710R0001 to execute its visualization project independently while exchanging data with the connected controller.

Service work can preserve the cabinet wiring because the supply connector is detachable from the panel electronics.

ABB CP6407 1SAP540710R0001 CP600 Control Panel is available through Apter Power with quotation assistance and access to official product documentation.
ABB CP6407 1SAP540710R0001 CP600 Control Panel Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

CP6407 1SAP540710R0001 network and peripheral connections

  • Ethernet separation: Two 10/100 Mb ports let the panel connect to distinct machine and plant network segments.
  • Serial assignment: The software-selectable channel supports RS-232, RS-422, or RS-485 electrical operation.
  • USB service: Two USB host ports provide approved peripheral and maintenance access.
  • Removable storage: The SD-card interface supports approved project, recipe, log, and service-file handling.

CP6407 1SAP540710R0001 operator-interface behavior

  • Screen format: The 7-inch widescreen presents 800 x 480 color graphics for local process viewing.
  • Touch method: Resistive sensing allows deliberate operation with a finger or suitable stylus.
  • Runtime graphics: Vector-based PB610 pages retain clarity as symbols and values change.
  • Color presentation: The TFT panel uses a 64K-color display and LED backlight for machine-side visualization.

CP6407 1SAP540710R0001 panel integration requirements

  • Mounting opening: The cabinet needs a flat 176 x 136 mm cutout with the specified enclosure-wall thickness.
  • Bracket loading: Six supplied brackets are tightened evenly to 130 Ncm to compress the gasket.
  • Thermal position: Natural convection depends on the stated orientation and clear space around the enclosure.
  • Front sealing: Correct cutout preparation, gasket seating, and bracket loading allow the mounted front to meet its IP66 rating.

Industrial projects supported by CP6407 1SAP540710R0001

  • Machine operation: CP6407 1SAP540710R0001 can present status, alarms, setpoints, and commands beside automated production equipment.
  • Panel visualization: CP6407 1SAP540710R0001 supports cabinet-mounted PB610 stations that exchange operating data with a connected controller.
  • Local process supervision: CP6407 1SAP540710R0001 can provide nearby monitoring and touch control for compact skids and packaged machinery.
  • Production-cell interface: CP6407 1SAP540710R0001 can organize cell-level trends, recipes, alarm history, and operator actions in one local panel.
Description
ABB CP6407 1SAP540710R0001 is a CP600 control panel that presents local machine information on a 7-inch, 800 x 480 color display with resistive touch input. The wide screen supports deliberate operator actions while keeping alarms, values, and commands visible at the equipment.

CP6407 1SAP540710R0001 provides two independent Ethernet ports, two USB host connections, and a software-selectable serial channel for RS-232, RS-422, or RS-485 communication. This interface set allows controller exchange, plant-network access, peripheral use, and service work to remain separated by connection type.

A supply range of 18 to 32 V DC and the supported cabinet-mounting arrangement let CP6407 1SAP540710R0001 operate as a self-contained panel station. Correct cutout preparation, enclosure spacing, and gasket compression preserve cooling airflow and the intended front protection.
Alternative Names
1SAP540710R0001 CP6407 ABB CP6407 1SAP540710R0001 CP 6407 1SAP540710R0001 CP-6407 1SAP540710R0001 CP6407 1SAP 540 710 R0001 CP6407 1SAP540710RO001 ABB CP600 CP6407 1SAP540710R0001 1SAP54O710R0001 CP6407
Technical notes
CP6407 1SAP540710R0001 has no CP600 I/O-bus expansion; its two Ethernet ports, configurable serial channel, and USB hosts define the available external integration paths.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should the panel cutout be prepared for CP6407 1SAP540710R0001?
CP6407 1SAP540710R0001 requires a flat 176 x 136 mm opening, an enclosure wall 1.5 to 6 mm thick, and an evenly seated gasket so the front seal is maintained.
Which supply checks matter before energizing CP6407 1SAP540710R0001?
Confirm that CP6407 1SAP540710R0001 receives 18 to 32 V DC with the correct polarity and protective grounding, then keep the field connector de-energized while it is being wired.
How can an existing PB610 application be moved to CP6407 1SAP540710R0001?
Back up the PB610 project used by CP6407 1SAP540710R0001, retain its communication settings and target configuration, and validate the restored application before reconnecting it to the operating machine.
Which serial standards can be assigned on CP6407 1SAP540710R0001?
The serial interface on CP6407 1SAP540710R0001 can be configured in software for RS-232, RS-422, or RS-485, so the physical wiring and project setting must describe the same mode.
What should be recorded for the two Ethernet ports on CP6407 1SAP540710R0001?
Record the cable destination, IP settings, network role, and controller binding for both CP6407 1SAP540710R0001 Ethernet ports before replacement so the plant and machine networks are not interchanged.
When does the front of CP6407 1SAP540710R0001 achieve IP66 protection?
CP6407 1SAP540710R0001 reaches its front IP66 rating only with the required cutout, smooth mounting surface, gasket compression, bracket torque, and a comparably rated enclosure.
How should touch operation be checked after installing CP6407 1SAP540710R0001?
After mounting CP6407 1SAP540710R0001, confirm that touch targets align with the displayed controls and that the resistive surface responds across the active area without unintended edge pressure.
