ACS-AP-I

/ 4.9
1001 reviews | Need a Specific Revision?

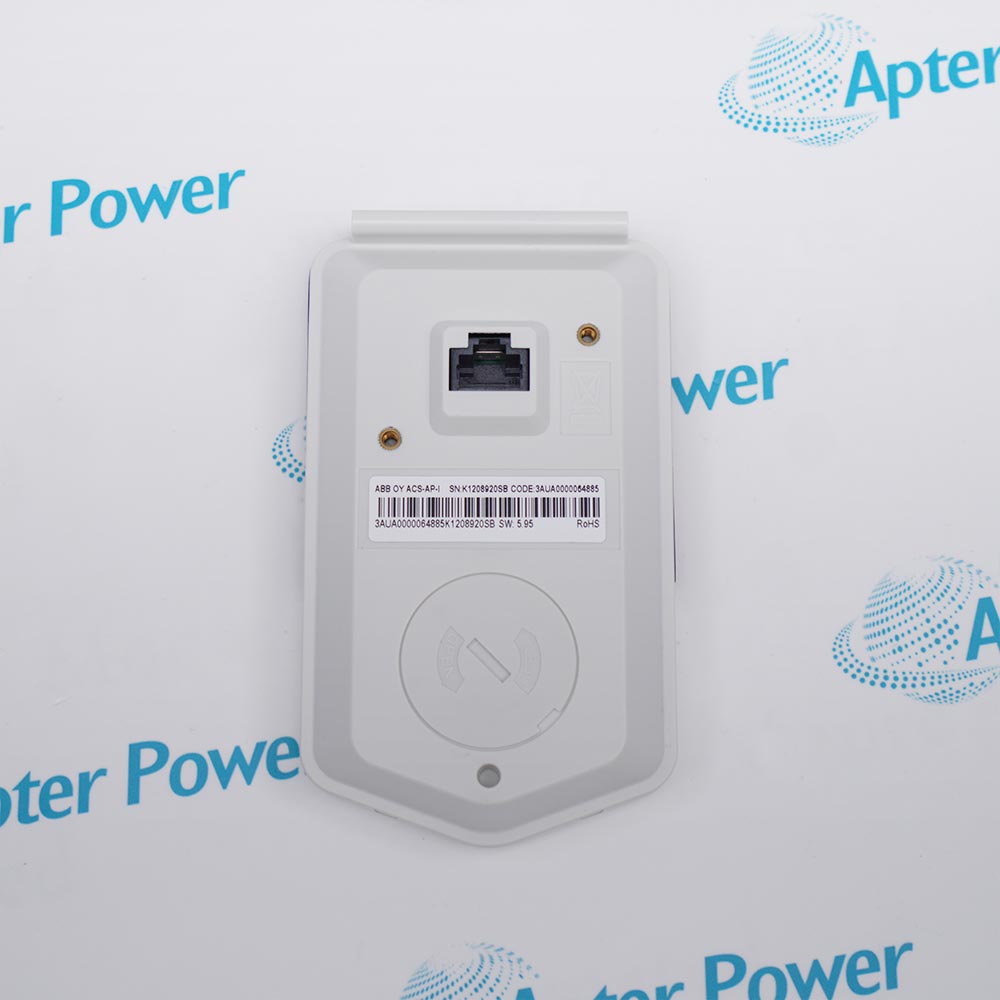

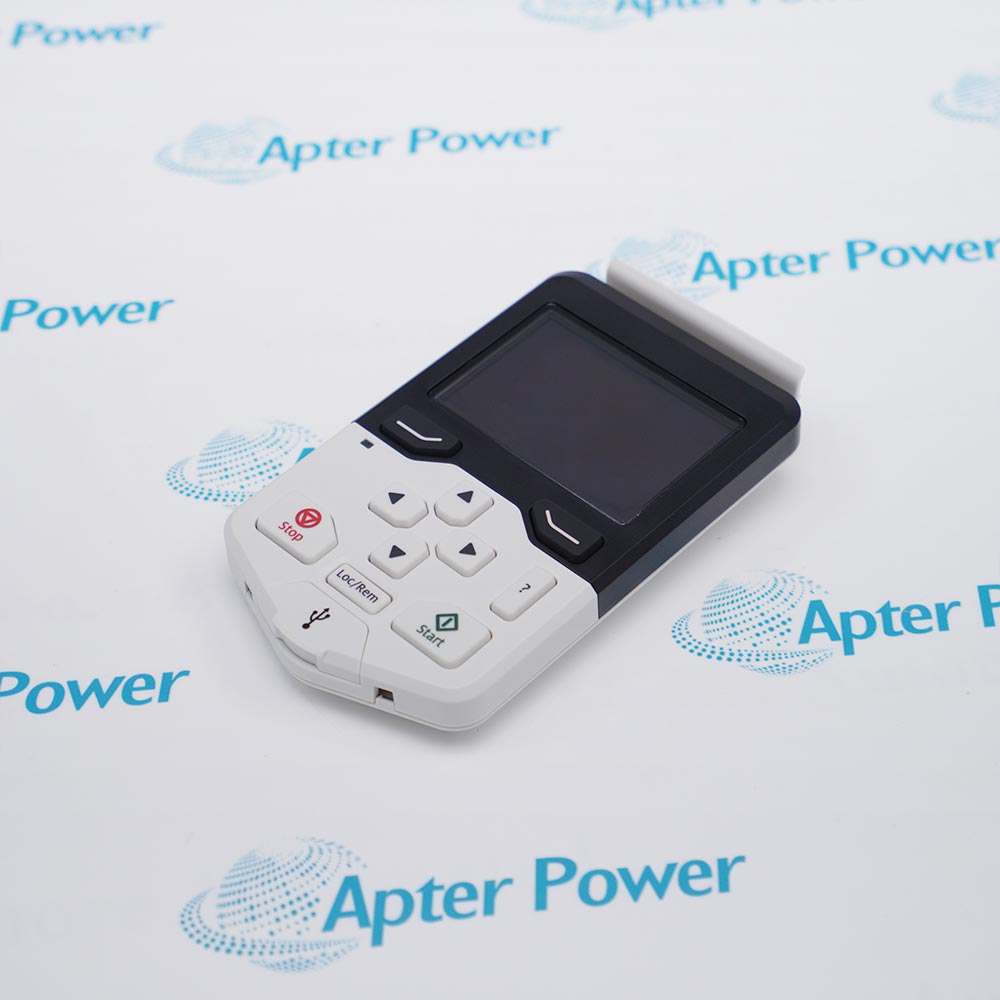

ABB ACS-AP-I is a multilingual assistant control panel for compatible ABB drives. Its graphical high-resolution interface supports local commissioning, parameter handling, drive operation and monitoring.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for ACS-AP-I
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ACS-AP-I

  • Manufacturer:
    ABB
  • Part Number:
    ACS-AP-I
  • Product Family:
    ABB Operator Panel
  • Product Type:
    Assistant Control Panel
  • Stock:
    1
  • Interface:
    Multilingual graphical control panel
  • Display:
    High-resolution graphical display
  • Supported hardware version:
    C or later
  • Supported software version:
    4.61 or later
  • Battery:
    Lithium coin battery CR2032
  • Battery capacity:
    220 mAh
  • Battery voltage:
    3 V
  • User interface:
    Intuitive keypad with menu-driven operation
  • Text and views:
    Customizable texts and monitoring view
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Configuration & Programming Interoperability Monitoring & Control

Features:

  • Graphical high-resolution interface for local drive operation.
  • Menu-driven functions support structured commissioning and parameter handling.
  • Customizable views present the monitoring values selected by the operator.
ABB ACS-AP-I is supplied as an assistant control-panel configuration for ABB drive user-interface applications.

The panel provides an operator interface for commissioning, drive operation and selected-value monitoring.

Confirm the drive family and panel revision requirements before ordering or installing a replacement panel.

Availability: ABB ACS-AP-I is listed by ABB as an assistant control panel for compatible drive families.
Verified resources for ABB ACS-AP-I: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Supports local commissioning and daily operation of compatible ABB drives through the assistant control-panel interface.
  • Provides on-site access to drive operating functions and selected monitoring values during service activities.
  • Suitable for installations where multilingual operator access is required for commissioning and maintenance work.
  • Menu-driven programming provides an organized route for drive setup and parameter handling.
  • Customizable texts and monitoring views allow the operator interface to match the required application data.
  • Panel details can be reviewed through Menu → System info → Control panel after the interface is powered.
  • ABB ACS-AP-I supports the compatible drive families listed by ABB for local commissioning and operation.
  • Supported compatibility includes ACS, ACQ, ACH, DCS and DCT drive families specified in ABB documentation.
  • Drive type, panel hardware revision and software version must be checked before installation or replacement.
  • The keypad gives operators direct access to local drive commands, status navigation and commonly used operating functions.
  • Monitoring views can be customized so the operator can prioritize application-relevant values during routine operation and service.
  • The graphical display organizes drive information through clear screens and menu navigation for easier local interpretation.
Description
ABB ACS-AP-I is a multilingual assistant control panel designed as a user-interface option for compatible ABB drives. Its graphical high-resolution display presents drive information through a clear and structured operating interface.

The panel supports menu-guided commissioning, parameter handling and customized monitoring views. Local-language operation helps service personnel manage drive setup and operation across international installations.

ABB ACS-AP-I should be selected after confirming the connected drive family and applicable panel revision requirements. The installation should also be checked against the relevant ABB assistant control panel manual before replacement or commissioning.
Alternative Names
ACS-AP-I ACS AP I ACSAPI ACS-AP-1 3AUA0000088311 ABB Assistant control panel ABB Drive Assistant Control Panel ACS-AP-I Assistant control panel
Technical notes
ABB ACS-AP-I must be checked against the connected drive family and the required panel hardware/software revision before replacement. Do not assume compatibility solely from the physical connector or panel appearance.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is ABB ACS-AP-I a complete frequency converter?
No. ABB ACS-AP-I is an assistant control panel and user-interface option, not a standalone drive.
Can ABB ACS-AP-I be used for local commissioning?
Yes. ABB describes the assistant control panels as interfaces for drive commissioning and operation.
Can ABB ACS-AP-I display customized monitoring information?
Yes. ABB specifies customizable texts and views for monitoring selected values.
Which ABB drives are listed as compatible with ABB ACS-AP-I?
ABB lists ACS180, ACS280, ACS380, ACS480, ACS580, ACS880, ACS580MV and ACS6080, plus ACQ580, ACH480, ACH580, DCS880 and DCT880.
Does ABB ACS-AP-I automatically replace every ABB drive panel?
No. Replacement suitability must be verified against the specific ABB drive and panel revision requirements.
What information should be included when requesting an ABB ACS-AP-I quotation?
Provide the complete model ACS-AP-I, Product ID 3AUA0000088311, required quantity, connected ABB drive family and any available hardware/software revision details.
