MV570 1TNA928300R0001

/ 4.9
1001 reviews | Need a Specific Revision?

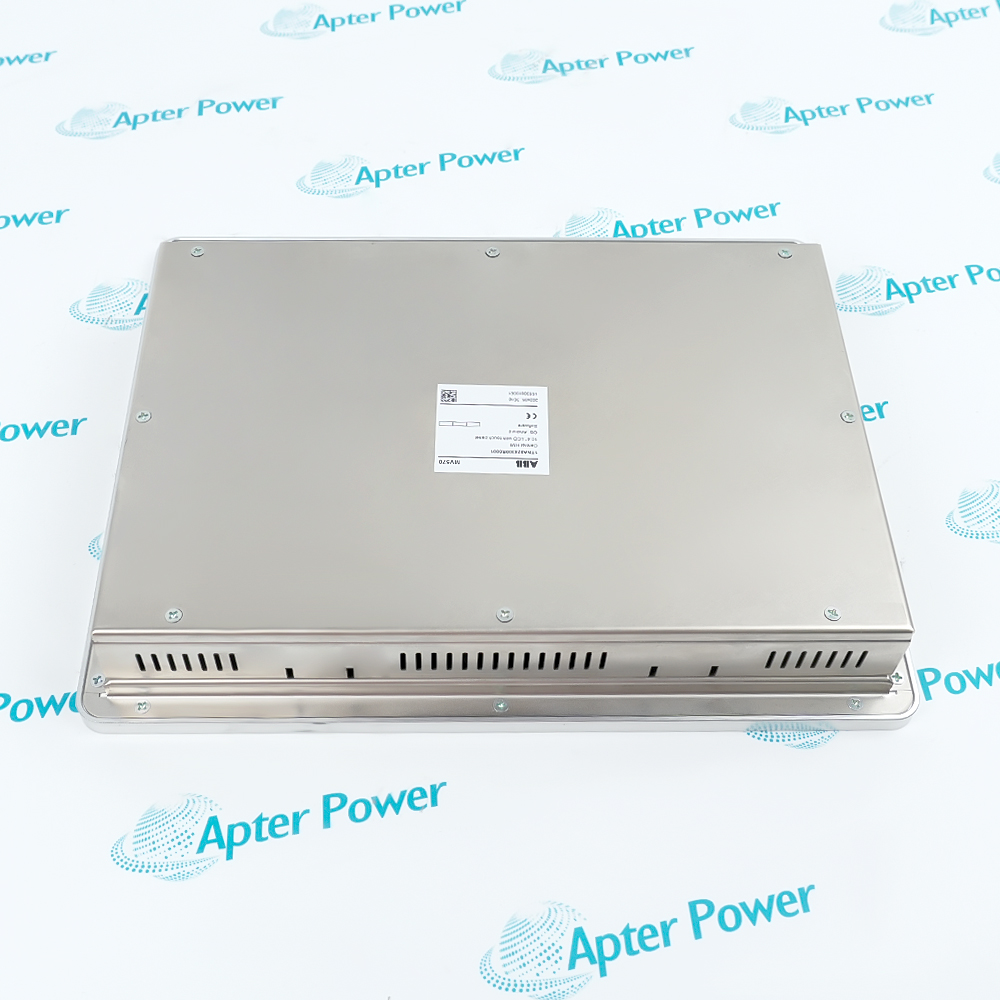

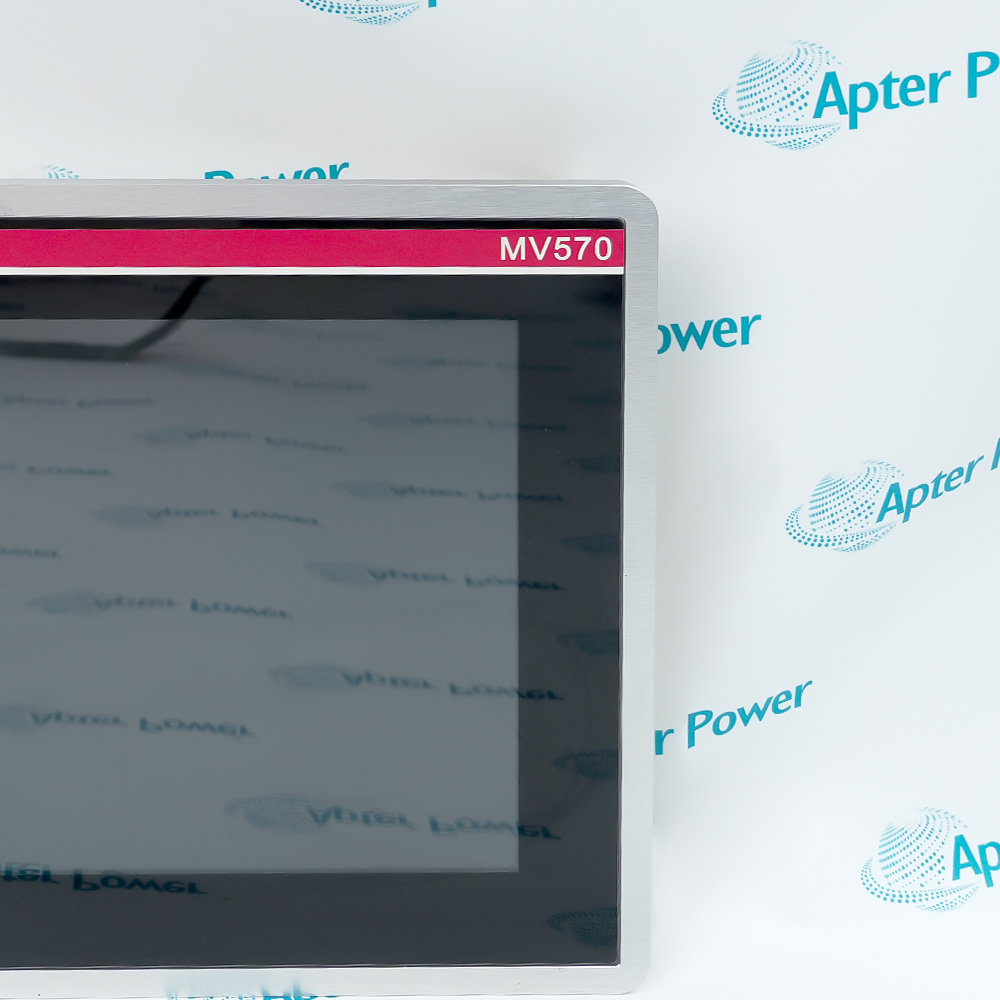

ABB MV570 1TNA928300R0001 is a 10.4-inch central HMI with touch panel, Android software, Ethernet/USB interfaces, and 24 VDC input.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for MV570 1TNA928300R0001
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MV570 1TNA928300R0001

  • Manufacturer:
    ABB
  • Part Number:
    MV570 1TNA928300R0001
  • Product Family:
    ABB Operator Panel
  • Product Type:
    Central HMI / human-machine interface
  • Stock:
    1
  • Display:
    10.4 in, 4:3 TFT/LED
  • Maximum resolution:
    800 x 600
  • Brightness:
    300 cd/m²
  • Contrast:
    800:1
  • Pixel pitch:
    0.264 x 0.264 mm
  • Viewing angles:
    70°/70°/60°/70°
  • LCD life:
    30,000 h
  • CPU:
    Freescale i.MX6 dual-core, 800 MHz
  • Memory:
    1 GB DDR3 SDRAM
  • Storage:
    4 GB eMMC NAND
  • Touch:
    capacitive, >10,000,000 operations
  • Ethernet:
    1 x 10/100/1000 Mbps PoE
  • USB:
    2 x USB 2.0 Host Type A
  • Supply:
    24 VDC
  • Typical power:
    8 W
  • Operating temperature:
    0…55 °C
  • Storage temperature:
    −20…60 °C
  • Humidity:
    5…90 %, non-condensing
  • Protection:
    IP65 front
  • Shock:
    ±15 g, 11 ms
  • Dimensions:
    28.5 x 23.2 x 4.8 cm
  • Weight:
    2.3 kg
  • Tariff Code:
    8537109090
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Display and touch Interfaces and power Panel integration Application
  • 10.4-inch 4:3 TFT/LED display with 800 × 600 resolution
  • Freescale i.MX6 dual-core 800 MHz processor with 1 GB DDR3 memory and 4 GB eMMC storage
  • One 10/100/1000 Mbps PoE Ethernet port, two USB 2.0 Host Type A ports, 24 VDC input, and 8 W typical power consumption

MV570 1TNA928300R0001 is an ABB Central HMI with a 10.4-inch capacitive touch display and Android operating software.

The documented display provides 800 × 600 resolution, 300 cd/m² brightness, and 800:1 contrast. The hardware uses an i.MX6 dual-core 800 MHz processor, 1 GB DDR3 memory, and 4 GB eMMC storage.

Install the HMI in the specified panel cutout, preserve the front gasket and IP65 seal, connect the documented 24 VDC supply, and verify the PoE Ethernet, USB, and installed SmiSView or MC510 project before commissioning.

Availability, condition, price, and shipping time for MV570 1TNA928300R0001 are confirmed during quotation.

ABB MV570 1TNA928300R0001 Central HMI Product Family, Service, Industry Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The 10.4-inch 4:3 TFT/LED display has a maximum resolution of 800 × 600 pixels.
  • Documented display performance is 300 cd/m² brightness, 800:1 contrast, and 0.264 × 0.264 mm pixel pitch.
  • The capacitive touch panel is rated for more than 10 million single-point operations; do not use sharp tools on the touch surface.
  • MV570 1TNA928300R0001 provides one 10/100/1000 Mbps Ethernet port with PoE support.
  • Two USB 2.0 Host Type A ports are provided for the documented peripheral functions.
  • The HMI uses a 24 VDC supply and has a documented typical power consumption of 8 W.
  • Operate MV570 1TNA928300R0001 within 0…55 °C and 5…90% relative humidity without condensation.
  • Use the specified panel cutout and tighten the mounting fasteners evenly so the front gasket seals against a flat mounting surface.
  • The front panel is rated IP65 only when installation and sealing follow the ABB instructions; isolate power and observe ESD precautions during service.
  • Central HMI visualization and operator access within ABB MNS Digital systems
  • SmiSView display of equipment status, alarms, measurements, and control functions
  • Local monitoring and supported configuration workflows for connected MC510 motor controllers
Description
ABB MV570 1TNA928300R0001 is identified by the ABB user manual as a Central HMI with a 10.4-inch LCD touch panel and Android software.

The documented hardware includes a 4:3 TFT/LED display, 800 × 600 maximum resolution, capacitive touch, one 10/100/1000 Mbps PoE Ethernet port, two USB 2.0 Host ports, and 24 VDC input.

For installation, preserve the complete product number and verify the panel drawing, front IP65 condition, network arrangement, power wiring, software context, operating temperature and cabinet clearance as one integrated HMI selection.
Alternative Names
MV570 1TNA928300R0001 MV570 1TNA928300R0001 ABB MV570 ABB MV570 1TNA928300R0001
Technical notes
MV570 1TNA928300R0001 should be matched by the complete product number, 24 VDC wiring, front IP65 condition, and intended ABB monitoring software before replacement; the drawing is not a substitute for a mounting check.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What power and protection checks are important before installing ABB MV570 1TNA928300R0001 in a panel?
Confirm the 24 VDC source, the expected 8 W typical consumption, correct polarity and earthing, the front IP65 sealing condition, and the cabinet protection for the rear of the unit.
How should a buyer verify that an HMI offered as ABB MV570 1TNA928300R0001 is the correct execution?
Match the complete product number on the label, not only MV570, and compare the Central HMI description, 10.4-inch touch panel, Android software and interface arrangement with the ABB manual.
Can ABB MV570 1TNA928300R0001 be connected to any Ethernet network without checking the system?
No. Confirm the intended PoE/non-PoE arrangement, network speed, addressing, isolation and the SmiSView or MC510 system configuration before commissioning.
What should be checked if the touch response of ABB MV570 1TNA928300R0001 is unreliable?
Inspect the capacitive touch surface, panel grounding, supply stability, USB/Ethernet interference, environmental temperature and the installed software image before replacing the HMI.
How can a buyer avoid receiving the wrong ABB MV570 1TNA928300R0001 variant when a supplier listing only says MV570?
Require a clear photograph of the complete nameplate and packaging, match the full 1TNA928300R0001 order reference, and compare the proposed unit with the installed SmiSView or MC510 project before purchase.
What should a technician check when ABB MV570 1TNA928300R0001 does not communicate after installation?
Check the intended network topology, PoE arrangement, addressing, cable path, grounding, USB or Ethernet interference, and the loaded SmiSView or MC510 configuration before replacing the HMI.
What commissioning evidence should be retained for ABB MV570 1TNA928300R0001?
Retain the product label, panel drawing, 24 VDC measurements, Ethernet/USB connection record, software context, touch test, display test and final cabinet clearance check.
