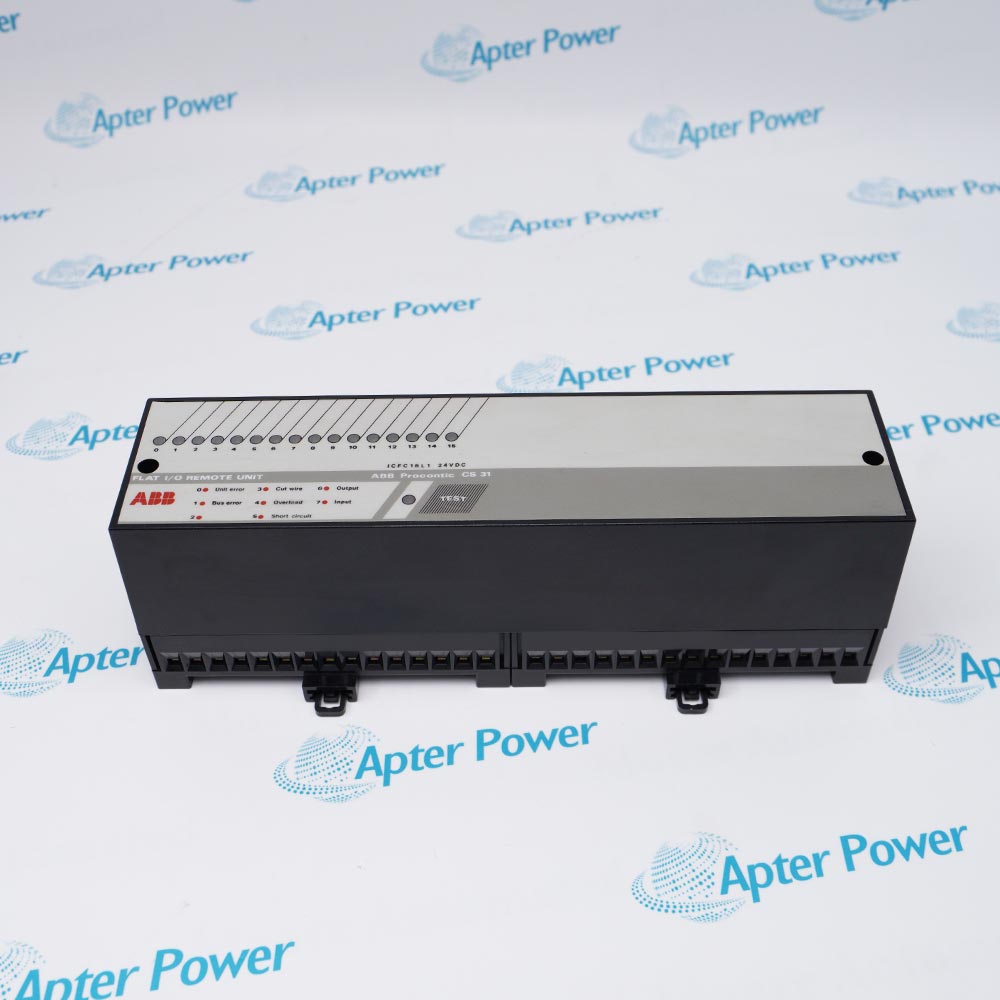

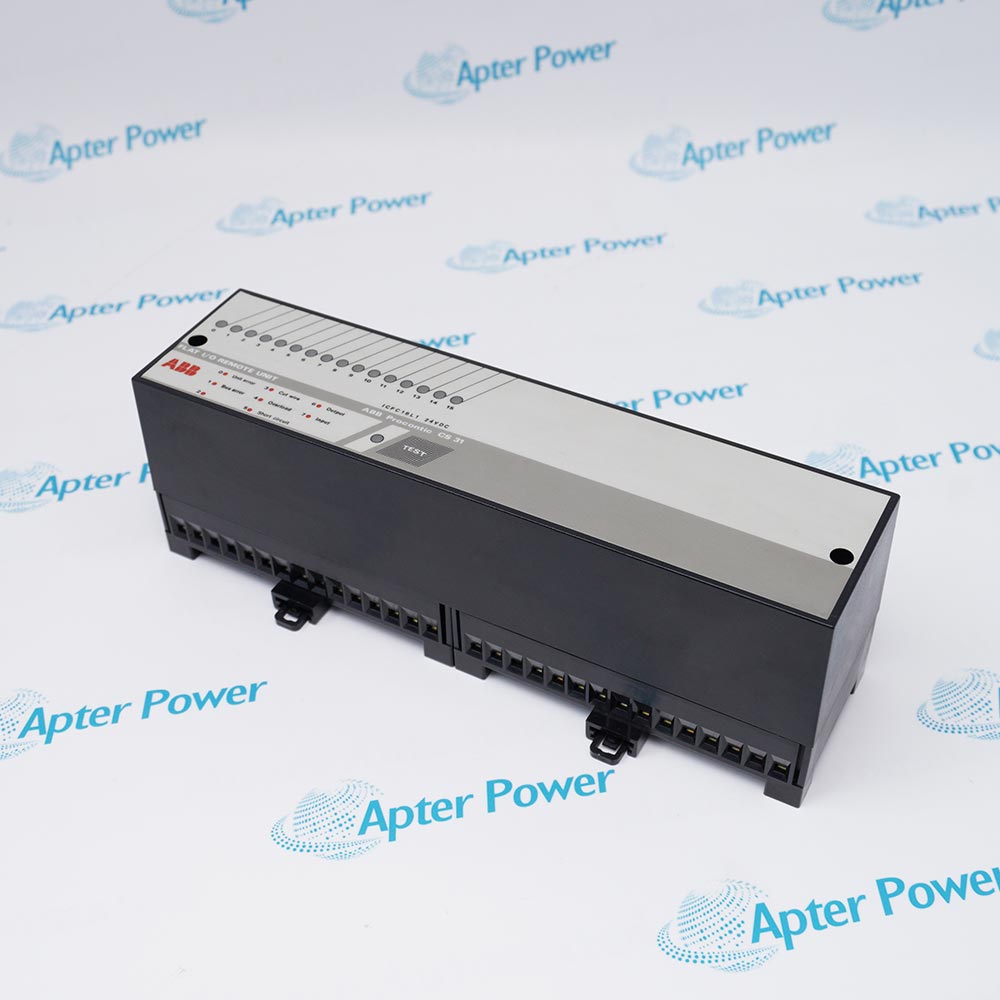

        CS31-ICFC16L1

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The CS31-ICFC16L1 is an ABB Procontic CS31 binary output module with 16 outputs, configurable via DIP switch, used as a slave on the CS31 system bus.
        Get a quick price for CS31-ICFC16L1
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for CS31-ICFC16L1

        • Manufacturer:
          ABB
        • Part Number:
          CS31-ICFC16L1
        • Product Family:
          ABB Procontic
        • Product Family:
          ABB Procontic CS31
        • Module Type:
          Binary output module (configurable)
        • Number of Outputs:
          16 (when switch No. 1 = ON)
        • System Bus:
          CS31 system bus (slave device)
        • Configuration:
          Via DIP switch (switch No. 1)
        • Alternative Mode:
          Binary module with 16 inputs + 16 outputs (when switch No. 1 = OFF)
        • Typical Application:
          Controlling solenoids, relays, indicator lights, Festo valve islands (up to 8 valves)
        • Compatible Systems:
          Procontic CS31 decentralized automation system
        • Pain Point Solved:
          Solves the need for a flexible, configurable binary output module in a decentralized I/O system – allowing the same hardware to serve as either 16 outputs or 16 inputs/16 outputs via a simple DIP switch, reducing spare part inventory and simplifying field device control in legacy ABB Procontic CS31 installations.
        • Weight:
          0.18 kg
        • Estimated shipping dimensions:
          12.2x7.5x3.2cm
        • Tariff Code:
          8517795000
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Certifications and Standards Compatibility

        Features:

        • DIP switch selects between 16 binary outputs (ON) or 16 inputs + 16 outputs (OFF); one hardware for two applications.
        • Designed for ABB Procontic CS31 decentralized automation system; communicates with master controller over CS31 bus.
        • Controls up to 8 Festo valves directly; part of ABB's integrated valve control solution for pneumatic systems.
        The CS31‑ICFC16L1 offers exceptional flexibility through a single DIP switch. When switch No. 1 is set to ON, the module functions as a 16‑channel binary output module, ideal for controlling solenoids, relays, and indicator lights. When set to OFF, the same hardware transforms into a mixed I/O module with 16 inputs and 16 outputs. This dual‑mode capability is invaluable for engineers maintaining legacy Procontic CS31 systems. Instead of stocking two separate spare parts (a dedicated output module and a mixed I/O module), a single CS31‑ICFC16L1 can serve both roles. This reduces inventory costs and simplifies field replacements. However, careful attention must be paid to the switch setting before commissioning – an incorrect setting will cause I/O addressing mismatches.

        The CS31‑ICFC16L1 is designed to operate as a slave on ABB's Procontic CS31 system bus. This bus enables decentralized automation, where I/O modules can be placed close to field devices (e.g., valves, sensors, actuators) rather than in a central control cabinet. The CS31 bus reduces wiring costs significantly – instead of running hundreds of individual wires back to a central PLC, a single bus cable connects multiple slaves. The CS31‑ICFC16L1 communicates with a CS31 master controller (e.g., Procontic 07 KR 91 or 07 KT 92) over this bus.

        The CS31‑ICFC16L1 is specifically noted in the documentation as compatible with Festo valve islands – a common pneumatic control system in factory automation. With DIP switch No. 1 set to ON, the module can control up to 8 Festo valves directly. This makes the CS31‑ICFC16L1 ideal for applications such as pick‑and‑place robots, packaging machines, or assembly lines where pneumatic actuators are prevalent. The module outputs are binary signals that drive valve solenoids, enabling precise control of cylinder extension/retraction. For larger pneumatic systems requiring more than 8 valves, the documentation indicates that a different configuration (e.g., Festo installation island with more than 6 valves) is needed – typically using other CS31 modules or direct Festo interfaces.

        The CS31-ICFC16L1 ABB Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

        ABB CS31-ICFC16L1 Output Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        ABB CS31-ICFC16L1 Output Module Specs

        General

        • Manufacturer ABB
        • Model CS31-ICFC16L1
        • Condition New Original ready stock
        • Product Family ICSO 08 R1,ICSO 08 Y1,ICSC 08 L1
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Distributed Automation: Installing I/O units close to sensors and actuators can reduce wiring costs by up to 80%.
        • Process Monitoring: Suitable for production lines, machine control, and energy management applications requiring 24V DC digital signal processing.
        • Modular System Expansion: Supports adding or replacing units while the system is running, suitable for factory facilities that require frequent upgrades and expansions.
        • IEC 1131-2: Design conforms to industrial programmable controller hardware standards.
        • Overvoltage Class II: Complies with DIN VDE 0110 Part 2, suitable for general industrial power supply environments.
        • Pollution Class 2: Complies with DIN VDE 0110 Part 1; for heavily polluted environments, installation in a specific protective enclosure is required.
        • System Compatibility: Fully supports the Procontic CS31 bus and can be used with central processing units (CPUs) such as 07 KR 31 and 07 KT 92.
        • Backward Compatibility and Replacement: It is a standard component in older 30 and 90 series systems and is commonly used for maintaining or replacing earlier versions (such as ICMK-CS31 modules).
        • Communication Interoperability: Communicates via RS-485 twisted-pair cable; a single CS31 bus network can connect up to 31 remote units.
        Description
        The CS31-ICFC16L1 is a binary output module for ABB's Procontic CS31 decentralized automation system. It provides 16 digital outputs and operates as a slave on the CS31 system bus. The module's function is configurable via DIP switch: when switch No. 1 is set to ON, it acts as a binary output module with 16 outputs. It is part of the ICFC series.

        When using the CS31-ICFC16L1, engineers can connect up to 16 field devices such as solenoids, relays, or indicator lights. The module is compatible with Festo valve islands – it can control up to 8 valves when switch No. 1 is ON. For larger configurations, Festo valve islands with more than 8 valves require a different module configuration.

        The CS31-ICFC16L1 also appears in other configurations. When switch No. 1 is set to OFF, the same module type (ICFC 16 L1) functions as a binary module with 16 inputs and 16 outputs. This dual‑functionality makes the CS31-ICFC16L1 versatile for different I/O requirements. It is listed among module examples for slaves connected to the CS31 system bus.

        For legacy ABB Procontic CS31 systems, the CS31-ICFC16L1 remains a critical spare part. It is grouped with other binary modules such as ICSI (inputs), ICSO (outputs), and ICSC (combined). The module is part of ABB's intelligent decentralized automation architecture, enabling distributed I/O without a central rack. Always verify switch settings before commissioning.
        Alternative Names
        ICSO 08 R1 ICSO 08 Y1 ICSC 08 L1 ICSK 20 F1
        Technical notes
        The CS31‑ICFC16L1 uses DIP switch No. 1 to select its operating mode: ON = 16 binary outputs; OFF = 16 inputs + 16 outputs. Always verify switch position before commissioning – incorrect setting will cause I/O mismatch.This module is part of ABB's Procontic CS31 decentralized automation system.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How do I configure the CS31‑ICFC16L1 as a 16‑output module?
        Set DIP switch No. 1 to ON. In this mode, the CS31‑ICFC16L1 provides 16 binary outputs for controlling solenoids, relays, or Festo valve islands (up to 8 valves). Always power off the system before changing switch settings.
        Can the CS31‑ICFC16L1 be used for inputs as well?
        Yes. When DIP switch No. 1 is set to OFF, the CS31‑ICFC16L1 functions as a binary module with 16 inputs and 16 outputs. This dual‑mode design reduces spare part inventory and increases flexibility in legacy Procontic CS31 systems.
        How many Festo valves can the CS31‑ICFC16L1 control?
        With switch No. 1 set to ON, the CS31‑ICFC16L1 controls up to 8 Festo valves. For valve islands with more than 8 valves, use a different module configuration (e.g., Festo installation island with more than 6 valves requires other modules).
        Which automation system uses the CS31‑ICFC16L1?
        The CS31‑ICFC16L1 is designed for ABB Procontic CS31, an intelligent decentralized automation system. It operates as a slave on the CS31 system bus, communicating with a master controller. It is compatible with other CS31 modules like ICSI, ICSO, and ICSC series.
