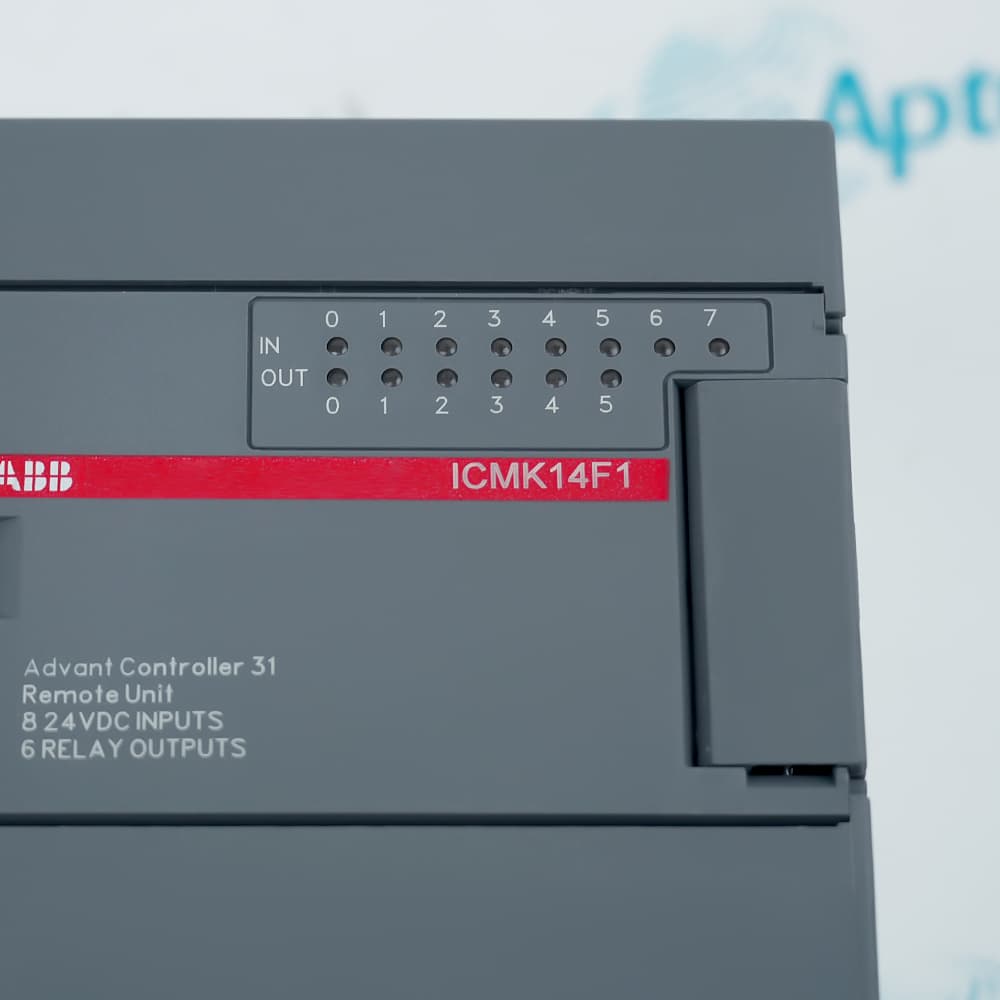

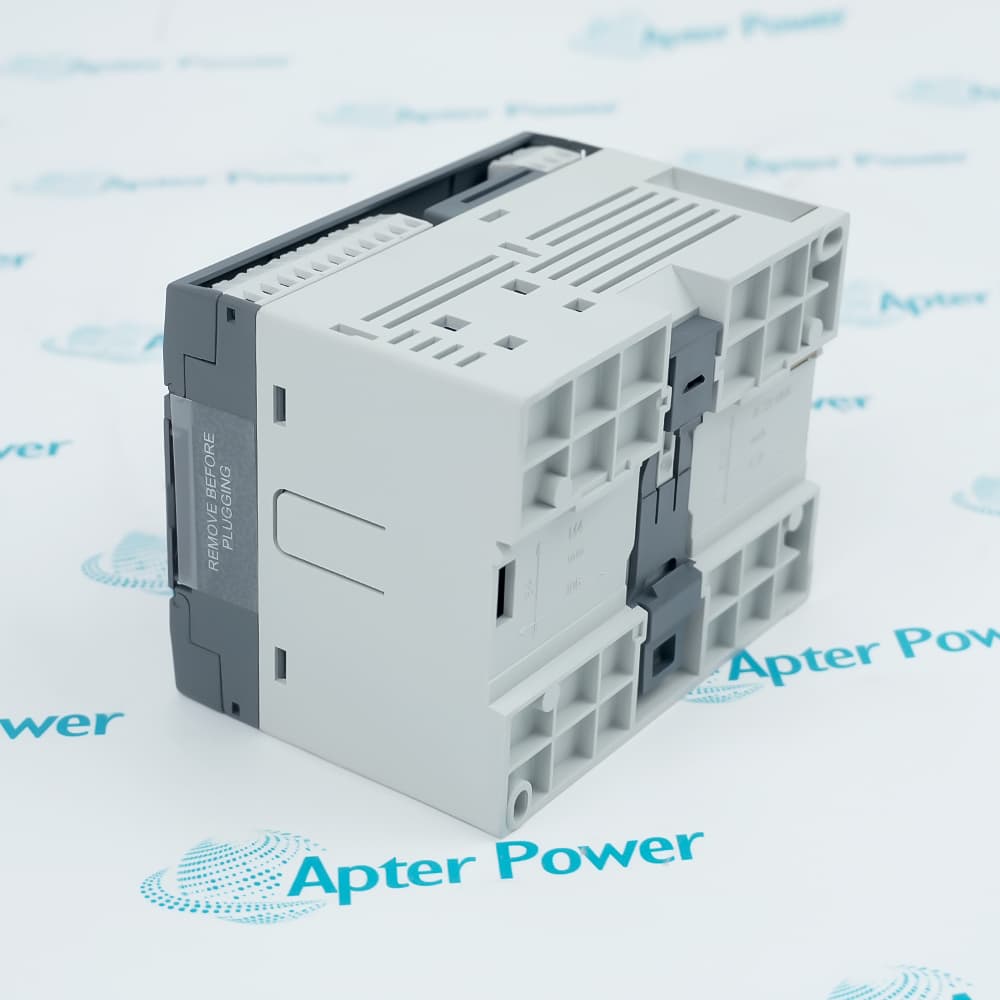

ABB ICMK14F1 1SBP260050R1001 is a 24 VDC AC31 central extensible remote unit with CS31 bus connectivity, eight isolated inputs and six relay outputs.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for ICMK14F1 1SBP260050R1001
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ICMK14F1 1SBP260050R1001

  • Manufacturer:
    ABB
  • Part Number:
    ICMK14F1 1SBP260050R1001
  • Product Family:
    ABB Procontic
  • Product Type:
    24 VDC Central Extensible Remote Unit
  • Stock:
    1
  • Supply Range:
    19.2 to 30 VDC
  • Current Consumption:
    80 mA typical; 400 mA maximum configuration
  • Power Dissipation:
    5 W
  • Digital Inputs:
    8 isolated 24 VDC; PNP and NPN
  • Input Isolation:
    1500 VAC test voltage
  • Input Filtering:
    5 ms minimum
  • Relay Outputs:
    6 outputs; 250 VAC / 2 A
  • Relay Commons:
    Two groups: 2 outputs and 4 outputs
  • Weight:
    0.88 lbs (0.4 kg)
  • Estimated shipping dimensions:
    12x8.5x9.3cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals I/O Channels CS31 Bus Power & Protection Installation

Features:

  • Eight isolated 24 VDC inputs accepting PNP and NPN signals.
  • Six 250 VAC relay outputs arranged across two common groups.
  • CS31 remote-unit architecture with local extension capability.
ICMK14F1 1SBP260050R1001 brings field inputs, relay switching and the CS31 network interface into one AC31 remote station.

The input electronics filter transitions for at least 5 ms and isolate the field channels from the unit electronics through the specified test barrier.

Its relay section switches externally powered loads; protective devices remain part of the field circuit rather than the relay module itself.

The ABB ICMK14F1 1SBP260050R1001 Central Extensible Remote Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB ICMK14F1 1SBP260050R1001 Central Extensible Remote Unit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

How the field points are divided

  • Input Side: Eight isolated 24 VDC channels evaluate PNP or NPN field signals.
  • Transition Handling: The 5 ms minimum filter separates normal input states from short changes.
  • Output Side: Six relay contacts switch externally powered loads at up to 250 VAC and 2 A.
  • Common Groups: The relays are divided into one two-output group and one four-output group.

Remote-station and local-extension path

  • Controller Context: The remote unit is specified for AC31 Series 50 and Series 90 basic units.
  • Network Link: CS31 carries the remote I/O relationship back to the basic unit.
  • Local Expansion: Central extension modules attach through the extensible-unit interface.
  • Station Role: Integrated inputs and relay outputs remain available at the decentralized location.

Supply demand and field-protection boundary

  • Supply Window: The unit operates from 19.2 to 30 VDC with reverse-polarity protection.
  • Load Change: Typical demand rises from about 80 mA alone to 400 mA at maximum configuration.
  • Module Heat: Dissipation is specified at 5 W.
  • External Devices: Relay circuits require field-side short-circuit, overload and inductive-surge protection.

Cable-length and isolation limits

  • Input Runs: Limits are 300 m unshielded and 500 m shielded.
  • Output Runs: Limits are 150 m unshielded and 500 m shielded.
  • Isolation Boundary: Input channels are tested at 1500 VAC against the electronics.
  • Cabinet Wiring: Field conductors and protection must follow the documented AC31 installation rules.
Description
ABB ICMK14F1 1SBP260050R1001 is a 24 VDC central extensible remote unit for Advant Controller 31 basic units in the Series 50 and 90 ranges. Its CS31 system-bus connection combines decentralized digital I/O with the ability to attach local extensions.

Across its input section, ICMK14F1 1SBP260050R1001 accepts eight isolated 24 VDC channels and supports both PNP and NPN input types. The 1500 VAC isolation test separates the inputs from the electronics, while a 5 ms minimum filter limits short input transitions.

On the output side, ICMK14F1 1SBP260050R1001 provides six relay channels rated at 250 VAC and 2 A. The contacts are divided between two common groups, and the connected load circuits require external protection against short circuit, overload and inductive switching surges.

For supply and network integration, ICMK14F1 1SBP260050R1001 operates from 19.2 to 30 VDC, draws about 80 mA as a unit and up to 400 mA in the maximum configuration, and dissipates 5 W. Input and output cable limits depend on shielding, with longer runs permitted for shielded wiring.
Alternative Names
ICMK14F1-1SBP260050R1001 ICMK 14 F1 1SBP260050R1001 1SBP260050R1001 ABB 1SBP260050R1001 ABB ICMK14F1 ABB ICMK 14 F1 ICMK14F1 24VDC ICMK14FI 1SBP260050R1001
Technical notes
ABB ICMK14F1 1SBP260050R1001 requires a 19.2–30 VDC supply. Provide external short-circuit, overload and inductive-load surge protection around its relay circuits.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can mixed PNP and NPN devices be evaluated for ICMK14F1 1SBP260050R1001 inputs?
ICMK14F1 1SBP260050R1001 supports PNP and NPN input types, but each field circuit still has to follow the documented 24 VDC thresholds and common wiring.
What external protection is needed around ICMK14F1 1SBP260050R1001 relay loads?
Load circuits switched by ICMK14F1 1SBP260050R1001 require external short-circuit and overload protection, plus surge suppression for inductive loads.
How are the relay commons arranged on ICMK14F1 1SBP260050R1001?
The six outputs of ICMK14F1 1SBP260050R1001 are split into two common groups, one serving two relays and the other serving four.
Which supply range should be verified before energizing ICMK14F1 1SBP260050R1001?
Confirm 19.2 to 30 VDC at ICMK14F1 1SBP260050R1001 and allow for current rising from about 80 mA alone to 400 mA at maximum configuration.
When does shielding change the permitted field-cable length for ICMK14F1 1SBP260050R1001?
For ICMK14F1 1SBP260050R1001, the documented limit is 300 m for unshielded input or output cables and 500 m for shielded cables.
How should ICMK14F1 1SBP260050R1001 be matched to an AC31 controller?
Use ICMK14F1 1SBP260050R1001 with the specified Series 50 or 90 basic-unit context and preserve the CS31 bus connection and local-extension arrangement.
