    Avoid costly system rip-and-replace conversions and sustain your legacy Procontic automation network by sourcing fully verified, obsolete ABB hardware directly from Apter Power.

ICSM06A6 FPR3350601R1062

/ 4.9
1001 reviews | Need a Specific Revision?

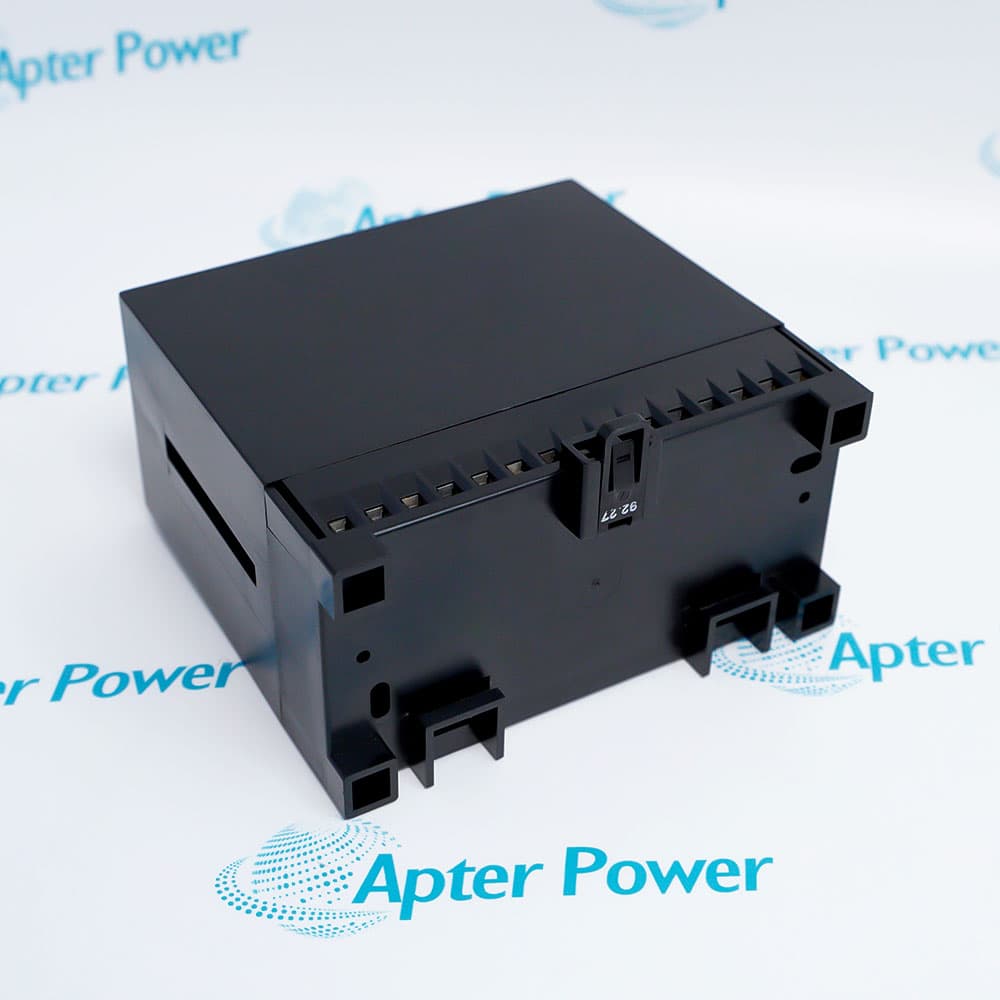

ABB ICSM06A6 FPR3350601R1062 is an analog I/O remote unit for the CS31 distributed I/O system, providing four analog inputs and two configurable analog outputs for reliable acquisition and transmission of analog process signals.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for ICSM06A6 FPR3350601R1062
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ICSM06A6 FPR3350601R1062

  • Manufacturer:
    ABB
  • Part Number:
    ICSM06A6 FPR3350601R1062
  • Product Family:
    ABB Procontic
  • Product Type:
    Analog I/O Remote Unit
  • Stock:
    2
  • Power supply:
    24 VDC
  • Number of inputs per unit:
    4
  • Power supply isolation:
    no
  • Inputs opto-isolated:
    no
  • Power supply output 10 VDC (± 1 %):
    50 mA
  • Number of outputs per unit:
    2
  • Outputs electrically isolated:
    no
  • Maximum power consumption:
    0.2 A
  • Maximum power dissipation:
    4.8 W
  • Input Voltage:
    0…10 V, 0…5 V
  • Input Current:
    0…20 mA, 4…20 mA
  • Output Voltage:
    – 10 V
  • Output Current:
    0…20 mA, 4…20 mA
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    12.2x9.2x6.3cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Diagnostics Safety

Features:

  • Supports four analog input channels with voltage and current signal ranges for flexible field device integration.
  • Provides two configurable analog output channels selectable for voltage or current operation through ECZ wiring and software configuration.
  • Offers multiple error acknowledgement methods, including a local test button, CS31QU programming block, and MAIL terminal command for convenient diagnostics.
ABB ICSM06A6 FPR3350601R1062 expands distributed automation systems by providing reliable analog signal acquisition and output functions within the CS31 architecture. It enables controllers to communicate efficiently with field instruments installed across industrial facilities. The compact design helps simplify distributed control installations while maintaining dependable signal processing.

The module accepts several standard industrial analog signal formats, allowing engineers to connect transmitters, sensors, and actuators without additional conversion hardware. Four input channels collect process measurements, while two configurable output channels transmit control signals to field equipment. The selectable voltage and current outputs increase installation flexibility for different application requirements.

ABB ICSM06A6 FPR3350601R1062 also simplifies commissioning and maintenance through flexible configuration and diagnostic capabilities. Output ranges can be configured with a TCZ handheld programming unit or CS31 configuration functions, while fault acknowledgements are available locally or remotely. These features support efficient troubleshooting and help maintain stable operation throughout the automation system.

The ICSM06A6 FPR3350601R1062 ABB Analog I/O Remote Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB ICSM06A6 FPR3350601R1062 Analog I/O Remote Unit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB ICSM06A6 FPR3350601R1062 Analog I/O Remote Unit Specs

General

  • Manufacturer ABB
  • Model ICSM06A6 FPR3350601R1062
  • Condition New Original ready stock
  • Product Family ICSA08B5,ICSE08B5,ICSE08A6
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Metallurgical Production Line: Remote acquisition of on-site temperature and pressure signals.
  • Water Treatment System: Remote adjustment of valve opening and liquid level monitoring.
  • Old Plant System Maintenance: Replacement of aging CS31 communication network nodes on-site.
  • Port Cranes: Multi-point distributed analog control is performed in conjunction with the drive system.
  • Communication Indicators: Real-time diagnostics using CS31 bus status LEDs.
  • Power Monitoring: 24V DC input power status indicator.
  • Channel Abnormalities: Analog input/output overload and short circuit diagnostics.
  • Error Alarms: Hardware fault and configuration loss red light diagnostics.
  • Electrical Isolation: Opto-isolation between communication network and internal logic.
  • Environment Protection: IP20 industrial standard protection against electric shock.
  • Reverse Connection Protection: 24V power supply terminal has reverse connection protection design.
  • Environmental Immunity: Meets three-proof coating requirements and electromagnetic interference immunity.
Description
ABB ICSM06A6 FPR3350601R1062 serves as an analog I/O remote unit that extends the analog signal processing capability of a CS31 automation system. The module provides four analog input channels and two analog output channels, allowing field devices to communicate accurately with the central controller. It operates from a 24 VDC power supply with a maximum power consumption of 0.2 A and a maximum power dissipation of 4.8 W.

The analog inputs support multiple signal ranges, including 0...10 V, 0...5 V, 0...20 mA, and 4...20 mA, making ABB ICSM06A6 FPR3350601R1062 suitable for connecting a wide variety of transmitters and process instruments. The integrated 10 VDC (±1%) power supply delivers up to 50 mA for external devices. Neither the power supply nor the I/O channels are electrically isolated, providing a compact and straightforward solution for compatible industrial control systems.

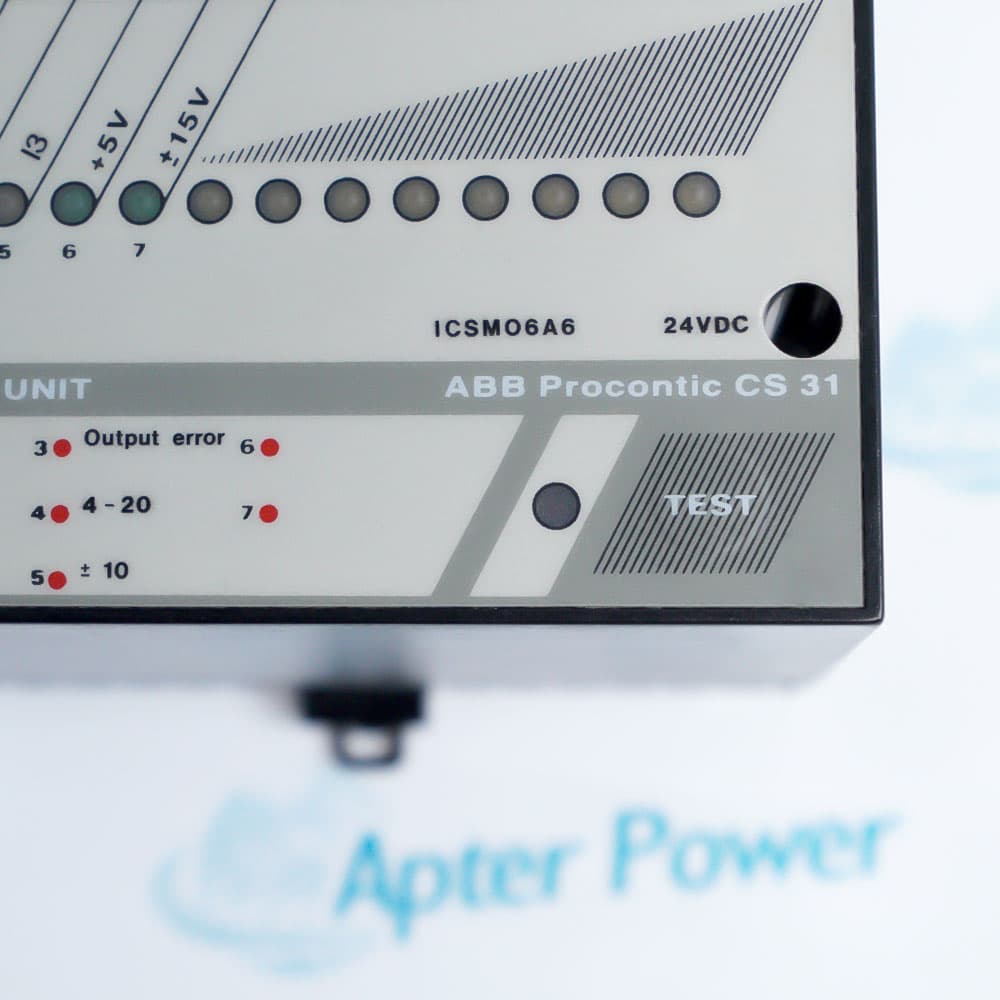

The two analog output channels of ABB ICSM06A6 FPR3350601R1062 can operate with 0...10 V, 0...20 mA, or 4...20 mA signals. Current or voltage output selection is enabled by the wiring on the ECZ plug-in base, while the desired current range is configured using the handheld programming unit (TCZ) or the CS31 configuration functions. The factory default output setting is 0...20 mA. Error flags in the remote unit can be acknowledged by pressing the test button, through the CS31QU block in the central unit user program, or by using the MAIL command in terminal mode, providing flexible maintenance and diagnostic options.
Alternative Names
ICSMO6A6 FPR335O6O1R1O62 ICSM06A6 FPR335060IRI062 ICSA08B5 ICSE08B5 ICSE08A6 ICDG32L1 ICSF08D1 ICSC16L1
Technical notes
Engineered for distributed automation architectures, the ABB ICSM06A6 FPR3350601R1062 functions as a critical remote station operating on a standard 24V DC power supply. It allows plant engineers to cost-effectively scale up their automated infrastructure without running extensive parallel field wiring to the central PLC rack. Each certified unit is verified to restore full communications across obsolete CS31 fieldbus systems seamlessly.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can output signal types be selected on ABB ICSM06A6 FPR3350601R1062?
Current or voltage output selection is determined by the wiring on the ECZ plug-in base, while current ranges are configured with the TCZ handheld programming unit or CS31 configuration functions.
Can ABB ICSM06A6 FPR3350601R1062 supply power to external devices?
Yes. The module provides a 10 VDC (±1%) auxiliary output capable of supplying up to 50 mA.
Does ABB ICSM06A6 FPR3350601R1062 include isolated input and output channels?
No. The power supply, input channels, and output channels are not electrically isolated.
How are fault indications acknowledged on ABB ICSM06A6 FPR3350601R1062?
Error flags can be acknowledged by pressing the test button, through the CS31QU block in the central unit program, or by using the MAIL command in terminal mode.
