Features:
- Interface Between the Universal AC Power Source and ABB Control System Backplane
- Integrates Capability of System Configuration Management with Redundant Parameter Backup Support
- Functions in Conjunction with the ABB AC500 Series and Standard ABB Automation Monitors

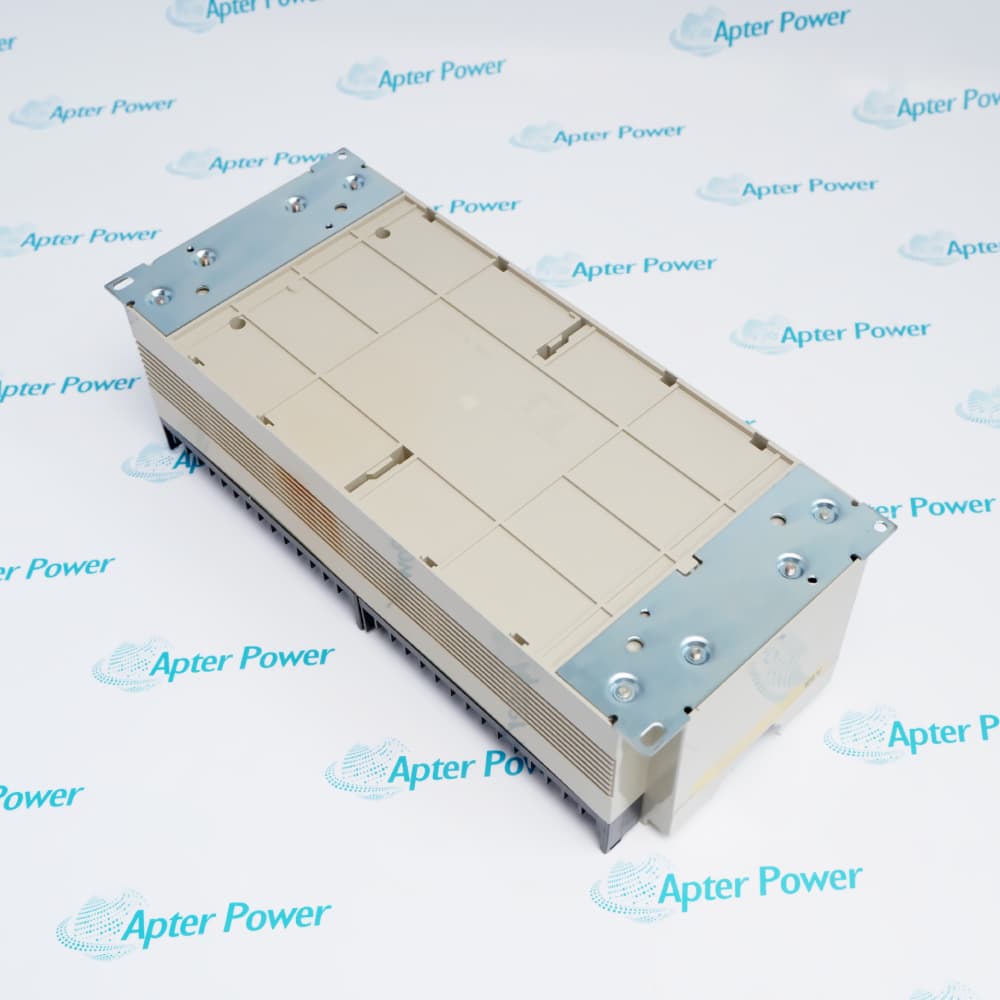

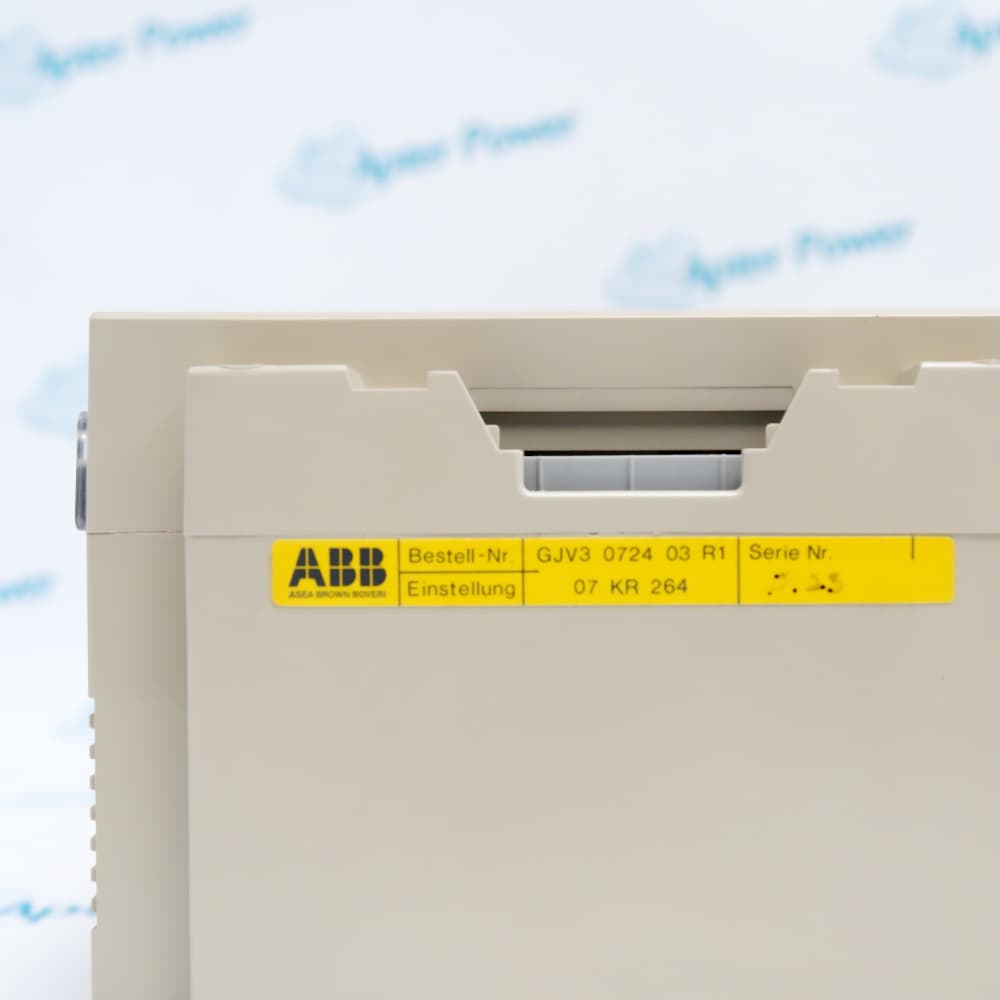

The ABB GJV3072403R1 operates as the Basic Configuration Unit in an ABB control rack, providing reliable configuration parameters to all modules within the system. It continuously manages and distributes essential system settings through the rack backplane to support steady state operation of all monitors and modules. Seamless configuration transfer is standard with the GJV3072403R1, however using an optional Redundant Configuration Backup will allow seamless switchover to backup parameters in the event of a primary configuration failure.
The GJV3072403R1 provides essential configuration functions common to the entire rack, and is a critical component of the control path, directly affecting the proper, normal operation of the overall monitor system. One or two GJV3072403R1 configuration units are required per rack depending on the desired redundancy level. The GJV3072403R1 occupies only a single half-height slot in the rack and is always located in Slot 0 (far left position, the dedicated configuration unit slots).
For Dual Redundant Configuration applications, the ABB System requires a second GJV3072403R1 configuration unit module installed in the redundant slot. In addition to standard single unit operation, the redundant configuration also performs automatic switchover. The ABB dual configuration system executes failover using the internal circuitry specified in the configuration unit options.
The GJV3072403R1 ABB Basic Configuration Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB GJV3072403R1 Basic Configuration Unit Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB GJV3072403R1 Basic Configuration Unit Specs
General
- Manufacturer ABB
- Model GJV3072403R1
- Condition New Original ready stock
- Product Family GJV3074353R1,GJV3072414R1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Legacy Machinery Control: Drives small-to-medium factory machines with up to 64 inputs/outputs.
- Factory Process Automation: Manages material conveyor belts, small pumping mechanisms, and packaging stations.
- System Migration Support: Serves as a hot-swap replacement part to avoid full modernization costs.
- Power Control Panels: Handles basic logic instructions for older switchgear and motor control setups.
- Serial Interface: Features an integrated RS-232C port for logic updates and local panel connections.
- Network Integration: Incorporates standard legacy Ethernet architecture to pass machine diagnostics to supervisory tools.
- Signal Management: Processes inputs and outputs directly to act as a bridge for field actuators.
- Memory Architecture: Runs on a 128 kB program memory and 64 kB data memory structure.
- Electrical Safety: Designed as a 220 V module for enclosed cabinet mounting to prevent shocks.
- Industrial Hardening: Built with a vibration-resistant, compact housing to withstand harsh factory dust and interference.
- Fault Interruption Protection: Integrates with system backplanes to trigger emergency stops during voltage drops.
