07 SK 90 R1

/ 4.9
1001 reviews | Need a Specific Revision?

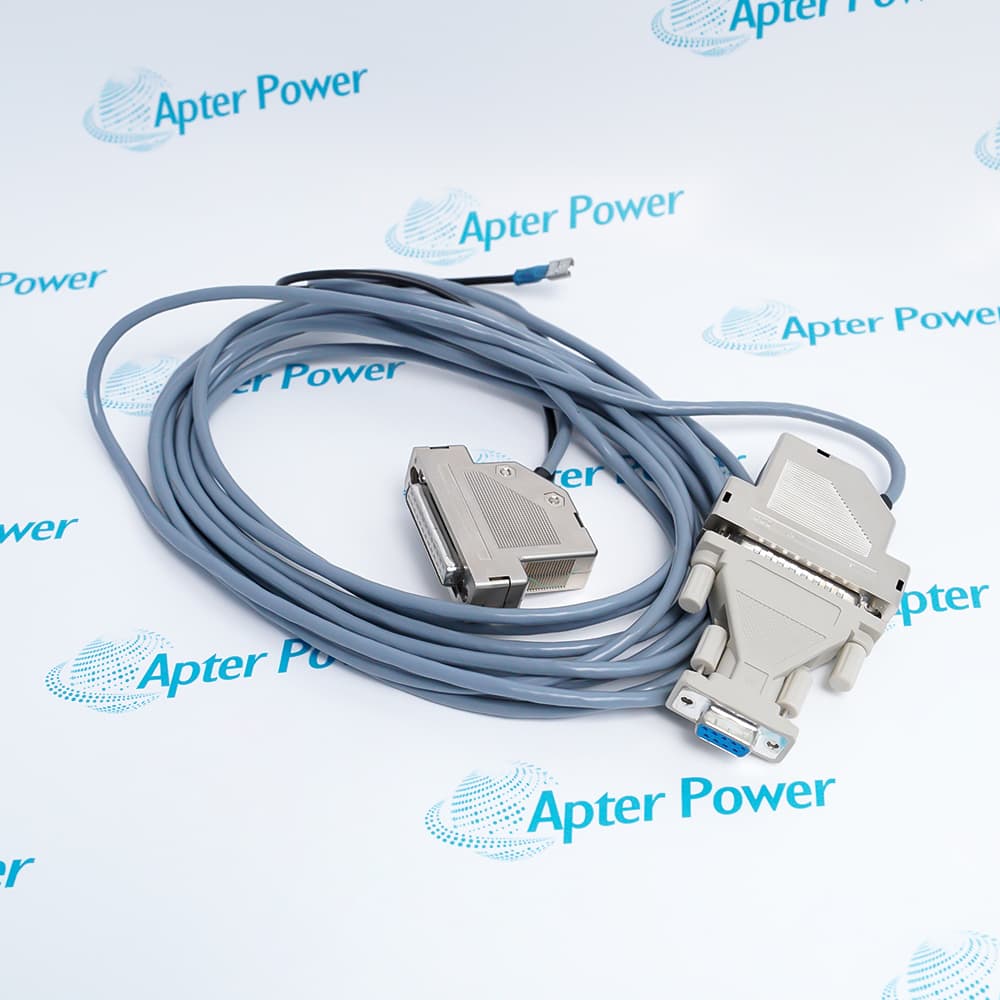

07 SK 90 R1 is an ABB Procontic interface cable for connecting peripheral units to documented 9 pole serial interfaces on compatible basic units.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 07 SK 90 R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 07 SK 90 R1

  • Manufacturer:
    ABB
  • Part Number:
    07 SK 90 R1
  • Product Family:
    ABB Procontic
  • Product Type:
    Procontic Serial Interface Cable
  • Stock:
    1
  • Function:
    Interface cable for peripheral connection to documented 9 pole serial interfaces
  • Official order number:
    GJR5 2502 00 R0001
  • Compatible basic units:
    07 KR 91, 07 KT 92, 07 KT 93, 07 KT 93-S, and 07 KT 94
  • Compatible communication processors:
    07 KT 62 and 07 KP 64
  • Platform references:
    AC31, AC31-S, and ABB Procontic T200
  • Cable construction:
    LICYCY 5 x 0.14/15
  • Controller end connector:
    9 pole SUB-D male
  • Peripheral end connector:
    25 pole SUB-D female
  • Included adapter:
    25 pole male to 9 pole female
  • Cable length:
    5 m
  • Shielding:
    Cable shield connected to metal plated controller connector housing
  • Weight:
    0.22 kg
  • Tariff Code:
    8473309000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Endpoint Compatibility Cable Routing Commissioning Application
  • ABB order code GJR5 2502 00 R0001 for the 07 SK 90 R1 interface cable
  • Five metre LICYCY 5 x 0.14/15 cable with 9 pole SUB-D male and 25 pole SUB-D female ends
  • 25 pole male to 9 pole female adapter included; shield bonded to the plated controller connector housing

07 SK 90 R1 is an ABB Procontic interface cable for connecting peripheral equipment to documented nine pole serial interfaces.

ABB lists the cable for selected 07 KR 91, 07 KT 92, 07 KT 93, 07 KT 93 S and 07 KT 94 basic units, with 07 KT 62 and 07 KP 64 communication processors.

Confirm both endpoint models, connector orientation, serial port role and order number GJR5 2502 00 R0001 before replacement.

Availability, condition, price, and shipping time for 07 SK 90 R1 are confirmed during quotation.

ABB 07 SK 90 R1 Procontic Interface Cable Manuals, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • ABB lists 07 SK 90 R1 for 07 KR 91, 07 KT 92, 07 KT 93, 07 KT 93 S and 07 KT 94 basic units
  • Communication processor references include 07 KT 62 and 07 KP 64
  • Match the 9 pole controller interface, 25 pole peripheral interface and supplied adapter before substitution
  • The cable length is 5 m and the construction is LICYCY 5 x 0.14/15
  • Keep the 9 pole SUB-D male end at the documented controller connection
  • Maintain the shield bond to the metal plated controller connector housing and avoid sharp bends
  • Isolate the controller and identify both serial endpoints before disconnecting 07 SK 90 R1
  • Check the 9 pole male, 25 pole female and 25 pole to 9 pole adapter orientation
  • After reconnection, verify the intended peripheral communication and retain the cable order record
  • Peripheral serial connection on compatible ABB Procontic AC31 and T200 basic units
  • Use with documented 07 KT 62 or 07 KP 64 communication processor arrangements
  • Five metre point to point cable runs where the 07 SK 90 R1 endpoint and adapter arrangement are specified
Description
07 SK 90 R1 is an ABB Procontic interface cable for connecting peripheral units to documented 9-pole serial interfaces on compatible basic units.

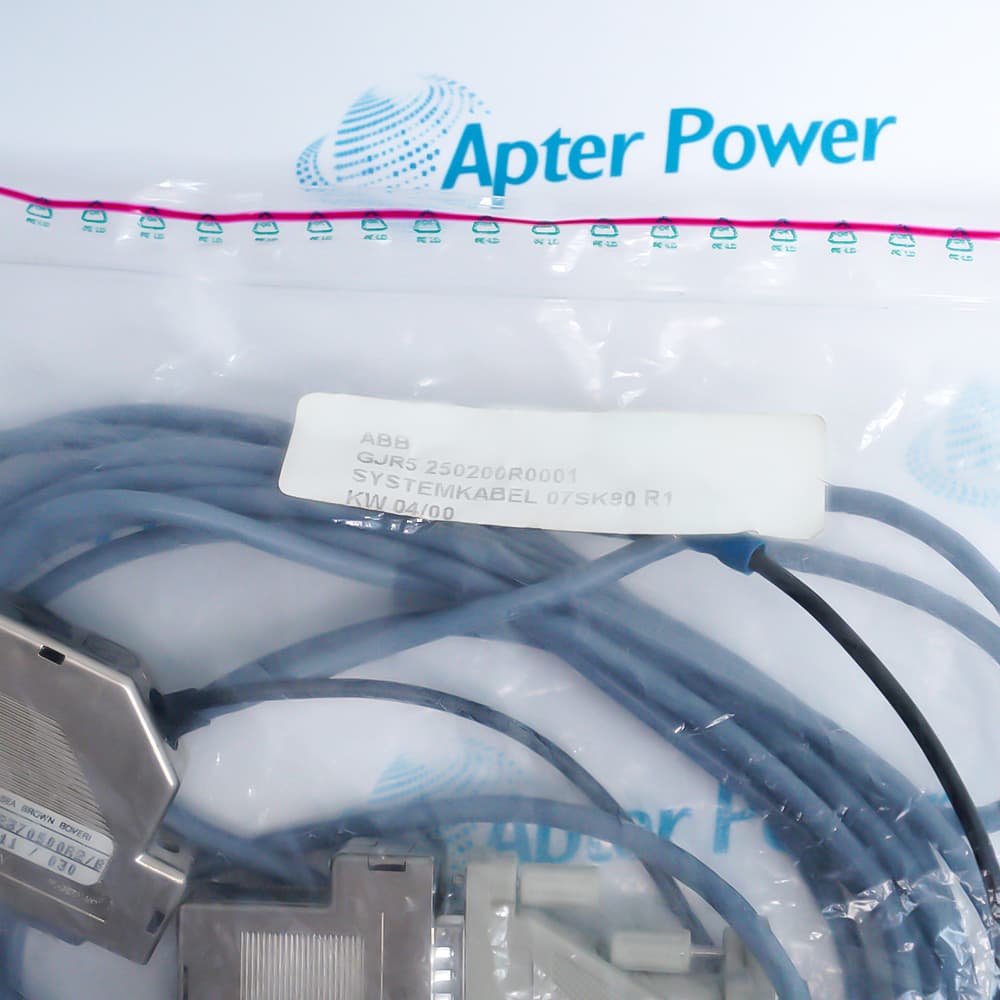

The reviewed ABB cable table lists 07 SK 90 R1 with order number GJR5 2502 00 R0001 and identifies compatibility with the serial interfaces of selected Procontic basic units, including 07 KR 91.

Before installation, verify both endpoint models, connector orientation, cable route, serial-port role, and the full cable order number; avoid substituting a similar-looking cable without confirmation.
Alternative Names
07SK90R1 07 SK 90 R1 07SK 90 R1 ABB 07 SK 90 R1 GJR5 2502 00 R1 GJR5250200R1
Technical notes
07 SK 90 R1: verify both endpoint models, required serial interface role, connector orientation, cable order number GJR5 2502 00 R0001, and routing before replacement; an incorrect cable can block peripheral communication.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which endpoints must be checked before ordering ABB 07 SK 90 R1?
Verify the controller has the documented 9 pole interface and identify the peripheral side 25 pole connection, adapter, and cable route.
Can 07 SK 90 R1 be used as a general serial cable?
Do not assume so. It is a documented interface cable for particular Procontic serial connections; verify both endpoints and the order number.
Can ABB 07 SK 90 R1 be used with a peripheral having a 9 pole port?
The documented accessory includes a 25 pole male to 9 pole female adapter. Confirm the peripheral port and operating role before relying on it.
What should be recorded before replacing 07 SK 90 R1?
Record endpoint positions, peripheral role, connector orientation, cable route, and serial settings.
Why is cable routing important for 07 SK 90 R1?
A damaged, strained, or incorrectly routed interface cable can interrupt communications even when devices and settings are correct.
How should 07 SK 90 R1 be tested after installation?
Use the intended peripheral communication path and confirm the receiving equipment operates through the documented serial interface.
What should accompany ABB 07 SK 90 R1 during replacement?
Keep the port assignment, operating mode, connected equipment, cable route, and shielding record with the replacement.
