HESG447398R20 HE666710-318/1 70EA06a-E

/ 4.9
1001 reviews | Need a Specific Revision?

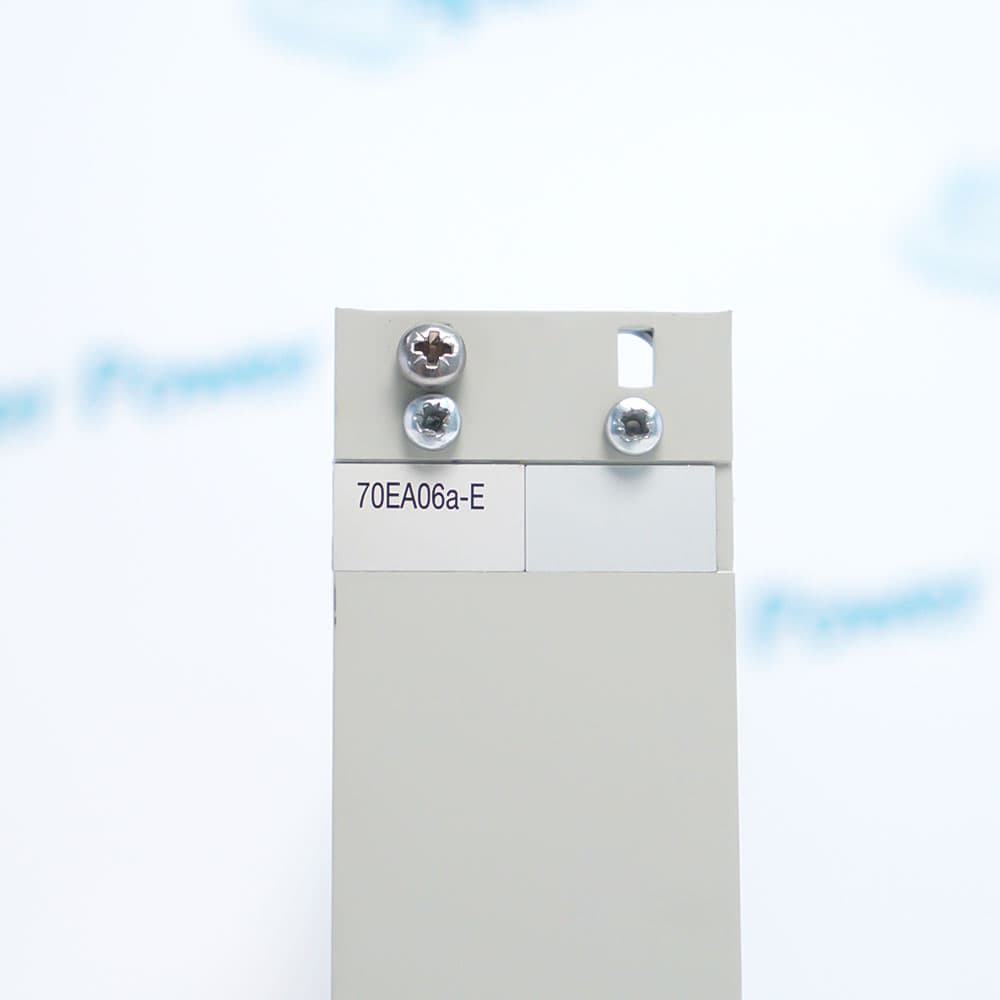

The ABB HESG447398R20 HE666710-318/1 70EA06a-E is a rotational speed input module engineered for the legacy Procontrol P13 turbine control and supervision platform.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for HESG447398R20 HE666710-318/1 70EA06a-E
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for HESG447398R20 HE666710-318/1 70EA06a-E

  • Manufacturer:
    ABB
  • Part Number:
    HESG447398R20 HE666710-318/1 70EA06a-E
  • Product Family:
    ABB Procontrol
  • Product Type:
    Input Module
  • Stock:
    1
  • Signal Input Architecture:
    1 Pulse Input for speed probe with optional +/-24Vdc supply; 4 Digital Testing inputs (+24Vdc)
  • Physical Relay Outputs:
    2 Safety Relays
  • Local Bus Outputs:
    2 Analog Speed values (Full range & zoom range); 1 Binary Status Word for fault alarms
  • Minimum Operating Voltage:
    +19.5 Vdc
  • Maximum Operating Voltage:
    +30.0 Vdc
  • Weight:
    0.42 kg
  • Estimated shipping dimensions:
    3.4x20x14.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Performance & Efficiency Certifications & Standards

Features:

  • Multi-Channel Advanced Pulse Signal Conversion
  • Onboard Dual Fault and Supervision Hardware Relays
  • Dedicated Configuration and EEPROM Non-Volatile Memory
The ABB HESG447398R20 HE666710-318/1 70EA06a-E effectively converts raw pulse signals from proximity probes into two frequency-proportional signals. This enables real-time local bus tracking of both full-scale velocities and zoomed operational speed ranges simultaneously.

Equipped with two integrated safety-rated relays, the ABB HESG447398R20 HE666710-318/1 70EA06a-E offers 3 NO and 1 NC potential-free contacts. These local physical contacts allow engineers to hardwire trip outputs directly into standalone ESD or 2oo3 voting architectures.

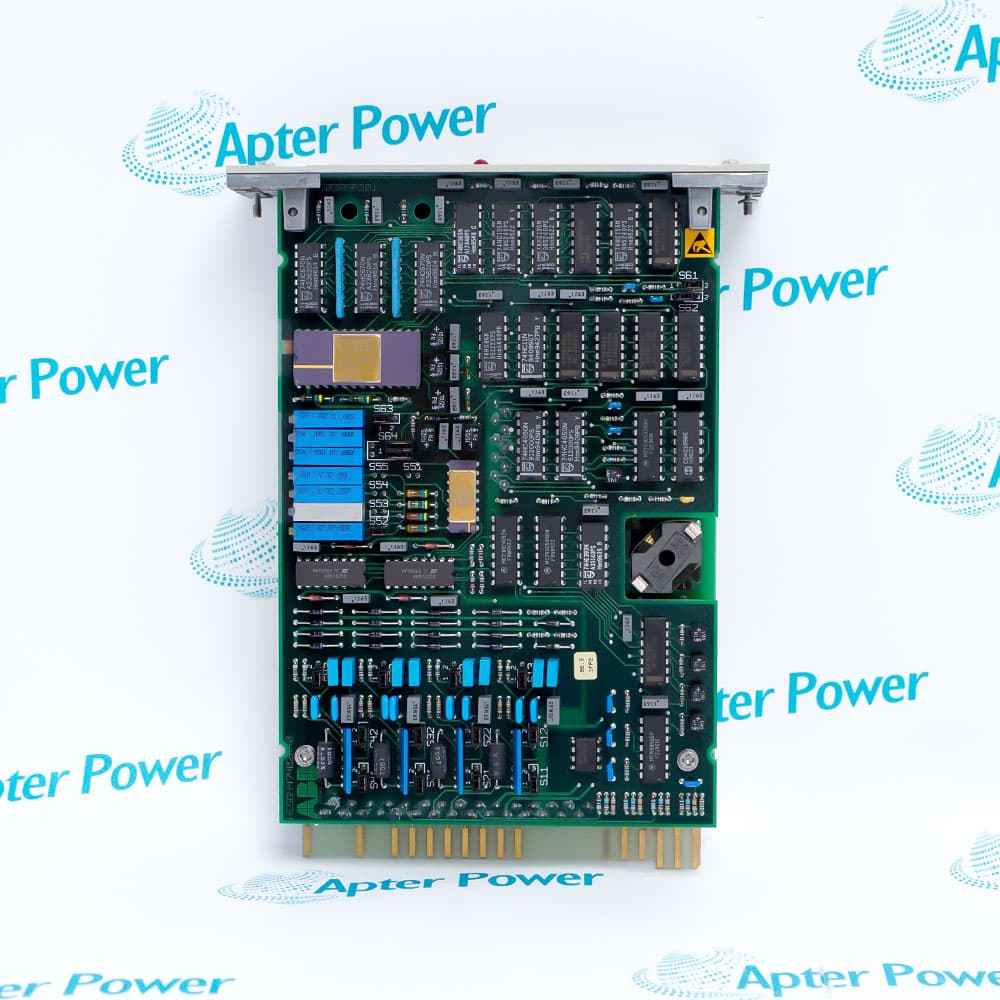

The ABB HESG447398R20 HE666710-318/1 70EA06a-E board contains an internal EEPROM chip and a dedicated front panel programming connector. This architecture ensures that user-defined speed thresholds, hysteresis loops, and fault-conditioning variables are retained permanently even during complete system power losses.

The HESG447398R20 HE666710-318/1 70EA06a-E ABB Procontrol P13 Rotational Speed Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB HESG447398R20 HE666710-318/1 70EA06a-E Procontrol P13 Rotational Speed Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB HESG447398R20 HE666710-318/1 70EA06a-E Procontrol P13 Rotational Speed Input Module

General

  • Manufacturer ABB
  • Model HESG447398R20 HE666710-318/1 70EA06a-E
  • Condition New Original ready stock
  • Product Family HESG447307R1 70EA01B-ES,HESG447260R2 70BA01C-S,HESG448230R1/G 216EA61B
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Thermal & Hydro Power Plant Turbines: Deployed to constantly calculate rotational velocities of steam or hydro turbines, protecting multi-million-dollar generators from centrifugal destruction caused by overspeeding.
  • Large Turbo-Compressors in Petrochemical Plants: Used to manage and monitor massive compressors within gas pipelines and petrochemical processing plants, where precise speed control is essential for preventing dangerous system surges.
  • Heavy Industrial Metal & Rolling Mills: Utilized in automated facilities requiring precise synchronization of massive motor shafts, ensuring continuous process uptime and immediate safety trip capability.
  • Marine Propulsion Control Infrastructure: Embedded within automated systems for large transport vessels to track shaft speeds, providing direct hardware-level diagnostics and fault prevention tools for critical marine engines.
  • Dual-Range Analog Scaling Over Local Bus: The module processes raw frequency signals and breaks them down into two specialized local bus outputs: a full operational range and a zoomed range. This significantly enhances accuracy during critical start-up or trip testing phases.
  • Hardware-Driven Real-Time Algorithms: Integrated algorithms execute continuous, latency-free onboard computations. This allows instant tracking of turbine acceleration rates, overspeed thresholds, and sudden loss-of-signal events.
  • Direct 2oo3 Trip Voting Execution: With two dedicated safety relays onboard, multiple cards can be networked into hardware configurations. This setup permits direct, un-delayed physical execution of protective trips without waiting for central processor logic loops.
  • Permanent Configurations via Local EEPROM: All customized speed settings and trip parameters are written directly onto an onboard EEPROM via the front panel serial port. This ensures instant plug-and-play boot-up efficiency without losing vital calibrations during maintenance outages.
  • Designed for IEC 61508 Safety Compliance: The underlying engineering architecture of this series aligns with functional safety design philosophies. Its direct evolutionary successor, the 70E106a, formally achieves SIL3 rating compliance.
  • Potential-Free Isolation Standards: The potential-free layout of the onboard relay change-over contacts ensures high galvanic isolation. This safeguards sensitive bus electronics from extreme field-side electrical surges.
  • Standardized Eurocard 1T Form Factor: Designed according to the standard Procontrol P13 mechanical format (1T wide card slot). This configuration simplifies cabinet cooling dynamics and standardizes rack grounding pathways.
  • Strict Process Supervision Controls: Adheres to industrial alarm classification guidelines by separating critical board hardware faults from general process supervision field alarms.
Description
The ABB HESG447398R20 HE666710-318/1 70EA06a-E plays a vital role in processing high-frequency pulse signals directly from physical speed sensors. It continuously calculates exact machine velocity, feeding real-time diagnostics into the local P13 bus network to avert catastrophic mechanical overspeed events.

Engineered explicitly for harsh powerhouse environments, the ABB HESG447398R20 HE666710-318/1 70EA06a-E printed circuit board utilizes premium EMI-shielded components. It features potential-free onboard relays designed to execute fail-safe protection logic (such as 2oo3 voting architectures) under extreme thermal and high-vibration conditions.

As a highly specialized, discontinued spare part, sourcing a genuine ABB HESG447398R20 HE666710-318/1 70EA06a-E board is paramount for global plant operators. It allows facilities to sustain legacy Procontrol P13 infrastructure without incurring millions in capital expenditures for total DCS overhauls.

The ABB HESG447398R20 HE666710-318/1 70EA06a-E architecture features integrated physical outputs for buffered frequency conditioning. This allows field engineers to seamlessly monitor raw speed signals via external instruments while maintaining active bus communication.
Alternative Names
HESG447398R20 HE666710-318/1 70EA06a-E 70EA06a-E HESG447398R2O HE66671O-318/1 7OEAO6a-E HESG447398R20 HE6667I0-3I8/I 70EA06a-E HESG447307R1 70EA01B-ES HESG447260R2 70BA01C-S HESG448230R1/G 216EA61B
Technical notes
When implementing or servicing the ABB HESG447398R20 HE666710-318/1 70EA06a-E module, ensure field wiring aligns precisely with its specific pulse sensor inputs. For facilities targeting modern industrial safety compliance upgrades, note that the ABB HESG447398R20 HE666710-318/1 70EA06a-E legacy board can be seamlessly transitioned to the upgraded 70EI06a module to achieve SIL3 compliance according to IEC 61508.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What specific proximity sensors and sensor interfaces are compatible with the ABB HESG447398R20 HE666710-318/1 70EA06a-E rotational speed module?
The ABB HESG447398R20 HE666710-318/1 70EA06a-E is highly versatile, supporting direct wiring to industrial Eddy-current probes, Jaquet FTG 1087.00/FT3000 series transmitters, Bently Nevada 3300 series proximity sensors, and original ABB XT 8160/XT 8163 sensors. It can deliver an optional +/-24Vdc supply directly to the pulse speed probe via its primary input channel.
How does the ABB HESG447398R20 HE666710-318/1 70EA06a-E communicate diagnostic data to the central system?
The ABB HESG447398R20 HE666710-318/1 70EA06a-E outputs real-time data onto the P13 local bus via non-consecutive bus addressing. It transmits 1 Binary Output Status Word (fully detailing processor, board, and sensor faults) along with two physical digital outputs (+24Vdc) for process supervision alarms.
In what mechanical applications is the ABB HESG447398R20 HE666710-318/1 70EA06a-E typically deployed, and what are its environmental limits?
The ABB HESG447398R20 HE666710-318/1 70EA06a-E is predominantly utilized in large-scale turbine monitoring, heavy power generation plants, petrochemical refineries, and marine automation. It is rated for an internal cabinet operating temperature range of 0 to 60 °C and can withstand 0-95% non-condensing relative humidity.
