K1409

/ 4.9
1001 reviews | Need a Specific Revision?
HIMA K1409 is a 19-inch, 5U system rack used in H41q-HS and H41q-HRS safety-controller assemblies. It houses the central, power-distribution and I/O components required for compact HIQuad safety applications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for K1409
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for K1409

  • Manufacturer:
    HIMA
  • Part Number:
    K1409
  • Product Family:
    HIMA HIQuad® X
  • Product Type:
    19-inch industrial system rack (subrack)
  • Stock:
    1
  • Equipment role:
    System rack / subrack
  • System generation:
    H41q / HIQuad
  • Supported assembly families:
    H41q-HS and H41q-HRS
  • Safety-related kit designations:
    B4237-1 and B4237-2
  • Certified kit revision and status:
    Revision 03, valid
  • Certificate number:
    01/205/5086.01/16
  • Rack format:
    19-inch subrack
  • Rack height:
    5 units
  • Central-module family:
    F8652X for H41q
  • Installed component classes:
    Central unit, power supplies, fusing, power distribution and I/O modules
  • Signal processing scope:
    Digital and analog inputs and outputs
  • Configuration platform:
    ELOP II
  • Programming basis:
    IEC 61131-3
  • Operating temperature:
    0 to 60 deg C
  • Enclosure condition:
    Application-specific mounting, spacing and segregation required
  • Cover requirement:
    Tool-removable covers
  • H41q central-module lifecycle:
    Legacy phase from April 2020
  • Lifecycle service level:
    Spare parts only; limited availability and support
  • Successor system:
    HIQuad X
  • Modernization scope:
    Main part of existing HIQuad I/O and field wiring can be retained
  • Weight:
    5.5 kg
  • Estimated shipping dimensions:
    48.3x22.2x26cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Rack Integration Operating Environment Monitoring & Control

Features:

  • Physical Foundation for HIMA Safety System Module Deployment
  • Integrates Standardized 19-Inch Mounting with Modular Backplane Architecture
  • Compatible with HIMA HIMax and HIMatrix Safety System Product Families
The HIMA K1409 19-inch industrial system rack (subrack) serves as the foundational mounting platform within HIMA safety system architectures, providing a standardized enclosure that houses and organizes all safety modules within the system. It accommodates the physical installation of HIMax and HIMatrix modules, ensuring proper alignment, connectivity, and thermal management through its engineered rack structure. The K1409 subrack supports the modular design philosophy of HIMA safety systems, enabling flexible configuration based on specific application requirements while maintaining the structural integrity required for reliable operation in demanding industrial environments.

The K1409 provides essential structural functions common to the entire safety system rack, and is a critical component of the safety instrumented system (SIS) deployment, directly affecting the proper installation and normal operation of all housed modules. One K1409 subrack is required per safety system configuration, with capacity to accommodate multiple HIMA safety modules in a standardized 19-inch form factor.

For expanded safety system applications, the K1409 subrack architecture supports modular expansion through the addition of supplementary racks or modules within the same control cabinet infrastructure. In addition to standard single-rack configurations, the K1409 design also accommodates system scaling. The HIMA modular system architecture enables expansion using the standardized rack specifications defined in the HIMA product portfolio.

The K1409 HIMA 19-inch industrial system rack (subrack) may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
HIMA K1409 19-inch industrial system rack (subrack) Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
HIMA K1409 19-inch industrial system rack (subrack) Specs

General

  • Manufacturer HIMA
  • Model K1409
  • Condition New Original ready stock
  • Product Family Z1009,K9212
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • The system rack is installed as a 19-inch subrack with a five-unit-height mechanical format.
  • Central processing, power supplies, fusing, power distribution and I/O modules share the compact H41q assembly.

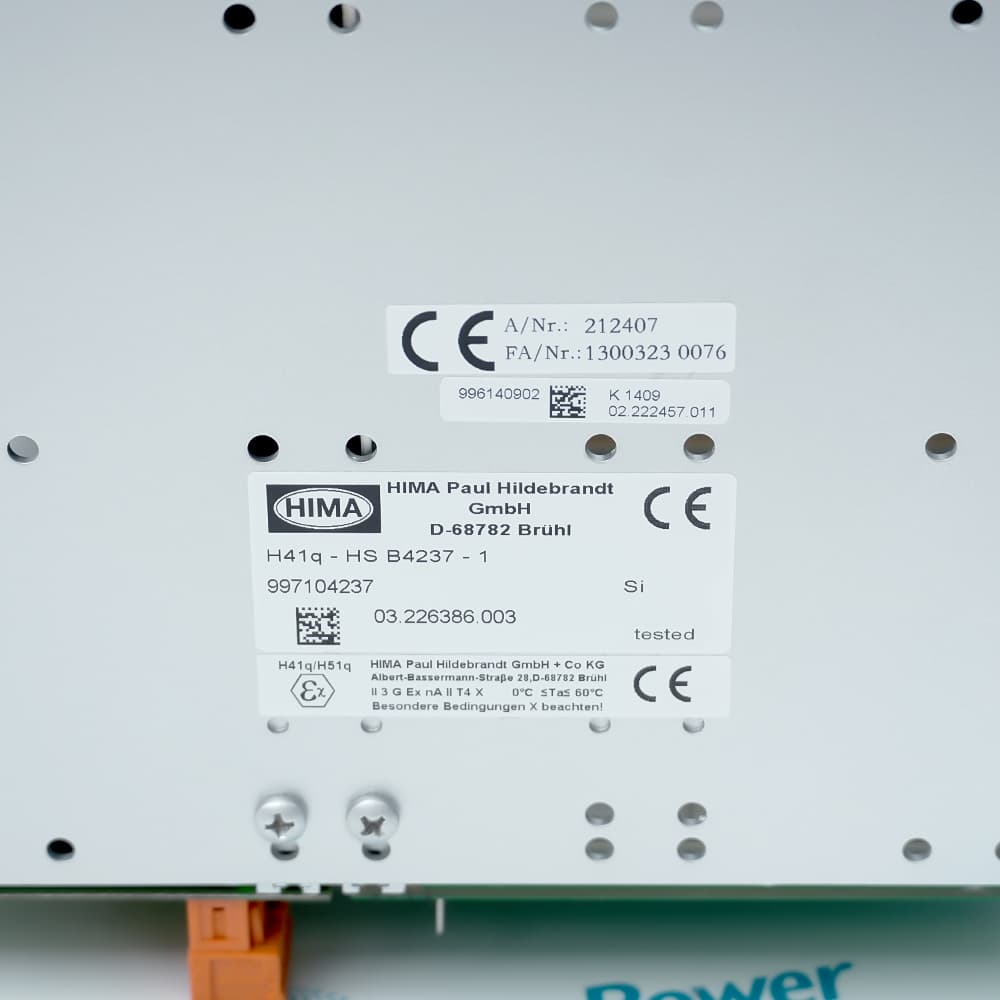

  • The B4237-1 and B4237-2 safety-related kits identify the supported H41q-HS and H41q-HRS configurations.
  • The certified H41q automation-system family is specified for operation from 0 to 60 deg C.
  • Final installation must meet the enclosure mounting, spacing and segregation requirements of the application.
  • Tool-removable covers and suitable cabinet protection are required by the certified installation conditions.
  • H41q systems process digital and analog signals for safety-related control of process-engineering plants.
  • ELOP II supports configuration, testing, online diagnosis and safety-parameter management for the legacy platform.
  • Rack replacement must preserve the proven project, I/O allocation and documented redundancy concept before restart.
Description
The K1409 subrack is engineered to meet the demanding requirements of industrial applications, featuring a standardized 19-inch form factor that enables seamless integration into standard industrial control cabinets and enclosures. The rack is designed to accommodate multiple HIMA safety modules, providing proper spacing, cooling, and electrical connectivity for each installed component. Its durable construction ensures long-term reliability in harsh industrial environments where vibration, temperature fluctuations, and electromagnetic interference are common challenges.

The HIMA K1409 is specifically designed to address the challenge of organizing and protecting safety-critical control hardware in industrial process environments. It solves the problem of unstructured module deployment by providing a standardized, secure mounting platform that ensures proper alignment, connectivity, and thermal management for HIMA safety system components. This subrack is essential for applications where system availability and safety integrity are paramount, including emergency shutdown systems (ESD), fire and gas detection systems, burner management systems (BMS), and process control safety loops.

The K1409 subrack finds extensive application across multiple high-risk industries where functional safety is critical. In the oil and gas sector, it supports safety instrumented systems (SIS) for offshore platforms, refineries, and pipeline facilities. In the chemical and petrochemical industries, it houses modules for process safety management and hazardous area control. The subrack is also widely deployed in power generation facilities, including conventional and nuclear power plants, where it supports turbine protection and reactor safety systems. Additionally, the K1409 is utilized in the pharmaceutical industry for batch process safety, in the metal and mining sectors for machinery protection, and in rail transportation for signaling and control system safety.
Alternative Names
K 1409 KI409 K14O9 Z1009 K9212 F8650X F8652X
Technical notes
Before replacing K1409, de-energize the rack and verify the B4237 HS/HRS arrangement, enclosure spacing, airflow and validated safety configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What mechanical rack format is documented for K1409?
K1409 belongs to the H41q system-rack arrangement, which HIMA documents as a 19-inch subrack with a height of five units.
Which H41q assembly variants use K1409?
The official H41q revision list covers the B4237-1 and B4237-2 safety-related kits for H41q-HS and H41q-HRS configurations.
What safety-system role does K1409 perform?
The rack provides the common mechanical platform for the central unit, power distribution, fusing and installed I/O modules in a compact H41q system.
How does HIMA's HIQuad lifecycle affect sourcing K1409?
H41q central modules entered the legacy phase in April 2020, with limited spare-parts availability and support; Apter Power checks sourcing per request.
What must remain validated when replacing K1409?
Confirm the HS or HRS kit, subrack allocation, power and fusing, enclosure spacing, cooling path, I/O wiring and approved safety project.
Which documents and project details should accompany a K1409 quotation request?
Include the H41q system documentation, rack and kit nameplates, installed module list, redundancy arrangement, quantity, destination and required date.
