1203-GD1

/ 4.9
1001 reviews | Need a Specific Revision?

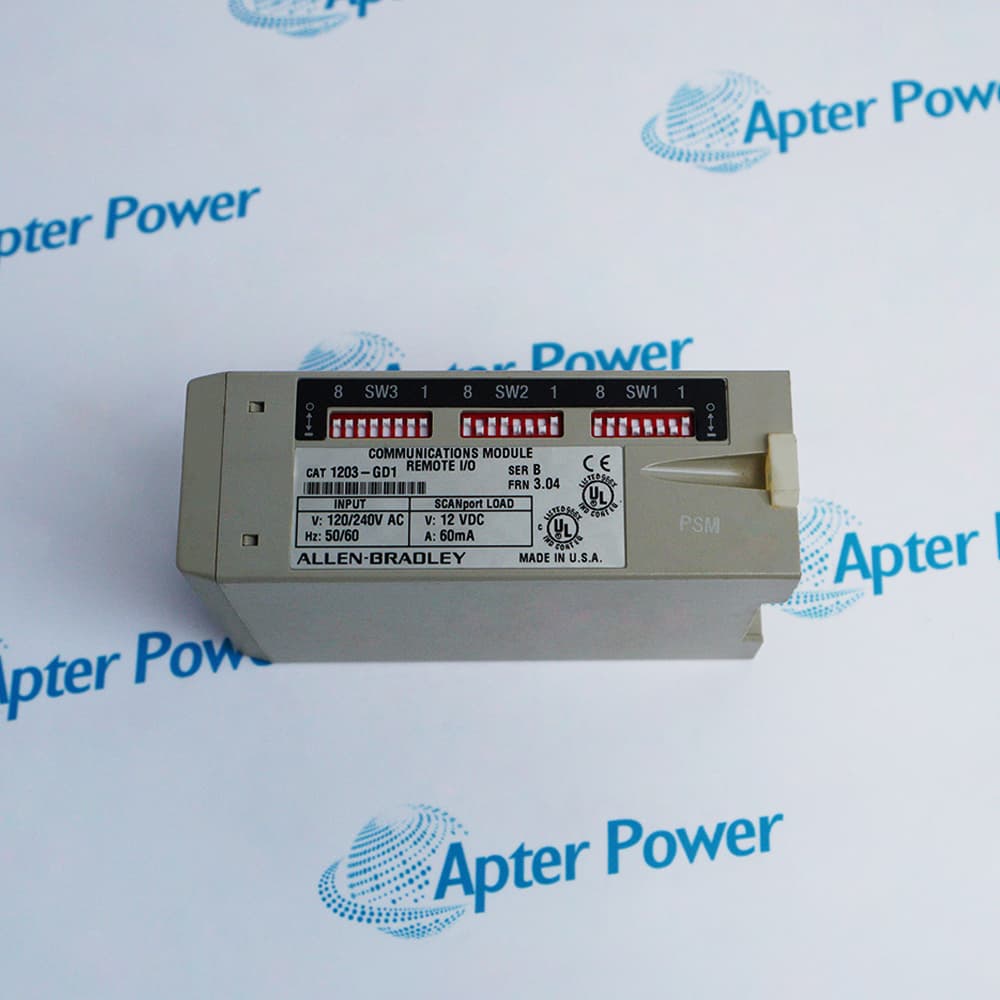

Allen-Bradley 1203-GD1 connects a compatible SCANport drive to an Allen-Bradley Remote I/O network for digital command, reference, and feedback exchange.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1203-GD1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1203-GD1

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1203-GD1
  • Product Family:
    1203 Communication Modules
  • Product Type:
    Remote I/O-to-SCANport Communications Module
  • Stock:
    1
  • Network Interface:
    Allen-Bradley Remote I/O
  • Device Interface:
    SCANport
  • Input Power:
    85–264V AC, 45–63 Hz, 35 mA maximum
  • Remote I/O Rates:
    57.6, 115.2, or 230.4 kbit/s
  • Rack Size:
    1/4, 1/2, 3/4, or full rack as configured
  • Dimensions:
    7.6 × 4.5 × 12.3 cm
  • Enclosure:
    NEMA Type 1 / IP30
  • Mounting:
    35 × 7.5 mm DIN rail
  • Operating Temperature:
    0 to 50°C
  • Dimensions:
    4.5 × 7.6 × 12.3 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals I/O Setup SCANport Integration Installation Checks Application
  • Remote I/O communication for one compatible SCANport device
  • Supports documented Remote I/O rates and configurable rack allocation
  • DIN-rail NEMA Type 1 / IP30 enclosure with wide-range AC input

Allen-Bradley 1203-GD1 links an Allen-Bradley Remote I/O scanner with one compatible SCANport device.

Its configuration coordinates Remote I/O rack size, starting group, data mapping, baud rate, SCANport control, and fault response.

Replacement requires the exact network allocation, drive parameters, wiring, firmware, and safe-state behavior to be recorded and recommissioned.

Availability, condition, price, and shipping time for 1203-GD1 are confirmed during quotation.

Allen-Bradley 1203-GD1 Communications Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Match rack size, starting group, and scanner allocation
  • Set a supported baud rate for the existing network
  • Verify cable type, daisy chain, and termination
  • Connect one documented SCANport-compatible device
  • Map command, reference, status, and feedback data
  • Confirm drive control-source and enable conditions
  • Provide protected 85–264V AC power and grounding
  • Mount on the specified DIN rail with adequate enclosure protection
  • Test communications and configured fault action safely
  • Remote I/O command and speed-reference control of supported SCANport drives
  • Drive status and feedback exchange with PLC Remote I/O scanners
  • Block-transfer access to supported SCANport drive parameters and diagnostics
Description
Allen-Bradley 1203-GD1 is a Remote I/O-to-SCANport communications module that links an Allen-Bradley Remote I/O scanner to one compatible SCANport device. It uses an 85–264V AC supply and a DIN-rail NEMA Type 1 / IP30 enclosure.

Remote I/O rack size, starting group, baud rate, cable network, command and reference mapping, status and feedback mapping, and SCANport control must all match the controller and drive configuration. The official manual provides the electrical, environmental, mechanical, and regulatory requirements.

Before replacement, record network allocation, scanner configuration, firmware, SCANport device parameters, wiring, and fault actions. Commission the adapter with the machine safe and verify data mapping, drive enable conditions, stop behavior, feedback, and communication-loss response.
Alternative Names
1203-GD1 1203GD1 1203 GD1 Allen-Bradley 1203-GD1 Allen Bradley 1203-GD1 AB 1203-GD1 Rockwell Automation 1203-GD1
Technical notes
Allen-Bradley 1203-GD1 requires 85–264V AC, matched Remote I/O addressing and baud rate, correct SCANport mapping, grounding, and verified fault behavior.
