    Apter Power provides authentic Rockwell Automation connection hardware, ensuring rapid panel installations and enhanced industrial communication.

1492-AIFM8-3

/ 4.9
1001 reviews | Need a Specific Revision?

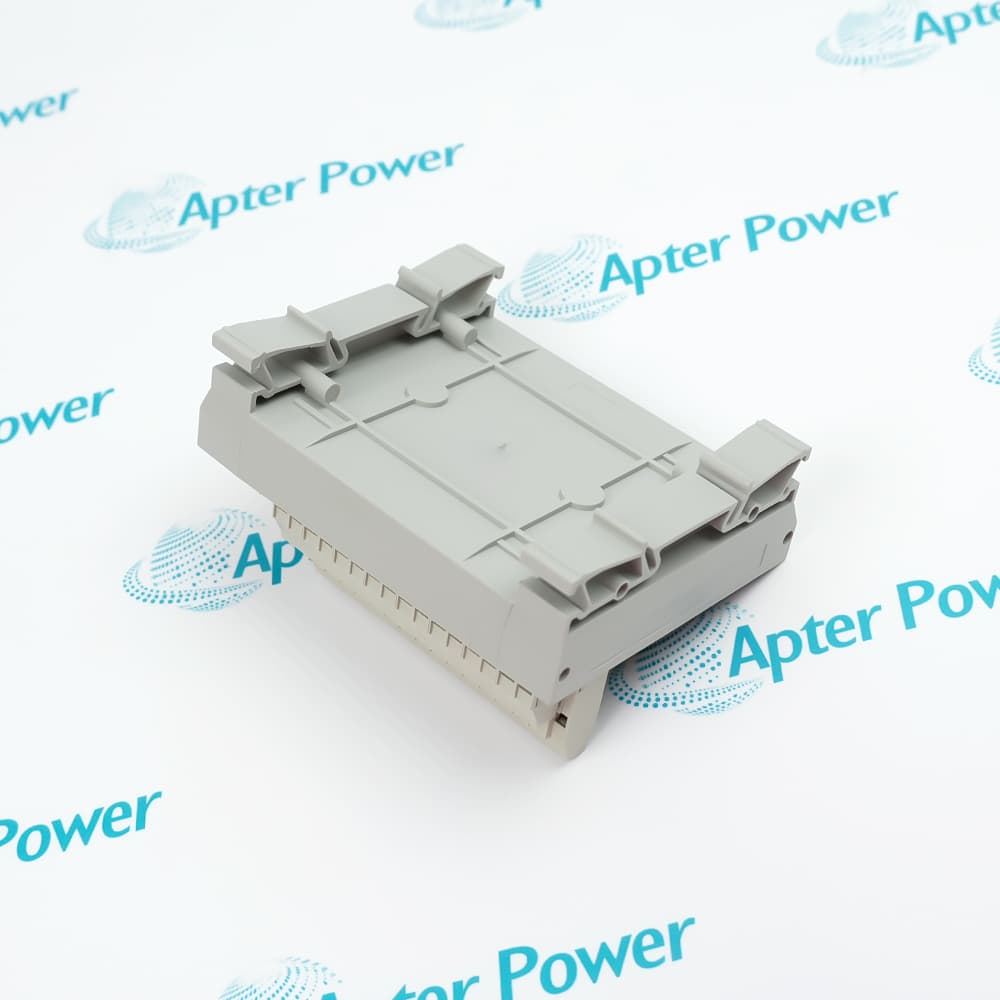

The 1492-AIFM8-3 from Allen Bradley functions as an 8-channel analog interface module. Designed for flexibility, this module operates with both AC and DC voltage ratings up to 132 volts, allowing compatibility in varied applications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1492-AIFM8-3
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1492-AIFM8-3

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1492-AIFM8-3
  • Product Family:
    1492 WIRING SYSTEMS
  • Product Type:
    8-Channel Analog Interface Module
  • Stock:
    2
  • Channels:
    8
  • Signal Types Supported:
    Current (4‑20 mA), Voltage (0‑10 V)
  • Terminal Block Type:
    Fixed (1492‑AIFM8‑3) or Removable (1492‑RAIFM8‑3)
  • Compatible I/O Platforms:
    1746, 1756, 1769, 1771, 1794
  • Available Cable Lengths:
    0.5m (005), 1.0m (010), 2.5m (025), 5.0m (050)
  • Torque Specification:
    3.5‑4.5 lb‑in (0.38‑0.50 Nm)
  • Wire Size:
    #22‑#12 AWG (0.2‑4 mm²), copper only
  • Strip Length:
    0.32 in (8 mm)
  • Shield Grounding:
    10‑32 x .312 thread roll type TT screw
  • Cable Rating:
    ITC (Instrumentation Tray Cable)
  • Hazardous Location:
    FM Class 1 Division 2
  • RTB Compatible:
    1492‑RTB16N (screw), 1492‑RTB16P (push‑in)
  • Accessory:
    1492‑N90
  • Weight:
    0.15 kg
  • Estimated shipping dimensions:
    11x8.2x6cm
  • Tariff Code:
    8529109090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Diagnostic Protection Installation and Upgrade

Features:

  • Supports current (4‑20mA) and voltage signals for diverse sensor connectivity.
  • Enables quick module replacement without rewiring (1492‑RAIFM8‑3 variant).
  • Works with 1746, 1756, 1769, 1771, and 1794 I/O modules.
The 1492‑AIFM8‑3 is an 8‑channel analog interface module designed to connect analog field devices—such as temperature sensors, pressure transmitters, and flow meters—to PLC analog I/O modules. It supports both current (4‑20 mA) and voltage (0‑10 V) signal types, making it versatile for various industrial applications. The 1492‑AIFM8‑3 reduces wiring time and eliminates errors by providing a pre‑wired termination point between sensors and the control system, ensuring reliable signal transmission in manufacturing, process control, and automation environments.

The 1492‑AIFM8‑3 is available in a removable terminal block variant (1492‑RAIFM8‑3) that allows the entire wiring assembly to be disconnected from the module without removing individual wires. This feature significantly reduces downtime during module replacement or troubleshooting. The 1492‑AIFM8‑3 uses 1492‑RTB16N (screw style) or 1492‑RTB16P (push‑in style) terminal blocks, ordered separately. This design simplifies maintenance and minimizes wiring errors, making the 1492‑AIFM8‑3 ideal for applications requiring frequent module changes.

The 1492‑AIFM8‑3 is compatible with a wide range of Allen‑Bradley analog I/O modules, including 1746‑NI8, 1756‑IF16, 1756‑IF8, 1769‑IF8, 1771‑IL, and 1794‑IE8. It supports multiple cable types including 1492‑ACABLE C, H, F, E, TD, TC, UA, TB, TA, UD, WB, and R, with lengths of 0.5m, 1.0m, 2.5m, and 5.0m (custom lengths also available). The 1492‑AIFM8‑3 includes a 10‑32 x .312 thread roll type TT screw for shield grounding and is ITC (Instrumentation Tray Cable) rated for panel or conduit use.

The 1492-AIFM8-3 AB 8-Channel Analog Interface Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

AB 1492-AIFM8-3 8-Channel Analog Interface Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
AB 1492-AIFM8-3 8-Channel Analog Interface Module Specs

General

  • Manufacturer AB
  • Model 1492-AIFM8-3
  • Condition New Original ready stock
  • Product Family 1492-IFM40F,1492-IFM20F,1492-XIM4024-16R
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Water and Wastewater: It monitors fluid levels in tanks, water flow rates in pipes, and chemical quality values like pH.
  • Oil and Gas: It tracks pipeline pressure, temperature changes, and oil flow volumes.
  • Chemical Processing: It manages precise chemical mixing by reading data from control valves and weight sensors.
  • Power Generation: It monitors steam pressure, turbine speeds, and cooling system temperatures.
  • Electrical Isolation: It keeps high-voltage spikes on the factory floor from reaching and destroying your PLC.
  • Blown-Fuse Indicators: Many modules in this family include small LED lights that turn on if a fuse breaks, showing you exactly where the problem is.
  • Overcurrent Protection: It uses fuses to stop too much electricity from flowing through the wires if a sensor breaks.
  • Signal Shielding: The module provides clean grounding points for shielded cables to stop electrical noise from messing up your data.
  • Mounting: Snap the module firmly onto a standard 35mm DIN rail inside your electrical panel.
  • PLC Connection: Use a special Allen-Bradley pre-wired cable to connect the module directly to your specific PLC I/O card.
  • Field Wiring: Screw the wires from your field sensors into the clearly labeled terminal blocks on the module.
Description

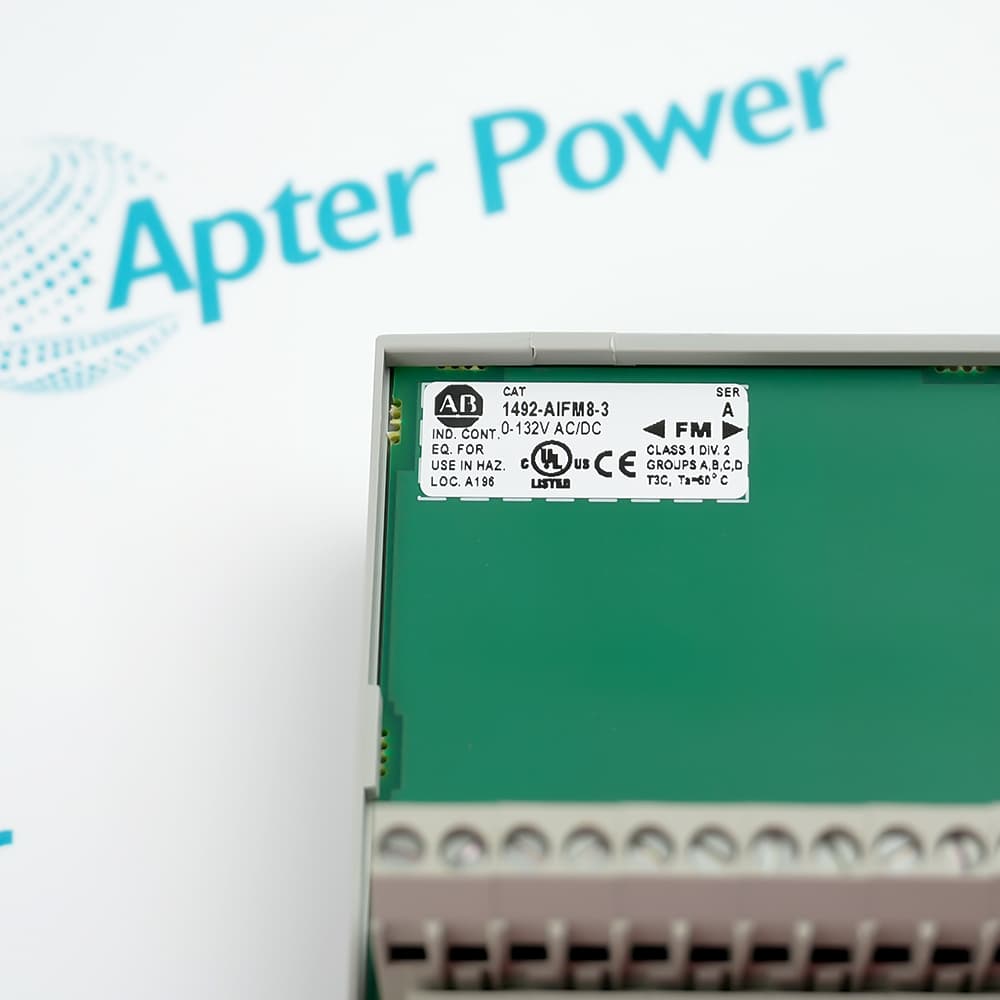

The Allen Bradley 1492-AIFM8-3 is part of the 1492 Wiring System and serves as an analog interface module with a total of eight channels. This device allows for extensive connectivity options and supports a maximum voltage rating of 132 V for both AC and DC applications, making it a versatile component in automation systems. It is essential for integrating different signals into control systems where analog processing is required.

USER specifications include three terminal connections. The terminals are designed as fixed screw style terminals, providing stable and reliable connections to various wires. Users can utilize wire gauges ranging from #22 to #12 AWG, accommodating a broad range of wiring setups. With a pollution degree rating of 2, the module ensures operation in environments with slightly polluted conditions, ensuring continued performance over time.

The 1492-AIFM8-3 operates efficiently within an ambient humidity range of up to 80% without the risk of condensation, maintaining functionality in various climates. Additionally, it can be deployed in temperatures between 0 °C to 40 °C, suitable for many industrial applications. The storage conditions are identical to operational temperatures, indicating its resilience in maintaining integrity when not in use. For installations, the module is rated for operations at altitudes up to 1000 meters above sea level, ensuring flexibility for a range of setups.
Revisions

Revision Part #

Also known as

1492-AIFM8 Ser TC-3
1492-AIFM8TC-3, Series TC-3, Rev TC-3
Alternative Names
I492-AIFM8-3 1492 AIFM8 3 1492-XIM4024-16R 1492-IFM40F 1492-IFM40F-FS-2 1492-IFM20F-F120A-2 1492-IFM20F 1492-AIFM8
Technical notes
The Allen‑Bradley 1492‑AIFM8‑3 is an 8‑channel analog interface module for PLC systems, supporting current/voltage signals. Features removable terminal blocks, FM Class 1 Div 2 certification, and cable lengths of 0.5‑5.0m. Torque: 3.5‑4.5 lb‑in, wire: #22‑#12 AWG. Compatible with 1746/1756/1769/1771/1794 I/O platforms. Available in fixed and removable versions.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary function of the 1492‑AIFM8‑3?
It interfaces analog sensors to PLCs, supporting 8 current/voltage channels with pre‑wired connections.
What cable lengths are available for the 1492‑AIFM8‑3?
It supports 0.5m, 1.0m, 2.5m, and 5.0m lengths, with custom options available.
What wire sizes does the 1492‑AIFM8‑3 support?
It accepts #22‑#12 AWG (0.2‑4 mm²) copper wire with 0.32 in (8 mm) strip length.
Is the 1492‑AIFM8‑3 suitable for hazardous locations?
Yes, it is FM Class 1 Division 2 certified for use in hazardous industrial environments.
