AB 1492-XIM4024-16R
AB 1492-XIM4024-16R
AB 1492-XIM4024-16R
AB 1492-XIM4024-16R
AB 1492-XIM4024-16R
AB 1492-XIM4024-16R
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Lifecycle status: Active

    Rockwell Automation lists 1492-XIM4024-16R as Active. Verify current availability and exact revision during quotation.

1492-XIM4024-16R

/ 4.9
1001 reviews | Need a Specific Revision?

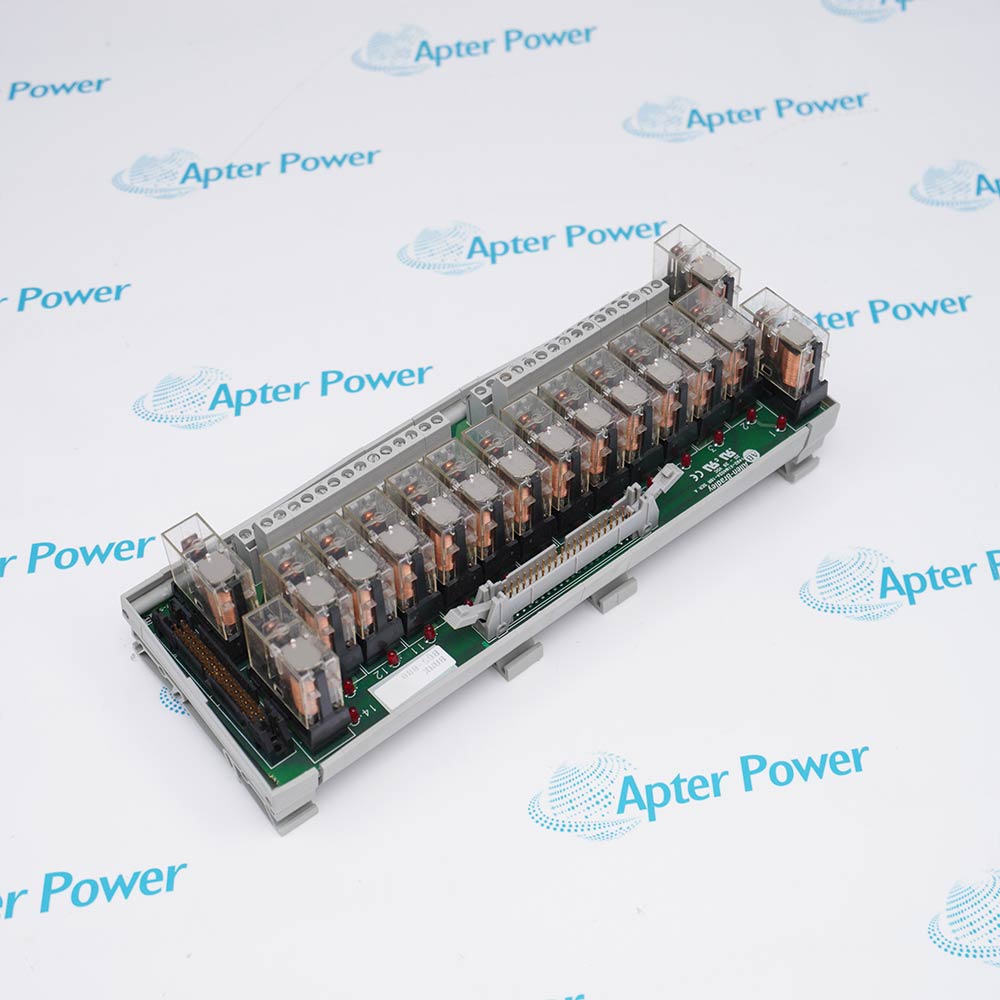

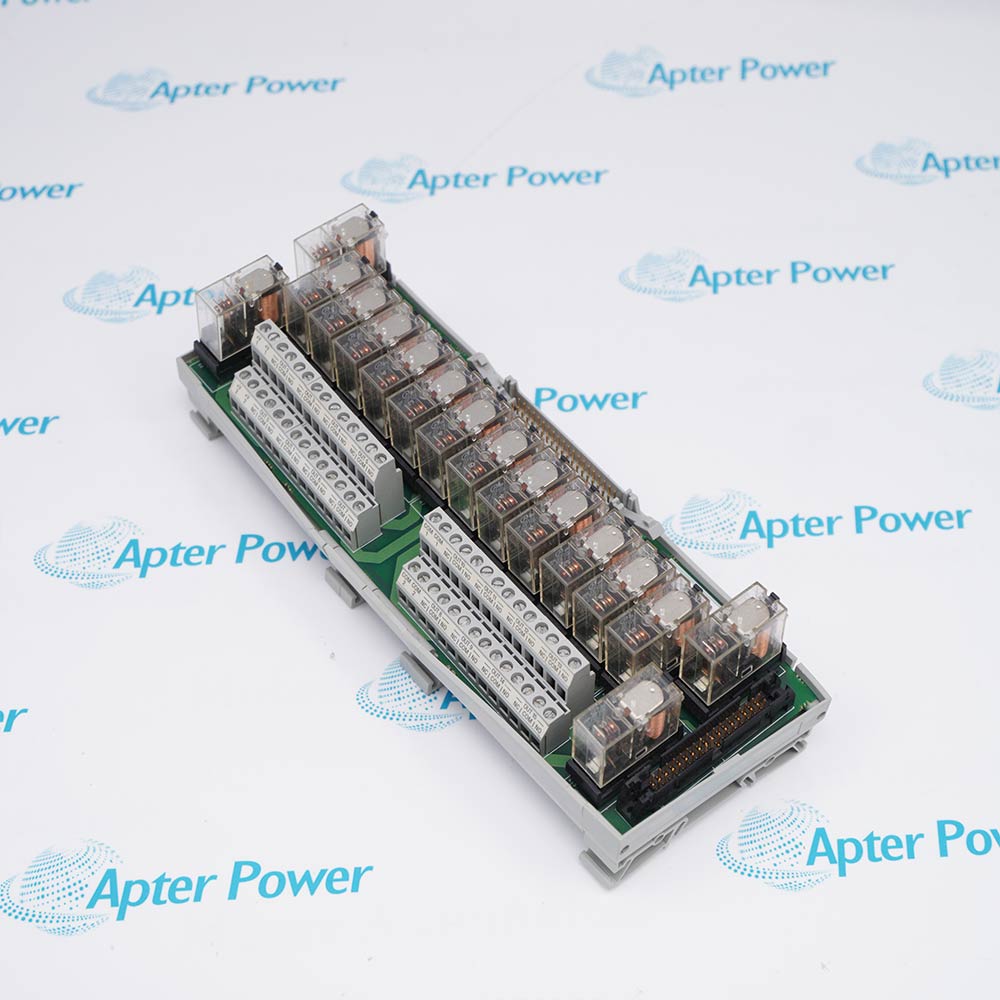

Allen-Bradley 1492-XIM4024-16R is a 40-pin digital interface module with sixteen 24V DC relays and field-side LED indication.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1492-XIM4024-16R
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1492-XIM4024-16R

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1492-XIM4024-16R
  • Product Family:
    1492 WIRING SYSTEMS
  • Product Type:
    40-Pin Relay Master Digital IFM
  • Stock:
    1
  • Interface Type:
    40-pin relay master digital IFM
  • Number of Relays:
    16
  • Relay Coil Control Voltage:
    24 V DC
  • Relay Coil Voltage Range:
    20–26 V DC
  • Operating Temperature:
    0–60 °C
  • Relative Humidity:
    5–95%, non-condensing
  • Dimensions:
    23.01 × 8.31 × 7.06 cm
  • Maximum Current per Circuit:
    10 A
  • Maximum Current per Relay Pair:
    12 A
  • Maximum Current per Module:
    96 A
  • Indicator Circuit Current:
    2 mA nominal
  • Maximum Recurring Peak Voltage:
    600 Vp
  • Module Storage Temperature:
    −40–85 °C
  • Terminal Wire Range:
    0.2–4 mm² / 22–12 AWG
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Wiring & Integration Testing & Maintenance Application
  • Sixteen 24V DC relay channels in a 40-pin master interface
  • LED indication supports point-level commissioning and troubleshooting
  • Documented 20–26V DC operating range for the interface circuitry

1492-XIM4024-16R organizes sixteen relay channels between a compatible controller I/O module and field wiring.

A correct assembly depends on the matching PLC cable, connector pinout, commons, contact load, suppression, protective devices, and terminal schedule.

Panel records and point-by-point acceptance testing should be retained so future replacement does not rely on appearance or pin count alone.

Availability: Active product status is shown on the current Rockwell Automation product page; stock condition and lead time are confirmed during quotation.

Allen-Bradley 1492-XIM4024-16R Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • A 40-pin digital-interface master module with sixteen 24 V DC relay channels
  • Supports the documented 1492-CABLE***Z prewired cable family
  • Standard 22 AWG cables support 2 A per channel; flexible 26 AWG versions are limited to 1 A per channel
  • Match the controller I/O module and prewired cable catalog numbers
  • Verify every relay contact, common and field terminal against the official drawing
  • Apply suitable branch protection and suppression for each connected load
  • Use LEDs together with electrical measurements; do not diagnose from indication alone
  • Prove every output and safe-state response after wiring or relay-service work
  • Record failed-contact symptoms and replace the complete interface when required
  • PLC output relay interfacing in industrial panels
  • High-density conversion from controller connectors to field terminals
  • Standardized machine and process-control panel wiring
Description

1492-XIM4024-16R is an Allen-Bradley 40-pin relay master digital interface module. It provides sixteen 24 V DC relay channels and LED indication for structured control-panel wiring.

The official technical-data table specifies a 20–26 V DC operating range, 0–60°C operating temperature and 5–95% relative humidity. Match the interface module to the correct 1492-CABLE***Z assembly, PLC I/O module, contact load and terminal schedule.

Before installation or replacement, verify the complete catalog number, control-side connector pinout, field-load voltage and current, commoning, protective devices, relay contact condition and the drawing revision used for panel wiring.

Alternative Names
1492-XIM4024-16R 1492 XIM4024 16R 1492XIM402416R AB 1492-XIM4024-16R Allen-Bradley 1492-XIM4024-16R Rockwell Automation 1492-XIM4024-16R
Technical notes
1492-XIM4024-16R requires the correct 40-pin cable, PLC module, relay-load protection, terminal schedule, and documented point-by-point commissioning test.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is the PLC interconnect cable included with 1492-XIM4024-16R?
Treat the cable as a separate item unless the quotation explicitly lists it. Confirm both end connectors and the supported PLC I/O catalog number.
Can 1492-XIM4024-16R replace another 1492 relay interface with the same pin count?
Not automatically. Compare the full catalog number, relay arrangement, pinout, commoning, contact rating, cable, and field terminal schedule.
What should be checked when one 1492-XIM4024-16R relay output does not switch?
Check the controller command, interface supply, cable continuity, LED state, relay contact, field protection, load wiring, common return, and the actual load.
How should inductive loads be handled with 1492-XIM4024-16R?
Use load suppression and protective devices appropriate to the coil and switching circuit; document their polarity, location, and service condition.
What panel records should be retained for 1492-XIM4024-16R?
Keep the interface catalog number, cable catalog number, PLC module, terminal schedule, wire numbers, load list, protective-device ratings, and acceptance-test results.
What must be specified when ordering a prewired cable for 1492-XIM4024-16R?
Provide the connected PLC I/O module catalog number, required 1492 cable family, connector orientation and cable length. Rockwell uses length suffixes such as 005, 010, 025 and 050 for documented standard lengths; do not select a cable from connector appearance alone.
Can a 26 AWG cable be used with 1492-XIM4024-16R at the same current as the standard 22 AWG cable?
No. Rockwell rates the standard 22 AWG wiring-system cable at 2 A per I/O channel, while the more flexible 26 AWG version is limited to 1 A per channel. Check the connected relay load before selecting the flexible cable.
