1492-IFM40F-FS-2

/ 4.9
1001 reviews | Need a Specific Revision?

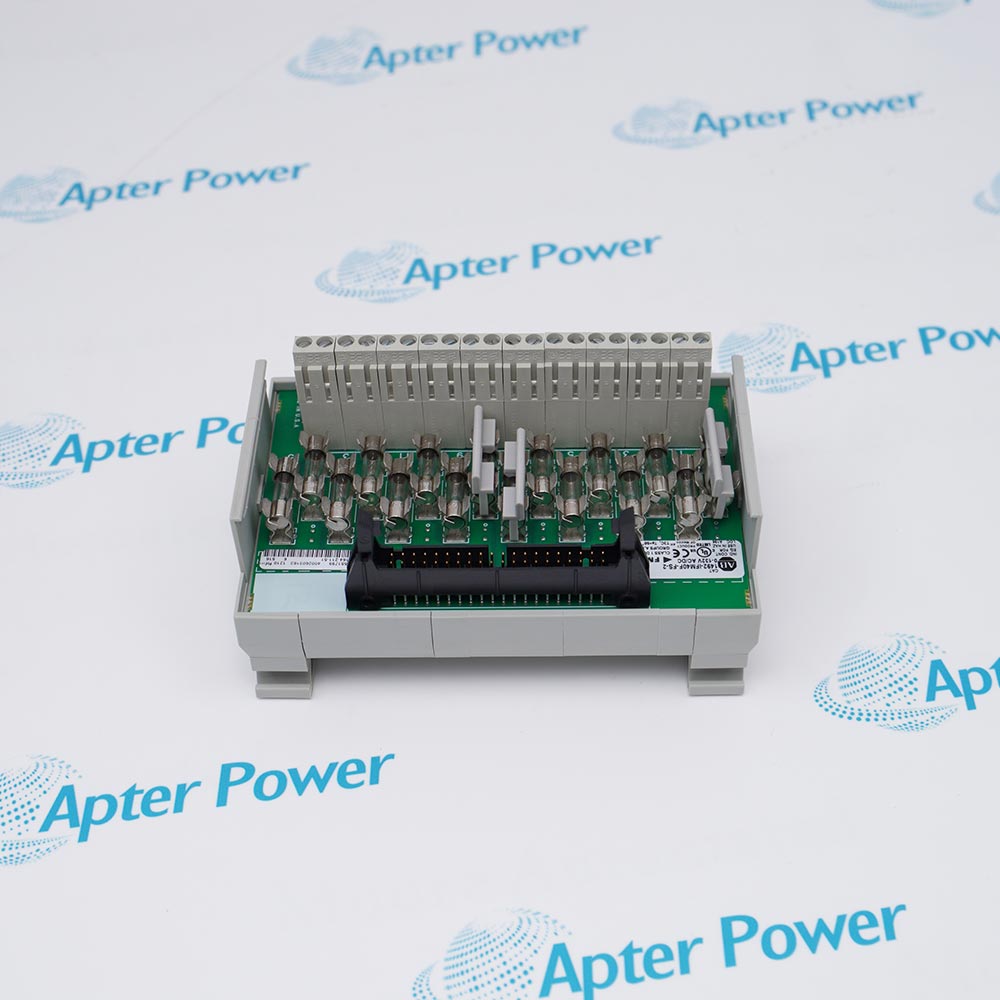

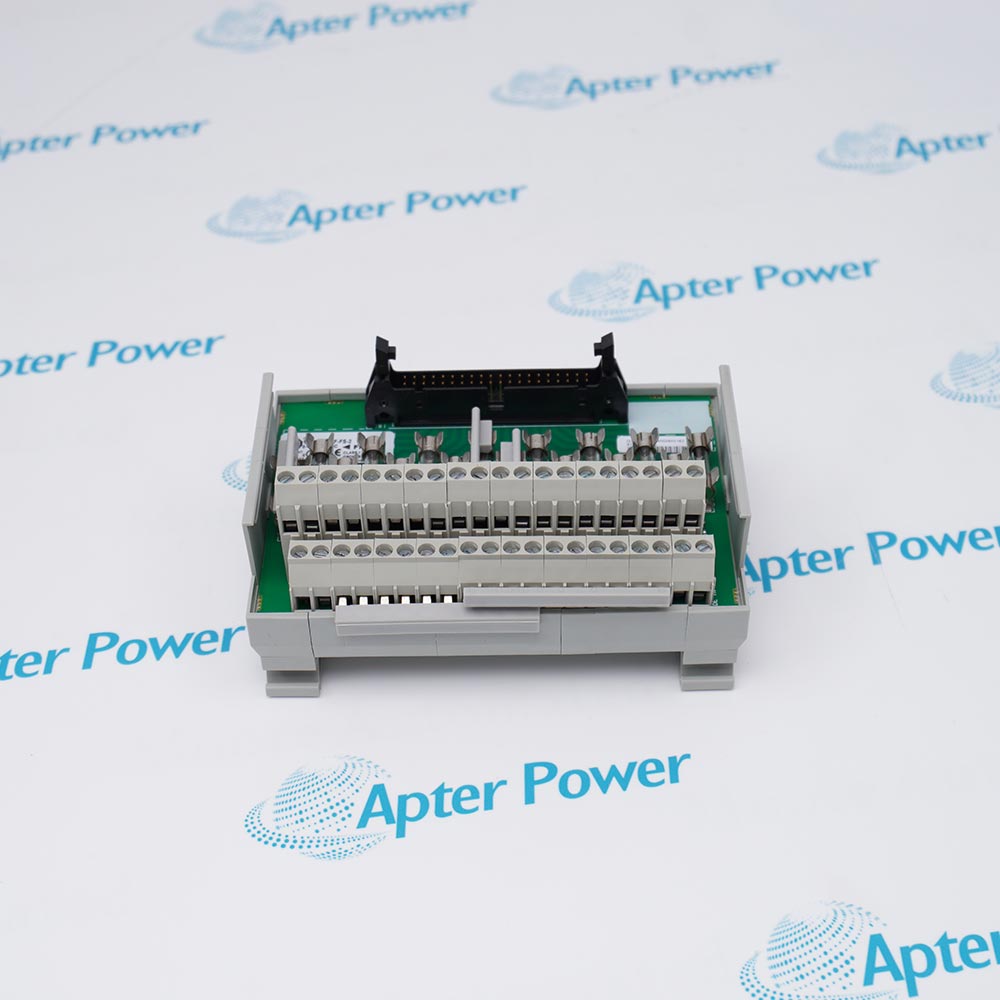

Allen-Bradley 1492-IFM40F-FS-2 is a 40-point isolated fusible digital interface module designed to manage field wiring with integrated fuse protection and isolated terminal groups.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1492-IFM40F-FS-2
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1492-IFM40F-FS-2

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1492-IFM40F-FS-2
  • Product Family:
    1492 WIRING SYSTEMS
  • Product Type:
    Digital Interface Module
  • Stock:
    1
  • Cable Connector Pin Type:
    40 Pins
  • Interface Module Style:
    Fusible
  • Terminal Features:
    Isolated Extra Terminals for Outputs
  • LED or Fuse Voltage:
    None
  • Field Side Terminals:
    Two per I/O Connection
  • Voltage Range:
    0…132V AC/DC
  • Max. Current (Per Circuit):
    2 A
  • Max. Current (Per Module):
    12 A
  • CE Certifications:
    Compliant for all applicable directives
  • Maximum Peak Transient Voltage:
    600V
  • Operating Temperature Range:
    0…+60°C
  • Operating Humidity:
    5% to 95% non-condensing
  • Storage Temperature Cables:
    -20…+80°C
  • Storage Temperature Modules:
    -40…+85°C
  • Pollution Degree:
    2
  • Weight:
    0.2 kg
  • Estimated shipping dimensions:
    12x8.5x6cm
  • Tariff Code:
    8512100000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Protection Configuration Use Cases

Features:

  • 40-point isolated fusible interface structure with 16 grouped fuse sections for flexible power referencing.
  • Supports 0–132V AC/DC operation with 2A per circuit and 12A total module current handling.
  • Integrated 5 x 20 mm fuse clips provide individual circuit-level protection for field wiring safety.
Allen-Bradley 1492-IFM40F-FS-2 is widely used in industrial automation panels where structured digital I/O distribution is required. The module provides a reliable way to organize wiring between field devices and control systems while maintaining circuit-level protection. Its fusible design allows each output to be independently safeguarded, reducing risks in high-density wiring environments.

In control system installations, Allen-Bradley 1492-IFM40F-FS-2 supports flexible integration of multiple output devices through isolated terminal groups. This allows engineers to connect different power sources without affecting other circuits, which is particularly useful in mixed-voltage applications. The structured layout also simplifies troubleshooting and maintenance activities.

Allen-Bradley 1492-IFM40F-FS-2 is commonly applied in manufacturing automation, process control systems, and distributed I/O architectures. Its durable operating range and high transient voltage resistance make it suitable for industrial environments where electrical noise and load variation are common challenges.

The 1492-IFM40F-FS-2 Allen-Bradley Digital Interface Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1492-IFM40F-FS-2 Digital Interface Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Allen-Bradley 1492-IFM40F-FS-2 Digital Interface Module Specs

General

  • Manufacturer Allen-Bradley
  • Model 1492-IFM40F-FS-2
  • Condition New Original ready stock
  • Product Family 1492-IFM40F-FS24-2,1492-IFM40F-FS24-4,1492-IFM40F-FS-4
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Fuse Circuit: Provides independent circuit fuse.
  • Transient Suppression: Blocks pulses up to 600V.
  • Electrical Isolation: Reduces crosstalk between circuits.
  • Overcurrent Protection: Limits single-circuit current to 2A.
  • Pin Alignment: Connects to 40-pin multi-core cables.
  • Terminal Securement: Screws secure wires.
  • Common Termination: Distributes additional output circuits.
  • DIN Rail Mounting: Quick-mount via standard DIN rail.
  • Valve Island Actuation: Controls centralized solenoid valves.
  • High-Power Pumps: Triggers relay groups.
  • High-Density Output: Aggregates high-number switching signals.
  • Outdoor Instrumentation: Isolates outdoor overload risks.
Description
Allen-Bradley 1492-IFM40F-FS-2 is a 40-point isolated fusible digital interface module that provides structured field-side connectivity for industrial control systems. It is equipped with 40-pin cable connector compatibility and supports a voltage range of 0 to 132V AC/DC, making it suitable for a wide variety of control environments. The module is designed with fusible architecture using 5 x 20 mm fuse clips, ensuring each output circuit can be individually protected.

Allen-Bradley 1492-IFM40F-FS-2 features isolated terminal groups that divide fuse holders into 16 separate sections. This configuration allows each output device to reference different power sources, improving wiring flexibility and system adaptability. The field-side terminals include two connection points per I/O channel, supporting organized and efficient wiring layouts in complex automation panels.

Allen-Bradley 1492-IFM40F-FS-2 operates with a maximum current rating of 2A per circuit and 12A per module, ensuring reliable performance under distributed load conditions. With a maximum peak transient voltage rating of 600V, it provides strong protection against electrical disturbances. The module is compliant with CE directives and supports pollution degree 2 environments, ensuring stable operation in industrial installations.

Allen-Bradley 1492-IFM40F-FS-2 is engineered for operating conditions ranging from 0 to +60°C and humidity levels of 5% to 95% non-condensing. It includes extra isolated terminals for outputs and does not rely on LED or fuse voltage indicators, maintaining a simplified and robust structure. This design makes Allen-Bradley 1492-IFM40F-FS-2 suitable for demanding automation systems requiring reliable signal distribution and protective wiring integration.
Alternative Names
1492-1FM40F-FS-2 I492-IFM40F-FS-2 I492IFM40FFS2 14921FM40FFS2 1492-IFM40F-F120-2 1492-IFM40F-F24AD-4 1492-IFM40F-FS24-2 1492-IFM40F-FS24-4
Technical notes
Optimized for voltage-flexible designs, the Allen-Bradley 1492-IFM40F-FS-2 provides heavy-duty circuit protection across a wide 0…132V AC/DC range via 40 isolated terminals free of LED loading restrictions.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does Allen-Bradley 1492-IFM40F-FS-2 improve circuit protection?
The module integrates 5 x 20 mm fuse clips, allowing each output circuit within Allen-Bradley 1492-IFM40F-FS-2 to be individually protected against overload conditions.
Can Allen-Bradley 1492-IFM40F-FS-2 handle different power sources?
Yes, isolated terminal groups in Allen-Bradley 1492-IFM40F-FS-2 allow each output section to reference separate power supplies for flexible wiring design.
What is the current limitation of Allen-Bradley 1492-IFM40F-FS-2?
Each circuit in Allen-Bradley 1492-IFM40F-FS-2 supports up to 2A, while the total module capacity reaches 12A for overall load distribution.
Does Allen-Bradley 1492-IFM40F-FS-2 include fuse monitoring features?
Allen-Bradley 1492-IFM40F-FS-2 does not include LED or fuse voltage indication, maintaining a simplified mechanical fuse-based protection structure.
