5069-L380ERM

/ 4.9
1001 reviews | Need a Specific Revision?

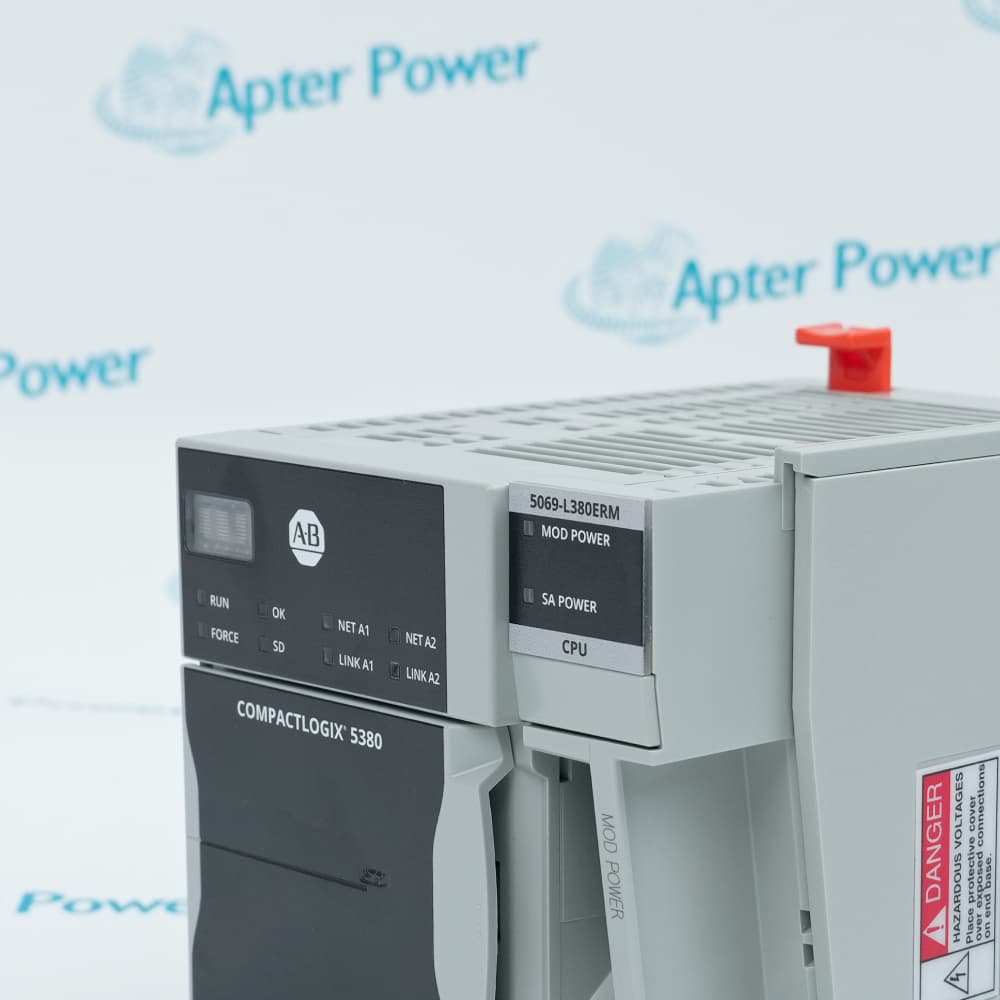

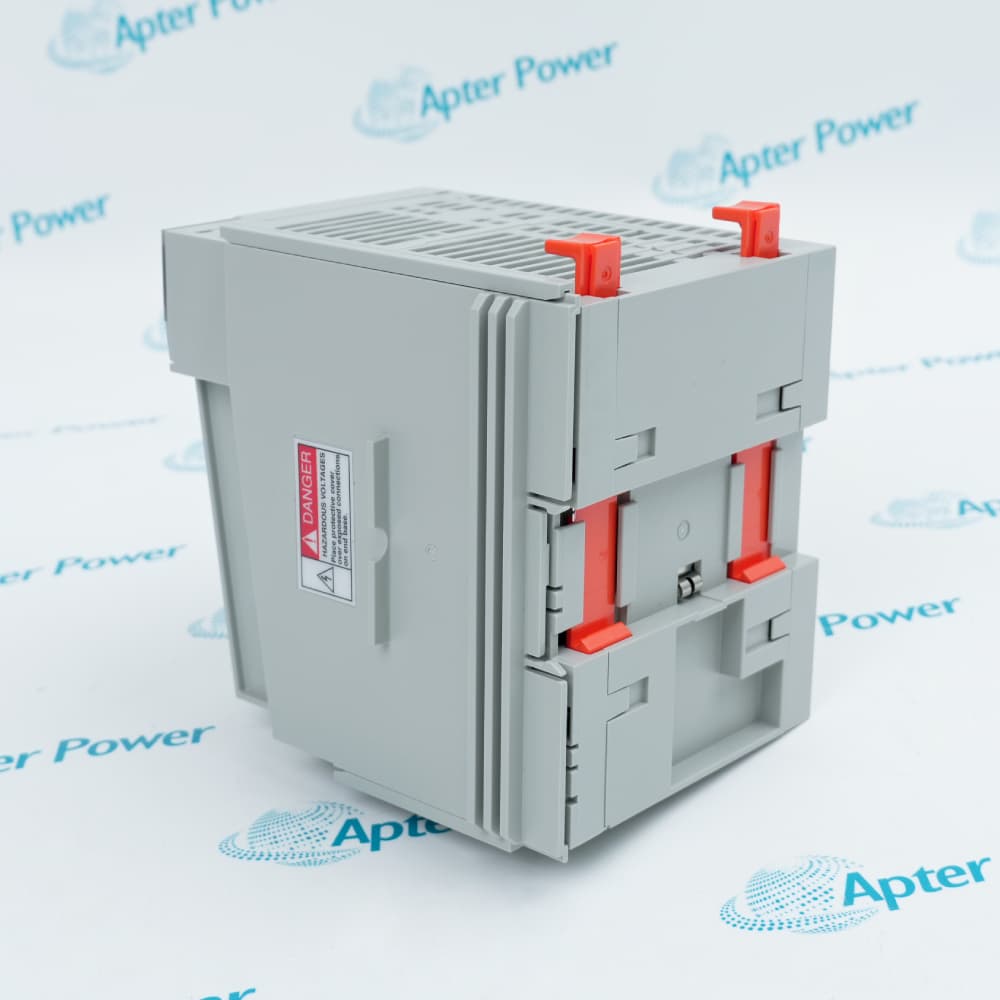

Allen-Bradley 5069-L380ERM is a CompactLogix 5380 controller with 8 MB memory, 150 EtherNet/IP nodes, 31 Compact 5000 I/O modules, and 28-axis motion.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 5069-L380ERM
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 5069-L380ERM

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    5069-L380ERM
  • Product Family:
    CompactLogix 5069
  • Product Type:
    CompactLogix 5380 Controller
  • Stock:
    1
  • User Memory:
    8 MB
  • Local I/O Capacity:
    31 Compact 5000 I/O modules
  • EtherNet/IP Node Limit:
    150
  • Integrated Motion:
    Up to 28 axes
  • Built-in Communication:
    2 Ethernet ports and 1 USB port
  • MOD Power Bus Max Current:
    10 A continuous @ 18...32V DC
  • SA Power Bus Max Current:
    10 A continuous (DC voltage)
  • Programming Software:
    Studio 5000 Logix Designer (Version 28+)
  • Weight:
    1.693 lbs (0.768 kg)
  • Estimated shipping dimensions:
    143.97 x 98.10 x 136.81 mm (H x W x D)
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Singapore
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications 28-Axis Motion 150-Device Capacity 8 MB Memory

Features:

  • 8 MB controller memory
  • 31 Compact 5000 I/O modules maximum local expansion
  • Up to 150 EtherNet/IP nodes; up to 28 integrated motion axes
The current ordering configuration is 5069-L380ERM, a compactlogix 5380 controller with 8 MB memory and 31 compact 5000 i/o modules.

It supports Compact 5000 I/O expansion, two embedded Ethernet ports, and an official EtherNet/IP node limit of 150.

Before installation, verify firmware, Studio 5000 project support, power, I/O layout, network mode, and the exact 5069-L380ERM motion capability.

Availability for 5069-L380ERM is subject to Apter Power stock and sourcing confirmation.

Verified resources for Allen-Bradley 5069-L380ERM:

Allen-Bradley 5069-L380ERM Controller Specifications

General

  • ManufacturerAllen-Bradley
  • Model5069-L380ERM
  • ConditionNew and factory sealed
  • Product FamilyCompactLogix 5380 Controllers
  • EtherNet/IP devices: up to 150
  • Port mode: Dual-IP or Linear/DLR
  • Link speed: 10, 100, or 1000 Mbps full duplex
  • Local modules: 31 Compact 5000 I/O modules
  • Platform: Compact 5000 I/O
  • Mounting: horizontal DIN rail
  • Integrated motion: up to 28 position-loop drive axes
  • User memory: 8 MB
  • Commissioning: select port mode before assigning addresses
Description
Allen-Bradley 5069-L380ERM is a compactlogix 5380 controller with 8 MB memory, 31 compact 5000 i/o modules, and support for up to 150 EtherNet/IP nodes.

The controller uses two embedded Ethernet ports and supports the documented CompactLogix network modes and local I/O platform for this catalog family.

For motion applications, confirm the exact 28-axis capacity, project firmware, drive profiles, network loading, power design, and compatible local I/O before commissioning.
Revisions

Revision Part #

Also known as

5069-L380ERM Ser A
5069-L380ERM/A, Series A, Rev A
Alternative Names
Allen-Bradley 5069-L380ERM Rockwell Automation 5069-L380ERM 5069L380ERM 5069 L380ERM CompactLogix 5069-L380ERM 5069-L380ERM controller 5069-L380ERM PLC AB 5069-L380ERM
Technical notes
5069-L380ERM provides 8 MB memory, 31 compact 5000 i/o modules, and a 150-node EtherNet/IP limit. Confirm the exact project and hardware match before ordering.
