    Procure factory-fresh Allen-Bradley safety controllers from Apter Power to achieve high-integrity control, simplified network architecture, and absolute operational peace of mind.

1769-L36ERMS

/ 4.9
1001 reviews | Need a Specific Revision?

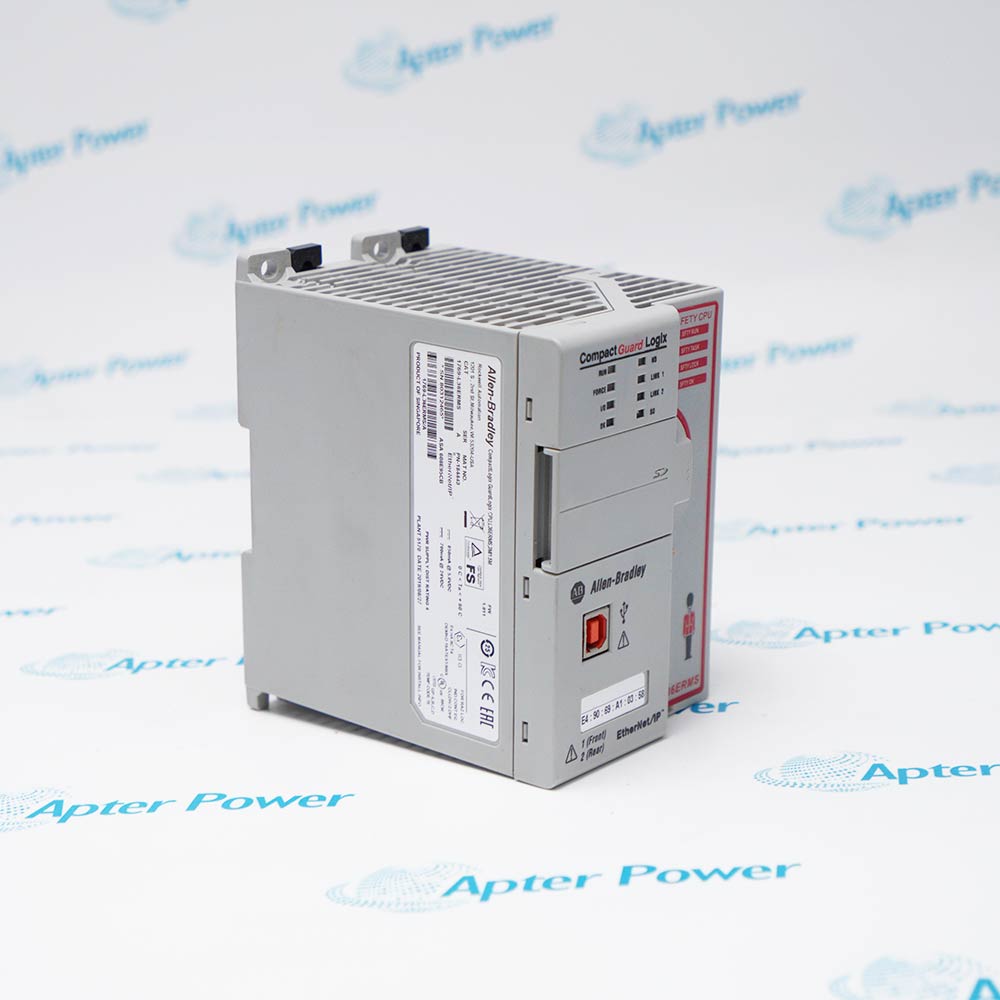

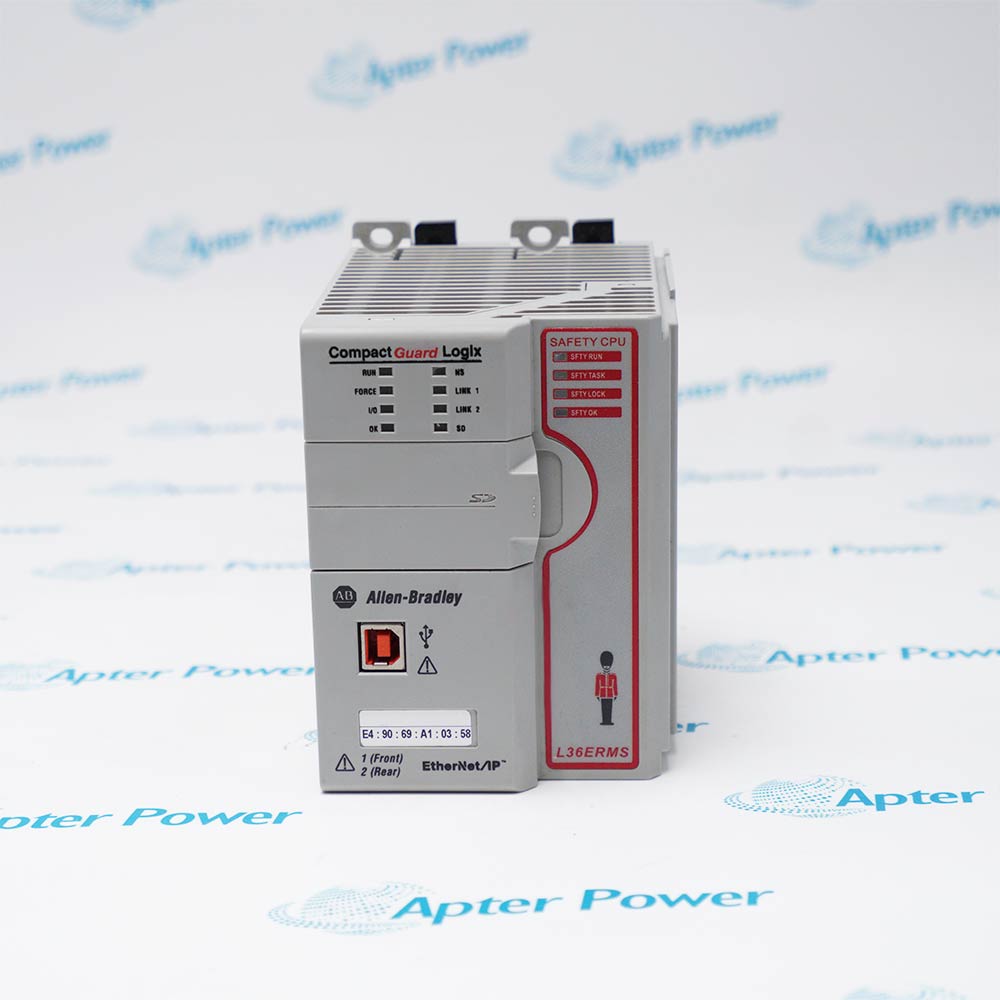

The 1769-L36ERMS is an Allen-Bradley Compact GuardLogix controller belonging to the 5370 GuardLogix controller platform. This controller is capable of performing the standard capabilities of a Programmable Automation Controller (PAC) while also supporting the implementation of motion control over EtherNet/IP and integrated safety.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1769-L36ERMS
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1769-L36ERMS

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1769-L36ERMS
  • Product Family:
    CompactLogix
  • Product Type:
    Controller Module
  • Stock:
    1
  • User Memory:
    3 MB Standard; 1.5 Safety
  • Communication ports:
    Two (2) Ethernet I/P; One (1) USB
  • Maximum number of I/O modules supported:
    30 Modules
  • No. of Axes:
    16
  • Internal Energy Storage:
    Yes
  • Controller Tasks supported:
    32 Tasks
  • Programs supported:
    100 per task
  • Safety Certifications:
    Safety Integrity Level 3 (SIL 3); Performance Level (PL)e
  • Controller Tasks:
    32
  • Programs/task:
    1000
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    5.6x10.4x13cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications System Compatibility Operating Environment

Features:

  • Interface Between the Integrated Safety System and Compact GuardLogix Rack Backplane
  • Combines Capability of Standard PAC Control with Integrated Safety and Motion Functions
  • Operates in Conjunction with the CompactLogix I/O Modules and GuardLogix Safety Devices
The Allen-Bradley 1769-L36ERMS operates as the Compact GuardLogix Controller in a 5370 platform rack, providing reliable integrated control and safety functions to all modules within the system. It continuously processes standard automation tasks while simultaneously executing safety functions up to SIL 3 and PL e certifications, and distributes control commands through the rack backplane to support steady state operation of all monitors and modules. Seamless safety integration is standard with the 1769-L36ERMS, however using an optional Redundant Safety Configuration will allow seamless switchover to a backup safety routine in the event of a primary safety system failure. The 1769-L36ERMS has made improvements in several areas over previous controller designs in addition to incorporating universal Ethernet I/P connectivity and motion control capability within the Compact GuardLogix rack.

The 1769-L36ERMS provides essential control functions common to the entire rack, and is a critical component of the safety monitoring path, directly affecting the proper, normal operation of the overall safety and control system. One 1769-L36ERMS controller is required per rack depending on the desired control and safety integration level. The 1769-L36ERMS occupies the central controller position in the rack and is always located in the dedicated controller slot.

For Dual Ethernet Communication applications, the 1769-L36ERMS System requires the built-in dual Ethernet ports supporting DLR, Linear, and Star topologies. In addition to standard single network operation, the redundant communication configuration also performs automatic network failover. The 1769-L36ERMS dual Ethernet configuration executes failover using the internal circuitry specified in the controller communication options.

The 1769-L36ERMS Allen-Bradley Controller Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1769-L36ERMS Controller Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Allen-Bradley 1769-L36ERMS Controller Module Specs

General

  • Manufacturer Allen-Bradley
  • Model 1769-L36ERMS
  • Condition New Original ready stock
  • Product Family 1769-L30ERMS,1769-L33ERMS
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Automotive Assembly: Controls advanced robotic cells and welding stations.
  • Packaging Lines: Manages high-speed sorting and light curtain networks.
  • Food & Beverage: Regulates mixing systems and interlocking safety gates.
  • Material Handling: Coordinates conveyor synchronization and safety mats.
  • Amusement Rides: Runs multi-axis motion paired with fail-safe braking.
  • Local Expansion: Supports up to 30 local 1769 modules.
  • I/O Banks: Spans up to 3 individual expansion banks.
  • Ethernet Capacity: Dual ports supporting up to 48 network nodes.
  • Network Topology: Device Level Ring (DLR), linear, and star.
  • Software Tool: Rockwell Automation Studio 5000 Logix Designer.
  • Safety Network: Built-in native CIP Safety communication protocol.
  • Local Interface: Integrated USB Client port for direct configuration.
  • Operating Temp: 0 °C to 60 °C (32 °F to 140 °F).
  • Storage Temp: -40 °C to 85 °C (-40 °F to 185 °F).
  • Relative Humidity: 5% to 95% non-condensing.
  • Vibration Limits: 5 g resistance at 10 to 500 Hz.
  • Operating Shock: Rated for impacts up to 30 g.
  • Enclosure Type: Open-type; requires an IP54-rated industrial cabinet.
Description
The 1769-L36ERMS is an Allen-Bradley Compact GuardLogix controller of the 5370 GuardLogix controller platform. This controller is capable of performing the standard capabilities of a Programmable Automation Controller (PAC) while also supporting implementation of motion control over Ethernet I/P and integrated safety. This controller is suitable for use in applications requiring safety certifications of Safety Integrity Level (SIL) 3 and Performance Level (PL)e. This controller is specifically designed for handling complex automation tasks in environments where both standard control and safety functions must coexist seamlessly, making it ideal for industries such as automotive manufacturing, food and beverage processing, pharmaceutical production, and material handling systems where operator safety and process reliability are paramount.

This 1769-L36ERMS controller comes with an on-board 3MB standard memory and 1.5MB safety memory. This integrated memory may be expanded with the use of Secure Digital (SD) cards such as 1784-SD1 with 1GB non-volatile memory and 1784-SD2 with 2GB non-volatile memory. Aside from memory expansion, the SD card may also be used to configure the controller's IP address. The 1769-L36ERMS provides sufficient memory capacity for storing extensive application code and safety programs, ensuring that even large-scale automation projects can be managed efficiently without memory constraints.

The 1769-L36ERMS also has built-in communication interfaces such as dual Ethernet communication ports, supporting transmission speeds of 10/100 Mbps and Linear, Star, and Device Level Ring (DLR) topologies. It uses commercially available Cat5 cable or higher specification, depending on the installation area of the controller and the network. Similar to standard controllers, this Compact GuardLogix controller is capable of communicating with Human Machine Interfaces (HMI), and other controllers connected in the same network for messaging purposes. The dual Ethernet ports enable the 1769-L36ERMS to establish robust network architectures that can withstand single-point failures, which is critical in continuous manufacturing processes where downtime can result in significant production losses.
Revisions

Revision Part #

Also known as

1769-L36ERMS Ser A
1769-L36ERMS/A, Series A, Rev A
Alternative Names
1769L36ERMS I769-L36ERMS I769L36ERMS 1769-L30ERMS 1769-L33ERMS 1769-L33ERMSK 1769-L37ERMS 1769-L38ERMS
Technical notes
The 1769-L36ERMS Controller by Allen-Bradley operates with a 3 MB + 1.5 MB safety User Memory and 48 Network Nodes. It has 32 Controller Tasks and 1000 Programs/task.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does the 1769-L36ERMS improve safety system design?
The 1769-L36ERMS eliminates the need for separate safety controllers, safety relays, and independent communication networks. By integrating safety and standard control into one controller, it reduces wiring complexity, lowers installation costs, saves panel space, and simplifies maintenance throughout the system lifecycle.
Which industries commonly use the 1769-L36ERMS controller?
The 1769-L36ERMS is widely used in industries where both productivity and personnel safety are critical. Typical applications include automotive assembly lines, packaging machinery, material handling systems, food and beverage production equipment, and other automated manufacturing environments requiring reliable motion and safety control.
Is the 1769-L36ERMS compatible with HMI and other control devices?
Yes. The controller communicates easily with Human Machine Interfaces (HMIs), distributed I/O devices, and other controllers using standard Ethernet infrastructure. It supports commercially available Cat5 or higher-rated Ethernet cables for reliable industrial communications.
