Allen-Bradley 1756-L61/B is a Series B ControlLogix 5561 controller with 2 MB of data and logic memory.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1756-L61/B
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1756-L61/B

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1756-L61/B
  • Product Family:
    ControlLogix
  • Product Type:
    ControlLogix 5561 2 MB Controller, Series B
  • Stock:
    1
  • Data and Logic Memory:
    2 MB
  • I/O Memory:
    478 KB
  • Nonvolatile Memory:
    Optional 1784-CF64 CompactFlash
  • Local Communication Port:
    RS-232
  • Current at 5.1 V DC:
    1.20 A
  • Current at 24 V DC:
    14 mA
  • Power Dissipation:
    3.5 W
  • Thermal Dissipation:
    11.9 BTU/h
  • Operating Temperature:
    0–60 °C
  • Storage Temperature:
    -40–85 °C
  • Relative Humidity:
    5–95%, non-condensing
  • Vibration:
    2 g at 10–500 Hz
  • Operating Shock:
    30 g
  • Nonoperating Shock:
    50 g
  • Enclosure Type:
    Open-style
  • Isolation Voltage:
    30 V continuous, RS-232-to-system
  • Serial Cables:
    1756-CP3 or 1747-CP3
  • Battery:
    1756-BA2
  • Minimum Firmware:
    13.40
  • Dimensions:
    3.5x14x14.5cm
  • Weight:
    0.35 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Project capacity Chassis placement Service preparation Application
  • Series B ControlLogix 5561 controller with 2 MB data and logic memory
  • 478 KB I/O memory with optional 1784-CF64 CompactFlash nonvolatile storage
  • ControlLogix chassis controller with RS-232 local communication and 1756-BA2 battery support

1756-L61/B is the Series B version of the Allen-Bradley ControlLogix 5561 controller.

The controller provides 2 MB of data and logic memory, 478 KB of I/O memory, an RS-232 port, and support for optional 1784-CF64 CompactFlash storage.

Before replacement, preserve the complete project and verify Series B hardware, firmware, memory use, battery condition, communication modules, I/O ownership, chassis power, and all controller connections.

Availability, condition, price, and shipping time for 1756-L61/B are confirmed during quotation.

Allen-Bradley 1756-L61/B ControlLogix Controller Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Provides 2 MB of data and logic memory
  • Provides 478 KB of dedicated I/O memory
  • Supports optional 1784-CF64 CompactFlash project storage
  • Allen-Bradley 1756-L61/B occupies one slot in a ControlLogix chassis
  • The controller must use the chassis slot assigned in the saved ControlLogix project
  • Confirm chassis power capacity and the positions of communication and I/O modules before startup
  • Back up the complete controller project before removing the unit
  • Inspect the 1756-BA2 battery and verify chassis power
  • Match the RS-232 cable, communication modules and I/O ownership
  • ControlLogix 5560 chassis-based control applications
  • Discrete, analog, motion and communication-system coordination
  • Series B replacement of a documented 1756-L61 controller
Description
1756-L61/B is the Series B Allen-Bradley ControlLogix 5561 controller with 2 MB of data and logic memory.

The chassis-based controller provides 478 KB of I/O memory, an RS-232 service interface, 1756-BA2 battery support and optional 1784-CF64 CompactFlash storage.

Before replacement, retain the controller project and verify Series B hardware, firmware, memory use, battery condition, chassis power, communication modules, I/O ownership and controller connections.
Revisions

Revision Part #

Also known as

1756-L61 Ser B
1756-L61/B, Series B, Rev B
Alternative Names
1756-L61/B 1756-L61 B 1756-L61B 1756-L61 Series B 1756-L61 Rev B Allen-Bradley 1756-L61/B AB 1756-L61/B ControlLogix 1756-L61/B
Technical notes
Allen-Bradley 1756-L61/B is the Series B 2 MB ControlLogix 5561 controller; verify firmware 13.40 or later, 1756-BA2 battery, memory use, RS-232 service, chassis, and complete project before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.

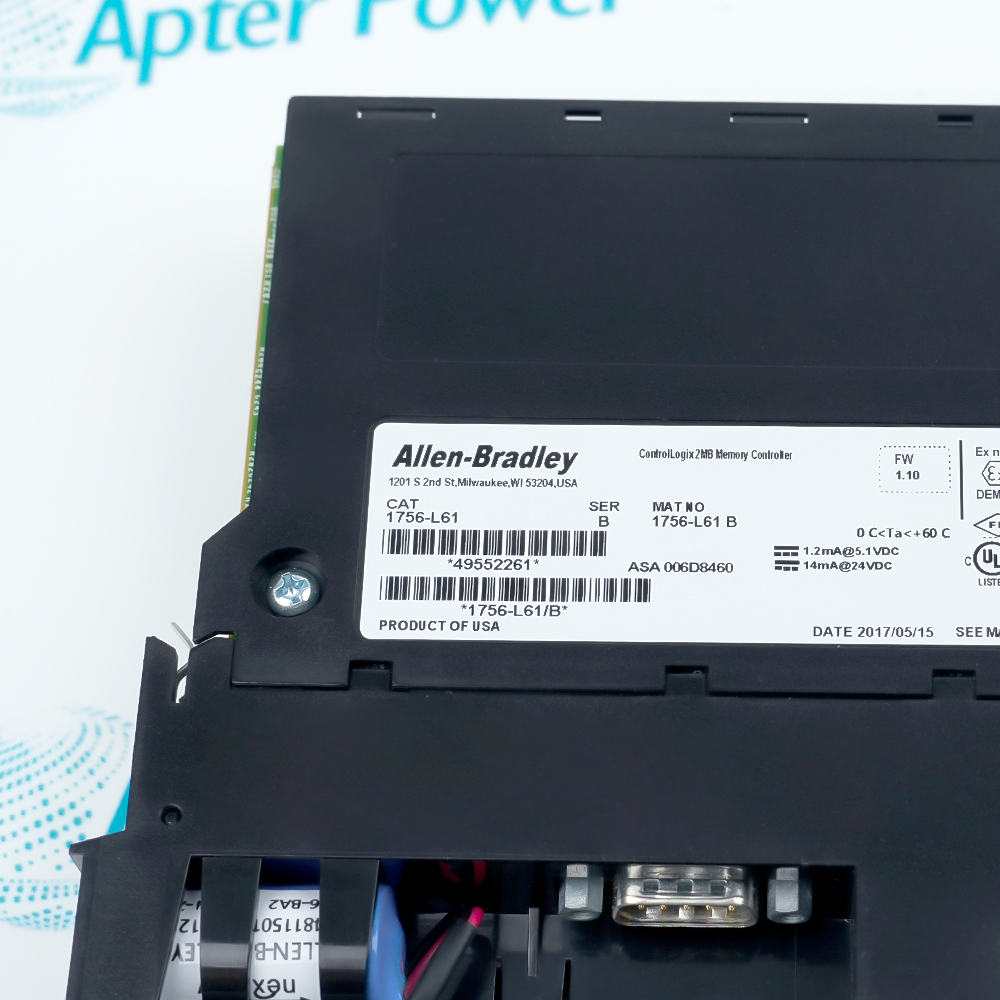

What label evidence should a buyer request for Allen-Bradley 1756-L61/B?
