        AB 1756-OA16I
        AB 1756-OA16I
        AB 1756-OA16I
        AB 1756-OA16I
        AB 1756-OA16I
        AB 1756-OA16I
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active

        1756-OA16I

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

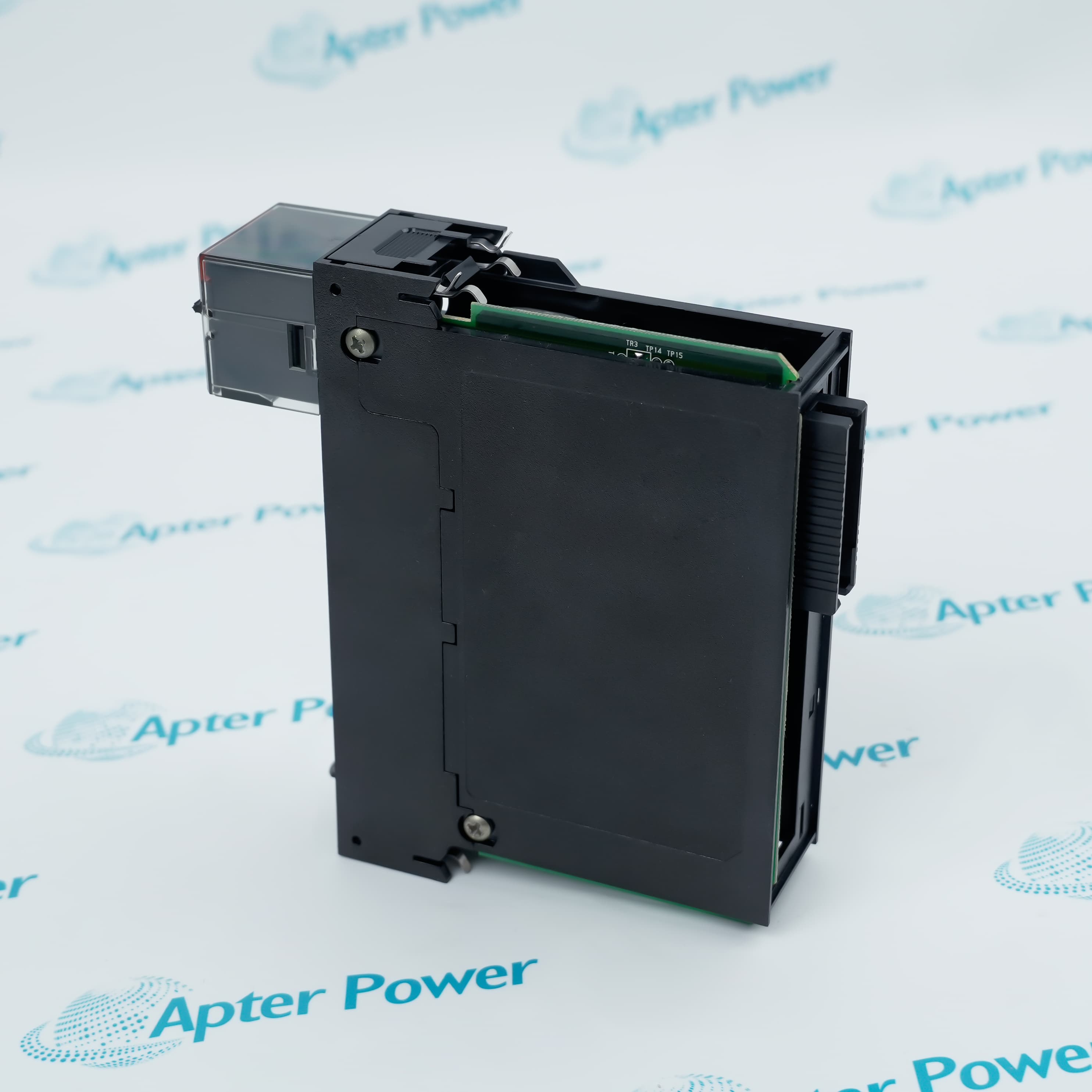

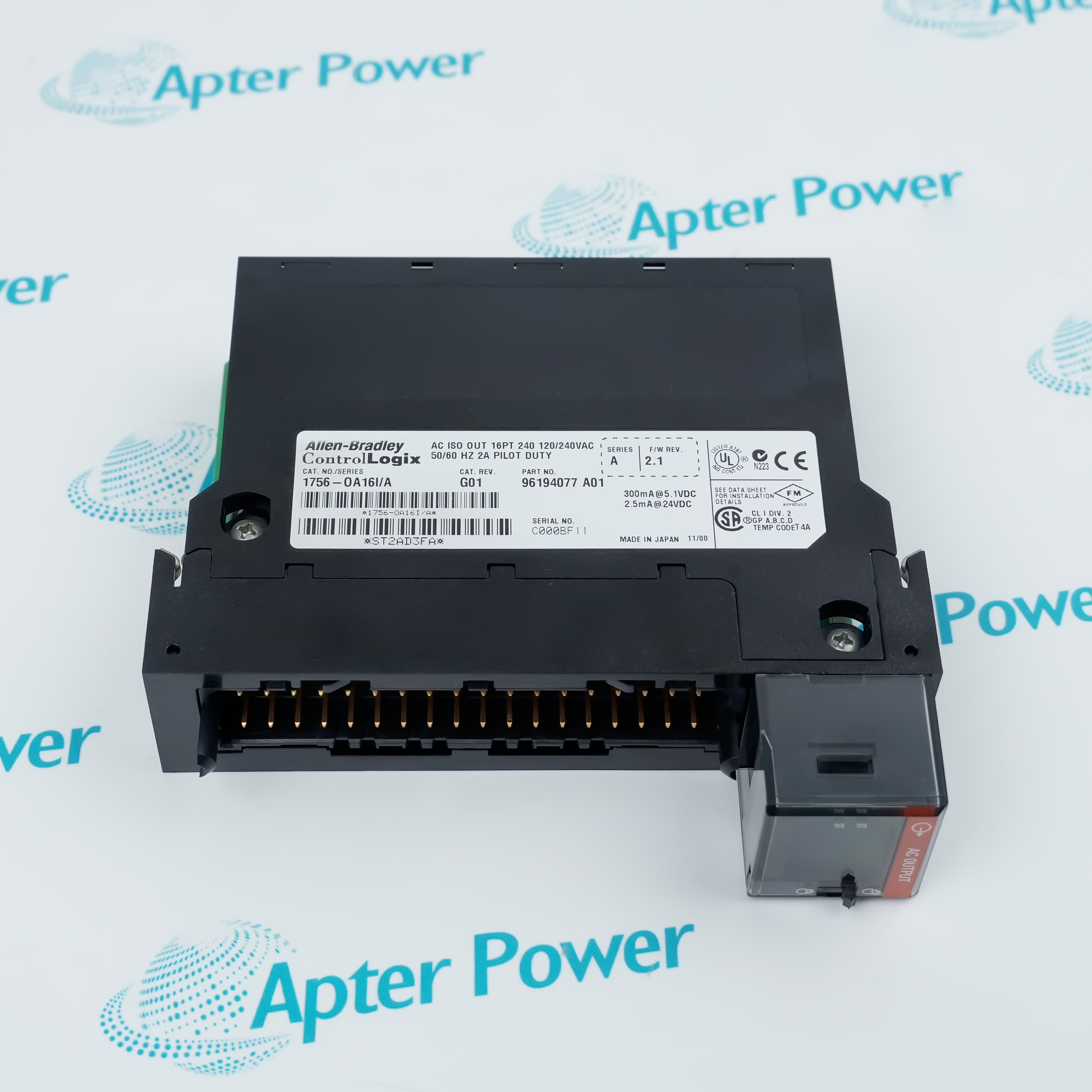

        Allen-Bradley 1756-OA16I is a ControlLogix sixteen-point isolated AC output module for switching compatible 74–265 V AC field loads.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for 1756-OA16I
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 1756-OA16I

        • Manufacturer:
          Allen-Bradley
        • Part Number:
          1756-OA16I
        • Product Family:
          ControlLogix
        • Product Type:
          ControlLogix 16-Point Isolated AC Digital Output Module
        • Stock:
          1
        • Output type:
          isolated AC digital output
        • Output points:
          16
        • Operating voltage:
          74–265 V AC
        • Output current:
          1 A per point
        • Output isolation:
          250 V continuous between outputs
        • Connector:
          36 pin
        • Firmware:
          3.003 listed on the official product page
        • Frequency range:
          47–63 Hz
        • Output delay, Off to On:
          9.3 ms at 60 Hz; 11 ms at 50 Hz
        • Output delay, On to Off:
          9.3 ms at 60 Hz; 11 ms at 50 Hz
        • Maximum current per point:
          2 A at 30 °C; linear derating to 1 A at 60 °C
        • Total backplane power:
          1.59 W
        • Maximum current per module:
          5 A at 30 °C; linear derating to 4 A at 60 °C
        • Minimum load current:
          10 mA per point
        • Maximum off-state leakage:
          3 mA per point
        • Backplane current at 5.1 V DC:
          300 mA
        • Backplane current at 24 V DC:
          2.5 mA
        • Dimensions:
          3.46 × 14.43 × 14.69 cm
        • Tariff Code:
          8473309000
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals AC Load Selection Scheduled Output Data Isolated Field Wiring Application
        • Provides sixteen individually isolated outputs for 74–265 V AC field circuits
        • Supports documented scheduled-output data referenced to controller system time
        • Requires a compatible 36-pin removable terminal block and AC load-duty review

        1756-OA16I is a ControlLogix isolated AC output module intended for independently wired 120 V or 240 V AC loads.

        Its channel isolation allows separate field connections, while scheduled-output operation depends on the selected module data format, controller ownership, and time synchronization.

        Confirm load current, inrush, inductive suppression, terminal-block selection, wiring, external protection, and scheduled-output configuration before commissioning.

        Availability, condition, price, and shipping time for 1756-OA16I are confirmed during quotation.

        Allen-Bradley 1756-OA16I 16-Point Individually Isolated AC Digital Output Module Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • Match every 1756-OA16I output to a 74–265 V AC, 47–63 Hz field load
        • Check steady-state current, inrush, minimum load, and inductive duty before connection
        • Apply external protection and suppression appropriate to the installed AC device
        • Select the documented scheduled-output data format only when the Logix application requires timed switching
        • Confirm controller ownership and Coordinated System Time synchronization before commissioning
        • Do not treat a scheduled command as confirmation that the external AC load actually changed state
        • Keep each isolated output and its field return consistent with the approved wiring drawing
        • Use the documented 36-pin removable terminal block and verify its keying and conductor torque
        • Inspect field power, fusing, grounding, and conductor identification before energizing
        • Individually isolated 120 V or 240 V AC solenoid and indicator circuits
        • AC contactor or starter interfaces whose steady-state and inrush duty fit the module limits
        • ControlLogix applications requiring scheduled switching of isolated AC outputs
        Description
        1756-OA16I is an Allen-Bradley ControlLogix 16-point individually isolated AC output module for 74–265 V AC, 47–63 Hz field circuits.

        Each output has an isolated field connection, and the module supports the documented scheduled-output data format for applications requiring controller-referenced output timing.

        Before installation, verify the Series A module, 36-pin removable terminal block, AC load and inrush duty, external protection, field wiring, scheduled-data configuration, and Coordinated System Time requirements.
        Revisions

        Revision Part #

        Also known as

        1756-OA16I Ser A
        1756-OA16I/A, Series A, Rev A
        Get Parts Quote
        Alternative Names
        1756-OA16I 1756 OA16I 1756OA16I Allen-Bradley 1756-OA16I Rockwell Automation 1756-OA16I ControlLogix 1756-OA16I
        Technical notes
        1756-OA16I Series A switches compatible isolated AC field loads; verify each output circuit, removable terminal block, protection, and ControlLogix output map before energizing equipment.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Can 1756-OA16I switch DC field loads?
        No. 1756-OA16I is specified as an AC output module. Select an output module that directly matches the actual field-load voltage and switching duty.
        Can 1756-OA16I replace a non-isolated ControlLogix output module without rewiring review?
        No. Confirm each circuit's AC load, protective device, terminal assignment, and controller configuration before replacement.
        Why can one 1756-OA16I output fail while the module remains online?
        Check the individual field circuit, load, wiring, protection, terminal connection, and commanded state; module communication status does not prove an external AC circuit is healthy.
        Does 1756-OA16I include the removable terminal block required for field wiring?
        Treat the removable terminal block as a separately verified item unless the supplied stock description expressly includes it.
        What must be checked before moving 1756-OA16I into an existing ControlLogix slot?
        Verify slot assignment, electronic keying, output mapping, load wiring, fuse/protection arrangement, and the accepted controller project.
        Can 1756-OA16I be used where a circuit needs diagnostic output feedback?
        Confirm that the application needs only the documented isolated AC output function. Do not assume diagnostic feedback features from a different module family.
        Why should 1756-OA16I field circuits be checked before restoring automatic operation?
        Incorrect AC load wiring or an unreviewed output map can energize the wrong field device. Verify each controlled circuit in a safe, guarded condition.
