1757-FIMRTP

/ 4.9
1001 reviews | Need a Specific Revision?

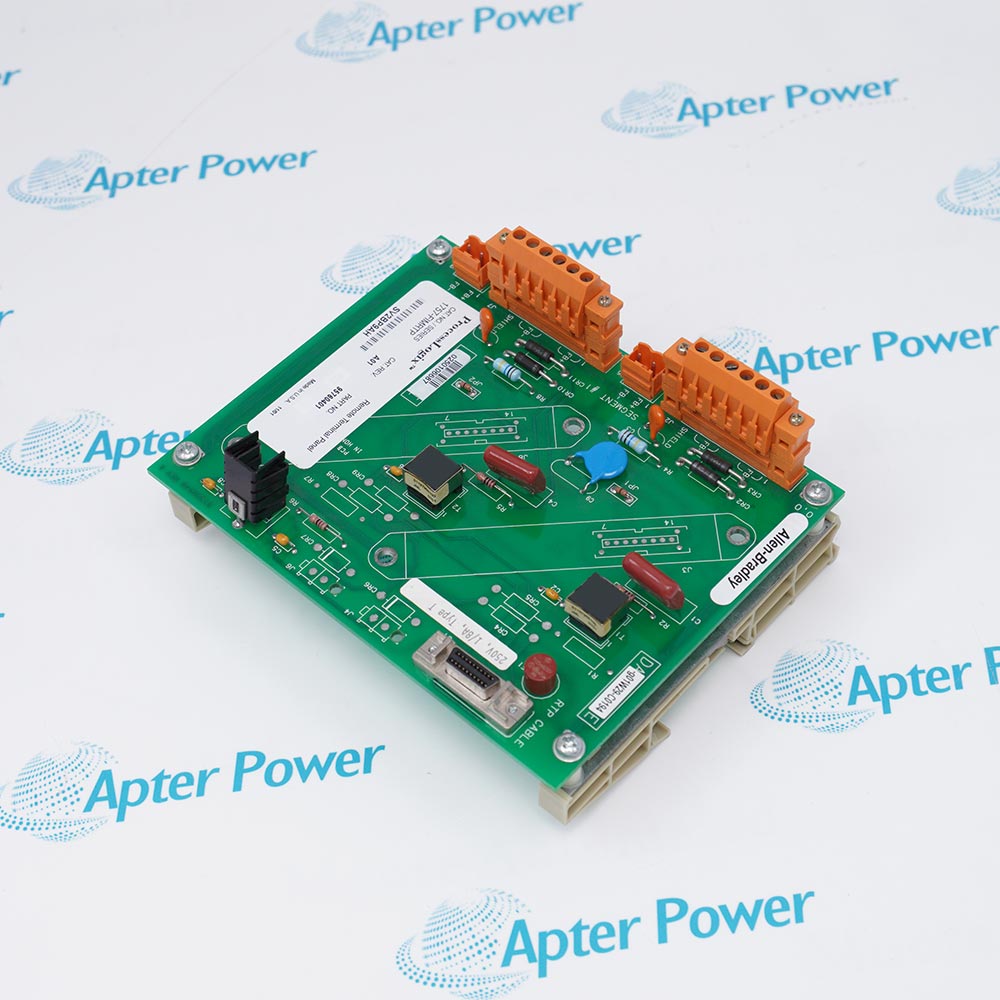

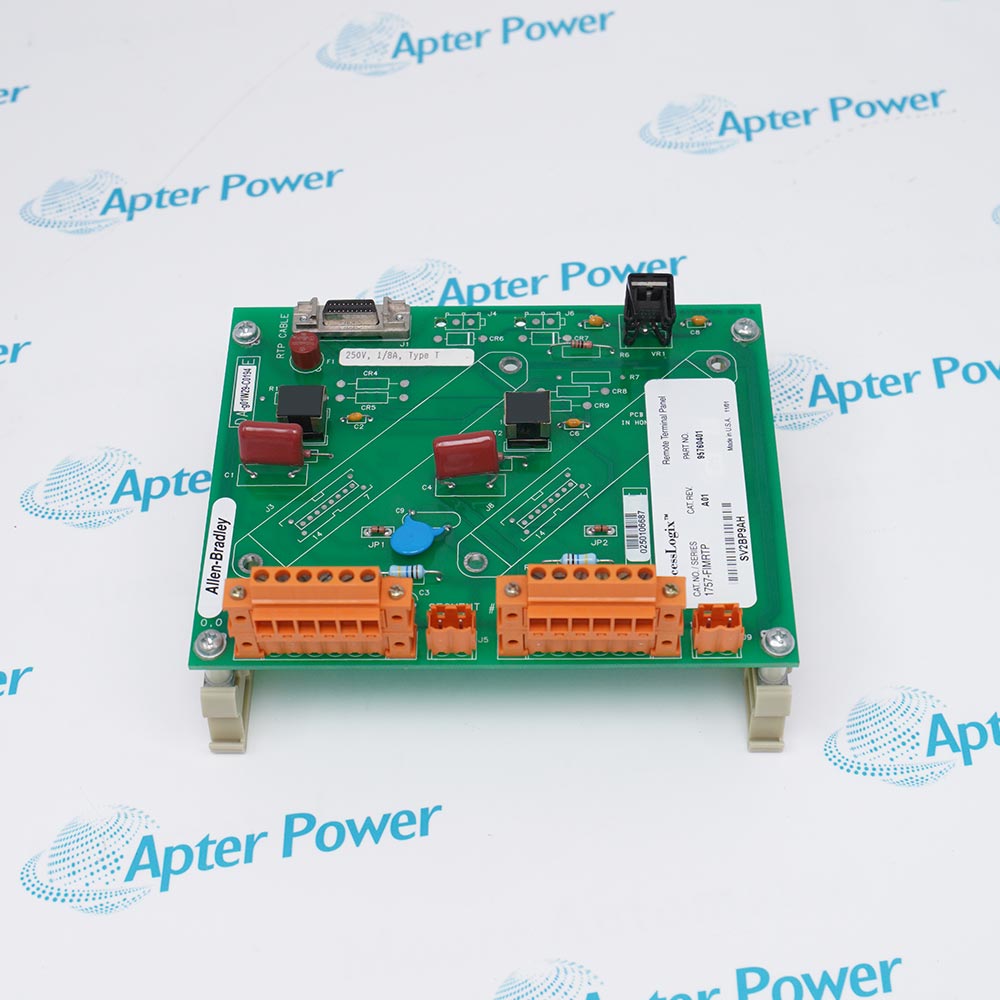

Allen-Bradley 1757-FIMRTP connects ProcessLogix field wiring to two H1 links through a compatible 1757-FIM module.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1757-FIMRTP
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1757-FIMRTP

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1757-FIMRTP
  • Product Family:
    ControlLogix
  • Product Type:
    ProcessLogix Remote Termination Panel
  • Stock:
    1
  • H1 Link Capacity:
    Up to 2 links
  • Mounting Method:
    DIN-rail mounting
  • Field Wiring Connections:
    Compression-type screw terminals
  • Module Connection:
    Dedicated interconnection cable to the associated 1757-FIM
  • Segment Power:
    Supplied by the engineered external fieldbus power system
  • Power Conditioning:
    External, according to the H1 segment design
  • Operating Temperature:
    0 to 60°C
  • Storage Temperature:
    −40 to 85°C
  • Relative Humidity:
    5% to 95%, non-condensing
  • Vibration:
    0.5 g at 10 to 500 Hz
  • Operating Shock:
    5 g
  • Nonoperating Shock:
    20 g
  • Enclosure Type:
    Open-style equipment requiring a suitable enclosure
  • Operating Altitude:
    −300 to 3000 m
  • Tariff Code:
    8536909000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Wiring Installation Segment Fit Application
  • Provides field-side connections for two H1 links associated with a compatible 1757-FIM
  • Mounts on DIN rail and connects to the chassis module through the dedicated cable
  • Relies on the engineered installation for segment power, conditioning, termination, and grounding

1757-FIMRTP is an Allen-Bradley ProcessLogix remote termination panel for a compatible 1757-FIM.

The panel brings two H1 links to field wiring terminals while the associated chassis module handles control-system communication and link functions.

Before replacement, document every terminal and verify the FIM connection, link assignments, segment power, conditioning, external terminators, shielding, grounding, and enclosure.

Availability, condition, price, and shipping time for 1757-FIMRTP are confirmed during quotation.

Allen-Bradley 1757-FIMRTP Remote Termination Panel Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Record terminal numbers, conductor colors, polarity, shields, and grounding before removal
  • Keep H1 wiring separated from incompatible power conductors and noise sources
  • Verify every field conductor against the approved segment drawing before energizing
  • Secure the panel to the approved DIN rail inside a suitable enclosure
  • Match the dedicated interconnection cable and connector orientation to the associated FIM
  • Confirm clearance, grounding, shielding, and terminal security before commissioning
  • Provide engineered external fieldbus power and power conditioning for each H1 link
  • Place external terminators according to the approved segment topology
  • Verify segment voltage and expected field devices before enabling the control strategy
  • ProcessLogix 1757-FIM installations requiring remote field-side H1 termination
  • Two-link FOUNDATION Fieldbus panels serving distributed process instruments
  • DIN-rail control enclosures separating chassis electronics from segment field wiring
Description
1757-FIMRTP is an Allen-Bradley ProcessLogix remote termination panel for the 1757-FIM Fieldbus Interface Module.

The DIN-rail-mounted panel provides the field-side connections for up to two H1 links and routes them to the associated 1757-FIM while relying on the engineered installation for fieldbus power, conditioning, and segment termination.

Before installation or replacement, confirm the associated 1757-FIM, interconnection cable, mounting location, H1 wiring and polarity, segment power capacity, power conditioning, terminator placement, grounding, and enclosure requirements.
Alternative Names
1757-FIMRTP 1757 FIMRTP 1757FIMRTP Allen-Bradley 1757-FIMRTP Rockwell Automation 1757-FIMRTP ProcessLogix 1757-FIMRTP 1757-FIMRTP Remote Termination Panel
Technical notes
1757-FIMRTP installation or replacement requires confirming the compatible 1757-FIM module, interconnection cable, H1 polarity, field power conditioning, terminators, shielding, and grounding; mismatches can prevent reliable fieldbus communication.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Allen-Bradley 1757-FIMRTP operate as a standalone FOUNDATION Fieldbus interface?
No. Allen-Bradley 1757-FIMRTP is the remote termination panel for a compatible 1757-FIM and does not replace the chassis module, host controller, or fieldbus engineering components.
Does Allen-Bradley 1757-FIMRTP supply the complete H1 segment power system?
No. The installation must provide the correctly engineered external fieldbus power, conditioning, protection, cable, grounding, and segment termination.
Which external components are required before Allen-Bradley 1757-FIMRTP can serve the H1 links?
Confirm the associated 1757-FIM, approved interconnection cable, user-supplied fieldbus power, power conditioning, segment terminators, shielded H1 cable, grounding provisions, and connected field devices.
How should Allen-Bradley 1757-FIMRTP be matched to an existing 1757-FIM installation?
Match the complete panel identifier, FIM connection, cable and connector arrangement, number of required H1 links, mounting method, field wiring, and existing segment architecture. Do not substitute another termination panel solely by appearance.
What field-wiring checks are most important when installing Allen-Bradley 1757-FIMRTP?
Verify H1 polarity, shield handling, grounding, segment-power capacity, power-conditioner placement, external terminators, cable routing, hazardous-area enclosure requirements, and separation from incompatible power wiring.
What information should be recorded before replacing Allen-Bradley 1757-FIMRTP?
Record both H1 link assignments, terminal numbers, conductor colors, polarity, shields, grounding points, segment power, external terminators, interconnection cable, and the associated FIM slot.
How should Allen-Bradley 1757-FIMRTP be checked after replacement?
Verify mechanical mounting, every terminal, polarity, shield and ground continuity, interconnection cable seating, segment voltage, expected field devices, and link communication before enabling the process strategy.
