    Rockwell Automation lists Allen-Bradley 1794-IB16 in the Active Mature lifecycle category.

1794-IB16

/ 4.9
1001 reviews | Need a Specific Revision?

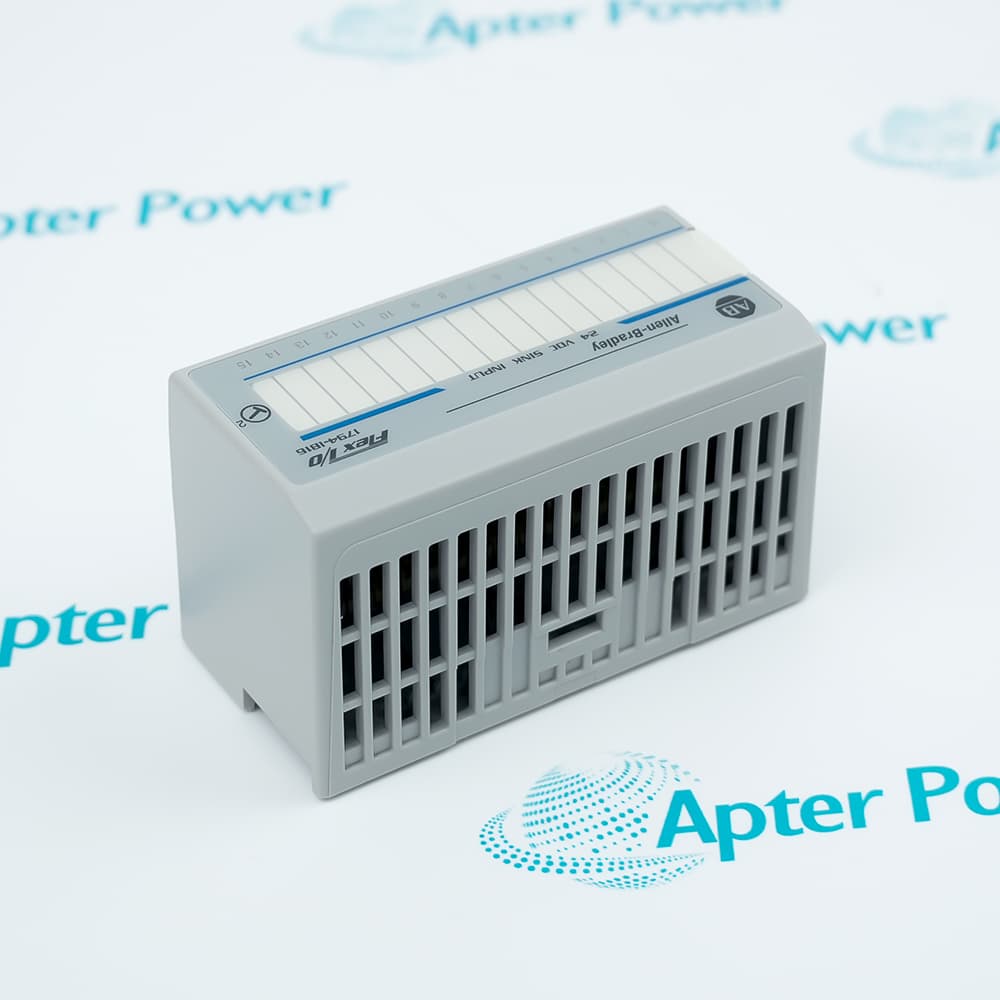

Allen-Bradley 1794-IB16 is a 16-point FLEX I/O 24 V DC sinking input module with configurable filtering and an input-15 counter.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1794-IB16
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1794-IB16

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1794-IB16
  • Product Family:
    Flex I/O
  • Product Type:
    FLEX I/O 16-Point Digital Input Module
  • Stock:
    1
  • Input points:
    16
  • Input type:
    24 V DC sinking
  • Input voltage range:
    10...31.2 V DC
  • On-state current:
    2 mA minimum; 8 mA nominal at 24 V DC; 12 mA maximum
  • Off-state voltage:
    5 V DC maximum
  • Off-state current:
    1.5 mA maximum
  • Input impedance:
    4.6 kΩ maximum
  • Counter-capable input:
    Input 15
  • FLEXBus current:
    30 mA at 5 V DC
  • Power dissipation:
    6.1 W maximum
  • Thermal dissipation:
    20.8 BTU/hr maximum
  • Operating temperature:
    0...55 °C
  • Compatible terminal bases:
    1794-TB3 / TB3S / TB3K / TB3SK / TBKD / TB37DS
  • Weight:
    0.074 kg
  • Tariff Code:
    8473309000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Diagnostics Filtering Integration Application

Features:

  • Sixteen sinking input points support distributed 24 V DC field-signal collection
  • Configurable input filtering adapts the module response to the installed signal behavior
  • Input 15 provides the documented counter function when the selected adapter supports it
1794-IB16 provides a compact FLEX I/O interface for grouping discrete machine states at a distributed station.

Its channel filtering and input-15 counter capability make the saved project configuration an important part of replacement planning.

Verify the adapter, terminal base, point mapping, input commons, field wiring, and Series A identification before commissioning.

Availability, condition, price, and shipping time for 1794-IB16 are confirmed during quotation.

Allen-Bradley 1794-IB16 FLEX I/O Digital Input Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Individual yellow indicators report the on-state of the sixteen input points
  • Field voltage, terminal-base commons, and module data should be compared during troubleshooting
  • Adapter status and controller slot mapping must be checked when indicators and project data disagree
  • Inputs 0...11 and inputs 12...15 use separate filter-setting bit groups.
  • Selectable input-filter times are 0.25 ms (default), 0.5 ms, 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, and 32 ms.
  • Write the selected filter value to the module output image table during system startup.
  • Set the terminal-base keyswitch to position 2 before installing the module.
  • Wire size and terminal screw torque are determined by the selected terminal base.
  • The open-style module is grounded through the DIN rail and must be installed in a suitable enclosure.
  • Monitor 24 V DC discrete sensors and machine-status contacts
  • Collect sixteen field-input states in distributed FLEX I/O installations
  • Use input 15 for the documented counter function with a compatible adapter
Description
Allen-Bradley 1794-IB16 is a FLEX I/O digital input module that provides sixteen sinking input points for 24 V DC field devices.

The module accepts 10...31.2 V DC input signals and has a nominal on-state current of 8 mA at 24 V DC. Its configurable input filtering supports different signal-response requirements, while input 15 provides the documented counter function when used with a compatible adapter.

Before installation or replacement, verify the Series A identification, a compatible 1794 terminal base, input commons, sensor wiring, filter configuration, adapter compatibility, slot assignment, and controller project mapping.
Revisions

Revision Part #

Also known as

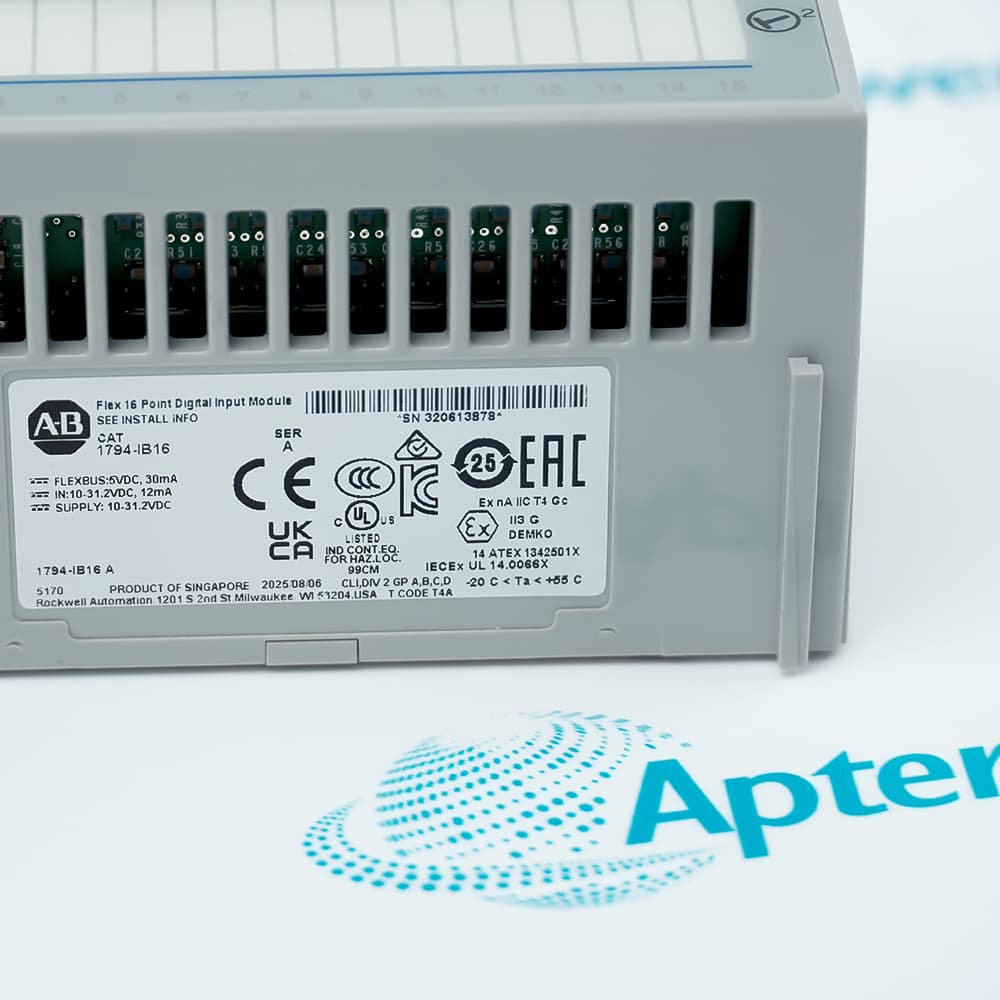

1794-IB16 Series A
1794-IB16/A, Series A
Alternative Names
1794-IB16 1794IB16 1794 IB16 Allen-Bradley 1794-IB16 Allen Bradley 1794-IB16 Rockwell Automation 1794-IB16 FLEX I/O 1794-IB16 1794-IB16 Series A
Technical notes
Input 15 has a documented counter function with adapter restrictions. Preserve the Series A profile, terminal-base wiring, filter settings, and controller mapping before service.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why can an input LED turn on while a controller does not receive data from Allen-Bradley 1794-IB16?
Verify the adapter connection, physical slot, module profile, controller ownership, terminal-base seating, and project mapping after confirming the field signal.
What installation environment is required for Allen-Bradley 1794-IB16?
The module is open-style equipment intended for a Pollution Degree 2 industrial environment and Overvoltage Category II applications at altitudes up to 2000 m without derating. Install it in a suitably designed enclosure.
Are the individual input channels of Allen-Bradley 1794-IB16 isolated from each other?
No. Rockwell Automation specifies field-side-to-system isolation for the module but no isolation between individual input channels.
Which terminal bases are documented for Allen-Bradley 1794-IB16?
Rockwell Automation recommends 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, and 1794-TB37DS. Confirm the installed base, keyswitch position, conductor arrangement, and field wiring before ordering.
Can Allen-Bradley 1794-IB16 be replaced without changing the controller project?
Not automatically. Match the catalog number, Series A hardware, adapter, slot profile, filtering, counter use, and controller configuration before reuse.
What should be checked if several Allen-Bradley 1794-IB16 inputs fail together?
Inspect the shared field supply, terminal-base commons, group wiring, module seating, and adapter status before treating multiple sensors as failed.
What information should accompany a quote request for Allen-Bradley 1794-IB16?
Provide the complete catalog number, Series A marking, terminal-base model, adapter catalog number, quantity, condition requirement, and clear label photos.
