1794-TB3

/ 4.9
1001 reviews | Need a Specific Revision?

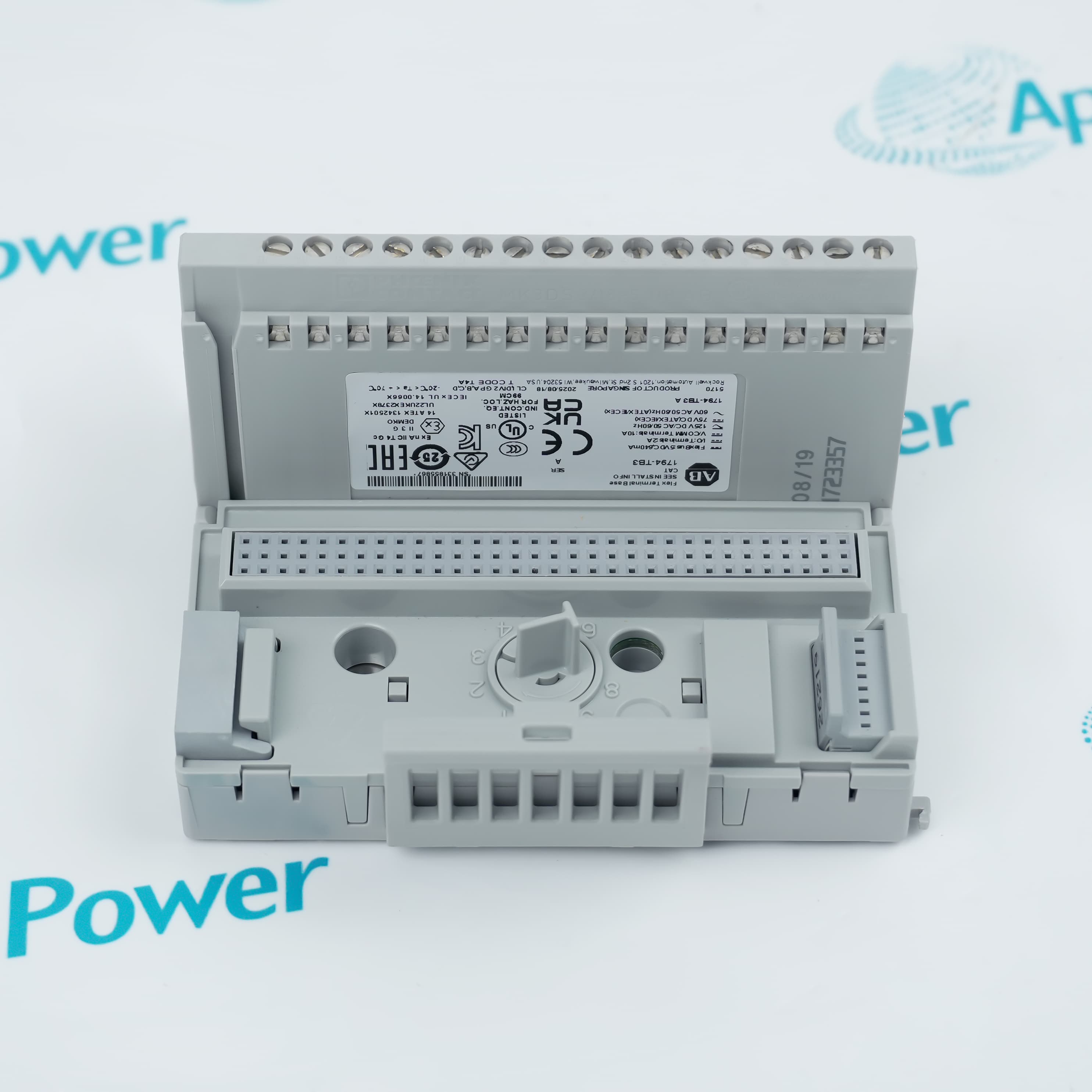

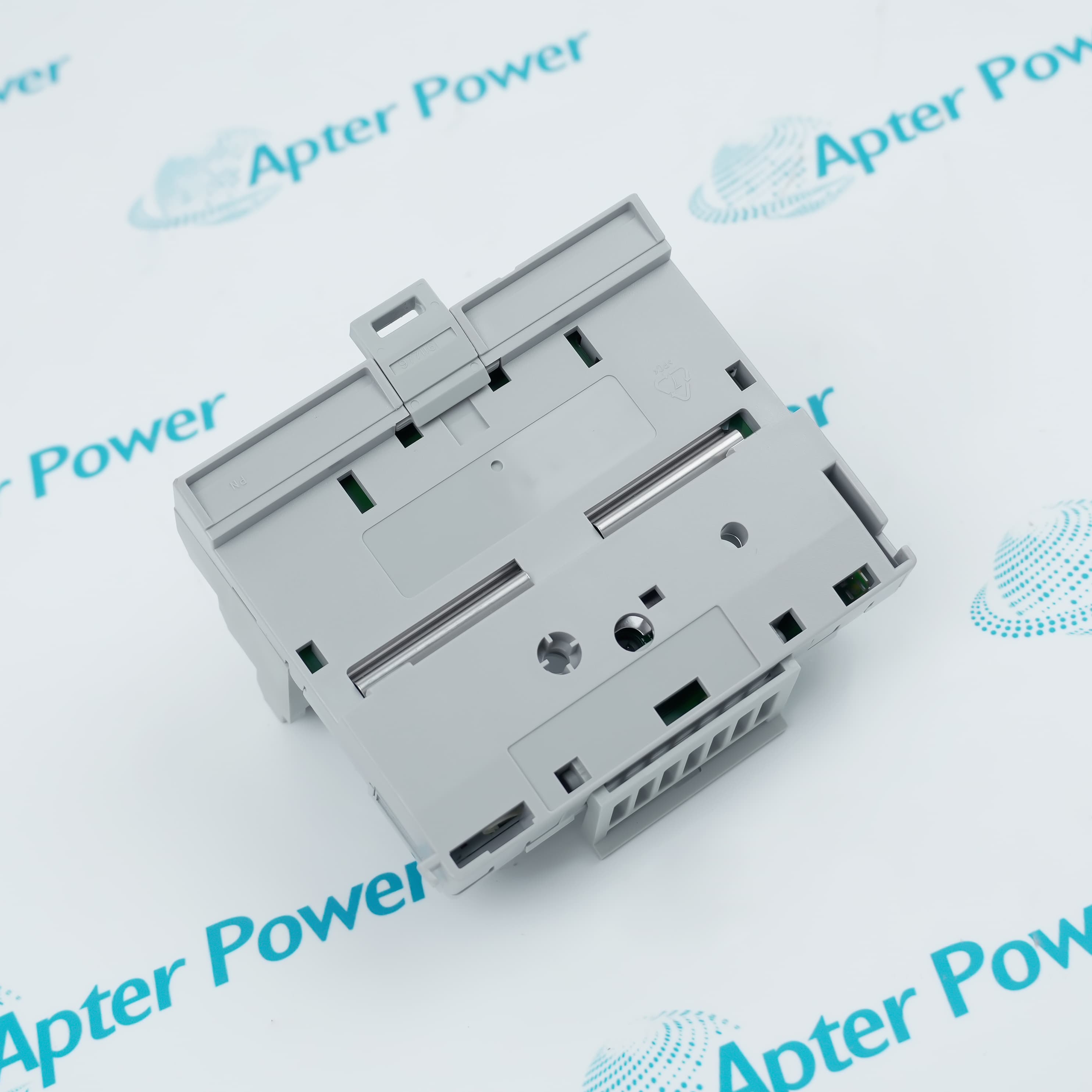

Allen-Bradley 1794-TB3 is a three-wire cage-clamp FLEX I/O terminal base with 16 I/O, 18 common, and 18 +V connections.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1794-TB3
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1794-TB3

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1794-TB3
  • Product Family:
    Flex I/O
  • Product Type:
    Three-Wire Cage-Clamp Terminal Base
  • Stock:
    1
  • Termination type:
    Cage clamp
  • I/O connections:
    16
  • Common terminals:
    18
  • Application voltage:
    Up to 125 V AC/DC
  • Maximum V/COM current:
    10 A
  • Maximum I/O-terminal current:
    2 A
  • Wiring category:
    2, 3, or 4
  • Primary documented use:
    Three-wire input proximity switches; also usable with output modules
  • Terminal screw torque:
    0.56...0.79 N·m
  • Wire size:
    0.34...3.3 mm² solid or stranded copper, 75 °C or greater
  • Wire strip length:
    5...6 mm
  • Isolation capability:
    125 V continuous maximum, field terminals to FLEXBUS, or installed-module limit
  • Installed base/module dimensions:
    9.4 × 9.4 × 6.9 cm height × width × depth
  • Operating temperature:
    -20...70 °C
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Connections Ratings Installation Application
  • The cage-clamp base provides 16 I/O, 18 common, and 18 +V connections
  • It is primarily intended for input modules using three-wire proximity switches
  • The 1794-TB3 can also terminate compatible FLEX I/O output modules

1794-TB3 is an Allen-Bradley FLEX I/O three-wire cage-clamp terminal base for field wiring and module connection.

The base provides sixteen I/O connections, eighteen common terminals, and eighteen +V terminals for applications up to 125 V AC/DC, with primary use in three-wire proximity-input arrangements and support for compatible output modules.

Before installation or replacement, verify Series A, the installed FLEX I/O module, keyswitch position, field voltage, terminal current, wire size, strip length, screw torque, DIN-rail assembly, and the original terminal map.

Availability, condition, price, and shipping time for 1794-TB3 are confirmed during quotation.

Allen-Bradley 1794-TB3 Three-Wire Cage-Clamp Terminal Base Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The terminal base provides sixteen I/O connection points
  • Eighteen common terminals are available for three-wire field-device returns
  • Eighteen positive-voltage terminals are available for field-device supply distribution
  • The documented application range extends to 125 volts AC or DC
  • V and COM terminals are rated for 10 amperes maximum
  • Individual I/O terminals are rated for 2 amperes maximum
  • Cage-clamp terminals accept 0.34 to 3.3 square millimetre copper conductors
  • The documented strip length is 5 to 6 millimetres
  • Terminal screw torque is 0.56 to 0.79 newton-metres
  • Three-wire input proximity-switch termination in FLEX I/O stations
  • Field termination for compatible FLEX I/O output modules
  • Distributed FLEX I/O installations requiring 16 signal, 18 common, and 18 +V connection points
Description
1794-TB3 is an Allen-Bradley FLEX I/O three-wire cage-clamp terminal base for distributed-I/O field wiring.

It provides sixteen I/O, eighteen common, and eighteen +V connections for applications up to 125 V AC/DC and is intended primarily for three-wire proximity inputs while also supporting compatible output modules.

Before installation or replacement, confirm the complete catalog number, Series A base, installed module, keyswitch, voltage, current, wire size, strip length, torque, DIN-rail fit, and recorded terminal assignments.
Revisions

Revision Part #

Also known as

1794-TB3 Ser A
1794-TB3/A, Series A, Rev A
Alternative Names
1794-TB3 1794TB3 1794 TB3 Allen-Bradley 1794-TB3 Rockwell Automation 1794-TB3 AB 1794-TB3 FLEX I/O 1794-TB3
Technical notes
1794-TB3 is the standard cage-clamp three-wire base, not the spring-clamp or conformally coated variant; verify Series A, module compatibility, keyswitch, 125 V limit, terminal current, wiring, and torque.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can an I/O module be replaced without removing field wiring from Allen-Bradley 1794-TB3?
Yes. The FLEX I/O module can be removed from the terminal base while the field wiring remains terminated on 1794-TB3. Follow the published power and hazardous-location precautions before removal.
How should Allen-Bradley 1794-TB3 be secured on a DIN rail?
Mount it on the specified DIN rail and install 1492-EA35 end anchors at both ends of the FLEX I/O assembly to prevent lateral movement.
Which terminals are used to continue field power through Allen-Bradley 1794-TB3?
Use terminals C-34 and B-16 for incoming field power and terminals C-51 and B-33 to continue the corresponding supply to the next terminal base, following the module wiring diagram.
Should analog and digital FLEX I/O modules share one field supply on Allen-Bradley 1794-TB3?
Use separate power supplies when required by the installed modules and noise-control design. Confirm each module's wiring diagram, commons, grounding, and isolation before grouping supplies.
How is the keyswitch on Allen-Bradley 1794-TB3 set?
Rotate the terminal-base keyswitch to the position specified for the exact FLEX I/O module before installing the module. An incorrect position prevents the intended module from seating correctly.
What should be checked before adding Allen-Bradley 1794-TB3 to an existing FLEX I/O assembly?
Verify terminal-base compatibility, adapter capacity, FLEXBus current, field-power grouping, key position, DIN-rail space, and the wiring assignments of the adjacent base.
What enclosure protection is required for Allen-Bradley 1794-TB3 in Zone 2 installations?
Install the assembly in an enclosure that meets the applicable hazardous-location requirements; Rockwell instructions specify at least IP54 protection for ATEX Zone 2 use.
