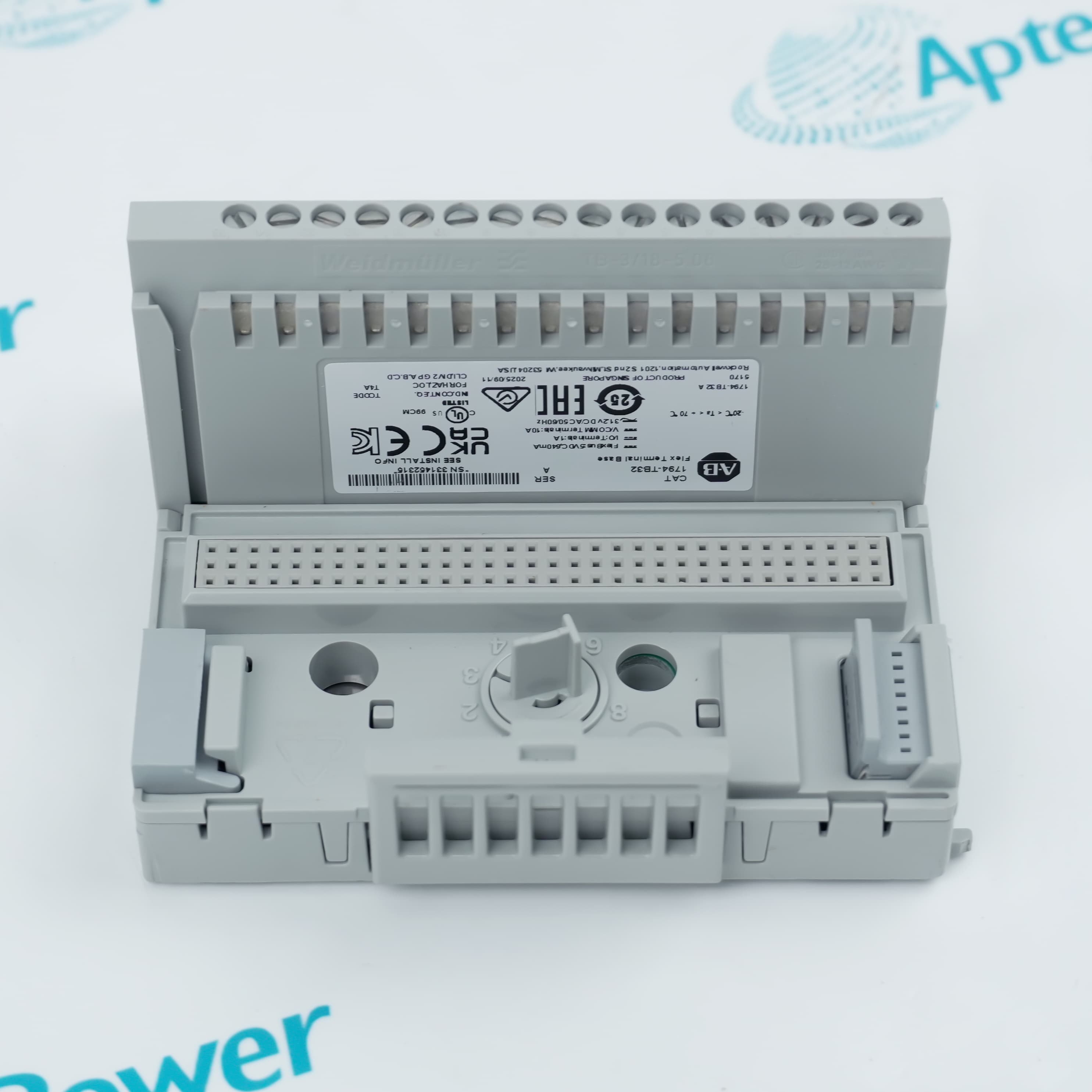

Allen-Bradley 1794-TB32 is a Series A FLEX I/O cage-clamp terminal base for 32-point modules with two field-power groups.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1794-TB32
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1794-TB32

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1794-TB32
  • Product Family:
    Flex I/O
  • Product Type:
    32-Point Cage-Clamp Terminal Base
  • Stock:
    1
  • Signal terminals:
    Inputs/outputs 0...31
  • Field-power groups:
    Two: +V1/COM1 and +V2/COM2
  • V/COM rating:
    31.2 V DC/AC, 50/60 Hz, 10 A
  • Isolation capability:
    50 V continuous maximum, field wiring to FLEXBUS, or the lower installed-module limit
  • Wire size:
    0.21...1.3 mm2 stranded copper, 24...16 AWG, 105 °C or greater
  • Terminal screw torque:
    0.56...0.79 N m
  • Operating temperature:
    -20...70 °C
  • Storage temperature:
    -40...85 °C
  • Relative humidity:
    5...95%, noncondensing
  • Dimensions:
    9.4 x 9.4 x 6.9 cm
  • Tariff Code:
    8536901100
  • Country of origin:
    Singapore
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Terminal Layout Electrical Ratings Installation Application
  • Provides 32 signal terminals for compatible high-density FLEX I/O modules
  • Separates field power into +V1/COM1 and +V2/COM2 terminal groups
  • Uses cage-clamp terminals for 24...16 AWG stranded copper conductors

1794-TB32 is an Allen-Bradley FLEX I/O cage-clamp terminal base for compatible 32-point modules.

It provides signal terminals 0 through 31, two field-power groups, a 31.2 V DC/AC V/COM rating, and a 10 A terminal-base current rating.

Before installation or replacement, verify Series A, the installed module catalog number, terminal-group wiring, field voltage, conductor size, screw torque, DIN-rail assembly, and the recorded terminal map.

Availability, condition, price, and shipping time for 1794-TB32 are confirmed during quotation.

Allen-Bradley 1794-TB32 32-Point Cage-Clamp Terminal Base Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

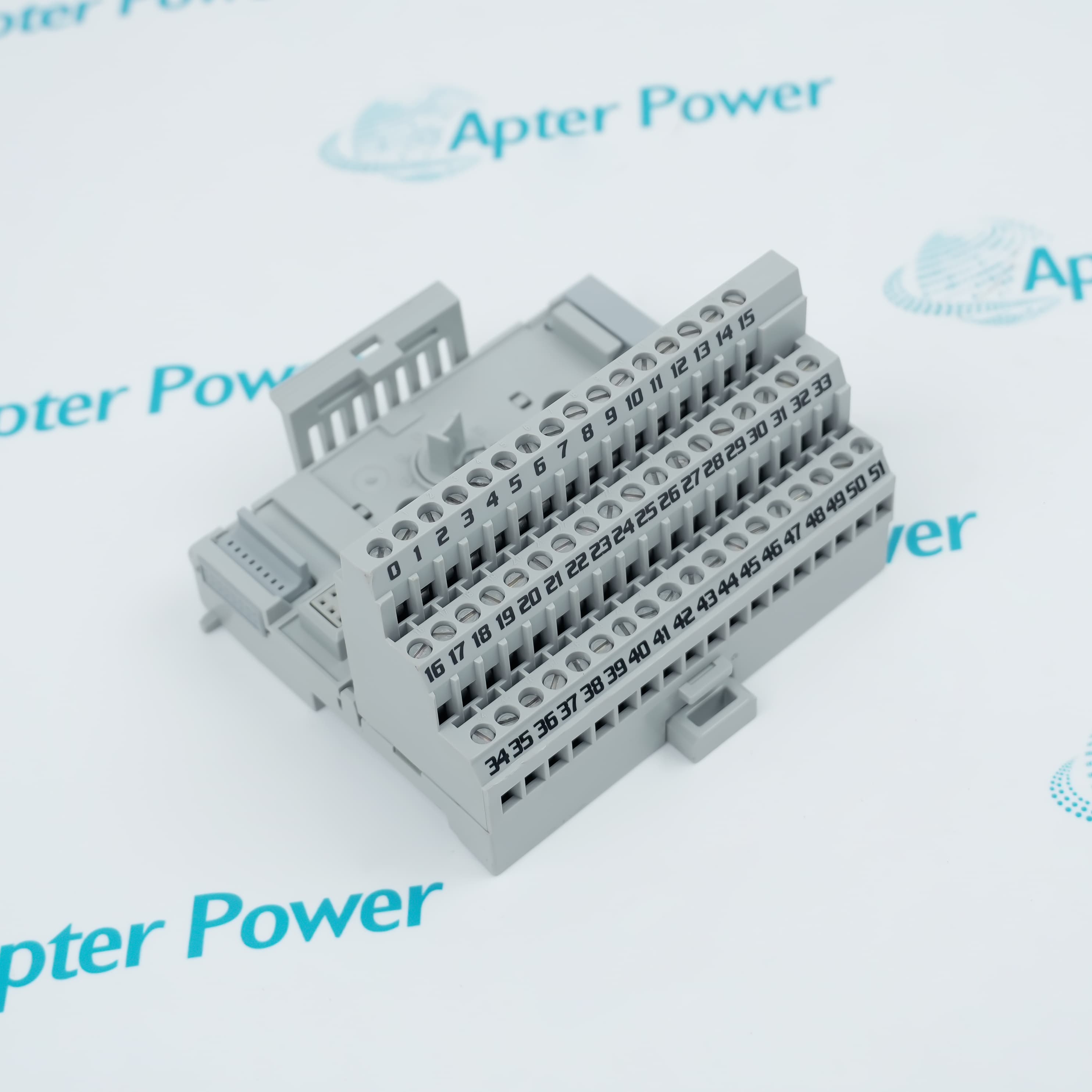

  • Signal connections are identified as inputs or outputs 0 through 31
  • +V1 uses terminals 35, 37, 39, and 41 while COM1 uses terminals 36, 38, 40, and 42
  • +V2 uses terminals 43, 45, 47, and 49 while COM2 uses terminals 44, 46, 48, and 50
  • V and COM terminals are rated 31.2 volts DC or AC at 50 or 60 hertz
  • The terminal base current rating is 10 amperes
  • Isolation capability is 50 volts continuous maximum or the lower rating of the installed module
  • Cage-clamp terminals accept 0.21 to 1.3 square millimetre stranded copper conductors
  • Specified conductors are 24 to 16 AWG and rated 105 degrees Celsius or greater
  • Terminal screw torque is 0.56 to 0.79 newton-metres
  • Field termination for the FLEX I/O 1794-IV32 sourcing input module
  • Field termination for the FLEX I/O 1794-OB32P sourcing output module
  • Field termination for the FLEX I/O 1794-IB16XOB16P combination module
Description

1794-TB32 is an Allen-Bradley FLEX I/O 32-point cage-clamp terminal base for high-density distributed-I/O modules.

The base provides signal terminals 0 through 31, two separate +V/COM field-power groups, a 31.2 V DC/AC rating, and cage-clamp termination for 24...16 AWG stranded copper conductors.

Before installation or replacement, confirm the complete catalog number, Series A hardware, compatible FLEX I/O module, terminal map, field voltage, current, conductor rating, torque, DIN-rail fit, and enclosure.

Revisions

Revision Part #

Also known as

1794-TB32 Ser A
1794-TB32/A, Series A, Rev A
Alternative Names
1794-TB32 1794TB32 1794 TB32 Allen-Bradley 1794-TB32 Rockwell Automation 1794-TB32 AB 1794-TB32 FLEX I/O 1794-TB32
Technical notes
1794-TB32 is the 32-point cage-clamp terminal base; verify Series A, compatible module catalog number, power-group separation, 31.2 V rating, 10 A limit, conductor specification, terminal torque, and enclosure before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can I confirm that an I/O module fits Allen-Bradley 1794-TB32?
Check the exact FLEX I/O module installation instructions for 1794-TB32 compatibility and the required keyswitch position; not every FLEX I/O module uses this terminal base.
Which DIN rail is specified for Allen-Bradley 1794-TB32?
Use a 35 × 7.5 mm DIN rail, such as Allen-Bradley 199-DR1, installed on a properly grounded mounting surface.
How should a row of Allen-Bradley 1794-TB32 bases be secured?
Install 1492-EA35 end anchors at both ends of the FLEX I/O assembly so the connected terminal bases cannot slide along the DIN rail.
Why must the keyswitch be set before installing a module on Allen-Bradley 1794-TB32?
The keyswitch mechanically matches the terminal base to the intended I/O module. Set it to the position published for the exact module before seating the module.
Which Allen-Bradley 1794-TB32 terminals are reserved rather than field-wiring points?
Terminals 16, 33, 34, and 51 are reserved in the documented terminal arrangement. Follow the exact module wiring diagram before assigning any conductor.
Can the I/O module be removed while field wiring remains on Allen-Bradley 1794-TB32?
Yes. The removable FLEX I/O module separates from the terminal base, allowing field wiring to remain terminated. Observe the published power and hazardous-location precautions.
What enclosure is required for Allen-Bradley 1794-TB32 in Zone 2 service?
For ATEX Zone 2 applications, install the assembly in a suitable enclosure providing at least IP54 protection and meeting the applicable installation requirements.
